Mô-đun giảm áp đầu ra 5V USB DC 7V-24V - 5V 3A KIS3R33S KIS-3R33S

Giới thiệu Mô-đun giảm áp đầu ra 5V USB DC 7V-24V - 5V 3A KIS3R33S KIS-3R33S

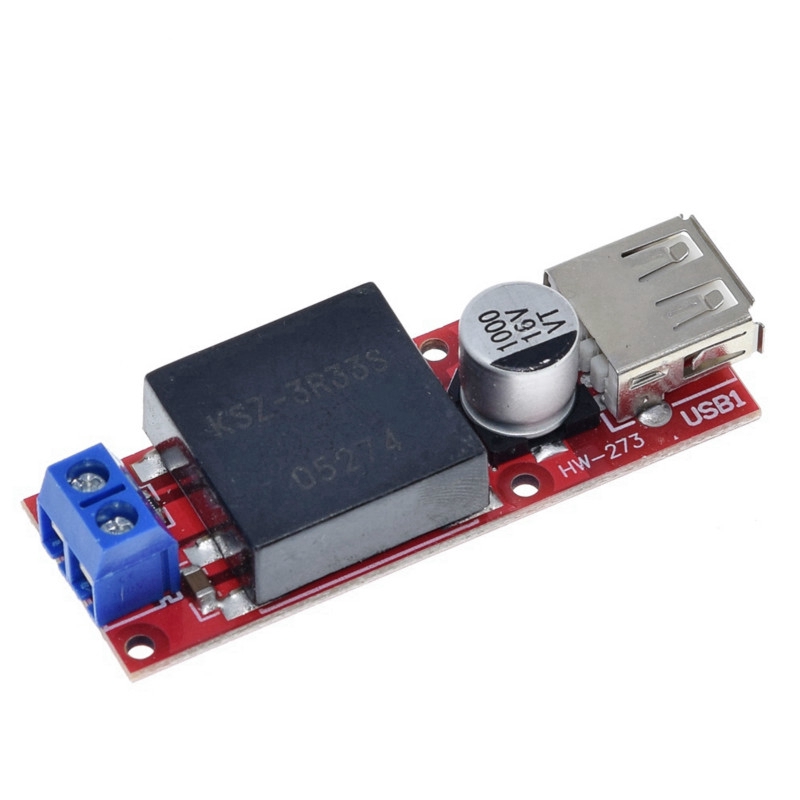

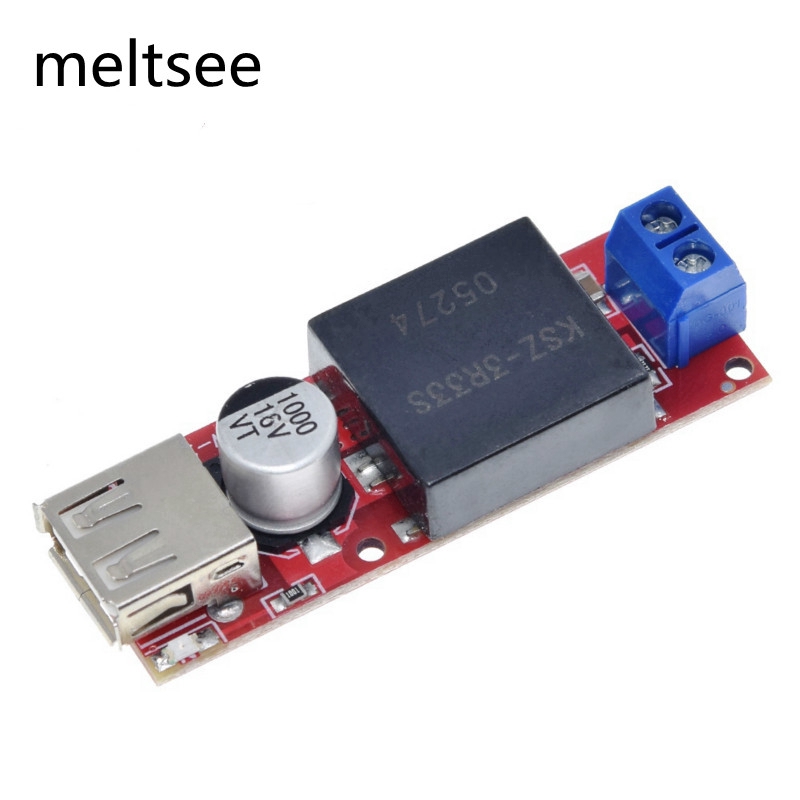

5V USB Output Converter DC 7V-24V To 5V 3A Step-Down Buck KIS3R33S Module KIS-3R33S

Features:
DIY Mobile Power Supply, 5V output for charging Phone, MP3, MP4, PSP, etc
Modules nature: non-isolated Buck
With Overcurrent Protection
Rectification: Non-synchronous rectification

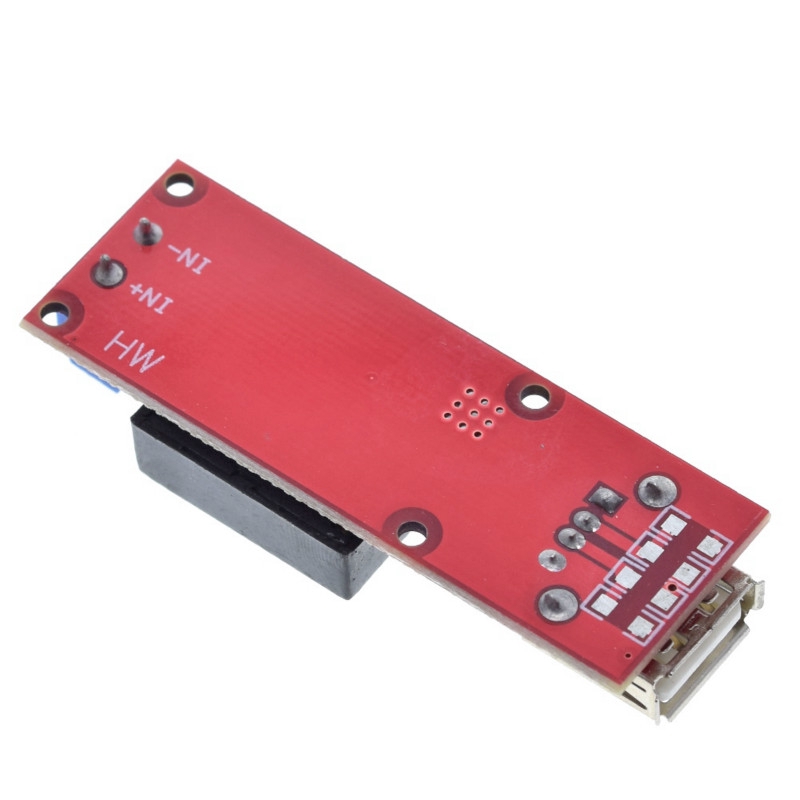

Note: Please connect right as the printed : N-,IN+,OUT-,OUT+ ,or else the Module will be burned

Specifications:
Input voltage: DC 7- 24V
Output voltage: DC 5V
Output current: 3A (max)
Conversion efficiency: 96% (MAX)
Switching frequency: 340KHz
Output ripple: 30mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating Temperature: -40 °to +85 °

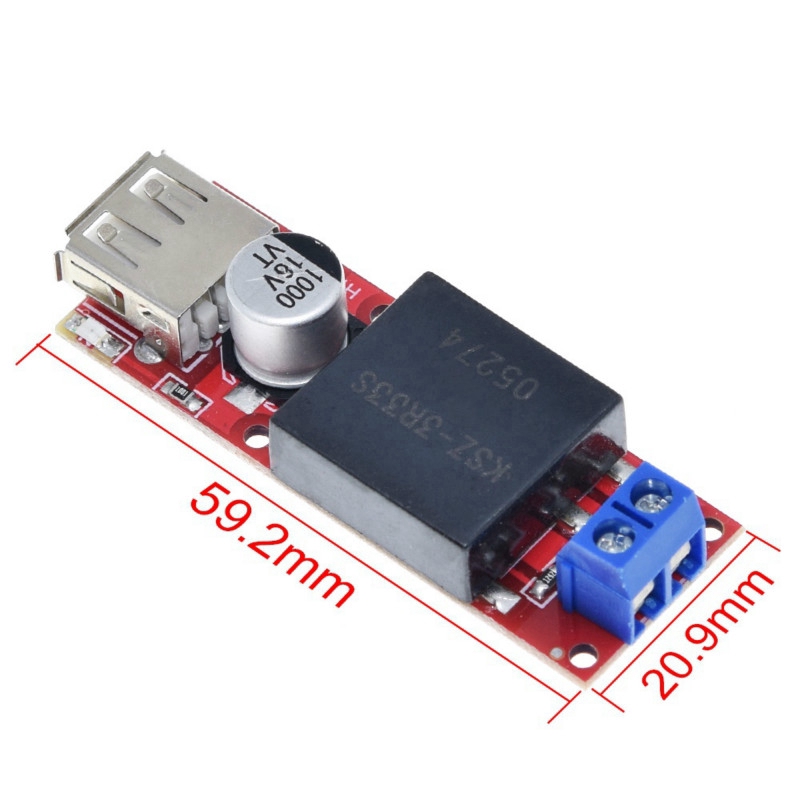

Size: 6.2 x 2.1 x 1 cm
Net weight:14 g
Color:As shown in the pictures


Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.Use the vouchers for more saving.

Shipment：
1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment.
2.If you have not received the item after 15 days shipment,Please contact us.

After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or vide



#5V #USB #Output #Converter #DC #7V-24V #To #5V #3A #Step-#Down #Buck #KIS3R33S #Module #KIS-3R33S #24V

Hình ảnh sản phẩm
