Mô đun giảm áp xl4005 dsn5000 beyond LM2596 DC-DC

Giới thiệu Mô đun giảm áp xl4005 dsn5000 beyond LM2596 DC-DC

Welcome to our shop 👑Kingzizi👑, all the products in this shop are at a favorable price💕, and have quality assurance💕, you can rest assured to buy💕, we will give you the best and highest quality shopping experience! 🌹🌹🌹

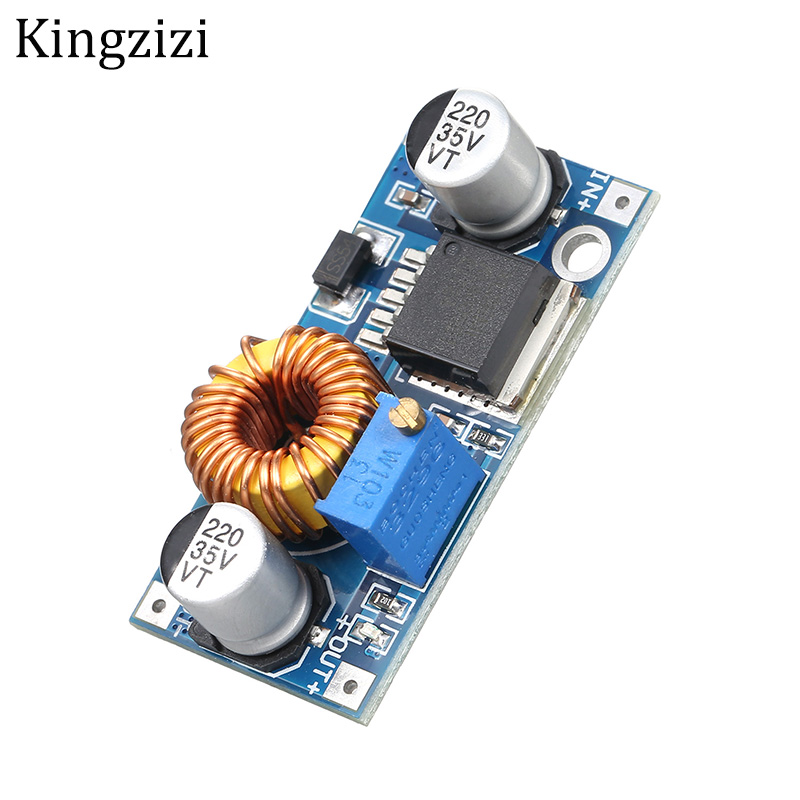

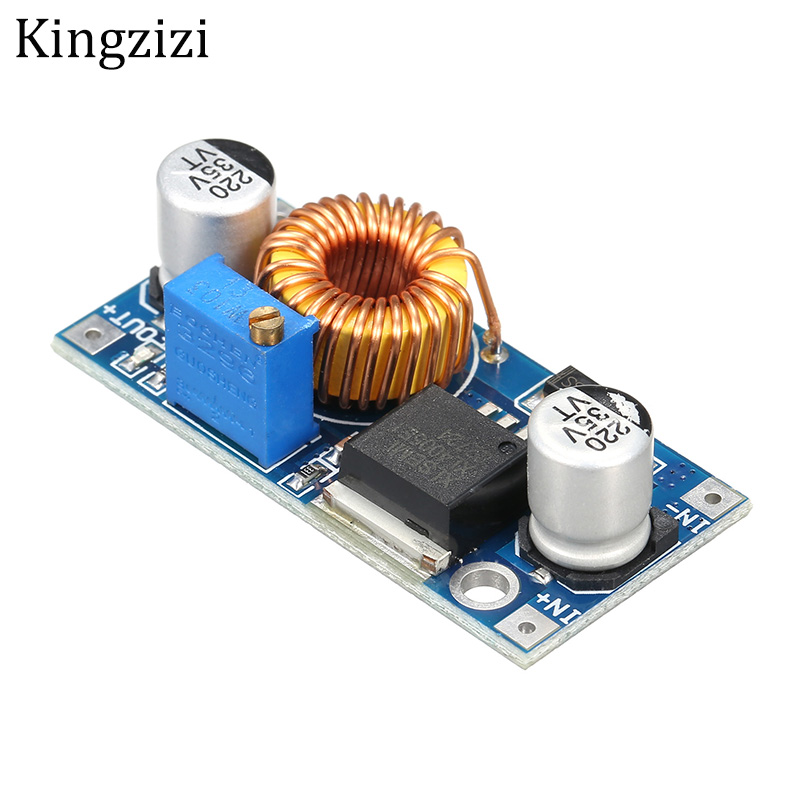

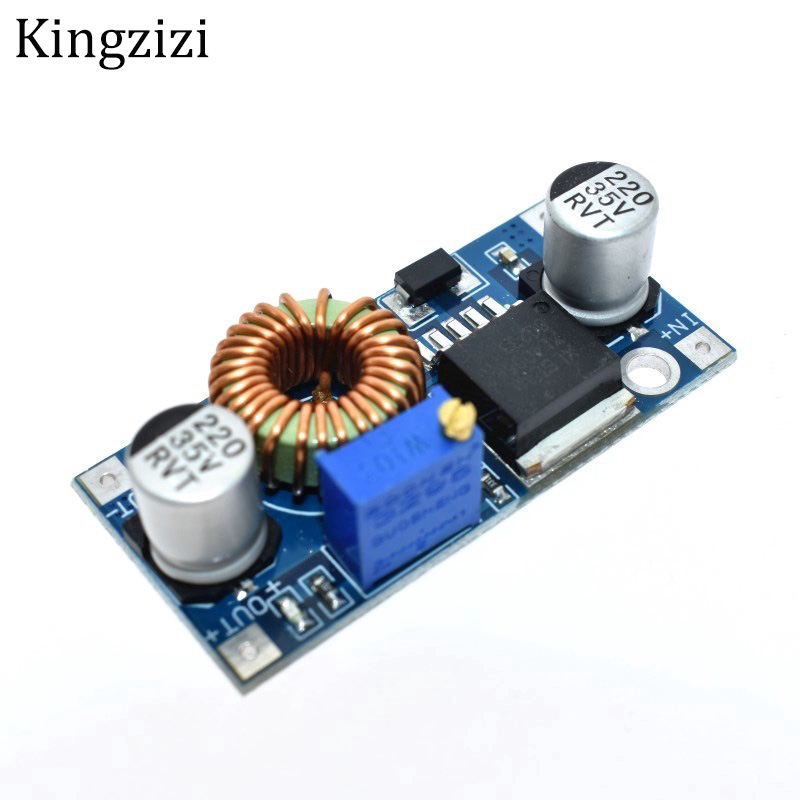

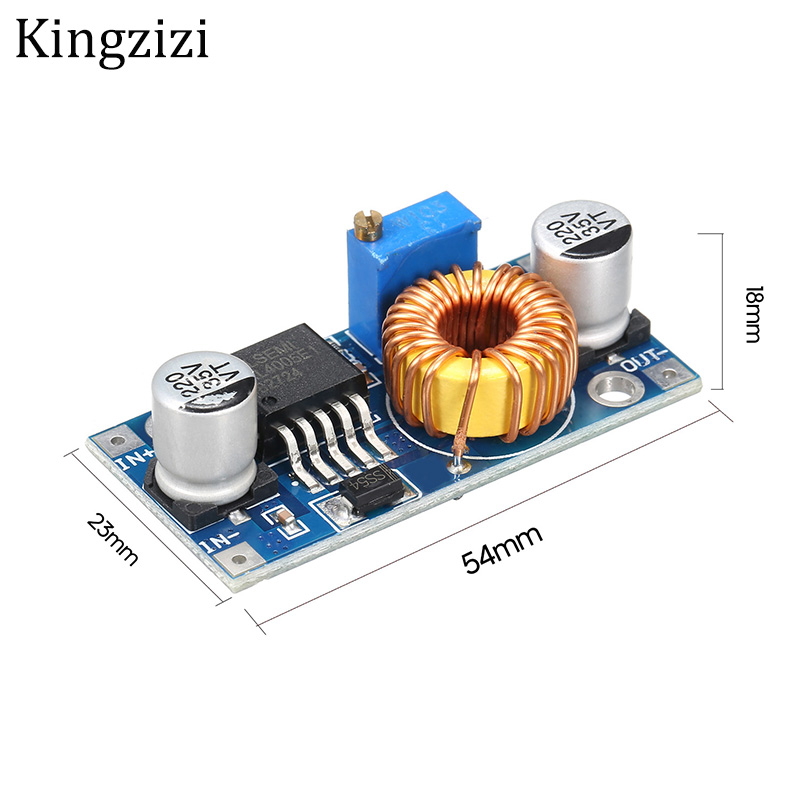

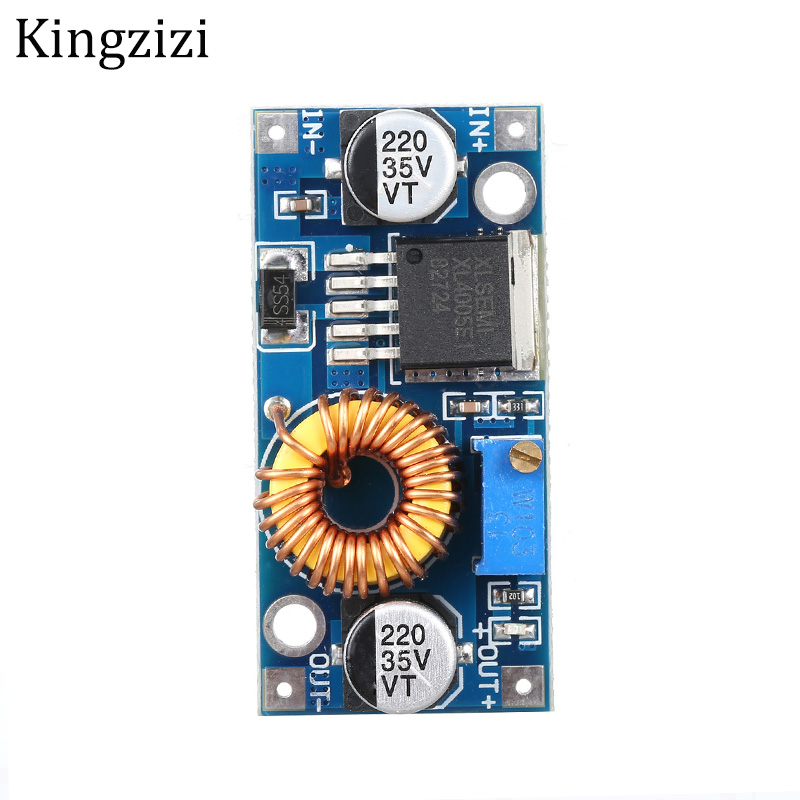

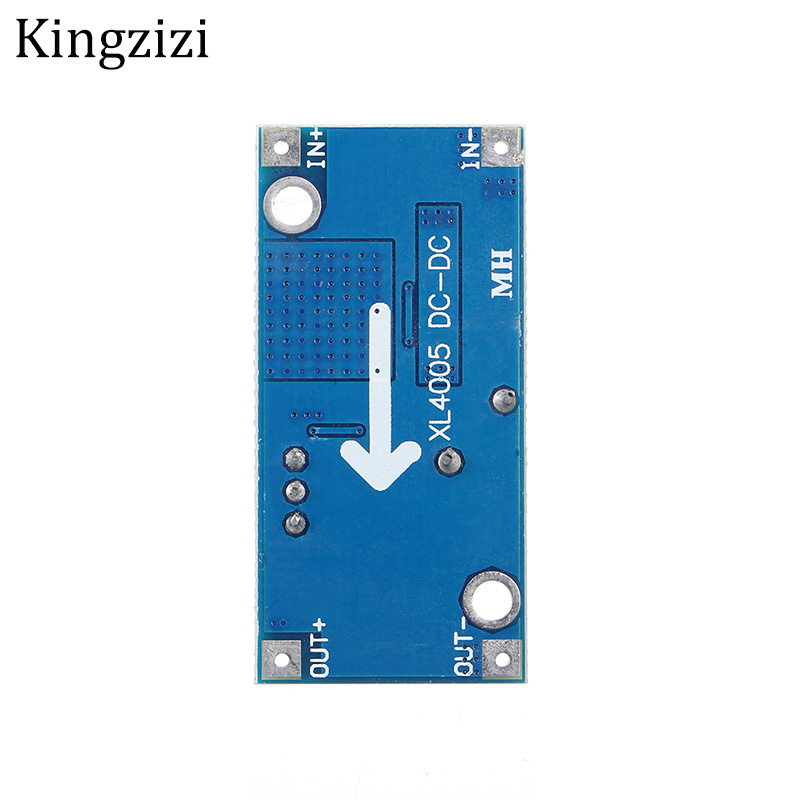

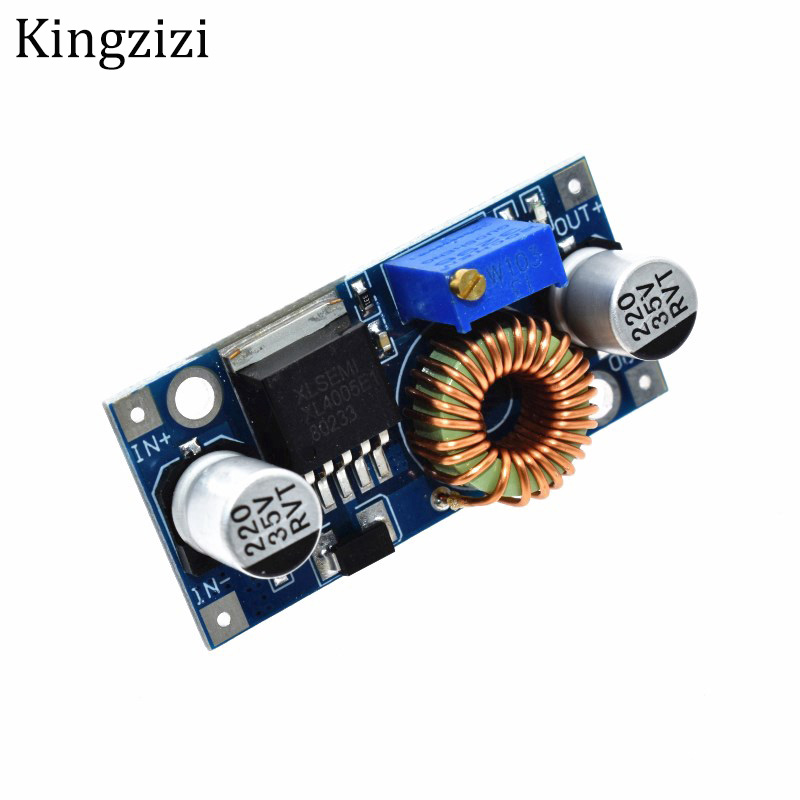

XL4005 DC-DC adjustable step-down 5A 75W power Supply module Large current Large power Beyond LM2596

Properties: non-isolated step-down module (BUCK)

Input voltage: 4-35V (input please try not to exceed 38V)

Output voltage: 1.25-32V continuously adjustable

Output Current: 0-5A, recommended in 4.5A.

Output Power: 75W recommendations in the use of more than 50W, please add heat sink.

Operating temperature: -40 to + 85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 96% (efficiency of input and output voltage, current, pressure related)

Load regulation: S (I) ≤0.8%

Voltage Regulation: S (u) ≤0.8%

Power Indicator: YES

Short circuit protection: YES (limit current 8A)

Overtemperature protection: (automatically shut off the output after overtemperature)

Input Reverse Polarity Protection: None (if necessary please enter the string into the high current diode)

Installation: 2 3mm screws

Connection: Welding, V-IN is the input, V-OUT output
