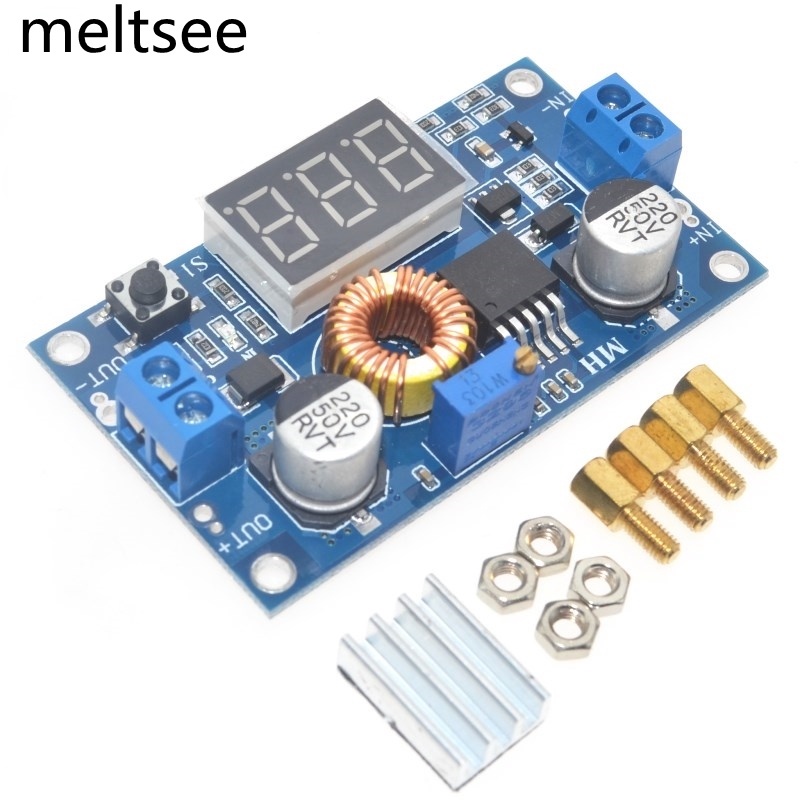

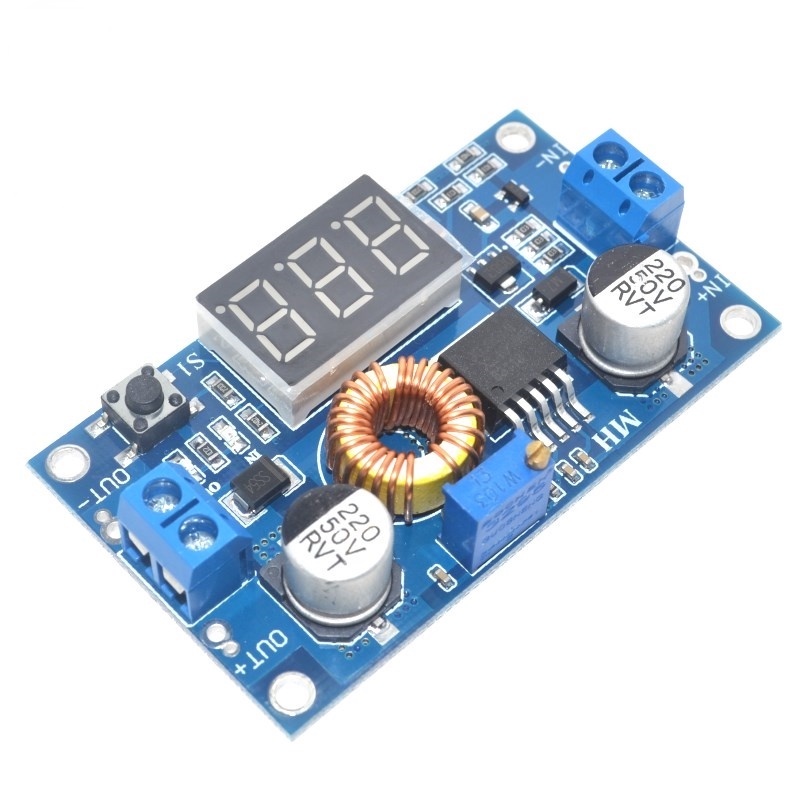

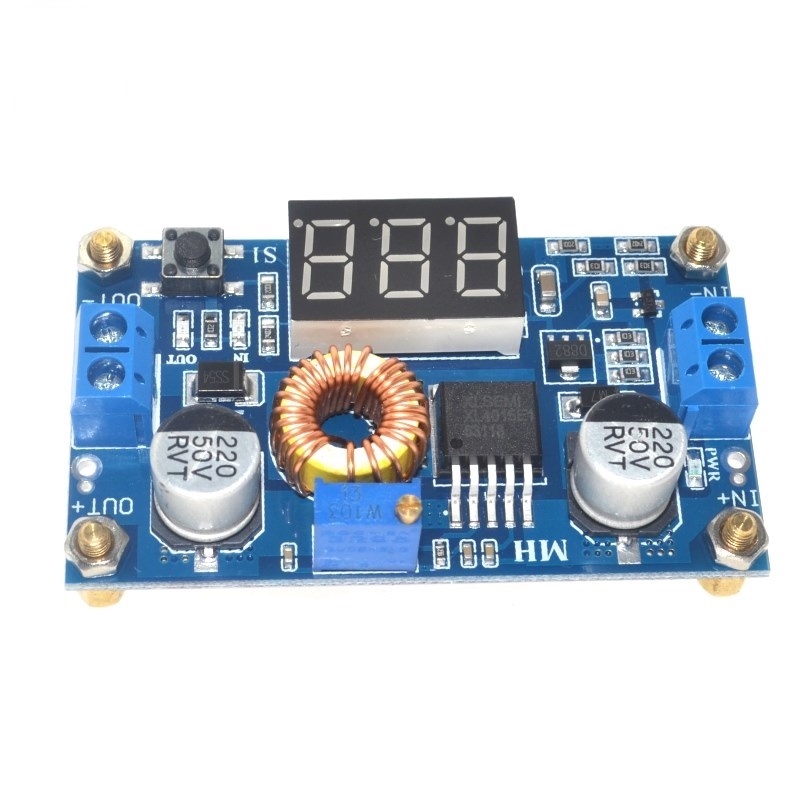

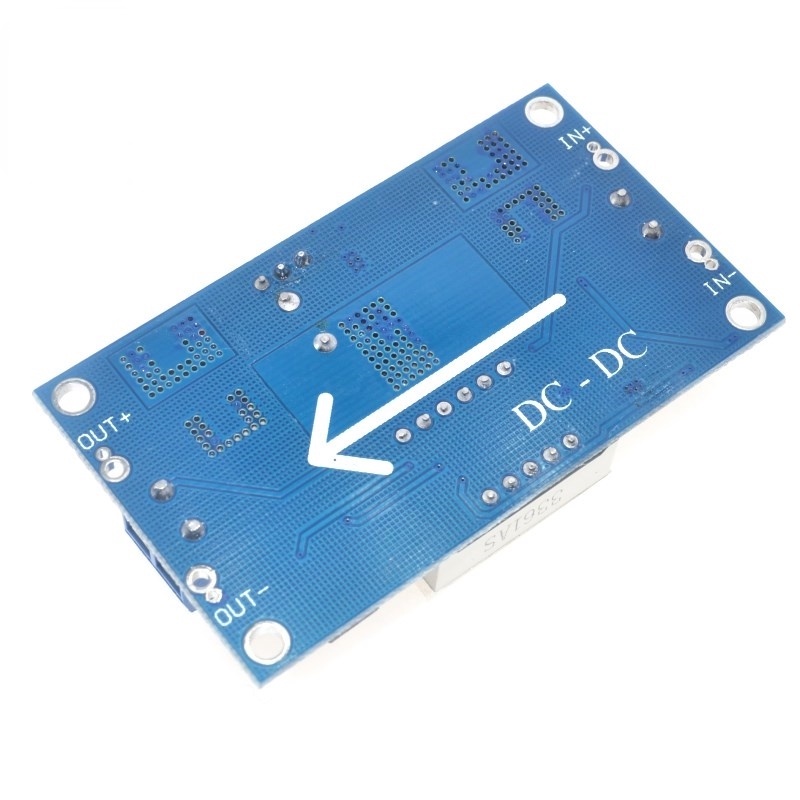

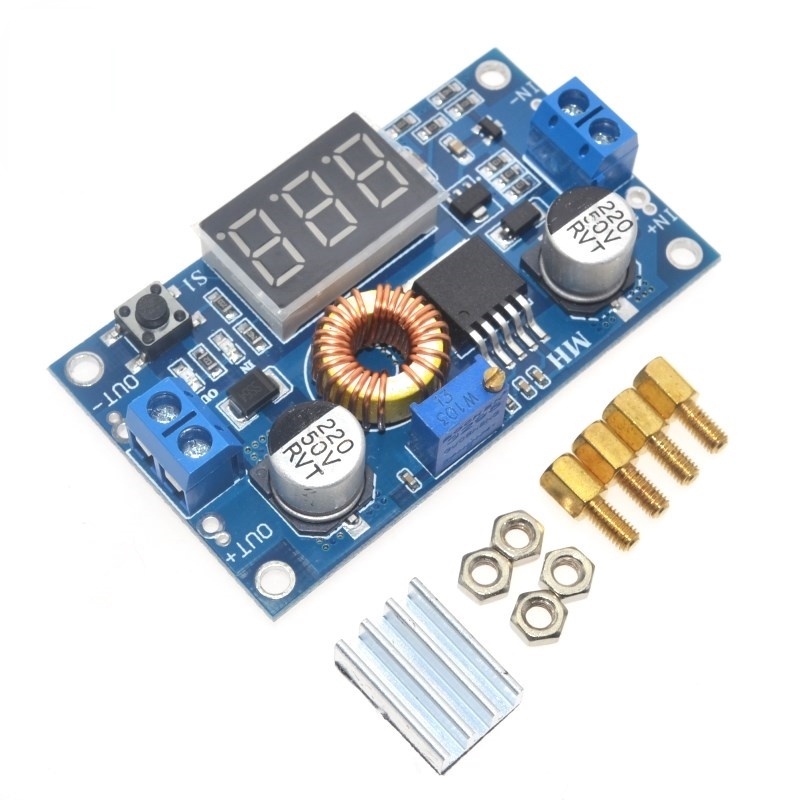

Mô đun hạ áp 5A 75W XL4015 từ 4.0-38V xuống 1.25V-36V

Giới thiệu Mô đun hạ áp 5A 75W XL4015 từ 4.0-38V xuống 1.25V-36V

5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module 4.0-38V to 1.25V-36V DIY Adjustable Power Supply

Module performance and characteristics：

Module Properties: 5A High Power 75W DC-DC adjustable step-down module
Input voltage: DC 4.0 ~ 38V
Output voltage: DC 1.25V ~ 36V continuously adjustable ( the input voltage must be higher than the output voltage 1.5V )
Output current: max 5A, recommended for use in the 4.5A.
Output power: up to 75W, more than 50W, Please enhance heat dissipation
Voltmeter error: ± 0.05V
Measure range: 0 ~ 40V ( please ensure that the input voltage is 4.5V or more)
Conversion efficiency: up to 96%
Load regulation: S (I) ≤ 0.8%
Voltage Regulation: S (u) ≤ 0.8%

Module usage tutorial:

1. The input and output voltage measurement error is more accurate: press and hold the switch for more than 4 seconds, and the voltage measurement error comparison function is entered after releasing the hand. At this time, the IN light is on (calibrating the input end), and the digital tube flashes to display a more positive value (the factory parameter is 0.0 ), At this moment, press this button to change this value (the value range is -0.5 ～ 0.5, the unit is V), positive number means upward calibration, negative number means downward calibration. After adjusting the calibration value of the input terminal, press and hold the button for more than 2 seconds, and enter the error calibration of the output terminal after releasing. At this time, the OUT light is on (calibrating the output terminal), and the calibration value of the output terminal is displayed. The adjustment method is the same as that of the input terminal. After the calibration value at the output end, press and hold the button for more than 2 seconds, and save the set value and return to the normal display voltage after letting go, the set correction value will take effect immediately and will not be lost after power failure. (With this function, you can meet your higher accuracy requirements)

2. Turn off the voltmeter: long press the switch for more than 1 second and less than 4 seconds, you can turn it off with a loose hand. After the voltmeter is turned off, just press the switch briefly to turn on the voltmeter.

Package Included:
1pcs * 5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module
