Mô đun hạ áp HVS 4.5-48V LM2596 sang 3-35V DC-DC

Giới thiệu Mô đun hạ áp HVS 4.5-48V LM2596 sang 3-35V DC-DC

Module parameters:
Volume length 40*width 21.5*height 13.5mm (including potentiometer).
Input mode: IN+ input positive level, IN- input negative
Output mode: OUT+ positive output, OUT- negative output
Input voltage: 4.5-48V,
Adjustment method: first connect the input power correctly (between 4.5-48V), then use a multimeter to monitor the output voltage and adjust the potentiometer (generally turn the boost clockwise, reverse the step-down voltage),
Output voltage: (3-35V) continuously adjustable (recommended no-load debugging).
Differential pressure: 1.5V
Output current: rated current 2A, 3A
Output power: 15W
Conversion efficiency: 92% (the higher the output voltage, the higher the efficiency)
The static power consumption is only about 6mA.
Wiring method: soldering, after adding pins, it can be directly soldered on the PCB.
Working temperature: industrial grade (-40℃ to +85℃)
Load adjustment rate: ±1%
Voltage regulation rate: ±0.5% (In order to reach the no-load output voltage will be higher, but as long as there is 1MA load, the output voltage will be normal, without affecting the function, please rest assured to use.)
Short circuit protection: current limit, overheat protection, self-recovery.

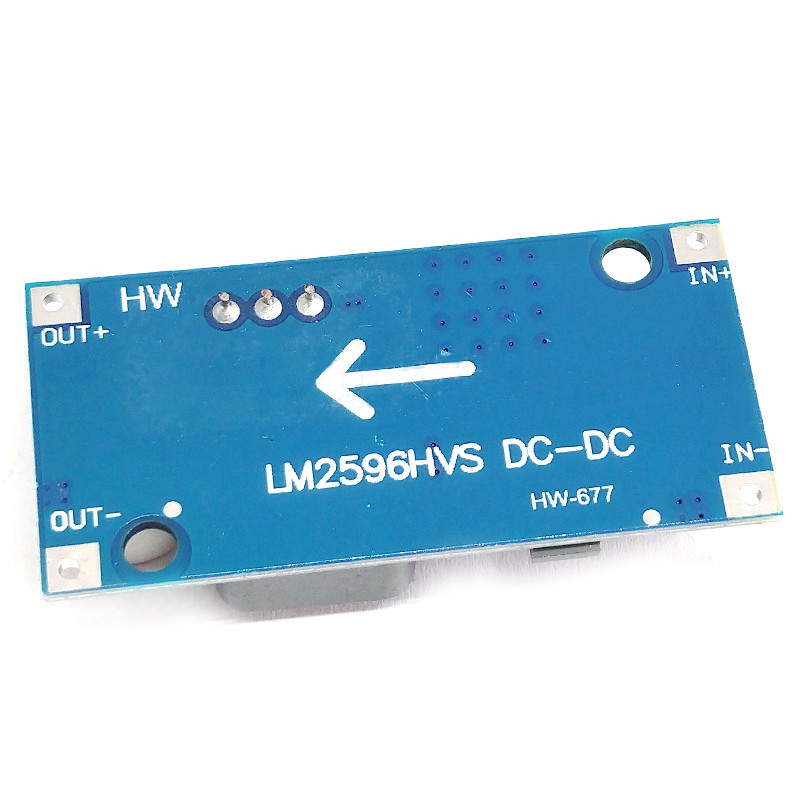

Hình ảnh sản phẩm
