Mô Đun Hẹn Giờ Màn Hình LED 12V 24V DC 12V Chuyên Dụng

Giới thiệu Mô Đun Hẹn Giờ Màn Hình LED 12V 24V DC 12V Chuyên Dụng

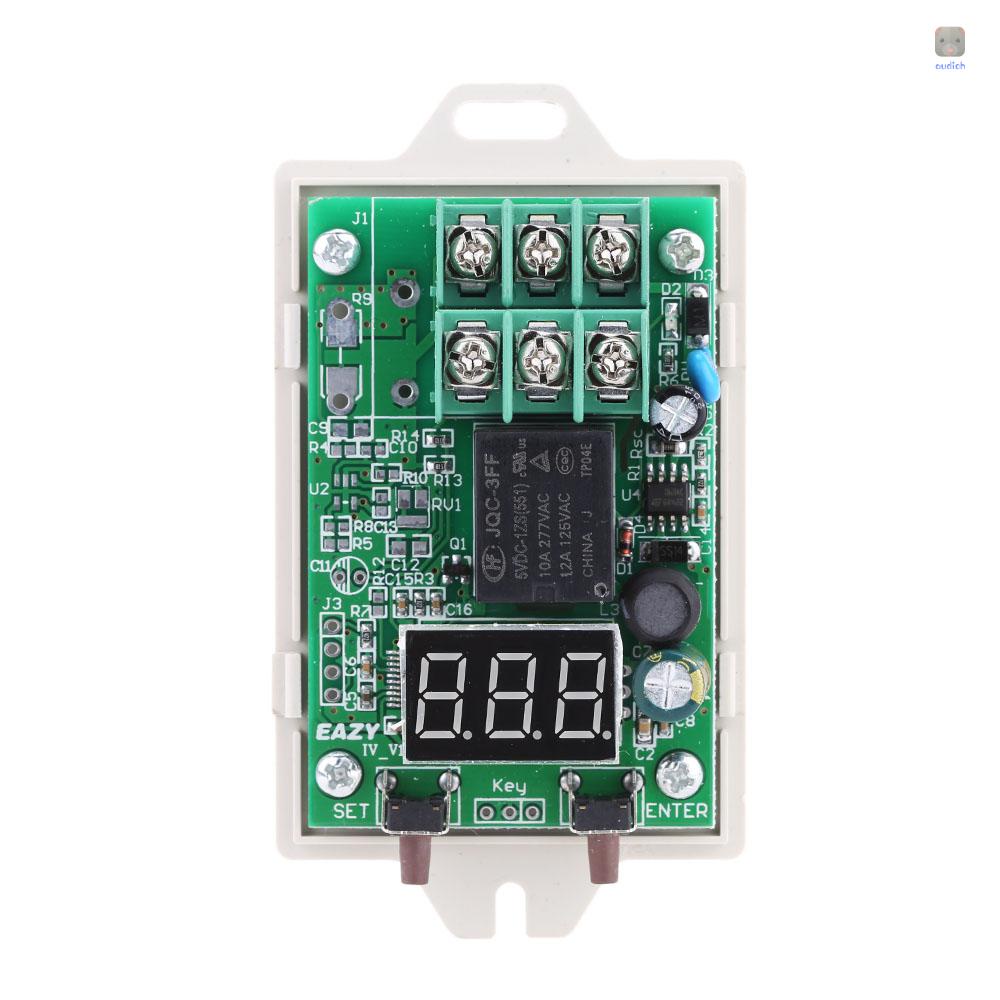

This controller, with LED digital display, adopts high-quality components and fully automatic SMT process for good performance. It has 1 voltage detection channel and a set of relay switch output(normally open and normally closed).



Features:

LED digital display, mounting boss on the case, convenient and simple for user's needs.

Procedures for intelligent control, realize over-voltage/under-voltage function.

Wide range of working power: DC 8-35V; the voltage detection range is DC 0-99.9V.

Adjustable input voltage detection sensitivity: 0.1-0.9s.

The relay output timing range is 0-999s.

To ensure stability, use industrial grade PCB board.

Working Modes Selection:

P-1: Delay Setting(set the delay time and pull time);

P-2: Voltage Detection Control(detect the voltage to control the relay operation, initial release);

P-3: Voltage Detection Control(detect the voltage to control the relay operation, initial pull);

P-4: Over-voltage/under-voltage Control(voltage limit alarm).



Specifications:

Operating Power: DC 8-35V

Voltage Detection Range: 0-99.9V ±0.1V

Detection Sensitivity: 0.1-0.9s

Timing Range: 0-999s

Contract Load: 10A/277V AC  10A/30V DC

Contract Resistance: ≤100mΩ（1A 6V DC）

Machanical Durability: >10 millions

Electricity Durability: >100,000 (10A-250V AC)

Standby Current: 15mA/12V

Min. Current(Close the Nixie Tube): 6mA/12V

Relay Pull-in Current: 45mA/12V

Operating Temperature: -40~85°C

Dimension: 78 * 53 * 30mm / 3.07 * 2.08 * 1.18in

Weight: 74g / 2.61oz



Package List:

1 * Time Relay Module
