Mô Đun Ic 4 Kênh Tlp281 4 Kênh Chuyên Dụng Cho Arduino

Giới thiệu Mô Đun Ic 4 Kênh Tlp281 4 Kênh Chuyên Dụng Cho Arduino

TLP281 4 CH 4-Channel Opto-isolator IC Module For Arduino Expansion Board High And Low Level Optocoupler Isolation 4 Channel

Description:

This board is helpful for connecting digital systems (like a 5V microcontroller) to a high-voltage or noisy system. This board electrically isolates a controller from the high-power system by use of an opto-isolator IC.
This IC has four LEDs and four photodiodes built-in.
This allows the low-voltage side to control a high voltage side
We often use this board to allow a microcontroller control servos
or other motors that use a higher voltage than the TTL logic on the (3.3V or 5V) micro,
and may cause electromagnetic interferance with our system as the motors turn on and off.
This board will isolate the systems, creating a type of electrical noise barrier between devices

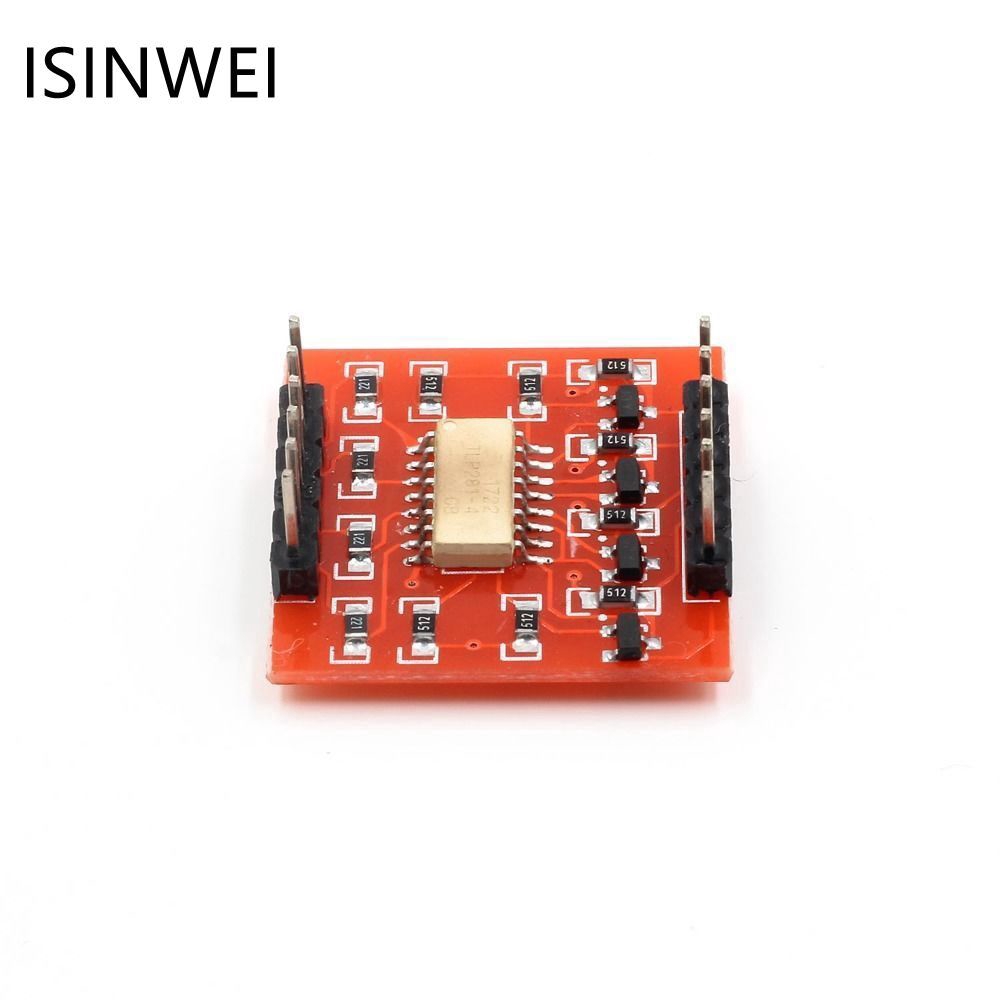

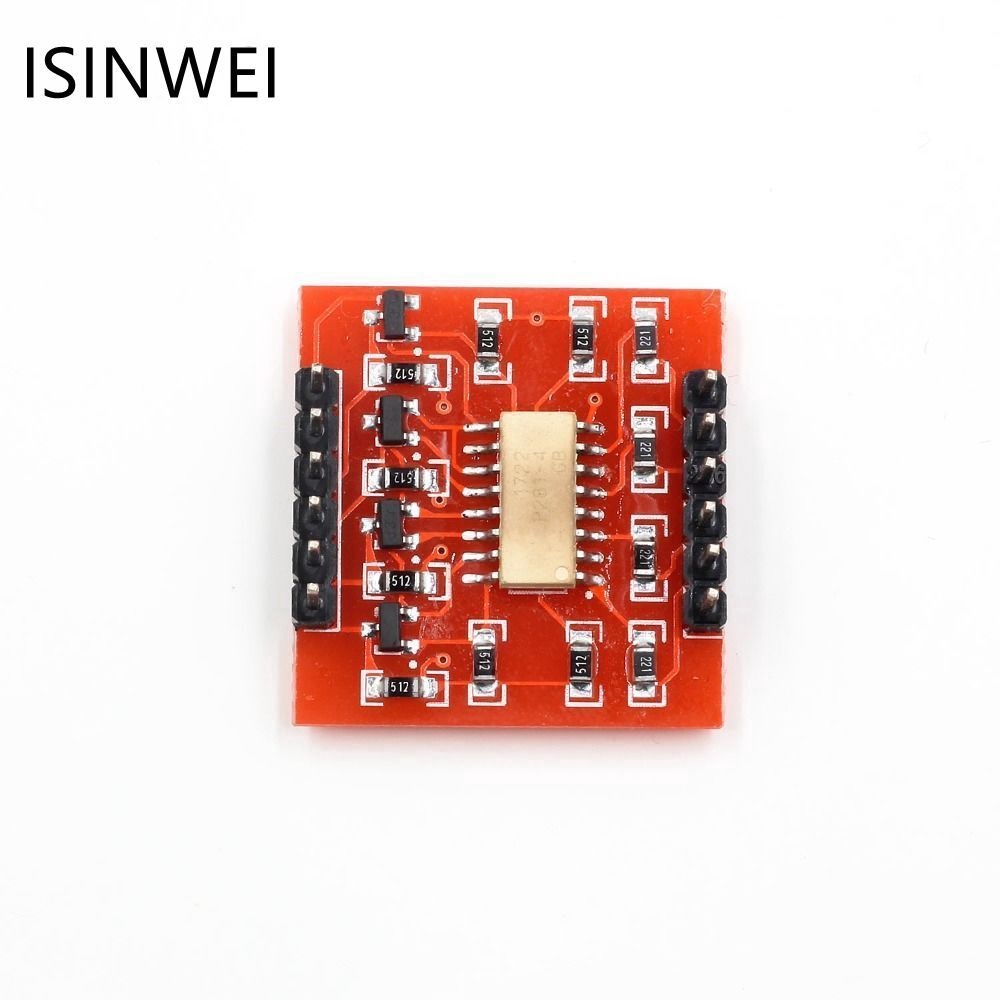

This breakout board uses the TLP281 optoisolator and discrete transistors to correct the logic.
Comes with four channels.
Great for use in noisy circuits where signal lines require electrical isolation
A normal LED opto-isolator will invert the logic of a signal.
We threw some transistors on this compact board to correct the inversion.
What you put into the IN pins, will be replicated on the the OUT pins, but at the higher voltage (HV)




Features:

Use of low level control high level.
Such as the use of single chip microcomputer 3V or 5V voltage 9V or 12V voltage control
HVCC maximum not more than 24V.
Outlet OUT1 / OUT2 / OUT3 / OUT4 output current is equal to the largest HVCC / 5.1K,
maximum absorption current 500mA

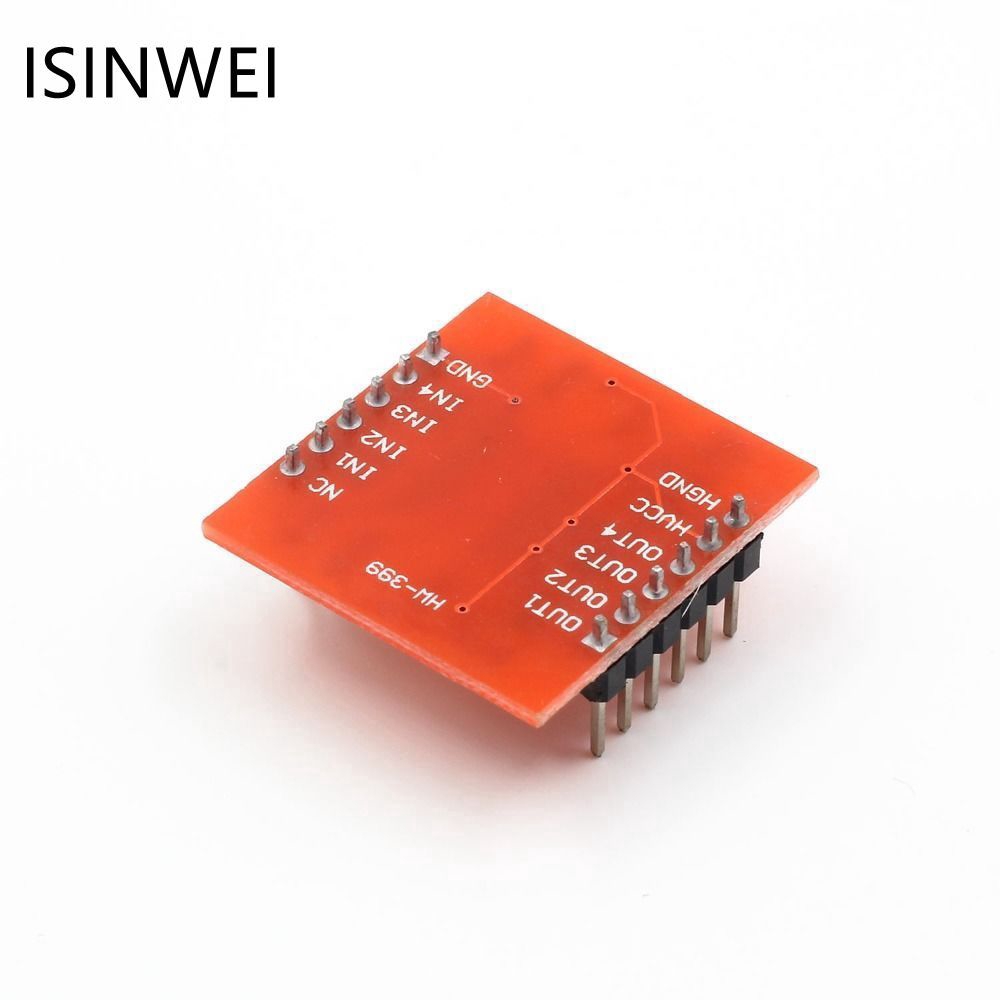

Input: IN1 / IN2 / IN3 / IN4, SCM or for Arduino IO port,
GND with single-chip microcomputer or for Arduino board GND connection.
IN1 / IN2 / IN3 / IN4 respectively control the OUT1 / OUT2 / OUT3 / OUT4
Output: OUT1 / OUT2 / OUT3 / OUT4
Output: HVCC: Connection is control of high voltage anode,
HGND connection is control of high voltage anode

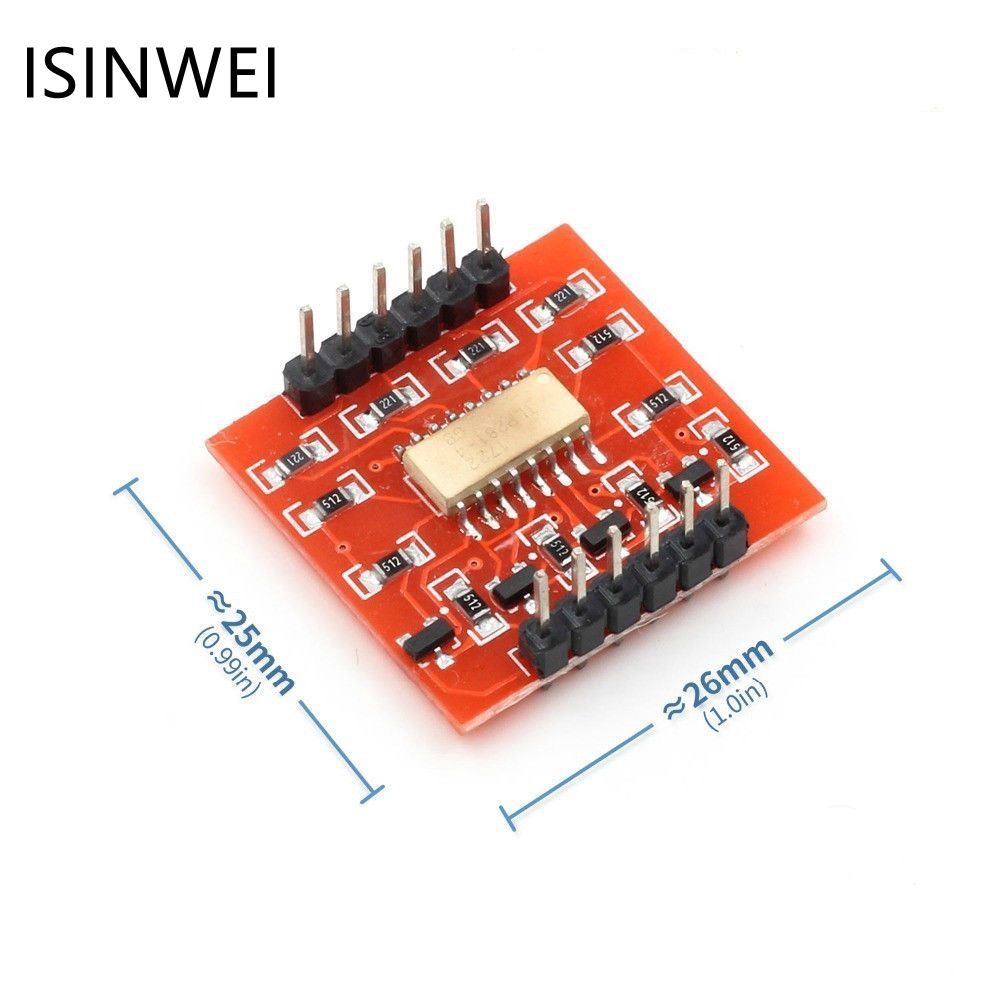

PCB Size: 25*24mm/0.98*0.94



Package Included:
1 x 4-Channel Opto-isolator IC Module for Arduino High and Low level Expansion Board
