Mô Đun Khuếch Đại Âm Thanh Kỹ Thuật Số 4 Kênh 16 Bit I2C Ads1115

Giới thiệu Mô Đun Khuếch Đại Âm Thanh Kỹ Thuật Số 4 Kênh 16 Bit I2C Ads1115

#16 #Bit #I2C #ADS1115 #Module #ADC #4 #Channel #with #Pro #Gain #Amplifier #Development #Board #Low

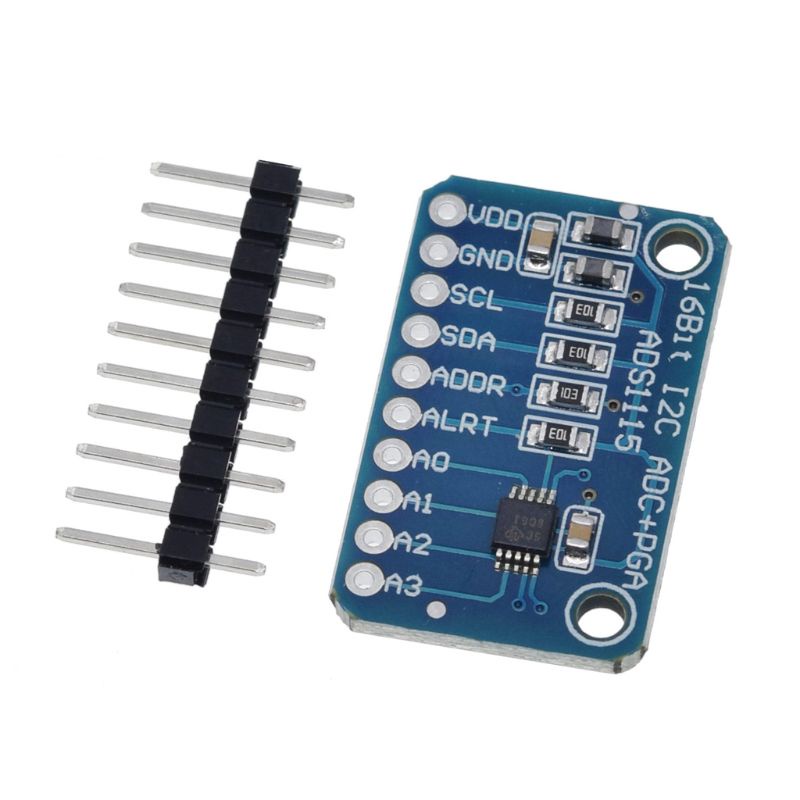

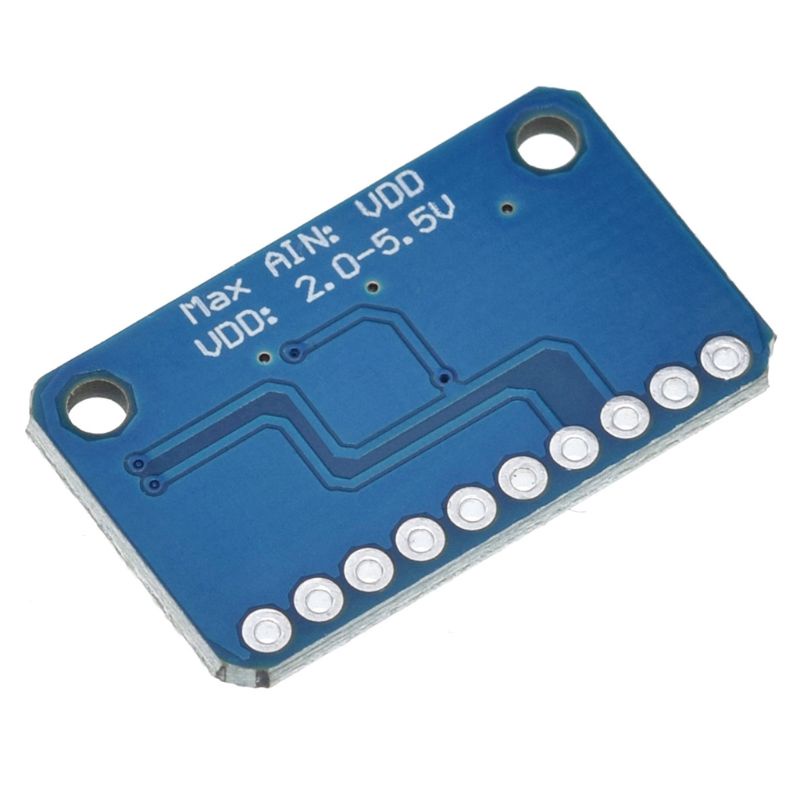

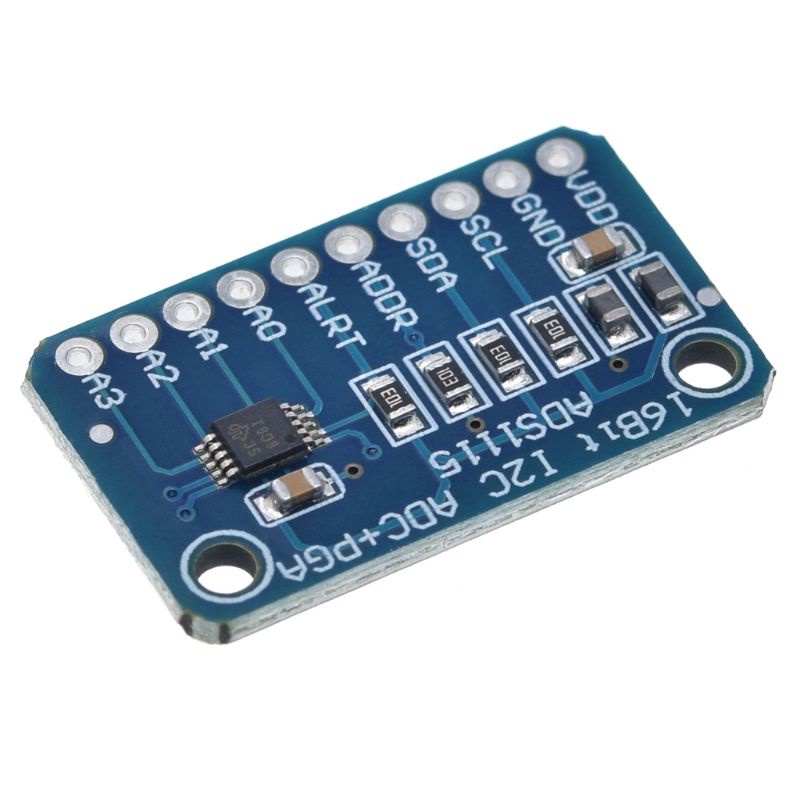

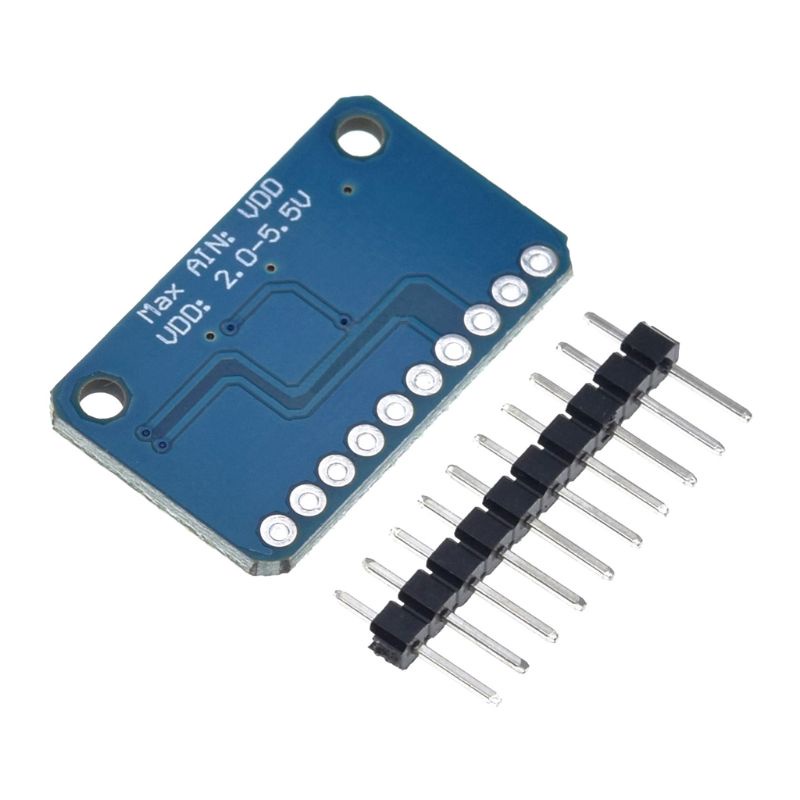

16 Bit I2C ADS1115 Module ADC 4 Channel with Pro Gain Amplifier Development Board Low Power Analog to Digital Converter for RPi
100% brand new and high quality
Features:
Made of high quality material, solid, durable, stable performance and high efficiency.
Ultra-small QFN package: The ADS1113, ADS1114, and ADS1115 are 2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16
Wide supply range: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless
Low current consumption: QFN-10package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and
Continuous mode: Only 150μA ease of implementation in mind. The ADS1113/4/5
Single-shot mode: Auto Shut-Down feature an onboard reference and oscillator. Data are
Programmable data rate: Transferred via an I2C-compatible serial interface; four 8SPS to 860SPS I2C slave addresses can be selected. The
Internal low-drift ADS1113/4/5 operate from a single power supply
Voltage reference ranging from2.0V to 5.5V.
Internal oscillator: The ADS1113/4/5 can perform conversions at rates
Internal PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that
I2C™ Interface: Pin-Selectable Addresses offers input ranges from the supply to as low as
Four single-ended or tow ±256mV, allowing both large and small signals to be differential inputs (ADS1115)measured with high resolution. The ADS1115 also features an input multiplexer (MUX) that provides two • programmable comparator differential or four single-ended inputs.(ADS1114 and ADS1115) The ADS1113/4/5 operate either in continuous,applications conversion mode or a single-shot mode that
Automatically powers down after a conversion and greatly reduces current consumption during idle
Consumer goods periods. The ADS1113/4/5 are specified from –40°C
Battery monitor to+125°C.
Analog to Digital Converter only, other accessories demo in the picture is not included!

Specification:
Material: Circuit Board
Size: app.2.8 x 1.8cm/1.1 x 0.71inch
Color: Blue
Quantity: 1 Pc

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Analog to Digital Converter

Hình ảnh sản phẩm
