Mô Đun Kiểm Tra Dung Lượng Pin Kỹ Thuật Số 12V 100W DC

Giới thiệu Mô Đun Kiểm Tra Dung Lượng Pin Kỹ Thuật Số 12V 100W DC

This electronic load can automatically change the speed with the high speed fan. Fine quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity and power supply voltage abnormity.



Features:

A professional test module for detecting discharge battery capacity.

High speed of the fan can change according to the heat sink temperature.

Protection of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity.

Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.

Long-lasting construction for a long time performance.



Specifications:

Item type: Electronic Load

Power Supply: DC12V±5%

Fan Current: 0.72A

Constant Discharge Current Range: 0-10A(whole machine)

Working Mode: Single Mode Constant Current(CC)

Discharge Current Max Error: 0.7%-0.01A

Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%

Max. Power: 100W

Input Interface: 5.5 * 2.5mm

Package weight: 458g / 1pounds

Package size: 140 * 130 * 120mm / 5.51 * 5.11 * 4.72inches

Operation Instructions:

Connect with DC12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!

Set constant current through knobs.

Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 100W.



Package List:

1 * Electronic Load

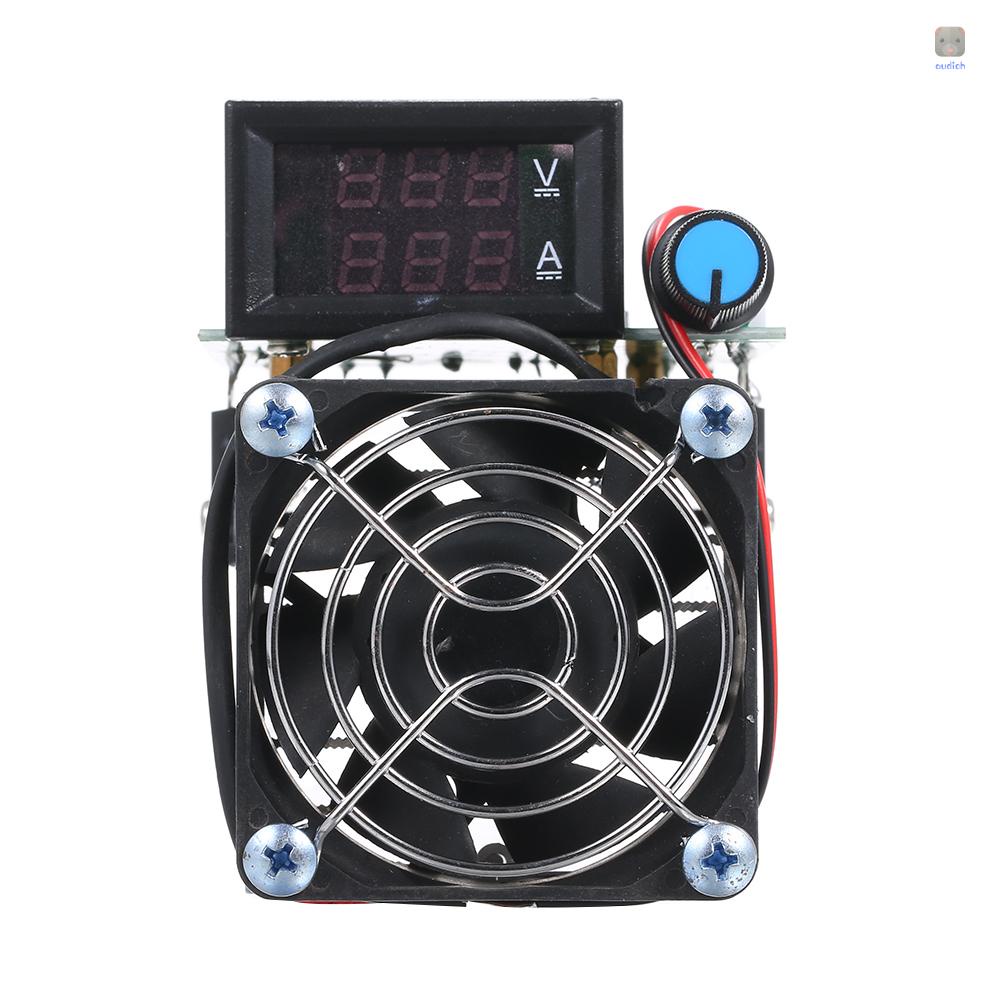

Hình ảnh sản phẩm
