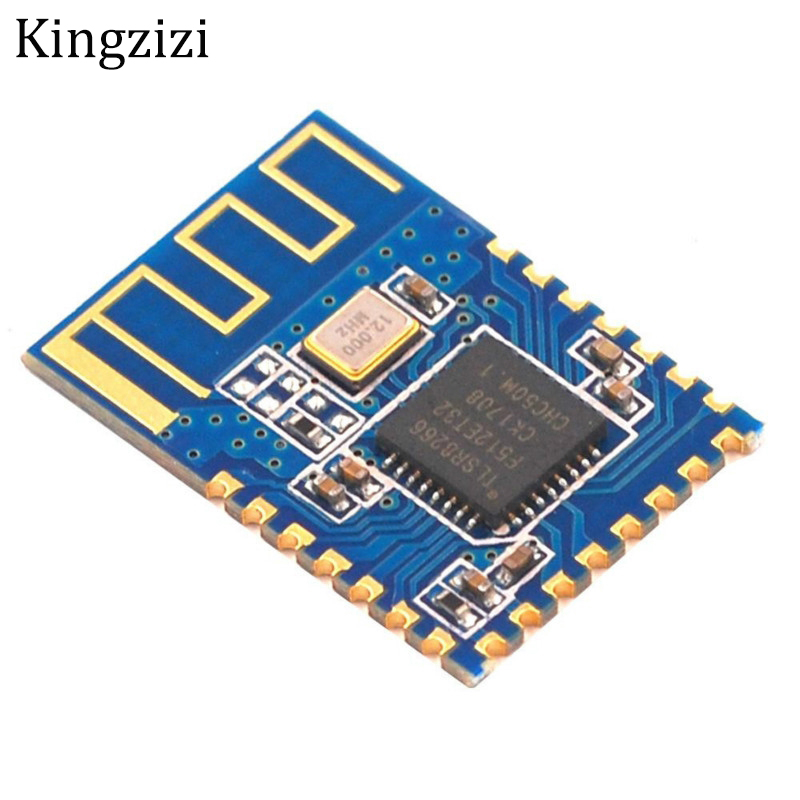

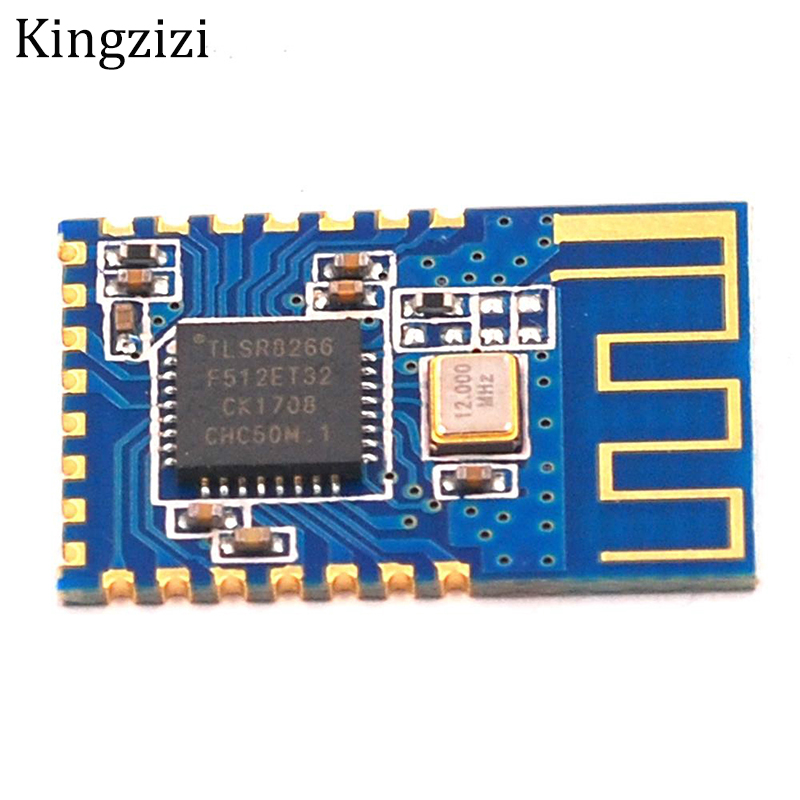

Mô-đun mạng lưới Bluetooth 4.0 JDY-10M

Giới thiệu Mô-đun mạng lưới Bluetooth 4.0 JDY-10M

Welcome to our shop 👑Kingzizi👑, all the products in this shop are at a favorable price💕, and have quality assurance💕, you can rest assured to buy💕, we will give you the best and highest quality shopping experience! 🌹🌹🌹



Product introduction:
The JDY-10 transmission module is a Bluetooth 4 protocol standard, the working band is 2. 4GHZ range, the modulation mode is GFSK, the maximum transmission power is 8dB, the maximum transmission distance is 50 meters. It has the characteristics of low power consumption, small size, strong signal, stable data transmission and so on.

Product features:
1.supports the transmission of Android and IOS mobile phones.
2.Supports one-to-many, many-to-one, many-to-many data transmission and control.
3.Supporting network LED lamp (26 scenario mode, panel mode), brightness, white light, adjustable speed.
4.Supports networking GPIO control (one-to-many, many-to-one, many-to-many).
5.can be certified by FCC/CR and other standard.
6.Supporting networked remote control (ultra-low power consumption), two dry batteries can be used for at least one year.
7.support network 4 way PWM control.
8.The maximum number of 8: networks is 255.
9.supports broadcast and unicast MESH to send data.
10.supports BLE master-slave operation without master-slave switching.
11.at least 60% of the smart home application JDY-10M can be competent.

Product application scope:
1.Bluetooth networking LED lights (one to many, many to one, mobile phone or remote control, many to many control ).
2.Bluetooth network motor pulling applications (one to many, many to one, machine or remote control, many to many control).
3.network panel switch, 86 switch (ultra-low power consumption).
4.network smart home application (control, relays, curtains) control.
5.networking sensor Application of network gateway of.
6.Application of network gateway of WIFI.
7.Application of Zigbeel network.
8.Application of mobile phone network control.

Specification parameter:
Working voltage :1.9 - 3.6V
Working temperature :-40 - 85℃
Maximum emission power :+8dbm
Antenna PCB board antenna
Receiving sensitivity :-92dbm
SMT welding temperature :260 degree
Communication interface :UART
average current :Wake up the MESH mode 28MA
Deep Sleep mode :5 uA

Package included:
1 x JDY-10M 4.0 Bluetooth Module

#JDY-10M 4.0 Bluetooth Module
