Mô-đun nguồn XT60 APM 5.3V BEC cho bộ điều khiển bay APM 2.5/2.5.2/2.6 Pixhawk

Giới thiệu Mô-đun nguồn XT60 APM 5.3V BEC cho bộ điều khiển bay APM 2.5/2.5.2/2.6 Pixhawk

XT60 APM Power Module 5.3V BEC for Flight Control APM 2.5/2.5.2/2.6 Pixhawk

Features:

1.A simple way to provide your APM 2.5 / 2.52 / 2.6 and Pixhawk with clean power from a LiPo battery as well as measurements

of current

2.the onboard outputs regulator switching the source of 5.3 V and a maximum of 2.25A of up to a 4S LiPo battery.

3.Used to detect battery voltage and battery current, flight control board receives two signals, calculate remaining battery

charge, estimate remaining flight time.

4.comes with the BEC function, you can produce 5.3 DC, maximum 3A DC current for the flight control board to provide a

stable power supply.

5.connectors are used in Japan original accessories, non-household common, to APM flight control board and

reliable connection between the power supply module.



Description:

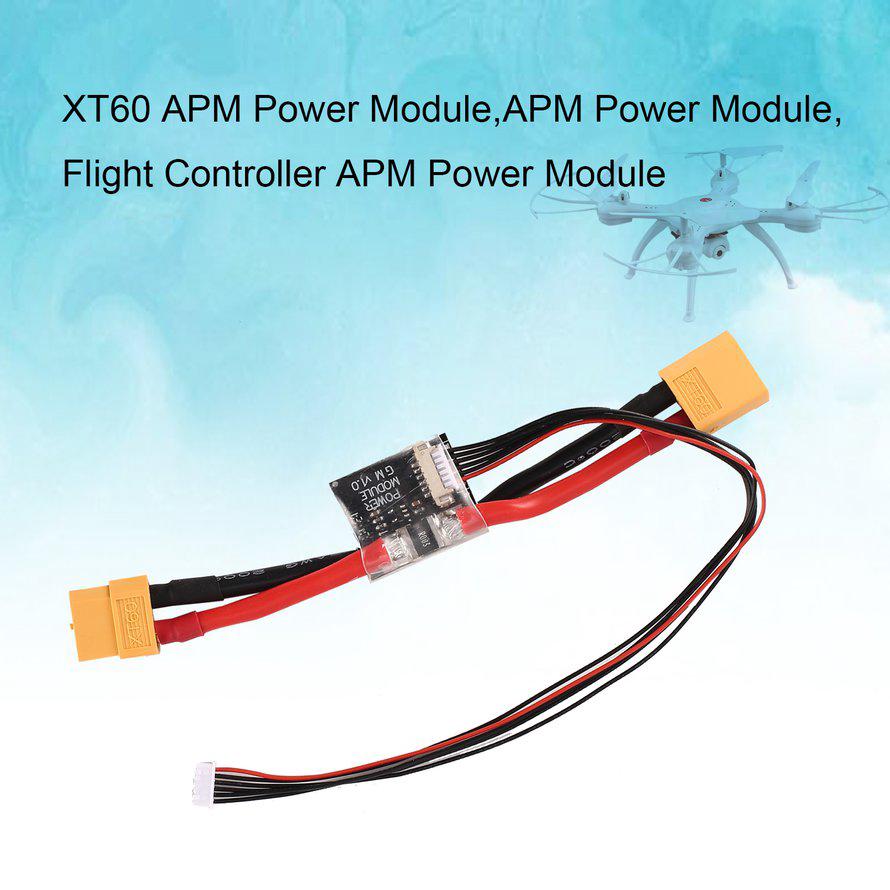

1.This is XT60 APM Power Module

2.It it suitable for APM 2.5 / 2.5.2 / 2.6 Pixhawk

3. A good choice for you to get clean power from a LiPo battery!



Specifications:

Item name: APM Power Module

maximum input voltage: 20 V

Max current detection: 90A-

voltage and current measurement set to 5 V ADC

switching outputs regulator 5.3 V and 2.25A max

cable is connected directly to the APM DF13 6-pos 'PM' of the 2.5 connector

Product Size: 142*21*10mm

Weight:22g



Package information:

Package size:160x40x20mm/6.4x1.6x0.8in

Package weight:23g/0.805oz

Poly bag package



Package Included:

1 x Power Module



Notice：

The Power Module is designed only for APM power, an RC receiver and APM accessories (GPS, 3DR radio). is notdesigned for power servos. use your own ESC / BEC aircraft for this.

Hình ảnh sản phẩm
