Mô Đun Nhiệt 2pin Kèm Dây Cáp Cho Máy In 3d Anet A8 A6 A2 Ramps 1.4

Giới thiệu Mô Đun Nhiệt 2pin Kèm Dây Cáp Cho Máy In 3d Anet A8 A6 A2 Ramps 1.4

#3D #Printer #Heated #Bed #Power #Module #Hotbed #MOSFET #Expansion #Module #Inc #2pin #Lead #With #Cable

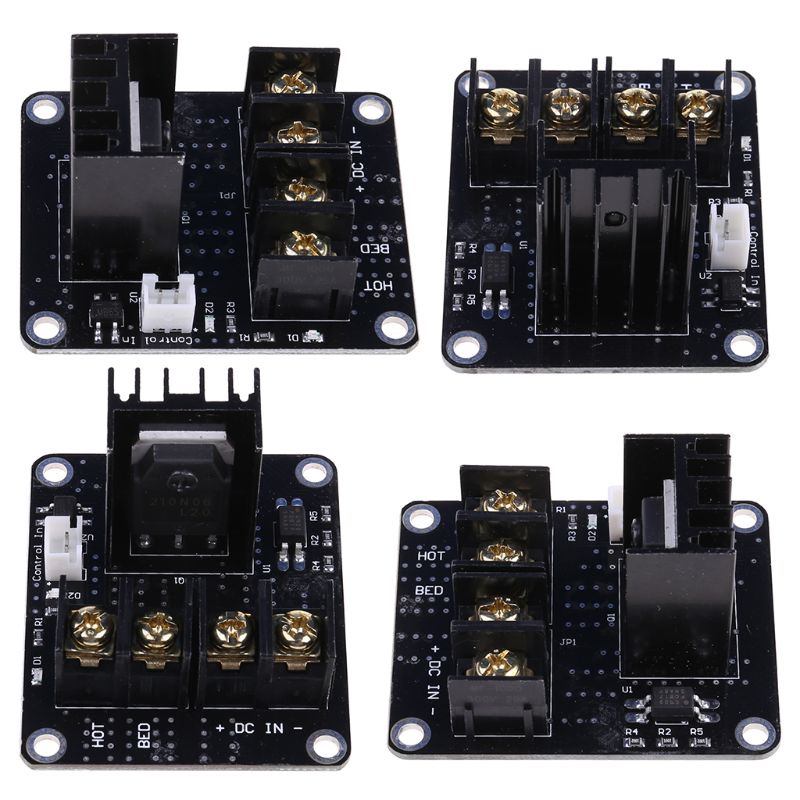

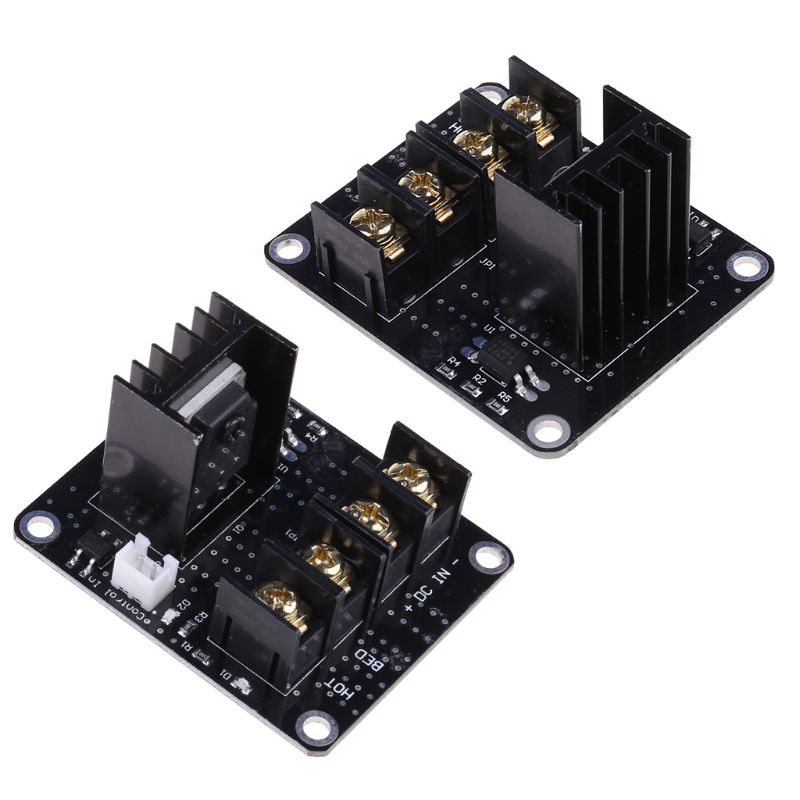

3D Printer Heated Bed Power Module Hotbed MOSFET Expansion Module Inc 2pin Lead With Cable for Anet A8 A6 A2 Ramps 1.4
Heated Bed Power Module MOSFET Expansion High Current Load Module With Cable

Features:
Completely solve the hot bed power is too large and the load current issue
Under the premise of normal cooling, it work stable under I(Max)=20A,
The current must not exceed 20A while the process working
If you need anything greater or equal to 15A this module is a must! For example, if your total power usage is 240W and you have 12V power supply, then it means at least 20A is needed (20X12=240W).
This high power module helps your 3D printer equipped with the Chitu controller board (capable of max 15A) become even more powerful. With this add-on module to board lead the maximum current up to 25A.
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)

Specifications:
Size: 6 x 5 x 3.1cm / 2.36 x 1.97 x 1.22"
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Maximum current with active cooling: 210A
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Under the premise of normal cooling, it work stable under I(Max)=25A, the current must not exceed 25A while the process working

Package includes: (Without retail package)
1 x MOSFET Expansion Module
1 x Cable

Hình ảnh sản phẩm
