Giới thiệu Mô Đun Nhiệt Máy In 3d

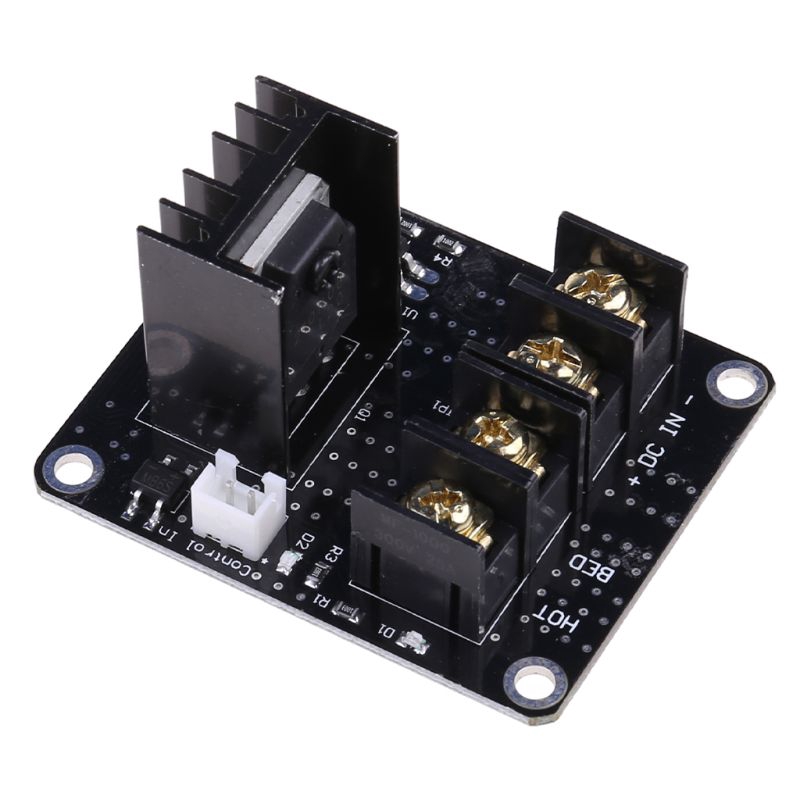

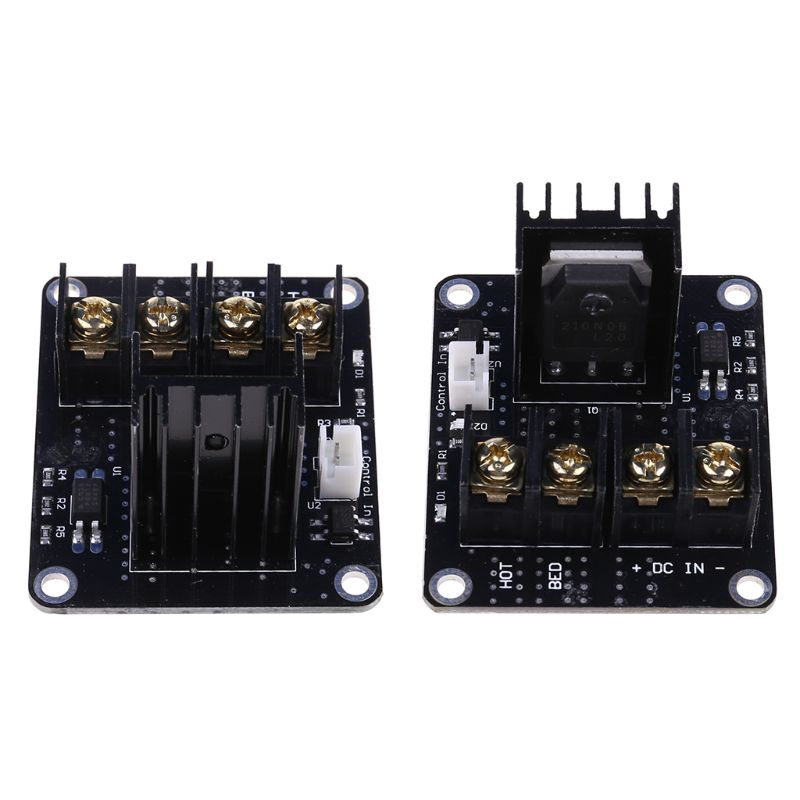

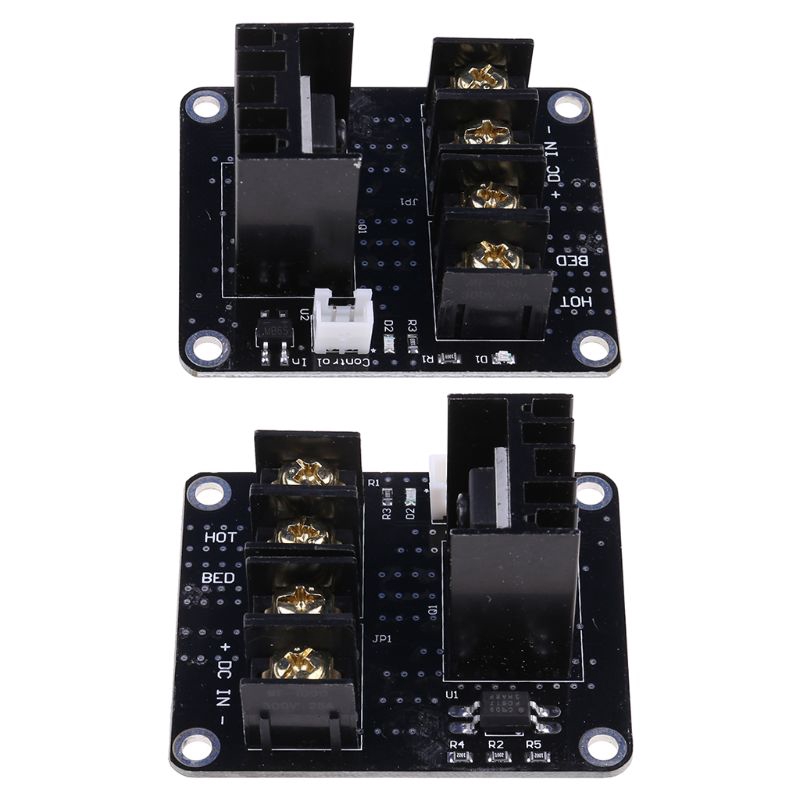

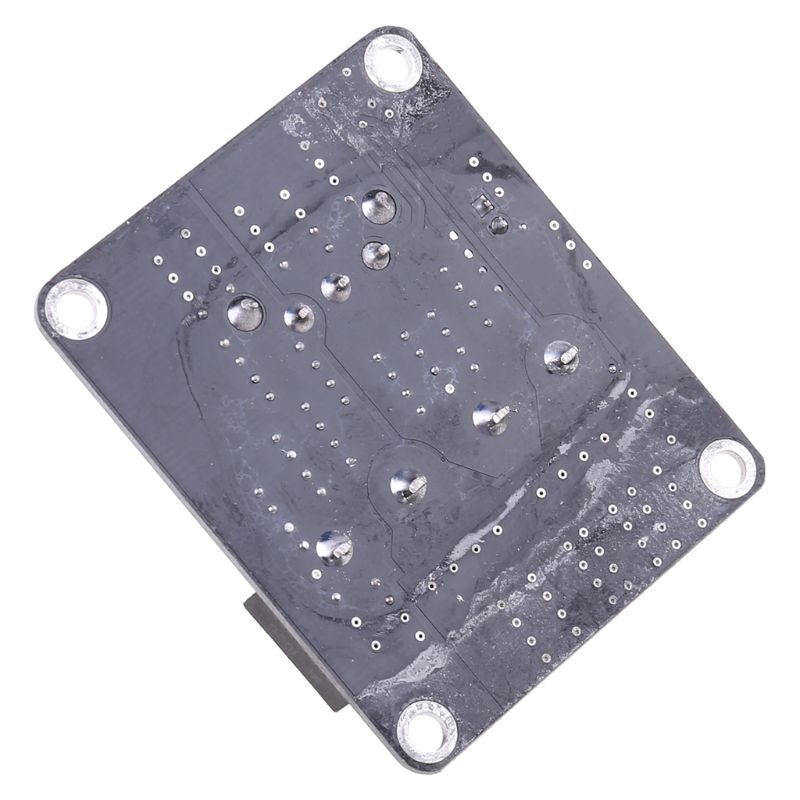

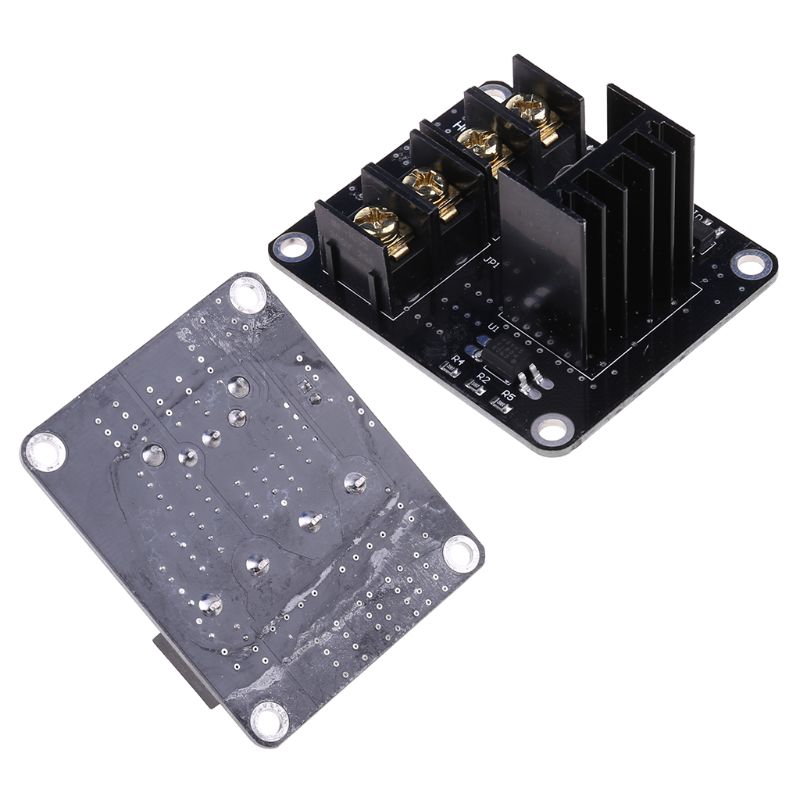

#3D #Printer #Heated #Bed #Power #Module #Hotbed #MOSFET #Expansion #Module #Inc #2pinHeated Bed Power Module MOSFET Expansion High Current Load Module With Cable
Features:
Completely solve the hot bed power is too large and the load current issue
Under the premise of normal cooling, it work stable under I(Max)=20A,
The current must not exceed 20A while the process working
If you need anything greater or equal to 15A this module is a must! For example, if your total power usage is 240W and you have 12V power supply, then it means at least 20A is needed (20X12=240W).
This high power module helps your 3D printer equipped with the Chitu controller board (capable of max 15A) become even more powerful. With this add-on module to board lead the maximum current up to 25A.
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Specifications:

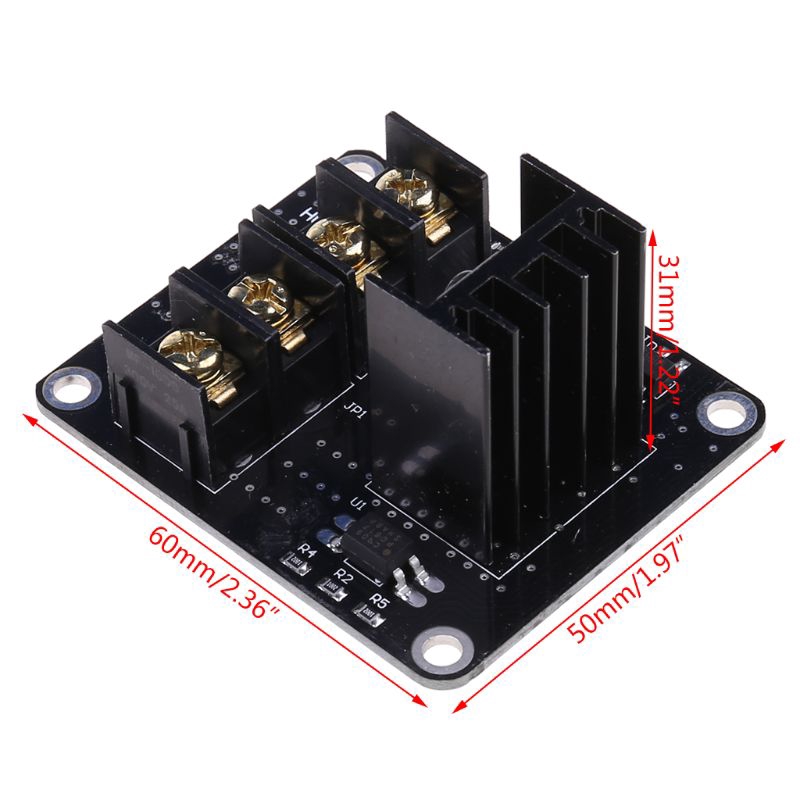

Size: 6 x 5 x 3.1cm / 2.36 x 1.97 x 1.22"
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Maximum current with active cooling: 210A
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Under the premise of normal cooling, it work stable under I(Max)=25A, the current must not exceed 25A while the process working

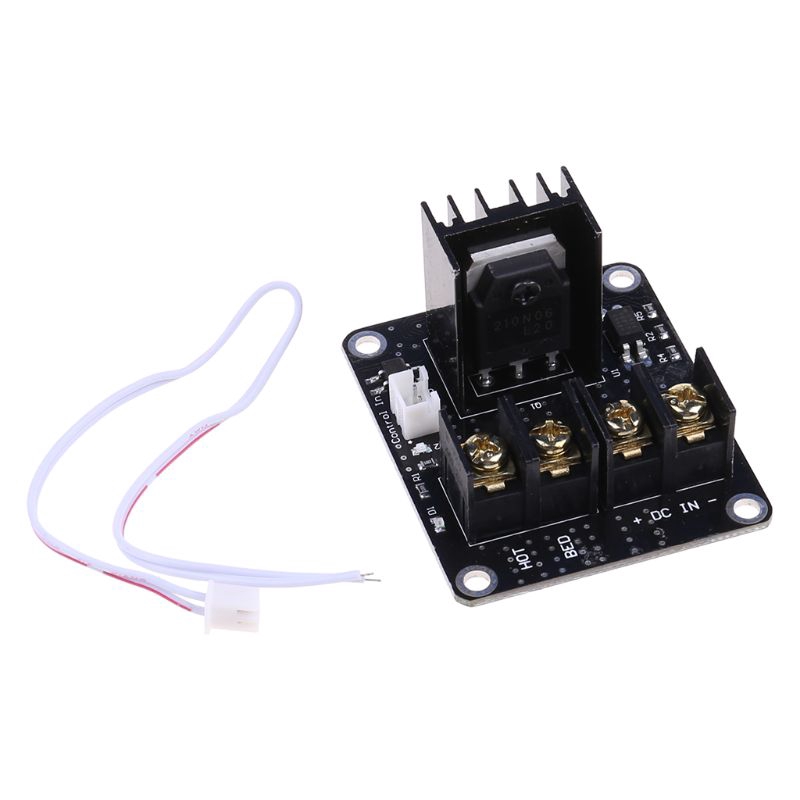

Package includes: (Without retail package)
1 x MOSFET Expansion Module

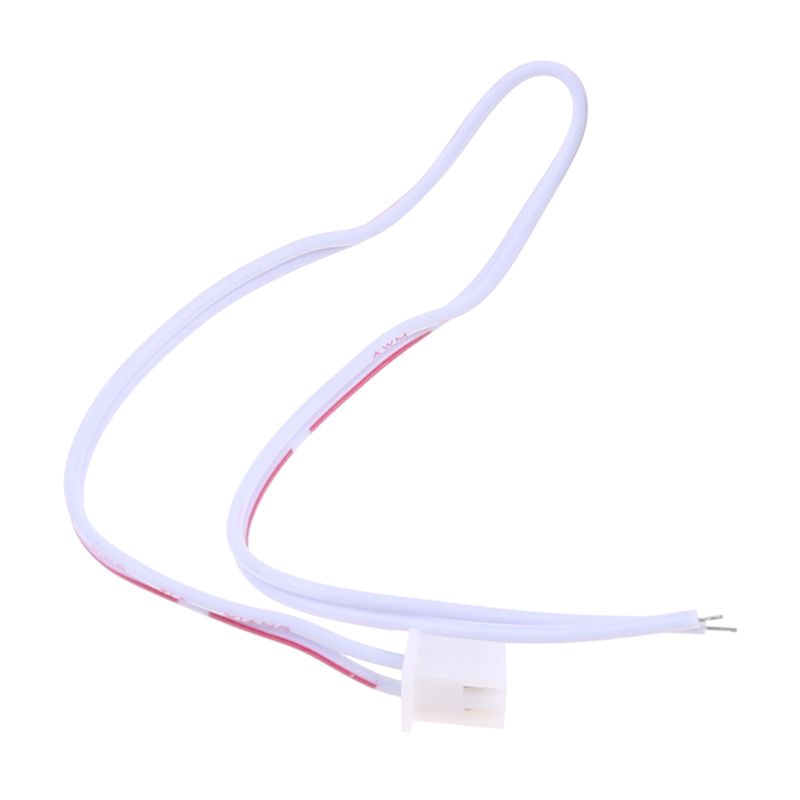

1 x Cable
