Mô Đun Phát Triển Chip Đơn Stc15F104W

Giới thiệu Mô Đun Phát Triển Chip Đơn Stc15F104W

STC15F104W module Single chip microcomputer module core board development board

STC15F104W highlights:
(1) Timer module: T0 and T2. When T0 works in mode 0, it is a 16-bit timer counter that can automatically reload the initial value, when mode 2 is an 8-bit auto-reload counter, and when mode 3 is decomposable; The working mode of T2 is fixed in the 16-bit auto-reload initial value mode, so it is especially suitable for the LED industry. The timer module of this chip can generate a higher precision timing time.
(2) Core: Y5 ultra-high-speed CPU core is used, which is 20% faster than ordinary 1T. For details, see the instruction set. A total of 111 instructions.
(3) Pin diagram:

P3.3 is RSTOUT_LOW, which outputs low level after power-on and reset, and can also be set to low or high level by software. This pin can be used as a reset circuit for 16-bit or 32-bit microcontrollers; P3.4 can output the system clock, Therefore, it can be used as a clock circuit for 16-bit or 32-bit microcontrollers; the chip also has a strong encryption function, which can replace the encryption chip, and the unit price is only more than one piece, so it can be recommended to customers.
STC15F104W has no serial port, has a relay broadcast mode, and can simulate I2C, serial port, SPI, and use the IO port to charge and discharge to measure the external voltage to achieve the AD function.
The input level of P3.1 through output P3.0 can be set in the download software, similar to the relay broadcast mode of serial port 1 of the 15 series.

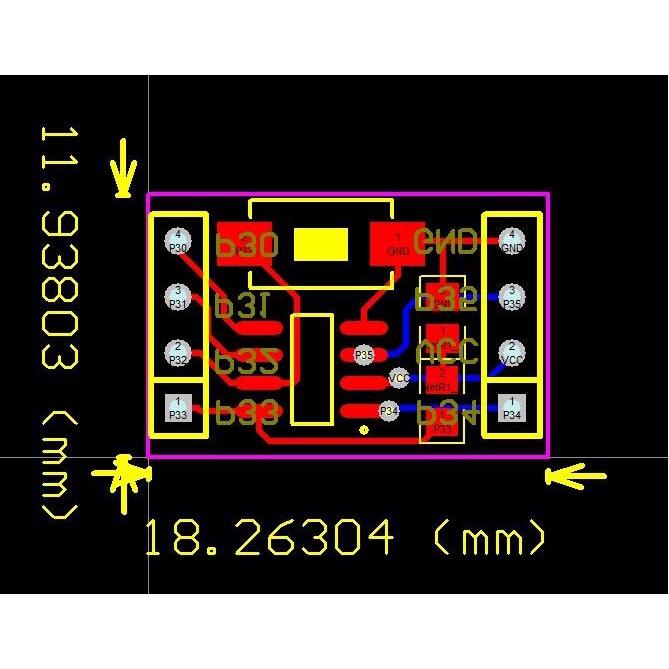

Description:

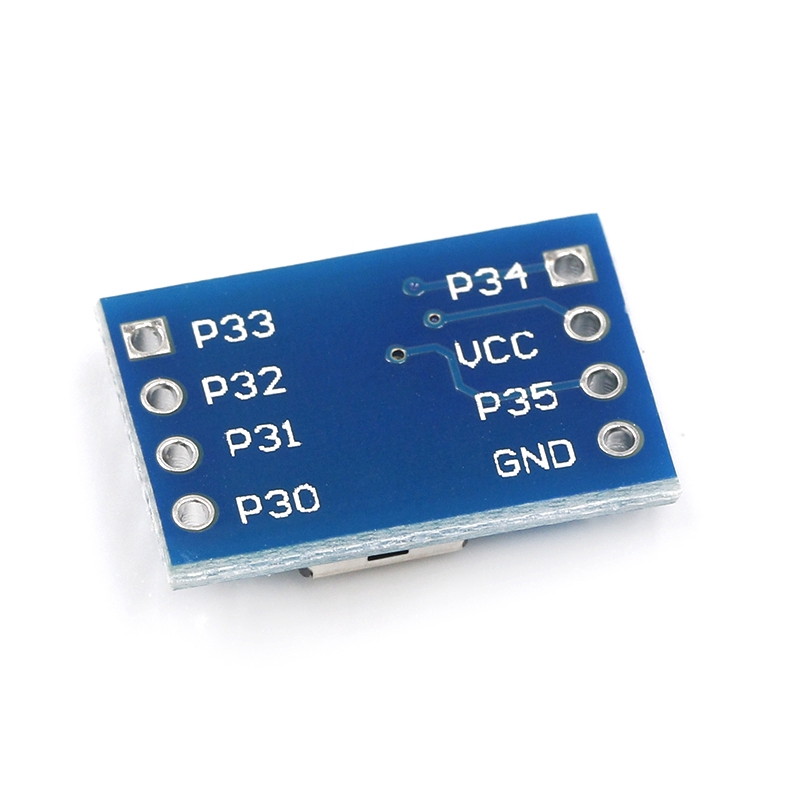

1.All IO port all leads
2.Board all the way MCU control LED, connected to the IO port P3.2, IO port can be used for output, such as PWM wave modulation experiment
3.Onboard all the way switch chip, connected to the IO port P3.3, IO port can be used for input, interrupt and other experiments
4.IO port external chip switch and the LED does not affect the normal use of IO port
5.On-board TTL level serial port, RXD (connected to P3.0) and TXD (connected to P3.1) can be used for STC download program / serial port communication between upper and lower computer (timer required) and IO port input and output
