Mô Đun Rơ Le 2 Kênh 5v Dc G3Mb-202P Cho Avr Dsi

Giới thiệu Mô Đun Rơ Le 2 Kênh 5v Dc G3Mb-202P Cho Avr Dsi

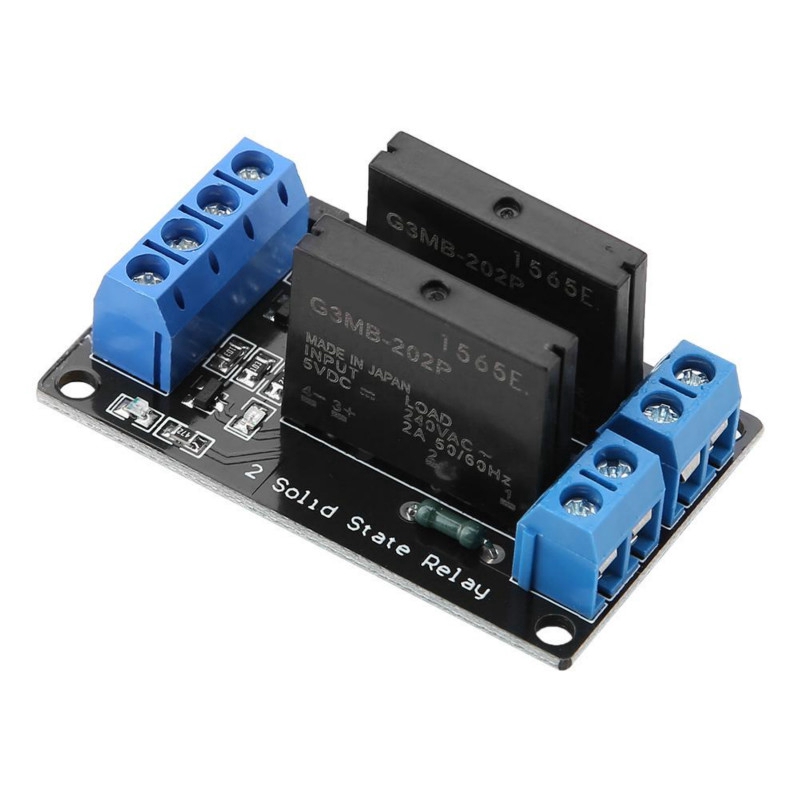

2 Channel 5V DC Relay Module Solid State Low Level G3MB-202P Solid State Relay SSR for AVR DSP arduino Diy Kit

Features:
1. 5V Solid State Relay 240V 2A， Output with resistance fuse 240V 2A
2. Size: 55 * 33 * 25 (length * width * height) Net weight: 21.5g
3. Input power: 5V DC (160MA)
4. The input control signal voltage: (0-1.5V state low level relay ON) (2.5-5V state high level relay OFF)
Blue KF301 terminal access control line more convenient.

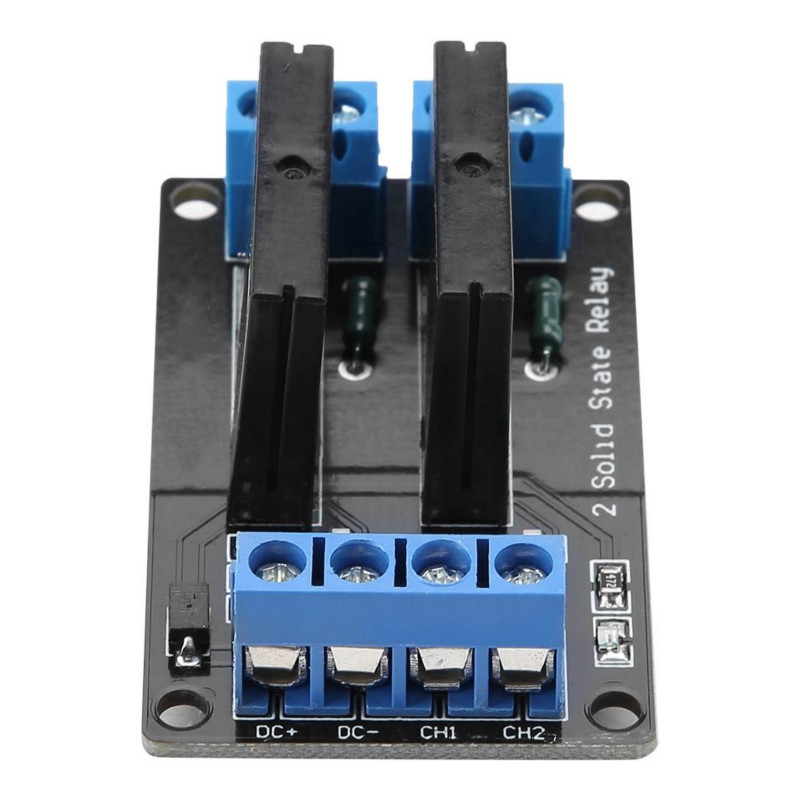

Module Interface
Input section:
DC +: Connect the power supply positive (according to the relay voltage)
DC-: Connect the power supply negative
CH1: 1 channe relay module signal triggering terminal (low level trigger is valid)
CH2: 2 channel relay module signal triggering terminal (low level trigger is valid)

High and low meaning:
High-level trigger refers to the signal trigger side (IN) and the power supply there is a positive voltage between the positive, usually with the power of the positive and trigger connected to a trigger mode, when the trigger side has a positive voltage or trigger Voltage, the relay is pulled.

Low-level trigger refers to the signal trigger terminal and the power supply negative voltage between the OV, or the trigger side of the voltage than the power supply voltage is lower, low to trigger the voltage, so that the relay pull, usually The negative side of the power supply is connected to the trigger terminal and is triggered by the relay.

Voltage version Quiescent current Operating current Trigger voltage Trigger current
  1 channel 5V 0mA 12.5mA 0-2.5V 2mA
  2 channel 5V 0mA 22.5mA 0-2.5V 2mA

product manual:
Module power supply: the power must be DC, the voltage and the relay voltage to match

When the signal triggering terminal has a low level trigger, the relay will be turned on and the device will work when it is powered on.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
