Features: SSR series three-phase solid state relay adopts flame retardant engineering plastics shell, epoxy potting, widely used in petroleum chemical industry equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastics machinery, fitness equipment, recreational facilities, and other areas of the automatic control. 1. Two-way thyristor output, zero voltage open, zero current off. 2. Input signal is compatible with TTL and COMS digital logic circuit. 3. Light isolation between input circuit and output circuit. 4. Light emitting diode indicates working status; 5. The isolation pressure between the input and output terminals is greater than or equal to 2500V.

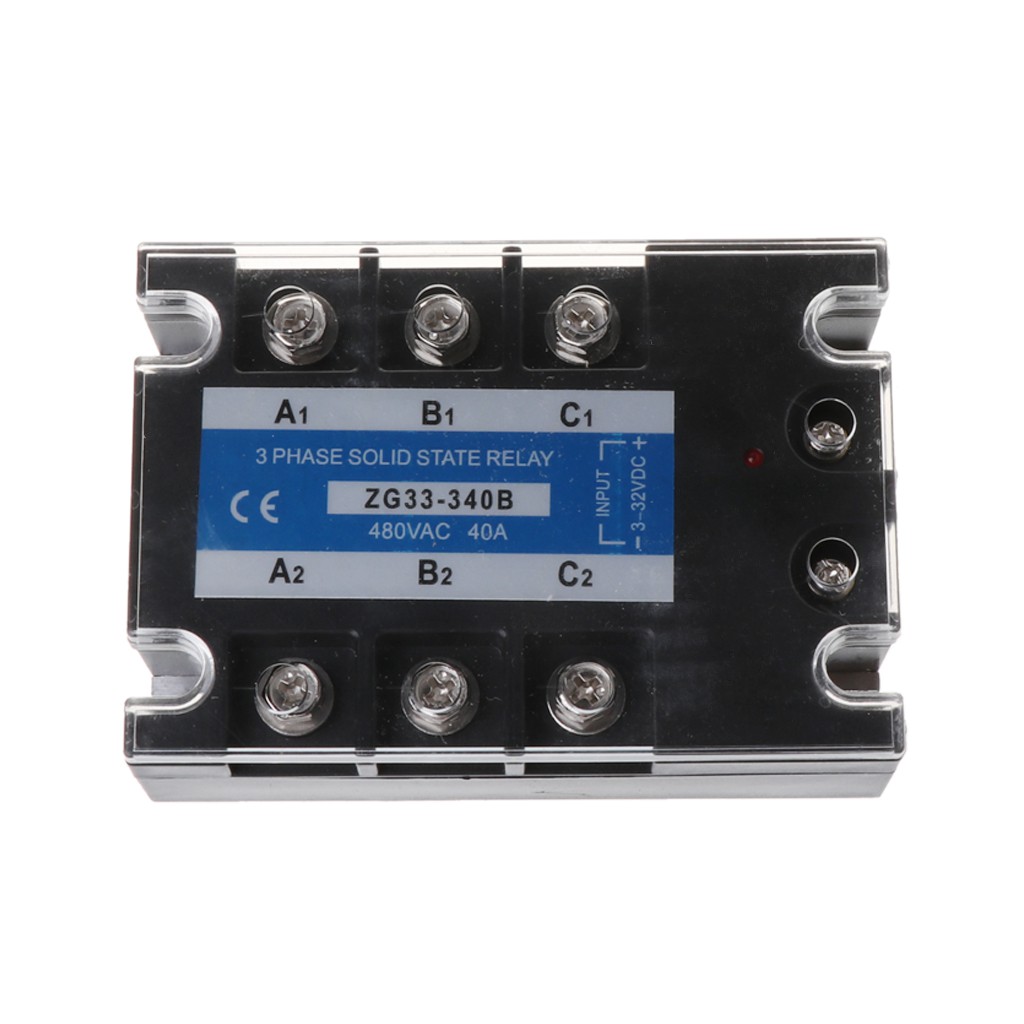

Specifciations: Product Model:ZG33-340B Control Mode:DC-AC Load Current:40A Load Voltage:90-480VAC Control Voltage:3-32VDC On voltage: ≤1.5V Off Leakage Current:≤10mA On-off Time:≤10ms Dielectric Strength:2500VAC Insulation Resistance:1000M/500VDC Ambient Temperature:-25~+75 Mounting Methods:Bolting The work instructions:LED Quantity: 1 Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Compare the detail sizes with yours, please allow 1-4CM differs due to manual measurement, thanks!
