Giới thiệu Mô Đun Rơ Le Hẹn Giờ Hiển Thị Đèn Led Kỹ Thuật Số 12v T2302

Dear, welcome to walkaround, here are your favorite products, welcome to buy, we also provide 8297H online Q&A to solve your problems. About product, please look down~

Specifications:
Working voltage: DC 12V(5V/24V over 100pcs can be customized)
Relay: 20A
Timing range: 0-999 seconds, 0-999 minutes, 0-999 hours
Working mode: delay on, delay off, timing on, timing off, cycle on, cycle off
Size: 45.5mm*26.5mm*30mm/1.79*1.04*1.18"
Weight: 25g

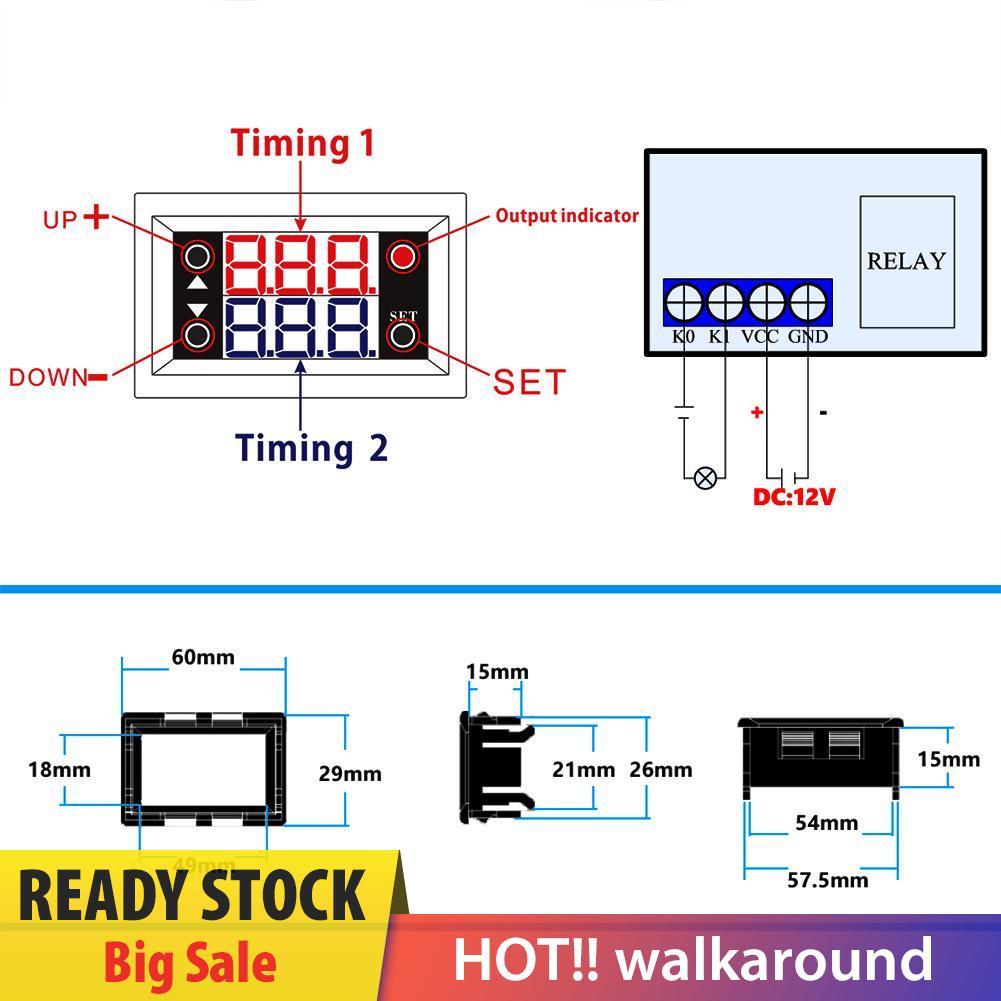

Product Instructions:
Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.
Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s .
Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.
P0--0: Timing time mode : 0---999s.
P0--1: Timing time mode : 0---999min.
P0--2: Timing time mode : 0---999h.
P1--0: The relay will connect after you delay the T1 time .
P1--1: The relay will disconnect after you delay the T1 time.
P1--2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it finish.
P1--3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it finish.
P1--4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time , it is cyclic.
P1--5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time , it cyclic.
Example: A customer needs 10 seconds to start up and 20 seconds off. Setup is as follows:
T1 set time 10, T2 set time 20
P0 -- 0 (T1 time range is seconds)
P1--5 (timer work mode)

Included:

1 xT2302 Time Digital Relay
