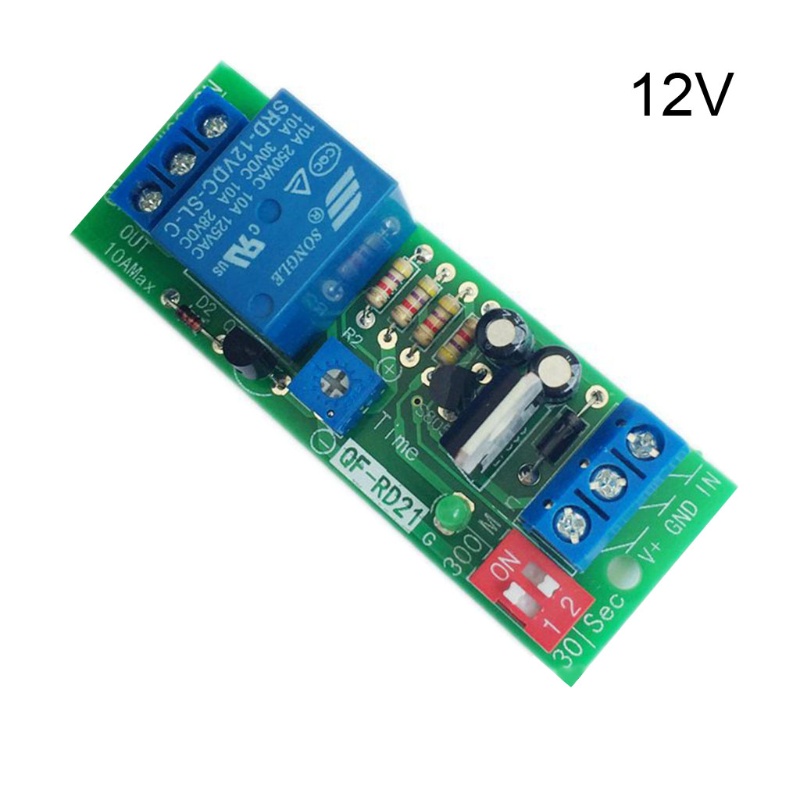

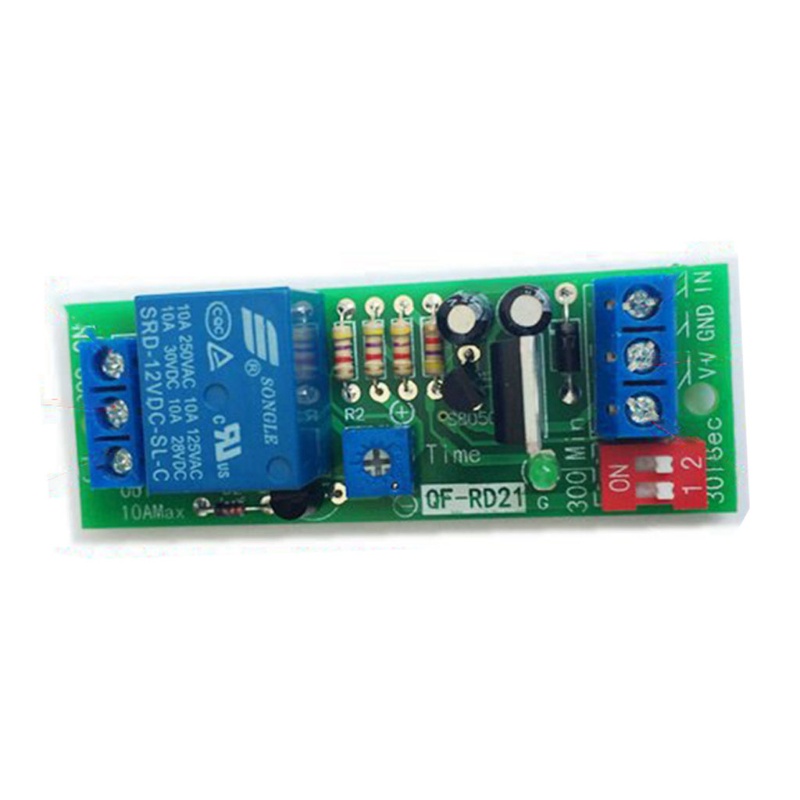

Mô đun rơ le hẹn giờ HSV QF-RD21 5V/12V/24V

Giới thiệu Mô đun rơ le hẹn giờ HSV QF-RD21 5V/12V/24V

QF-RD21 5V/12V/24V Adjustable Timer Relay Module Timer Delay Switch Board
Features: 100% brand new and high quality
Voltage: 5V/12V/24V can be selected.
Function: The relays is turned on when there is a signal, and the relays is turned off after the signal disappears.

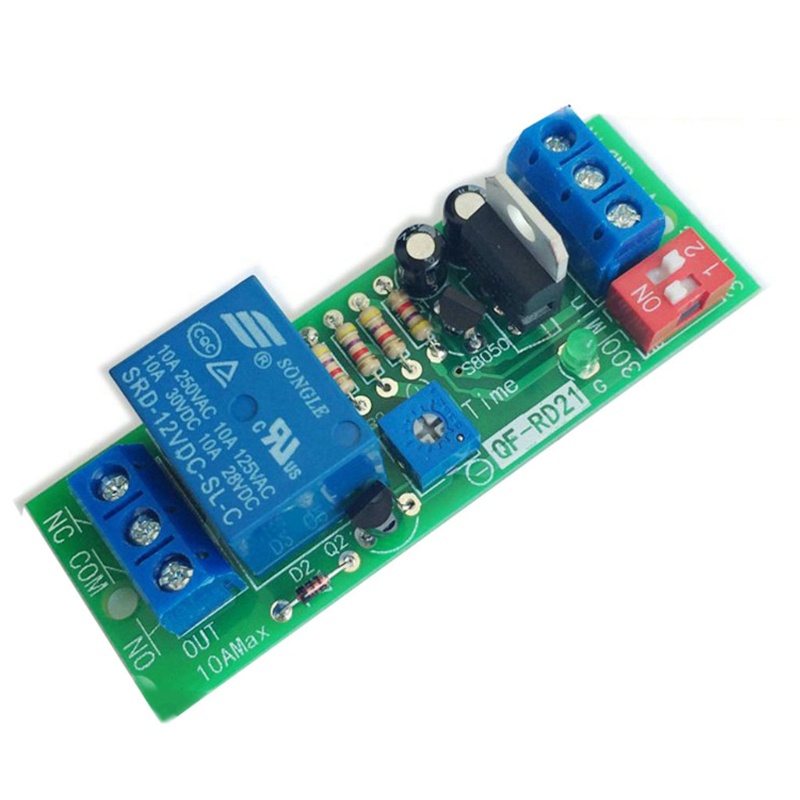

Output: passive output , a set of relays normally open + normally closed output. The maximum should not exceed 10A.
Input: Voltage signal, more than 1.5V is an effective signal, and the current needs at least 0.1mA.
Application: Combined with travel switch and induction switch to realize: automatic door closing over time, interruption monitoring of assembly line product, interruption monitoring of water flow and air flow, other purposes, etc.

Specification: Voltage: 5V/12V/24V
Power Consumption: <1.0w
Output: Passive Output, a Set of Relay Normally Open + Normally Closed Output. the Maximum Should Not Exceed 10A.
Life: More Than 100000 Actions
Input: Voltage Signal, More Than 1.5v is an Effective Signal, and the Current Needs at Least 0.1mA.

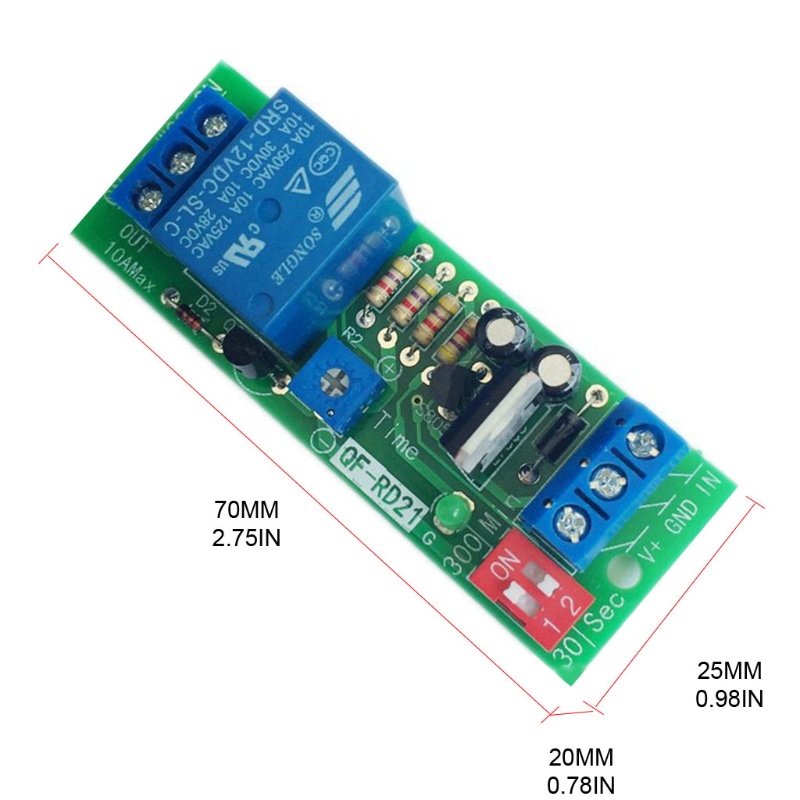

Size: Approx 70x25x20mm/2.75x0.98x0.78inch
Screw Hole: Center Distance 64.5mm/2.53inch; Aperture 3.0mm/0.12inch

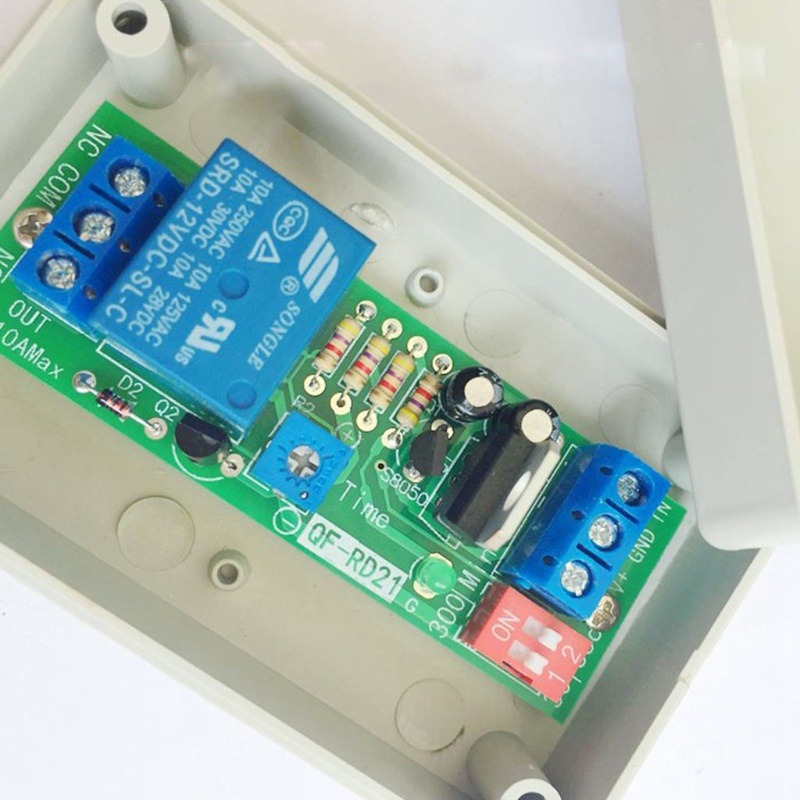

Matching Shell: Shell Matching QF-1# (need to Be Purchased Separately)

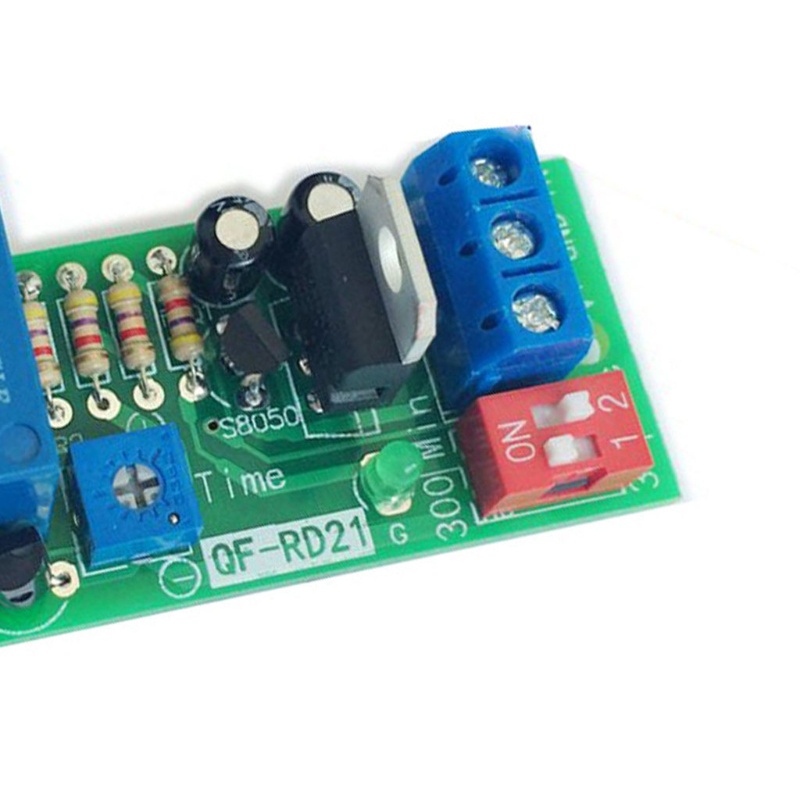

Time Limit:
First Gear: Range from 0.2 Seconds to 30 Seconds, Accuracy: 0.1 Seconds
Second Gear: Range from 0.2 Seconds to 300 Seconds (5 Minutes), Accuracy: 0.3 Seconds
Three Gears: Range from 0.2 Seconds to 30 Minutes, Accuracy: 1.8 Seconds
Four Gears: Range from 0.2 Seconds to 300 Minutes (5 Hours), Accuracy: 18 Seconds

Package Includes: 1x Timer Control Relays Module

note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
