#6-24V #Flip-Flop #Latch #Relay #Bistable #Self-locking #Low #Pulse #Trigger #Module 6-24V Flip-Flop Latch Relay Bistable Self-locking Low Pulse Trigger Module Working voltage:DC 6-24V
Working current:60-70MA
Standby current:1UA
Load current :AC 250V/10A,DC 30V/10A
Trigger mode:Low pulse trigger

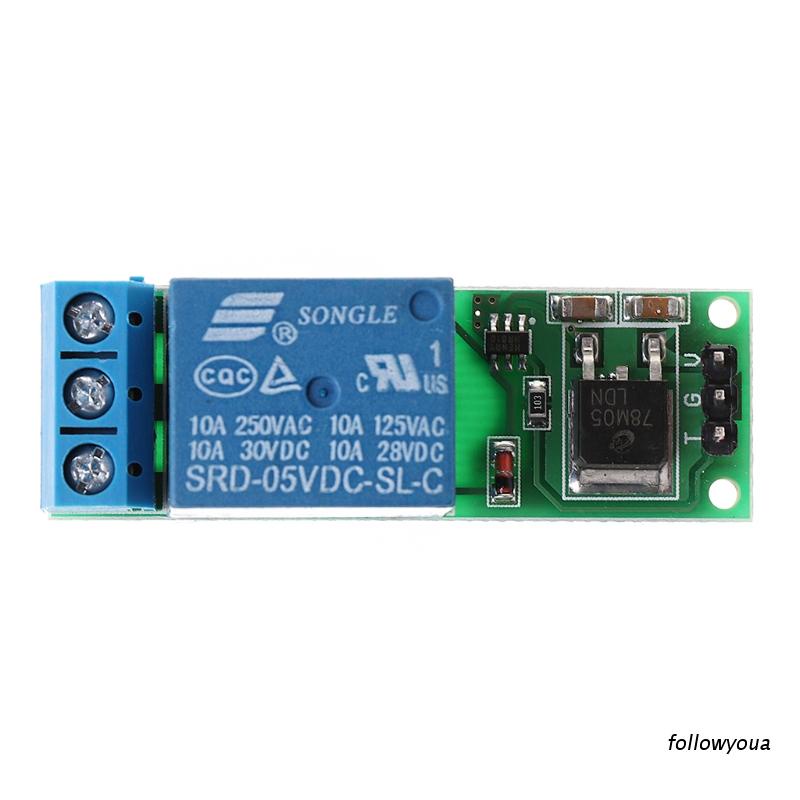

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

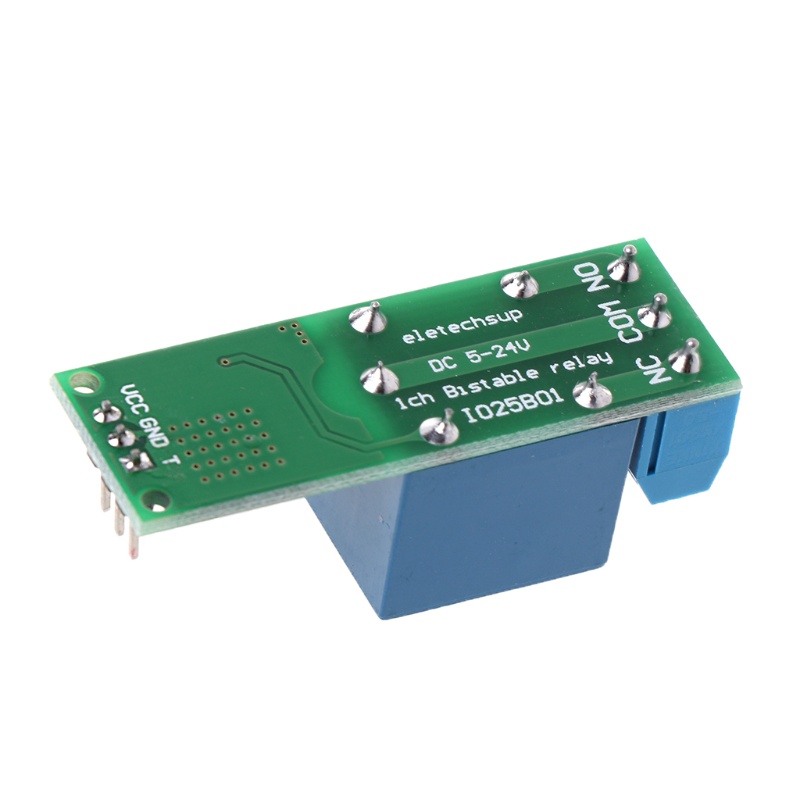

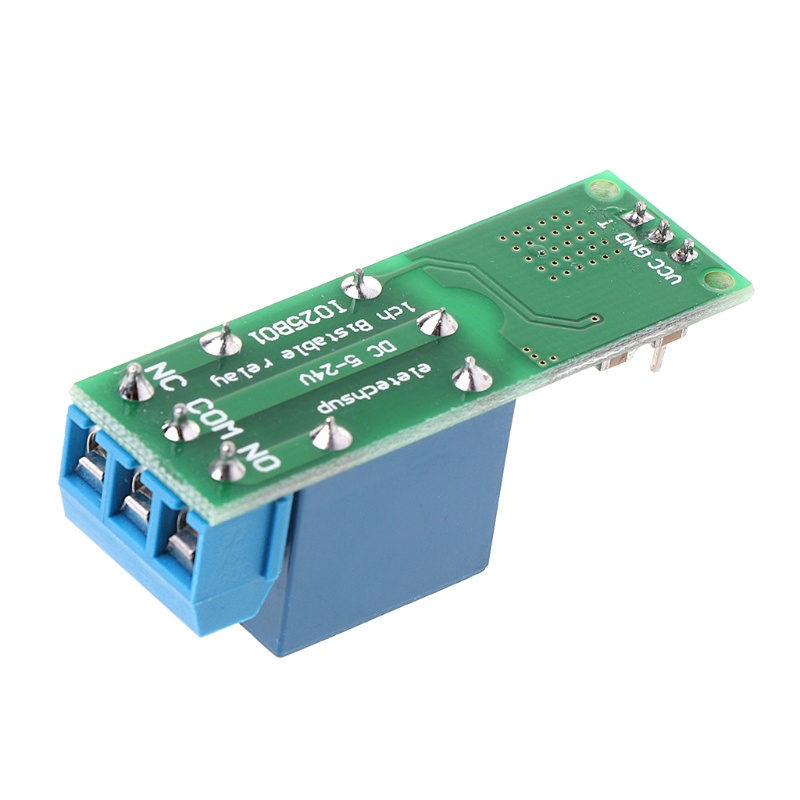

Module interface:
1.VCC: positive power supply (VCC)
2.GND: negative power supply (GND)
3.T: Low pulse trigger
Relay outputs:
1.NO: normally open relay interface
2.COM: Common Interface Relays
3.NC: normally closed relay interface

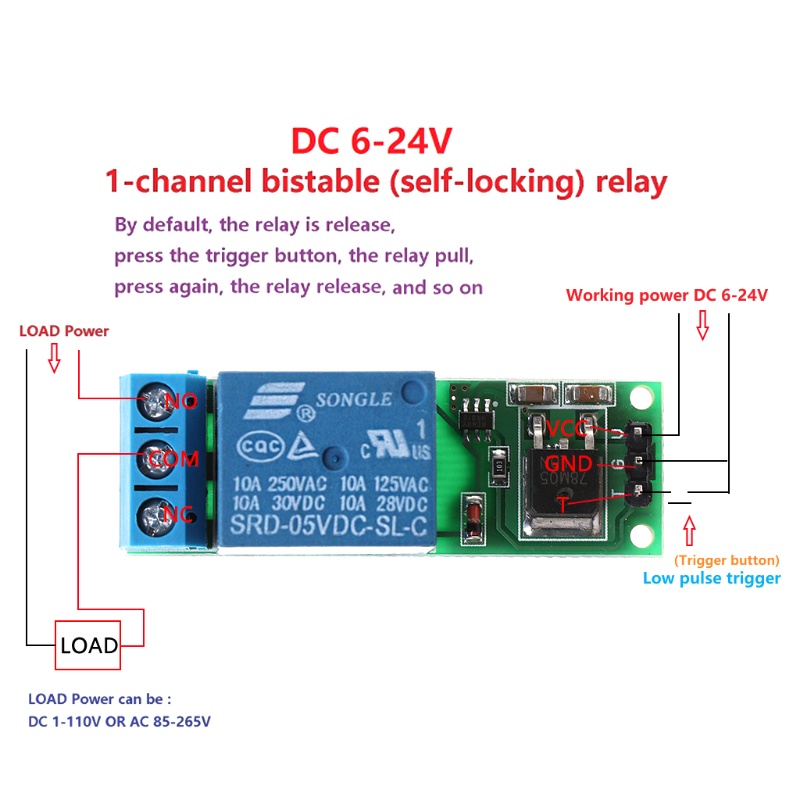

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
MCU development board
Automotive electronics
Industrial equipment
Emergency lighting
Smart Home
Toy car
Motor
LED
Size:4.8x1.1cm/1.89x0.43inch
