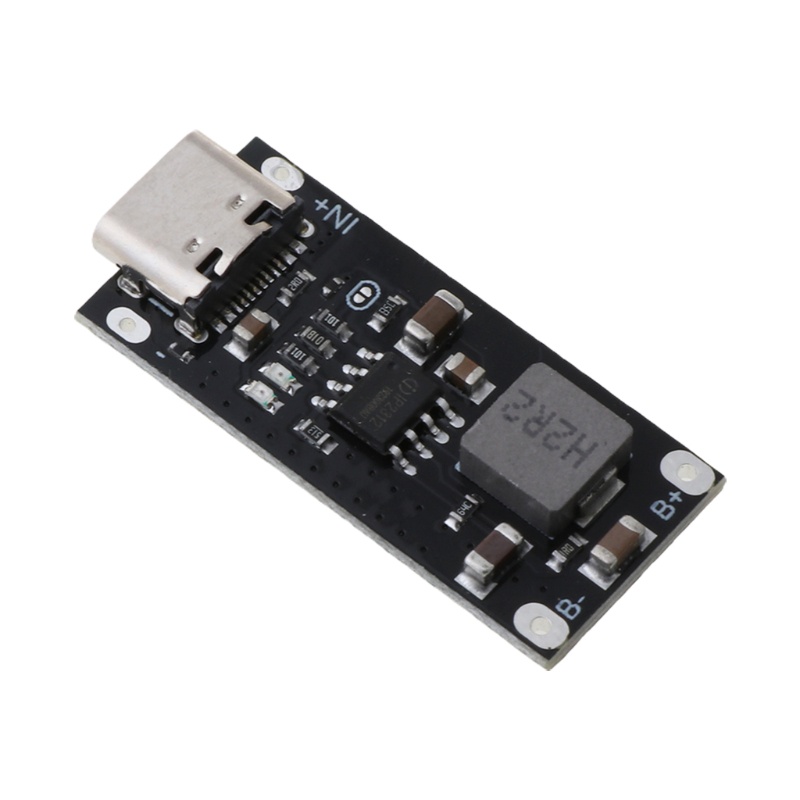

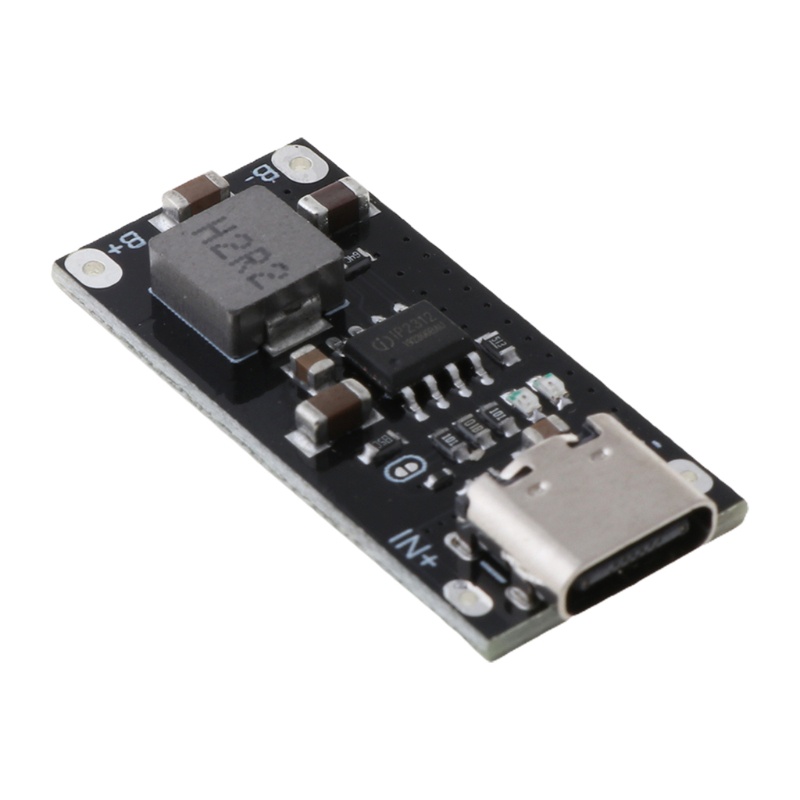

Giới thiệu Mô đun sạc pin Lithium 3.7V 4.2V/4.35V 5V 4.2V 4.35V 3A 2A 1A

#3.7V #Polymer #Ternary #Lithium #Battery #Fast #Charging #Charge #Board #Output #4.2V/4.35V #Power #Module #5V #4.2V
3.7V Polymer Ternary Lithium Battery Fast Charging Charge Board Output 4.2V/4.35V Power Module 5V 4.2V 4.35V 3A 2A 1A Current
100% brand new and high quality

Features:
3A charging current,can change the current through adjusting resistance;2 types of cut-off voltage can be optional(4.2V/4.35V).
3A polymer ternary lithium battery,quick charging board,provides efficient working effects.
Note: this product does not have the power indicator function, does not have the battery protection function, the store also has the lithium battery protection board and the power indicator board to sell.
Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data for reference only)
IP2312 adopts the complete CC/CV charging mode:
When the battery voltage is lower than 3V, it enters trickle charging mode and charges the battery with 100mA charging current.
When the battery voltage is greater than 3V, it enters the constant current charging mode to charge the battery with the set constant current charging current.
When the battery voltage is close to 4.2V and the charging current is less than 300mA, the battery enters the constant voltage charging mode. After entering the constant voltage mode, stop charging
every 4 minutes and check whether the battery voltage is higher than 4.15V: if it is higher than 4.15V, stop charging; Otherwise, continue to charge, and then after another 4 minutes after detection.
When the battery is fully charged, if it is detected that the battery voltage is lower than 4.1V, it will start to charge the battery.
board only,other accessories demo in the picture are not included!

Current adjustment instructions:
Default 3A,remove 2A resistance and convert to 135K resistance 1A.

Specification:
Main-control Chip: IP2312
Type: Fast Charging Board
Output: 4.2V,4.35V(optional)
Input: 4.5-5.5V
Charging Current: 3A
Size: One Size
1.5x3cm(0.59x1.18in)
Quantity: 1 Pc

Note:
1.1cm = 0.39inch.
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Charging Board
