Mô Đun Siêu Âm Chống Nước Jsn-Sr04T

Giới thiệu Mô Đun Siêu Âm Chống Nước Jsn-Sr04T

JSN-SR04T integrated ultrasonic ranging module waterproof ultrasonic reversing radar

Product characteristic:
1, small size, easy to use;
2, low voltage, low power consumption.
3, high precision measurement;
4, strong anti-interference;
5, the integration of enclosed probe waterproof tape line, apply to damp, bad measurement occasions.

Products should be used:
1, horizontal distance;
2, obstacle avoidance, automatic control;
3, objects close to, and exist
4, traffic control;
5, security, industrial control;
6, artificial intelligence, the research

The basic principle of work:


(1) using IO mouth TRIG trigger range, high level signal for at least 10 us;


(2) module automatically sent eight 40 KHZ square wave, automatically detect whether there is signal to return;


(3) have returned signal, through IO mouth ECHO output a high level, the duration of the high level is the time of ultrasonic wave from launch to return.Test distance = (high level of time * sound velocity (340m/S))/2;
This module USES method is simple, the mouth sends a high level of more than ten us, you can receive the mouth for high level output. To be able to open the timer timing, an output when the mouth into a low electricity at ordinary times the value of the timer can be read, this is for the distance of time, can calculate the distance. So constantly cycle test, which can reach your mobile measuring values.




Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.

Shipment：
1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment.
2.If you have not received the item after 15 days shipment,Please contact us.

After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video



#SN-SR04T #integrated #ultrasonic #ranging module #waterproof ultrasonic #reversing #radar

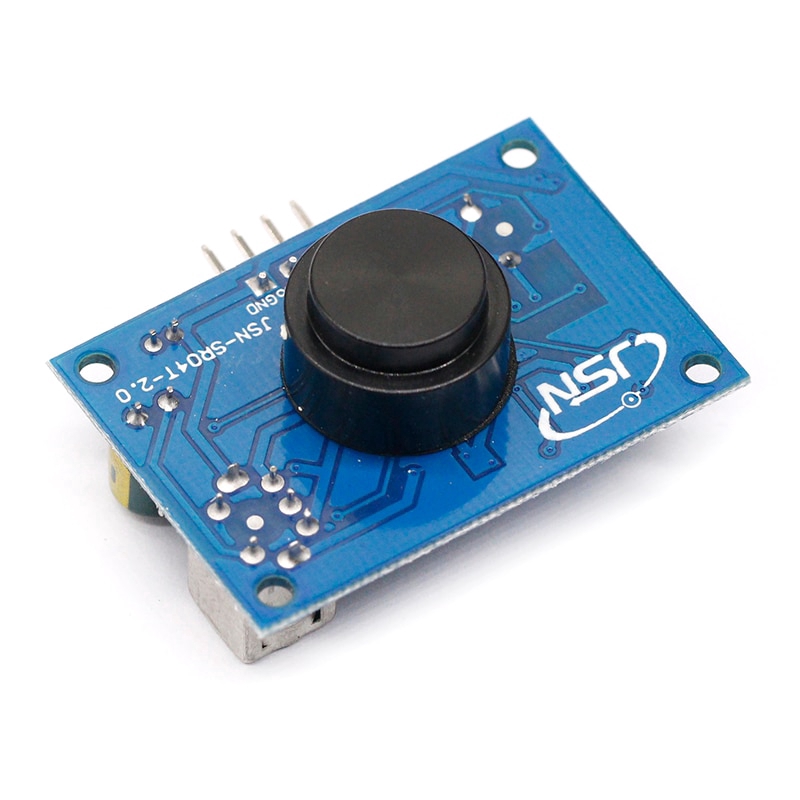

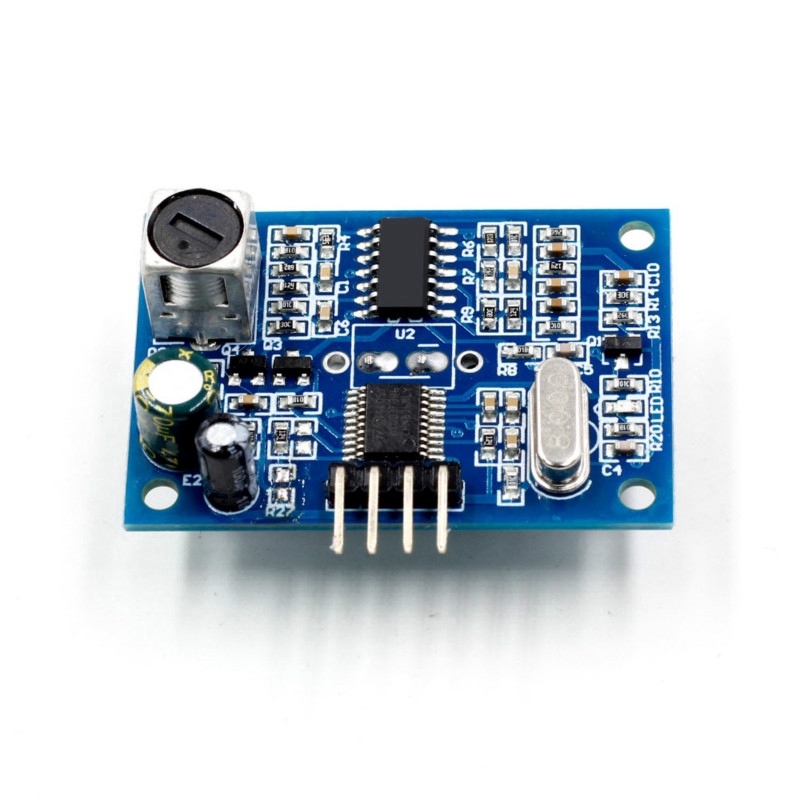

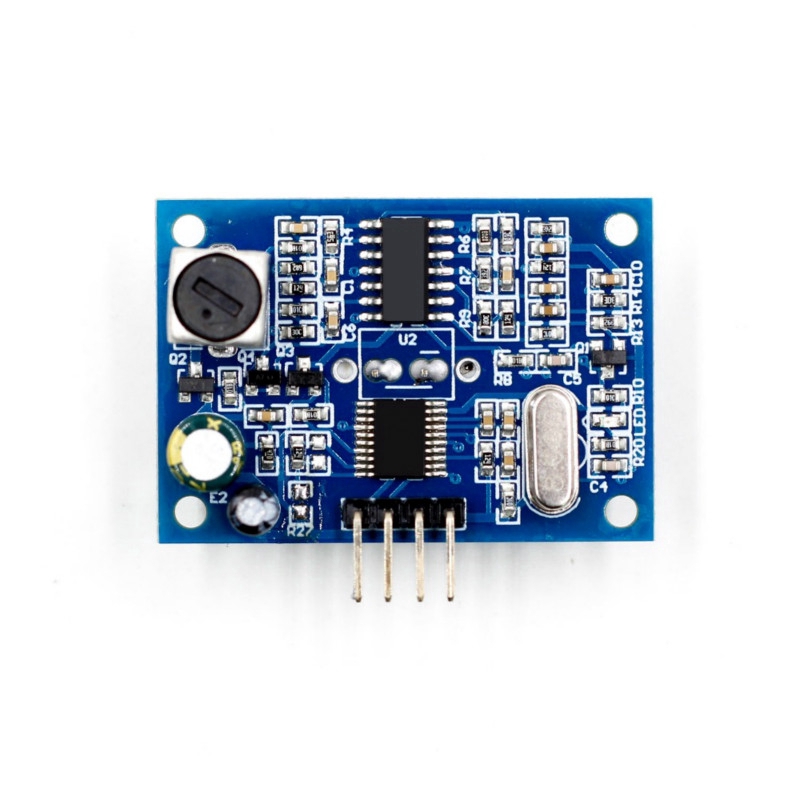

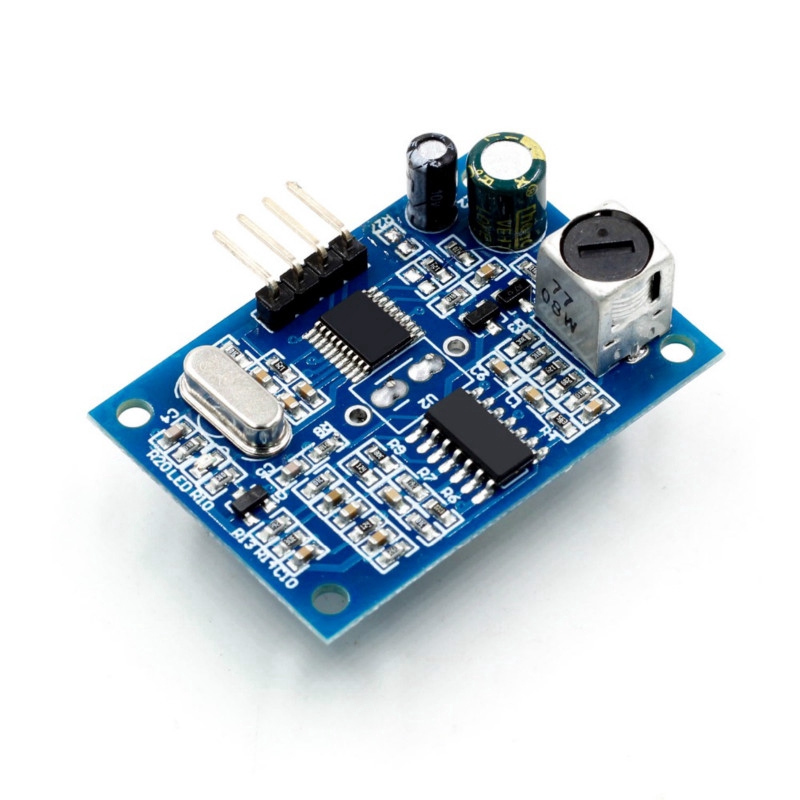

Hình ảnh sản phẩm
