Mô Đun Tăng Áp 150w Dc 12v Sang Ac 110v 220v Chất Lượng Cao Cho Xe Hơi

Giới thiệu Mô Đun Tăng Áp 150w Dc 12v Sang Ac 110v 220v Chất Lượng Cao Cho Xe Hơi

Features:
1.Transform voltage from DC 12V to AC 110V 220V.
2.Output waveform: frequency square wave.
3.Adopt high quality PCB board, durable for use.
4.Mainly used for electronic DIY work before the inverter stage.
5.The quiescent current is 0.05A around.
6.Made of high quality material, it's durable.

Specifications:
Product Name: 150W Inverter Boost Module
Material: Metal
Color: Multicolor
Size: 100x30x20mm/3.94x1.2x0.8in
Power: 150W
Input: DC 12V
Quiescent Current: 0.05A around
Output Waveform: Frequency Square Wave
Output Frequency: 20KHz around
Protection: No Protection

The Default Output Voltage Wiring As Follows(Just for Reference):
V0-V2=110V V0-V3=172V
V0-V4=200V V0-V5=220V
V5-V4=20V V5-V3=45V
V5-V2=110V V4-V3=28V
V4-V2=90V V3-V2=62V

Package:
1 x Inverter Boost Module

Notes:
1.The board is high frequency square wave AC output so it can not drive general inductive electric appliances, such as electromotor, electric fan, coil transformer, etc.
2.When connected with small load(LED light, phone charger, etc.), please connect to the gear of low output voltage: 172V or 200V.
3.When work for a long time under large load, suggest to strengthen the cooling fin.
4.Don't connect the power reversely, and the power supply and power cable should be with enough large current.
5.Don't overload or short circuit the output.
6.High frequency output low voltage measured by multimeter will display higher(it's not correct, not the actual voltage).

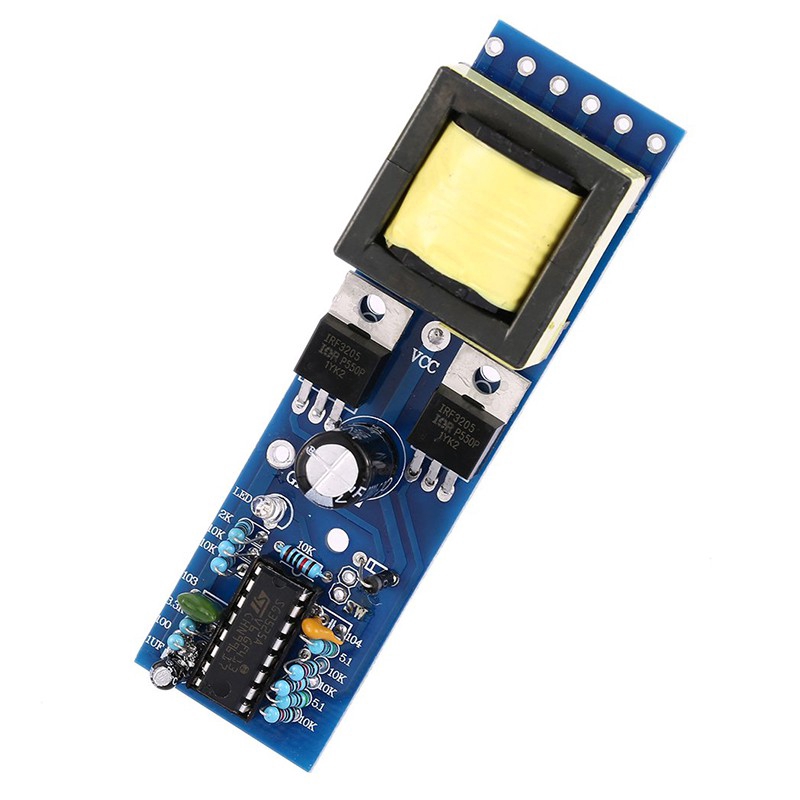

Hình ảnh sản phẩm
