Mô đun tăng áp 7W USB DC 5V sang 6V 9V 12V 15V

Giới thiệu Mô đun tăng áp 7W USB DC 5V sang 6V 9V 12V 15V

Applications:
6-15V Low Power Motor
6-15V LED Lighting
Hard drive power supply
9V 12V 15V Routers and network equipment
Wireless communication equipment
315M 433M Wireless remote controller

Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Modify Parameter Description:
1.4A current limiting resistor,Remove the resistance, the maximum input current can reach 2A.
But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 Degrees Celsius under the OTP threshold temperature
The master chip is FP6291

Input voltage 3~6V, output 6-15.5V
Maximum input current : 1.4A
Long-term work Current : 1A
Conversion efficiency : 79-90%

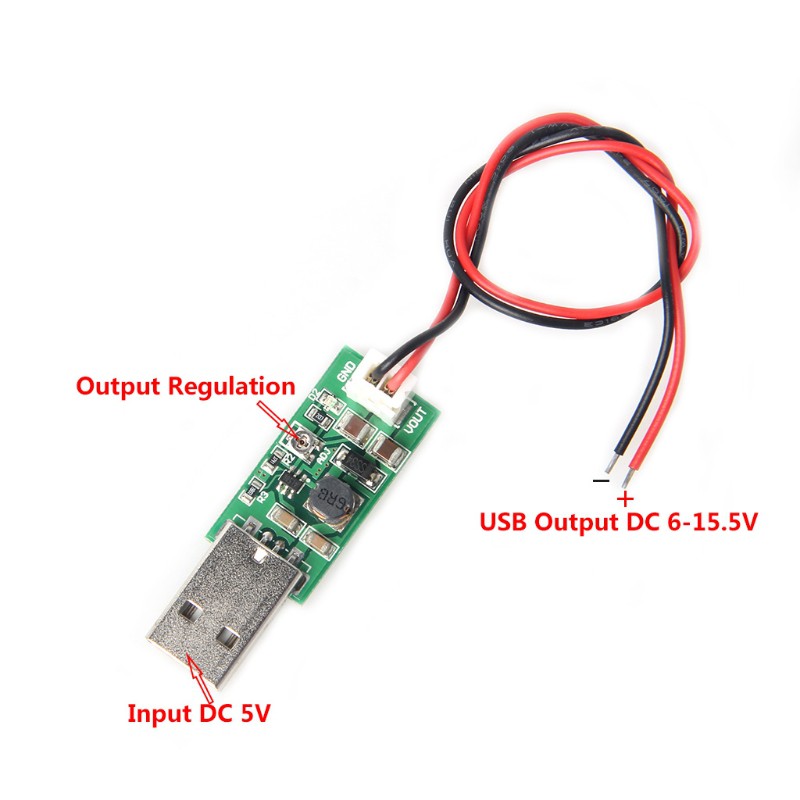

Input: USB Male Interface, DC 3-6V;
Ouput : 2 PIN XH2.54, DC 6-15.5V;
If input dc 5v,output 6-15.5V Adjustable
Power : Maximum 7W
DC-DC Boost module working frequency 1.0MHZ
Operating ambient temperature : -40~+85℃

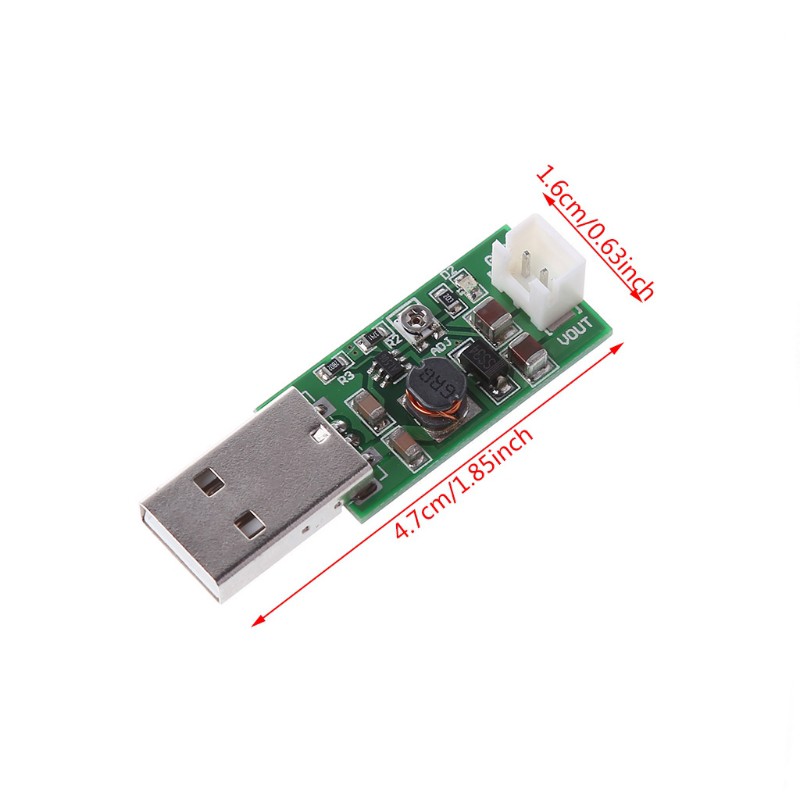

Size: 4.7x1.6cm/1.85x0.63inch
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

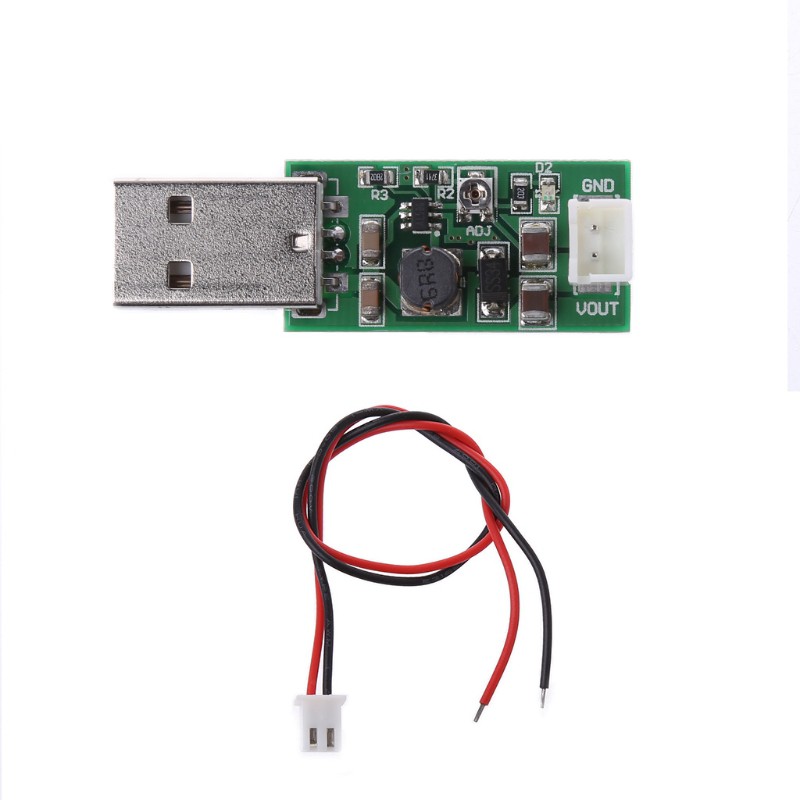

Package Contents:
1 Pc x Step Up Boost Module
#CRE #7W #USB #DC #5V #To #6V #9V #12V #15V #Adjustable #Output #DC #Converter #Step #Up #Boost #Module

Hình ảnh sản phẩm
