Giới thiệu Mô Đun Tăng Áp Dc-Dc 20a 1200w Chuyển Đổi 8-60v Sang 12-83v 439v
Welcome to our shop ~Happy shopping!!! #meifuyi.vnSpecification:
Brand new
Module Properties: non-isolated step-up module (BOOST)
Input voltage: 8-60V
Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5-20A
Output Power: Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W
Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel
The current per module can be adjusted to 15A
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security
Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
Output Counter filling: Yes, for charging plus blocking diode is not required
Installation: four 3mm screws

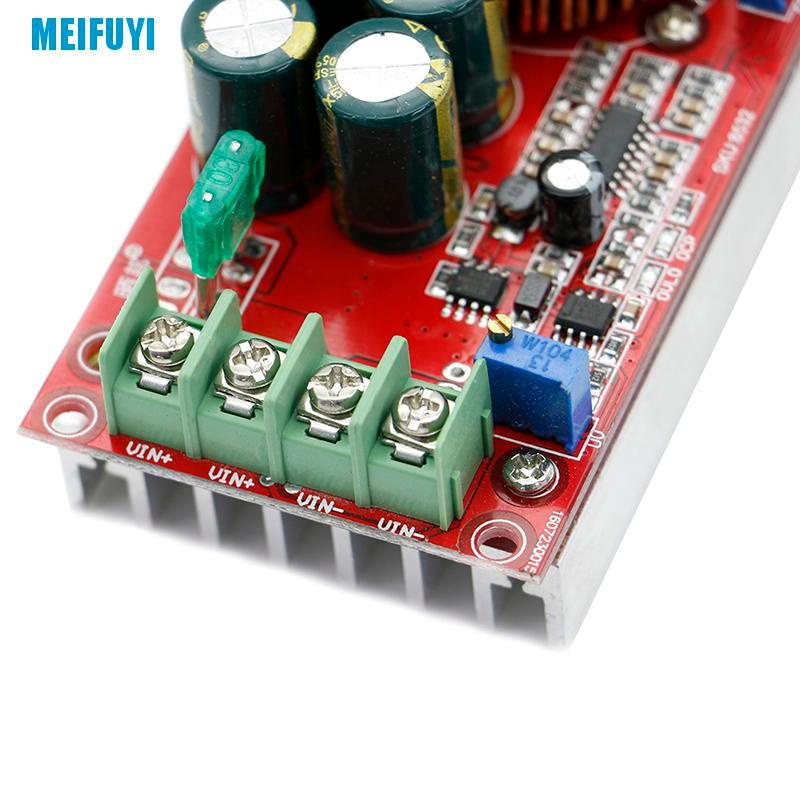

Connection: solderless terminals output

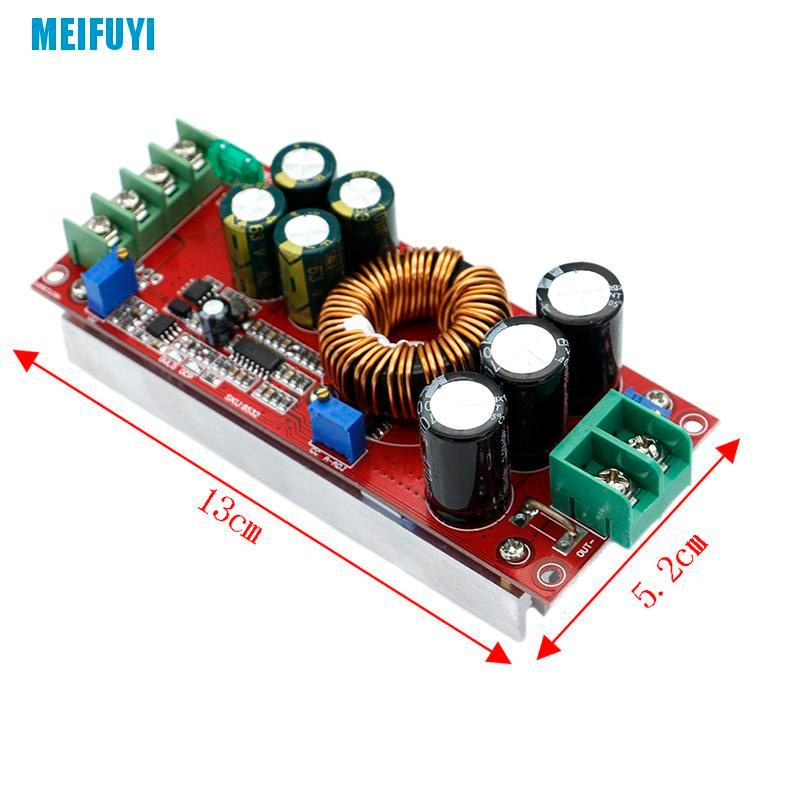

Module dimensions: approx. 130x 52 x 15mm
Package included:
1 x step-up power supply module
Note:
Please allow 1-5mm errors due to manual measurement
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
