Mô Đun Tăng Áp Dc-Dc Từ 10-32v Sang 35-60v 120w

Giới thiệu Mô Đun Tăng Áp Dc-Dc Từ 10-32v Sang 35-60v 120w

Size: 65(L)*47(W)*23.5(H) mm (excluding copper pillar)
The input and output capacitors are out of stock due to ruby ​​capacitors, and now use high-quality JWCO capacitors.

1. Switch to airfoil heat dissipation, the heat dissipation effect is obviously improved, and the output power is larger (the power can be about 130W when the fan is added).
2. The output ripple is low, the output ripple is controlled at about 1% when the ripple is at 48V output.
3. Optional input voltage range 8-20V, 10-32V, default delivery is 10-32V
The default delivery output voltage is about 48V

Module parameters:
Module nature: non-isolated boost module (BOOST)
Input voltage: 10-32V
The output voltage:
(1) Continuously adjustable (35-60V)
(2) Fixed output (any choice between 35-60V)

Output current: 5A (MAX)
Input current: 16A (MAX) (please increase heat dissipation if it exceeds 10A)
Output power: natural cooling 80W (MAX), enhanced heat dissipation 120W (MAX) actual power
Conversion efficiency: 90% typical (for reference only)
Output ripple: 2% (MAX) 20M bandwidth
Working temperature: industrial grade (-40°C to +85°C) (the ambient temperature exceeds 40 degrees, please reduce the power to use, or strengthen the heat dissipation)
Full load temperature rise: 45℃
No-load current: 25mA typical
Load regulation rate: ±0.5%
Voltage adjustment rate: ±0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (please install a fuse or protection circuit at the input)
Input reverse connection protection: No, please cooperate with our reverse connection protection board or connect a diode in series with the input.
Wiring mode: welding-free, terminal

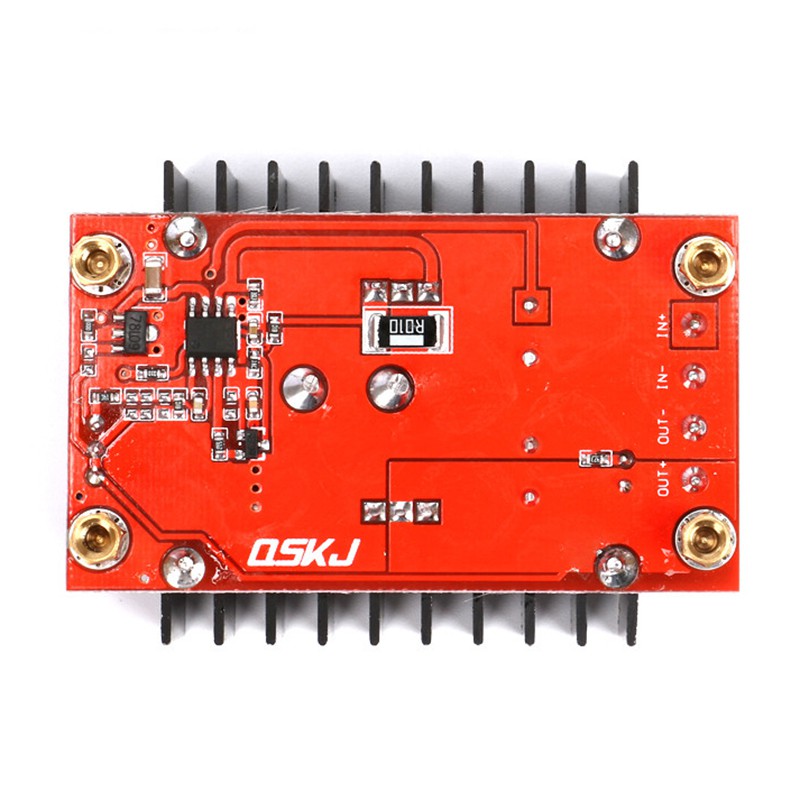

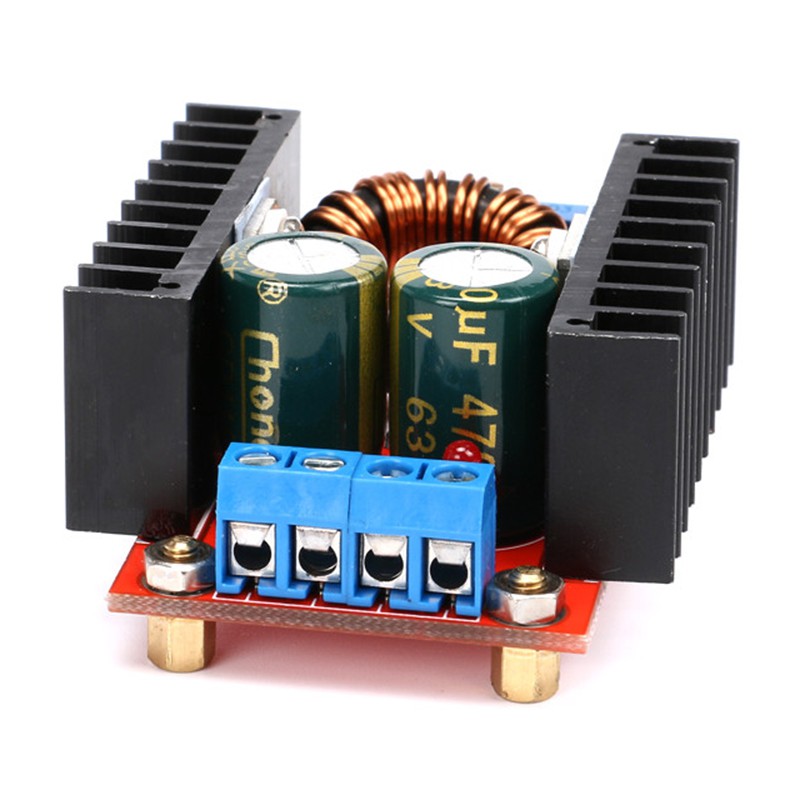

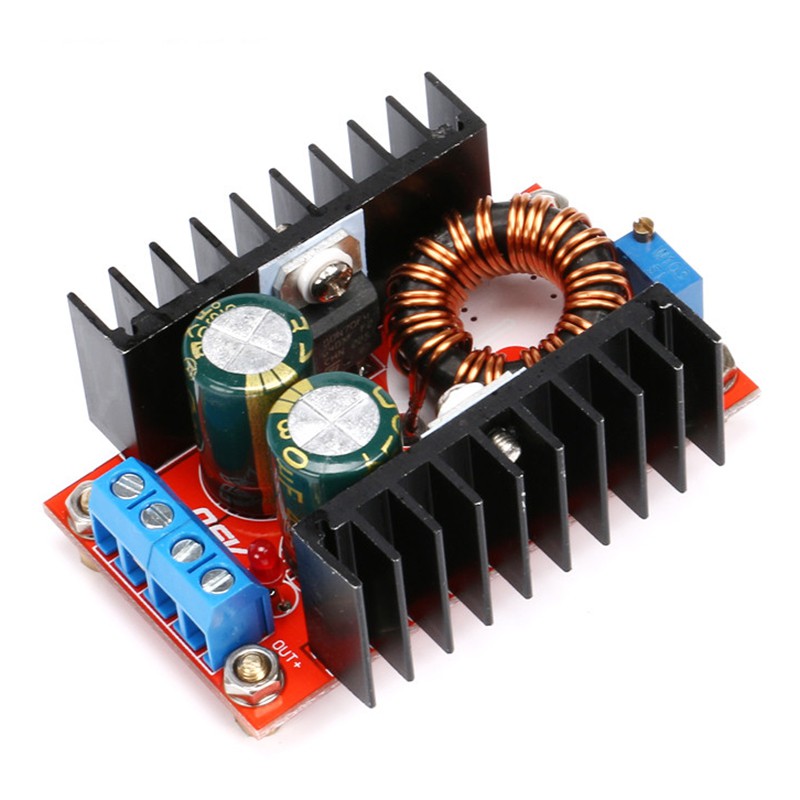

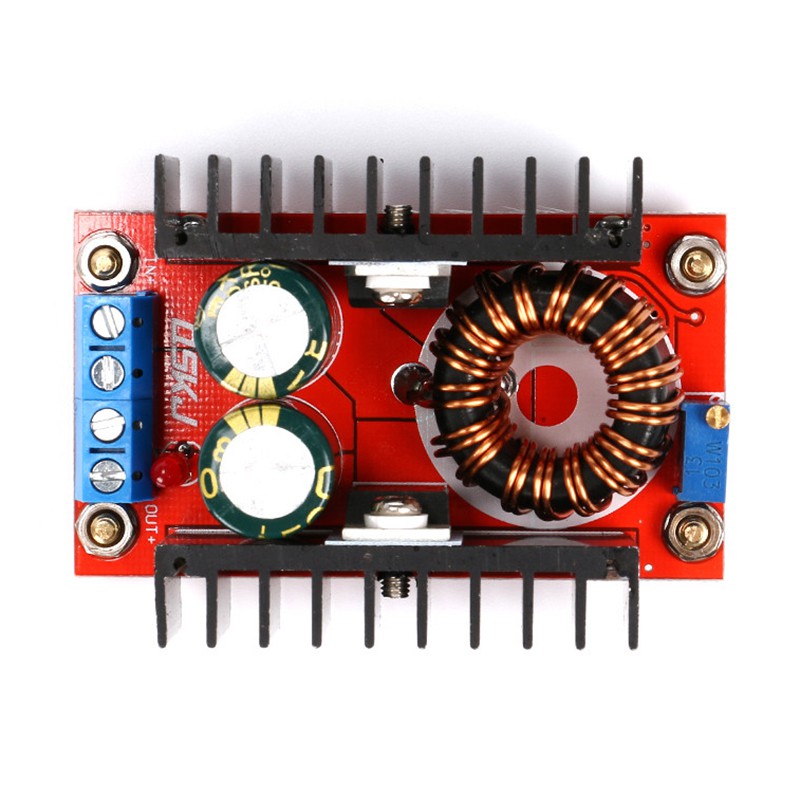

Hình ảnh sản phẩm
