Mô đun tăng áp DC-DC XL6009 có thể điều chỉnh điện áp cho điện thoại

Giới thiệu Mô đun tăng áp DC-DC XL6009 có thể điều chỉnh điện áp cho điện thoại

Description:
When the car starts the voltage will be pulled down to below 7V or less, the engine at high speed when the voltage up to 15V or higher. This auto-boost module solves this problem for devices operating at 12V, and the output can be stabilized at 12V regardless of the input voltage being 5V or 12V or 32V.
Wide inpuy voltage: 5V~32V
Wide output voltage: 1.25V~35V(with automatic lifting pressure ,the scope of work ,any arbitrary voltage input voltage output can be regulated);
Built-4A efficient MOSFET switch,so that the efficiency up to 94%;(lM2577 current is only 3A)
High swithing frequency 400KHz,ripple smaller and smaller.(LM2577 frequency only 50KHz)
Application areas:
Auto regulator,solar photovoltaic,wind power applications such as voltage instability
Technical parameters:
the nature of non-synchronous rectification
Input Range: 3.8V~32V
Output Range: 1.25V~35V
Input current: 3A(max), load :18mA (5V input,8V output,load fo less than 18mA.HIghe the voltage,the load current increases.)
Conversion efficiency: <94%(greater the pressure,the lower efficiency)
Switching Freqyency: 400KHZ
Output ripple: 50mV (the higer the voltage,the greater the current,the greater the ripple)Load Regulation
Load Regulation: ±0.5%
Voltage regulation: ±0.5%
Operating temperrature: -40℃~ +85℃
No Retail Packages
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Package includes:
1Pc x Module

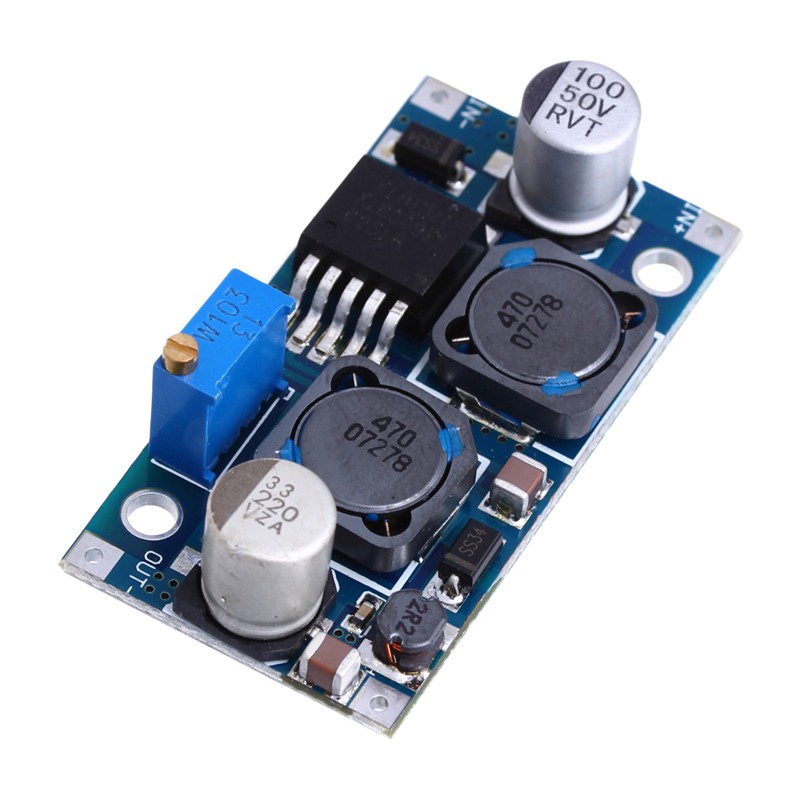

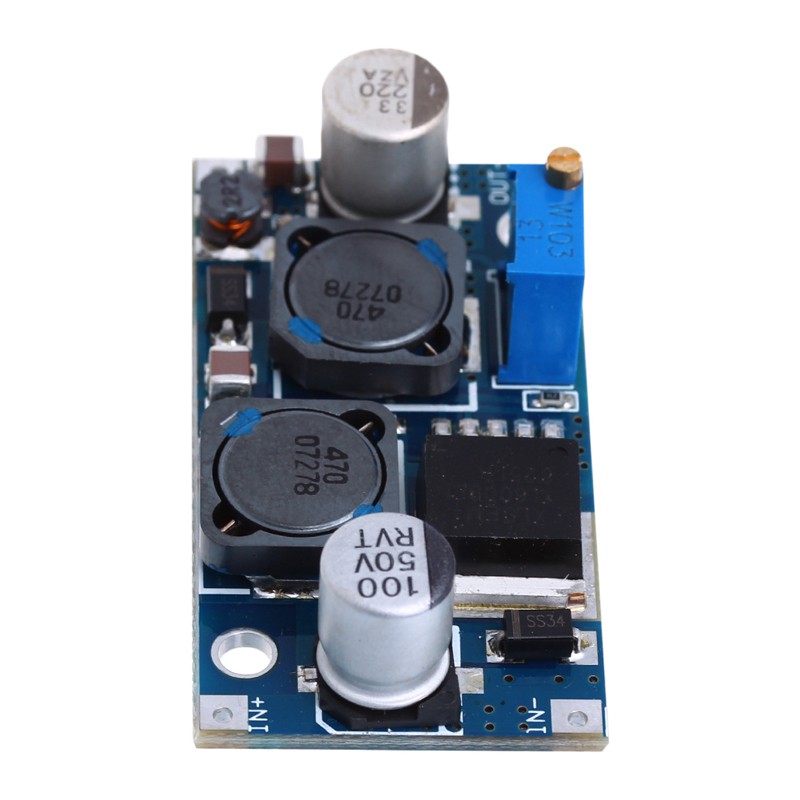

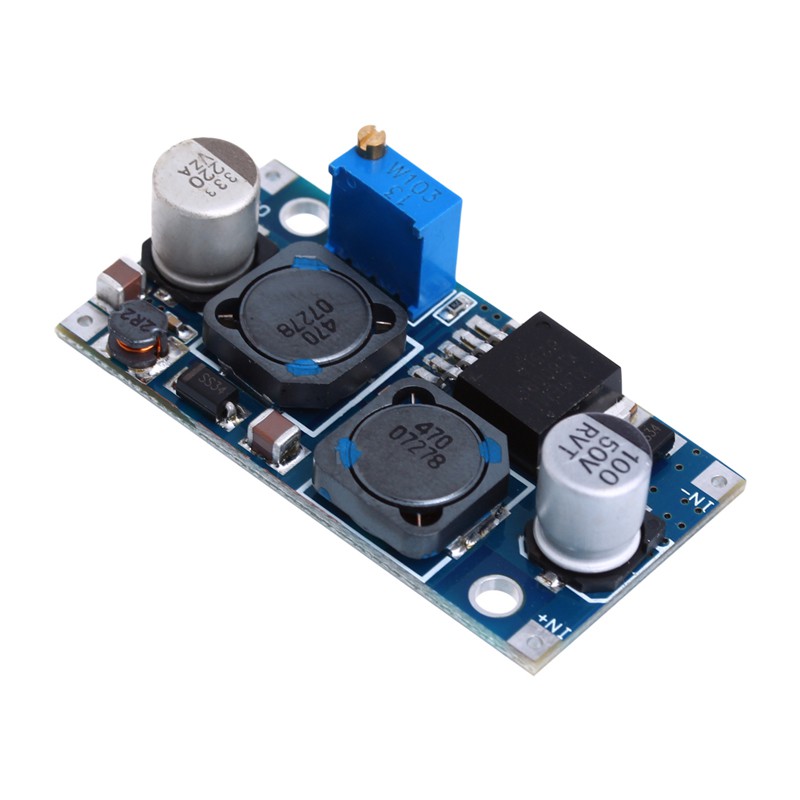

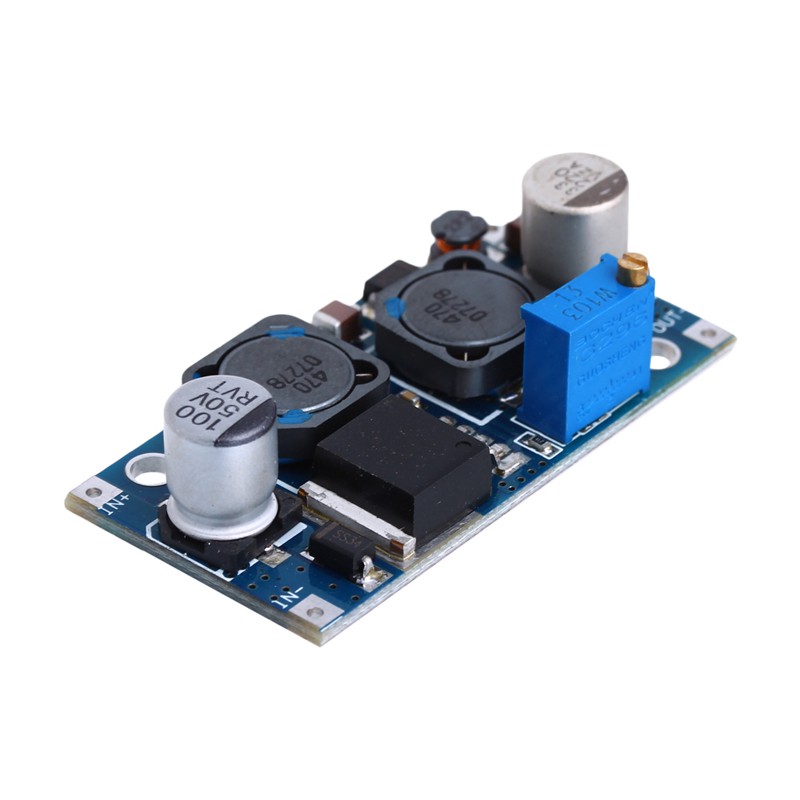

Hình ảnh sản phẩm
