Mô đun tăng áp nguồn điện tự động

Giới thiệu Mô đun tăng áp nguồn điện tự động

Descriptions:
The module uses the step-up and down the chip as the main controller, external 60V 75A MOS

tube as a switch, double 60V 5A SS56 Schottky do rectifier.
Can be boosted, but also buck, the output voltage 0.5-30V arbitrary adjustment, limiting current 0

-4A arbitrary adjustment; can be used for LED constant current drive, battery charging and other

constant current occasions, while limiting current with overcurrent protection, more secure ;

Constant current mode indicator, charging indicator, full of light. Output anti-backwash, do not

charge the battery when the additional anti-flooding diode.
Wide voltage input 5.5-30V, wide voltage output 0.5-30V, both boost can also buck, such as you

adjust the output voltage of 18V, then the input voltage between 5.5-30V casually change, will be

constant output 18V; then for example, you enter 12V, adjust the potentiometer settings 0.5-30V

arbitrary output.

Specifications:
Input Voltage: 5-30V
Output Voltage: 0.5-30V
Output Current: to long-term stability in the 3A, to strengthen the heat can reach 4A
Output Power: Natural Cooling 35W, Strengthen the Heat 60W
Conversion efficiency: 88%
Short circuit protection: Yes
Operating frequency: 180KHZ

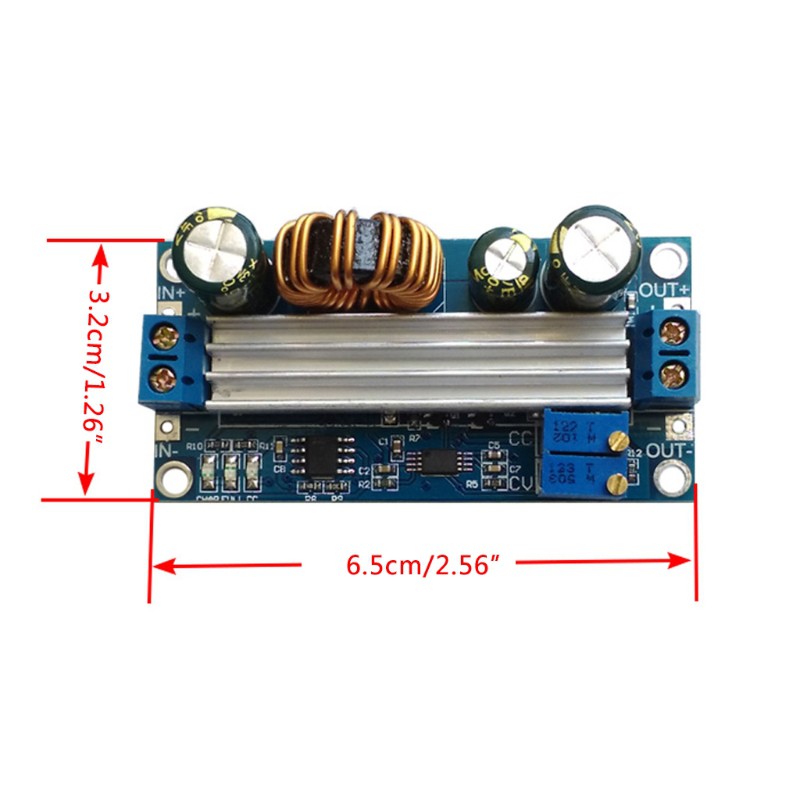

Size: 65x32x21mm/2.56x1.26x0.83"(LxWxH)
Quantity: 1 Pc

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you

bid.
Due to the difference between different monitors, the picture may not reflect the actual color of

the item. Thank you!

No Retail Package
Package Contents:
1 x Step Up/Down Module
#CRE #DC-DC #Auto #Buck #Boost #Step #Up/Down #Module #Power #Supply #Module #Output #Adjustable

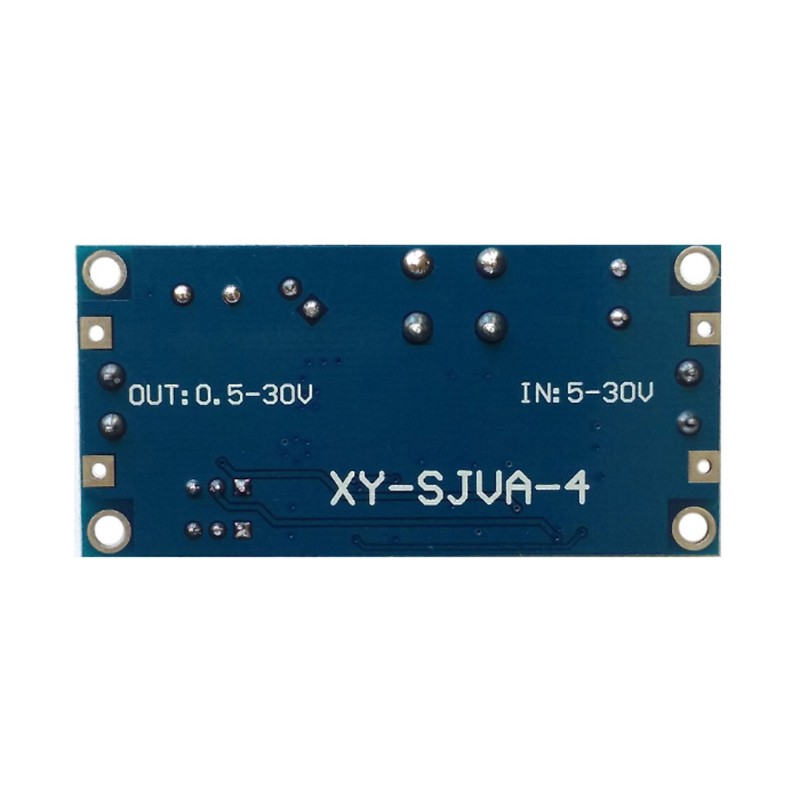

Hình ảnh sản phẩm
