Mô Đun Tăng Áp Wer Dpx800S Dc Cv 12v ~ 120v 12a 24v 36v 48v 96v

Giới thiệu Mô Đun Tăng Áp Wer Dpx800S Dc Cv 12v ~ 120v 12a 24v 36v 48v 96v

#DPX800S #DC #DC #Boost #Converter #CC #CV #Power #Module #12V~120V #12A #Adjustable #Regulated #power #supply
DPX800S DC DC Boost Converter CC CV Power Module 12V~120V 12A Adjustable Regulated power supply 24V 36V 48V 96V

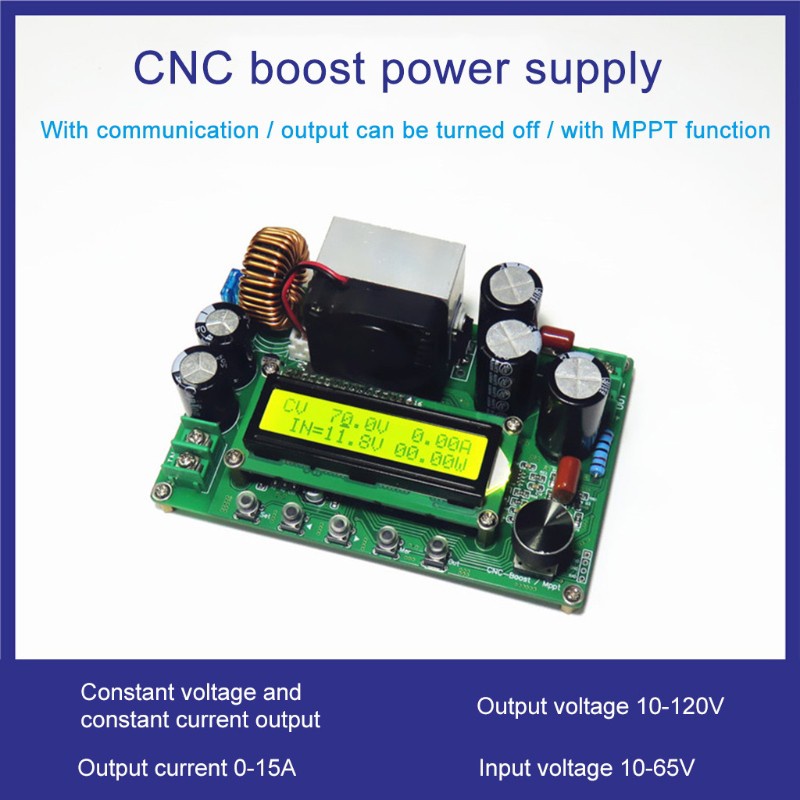

DPX800S CNC boost constant voltage constant current power supply with communication Solar MPPT Charging 0-15A

First,Instrument Profile
DPX800S numerical control boost module is a full digital display boost module, small volume, large power, high efficiency, stable work, can be constant voltage and constant current output, and the module has its own fixed voltage algorithm MPPT function, can grab the maximum output power of solar panels.With advanced microprocessor control, the parameters can be adjusted by key and encoder, which is fast and convenient.And the LCD1602 liquid crystal display can display the information of output voltage, current, power, output capacity and input voltage in real time.

Second,Instrument characteristics

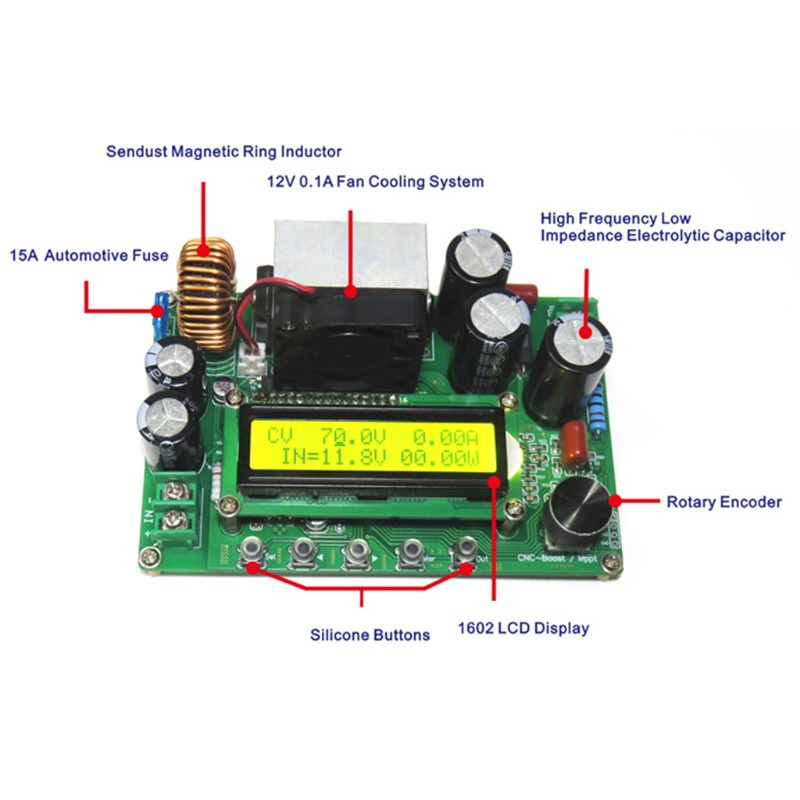

1. use LCD1602 display information, key and encoder to adjust parameters, human-computer interaction is more convenient;
2. uses high-quality power devices and the CV and CC loop composed of peripheral precision operational amplifier, which greatly improves the module performance;
3. with its own fan heat dissipation, small temperature rise;
4. full digital display, easy to use;
5. can be constant voltage, constant current output;
6. the use of advanced microprocessors, keys can accurately adjust the output voltage, current;
7. can set the automatic output after power on.
8. with input undervoltage protection (LVP), output overvoltage protection (OVP), output overcurrent protection (OCP).
9. with communication function, easy to secondary development.
10. With the function of boost MPPT, it is suitable for the solar panel boost charge to grab the maximum output power of the solar panel.

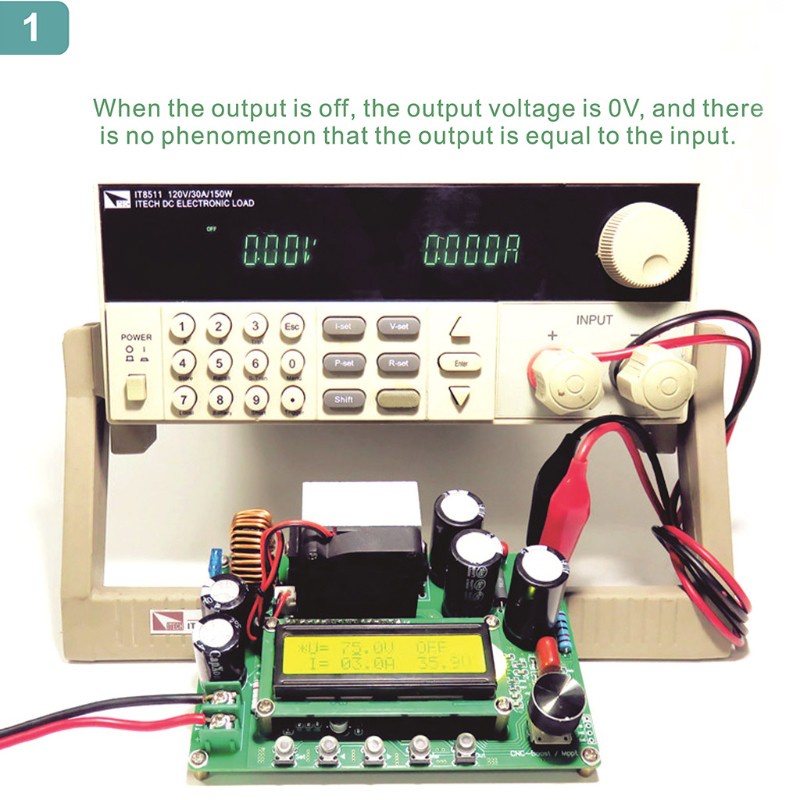

11. The output can be turned off, which is safer and more convenient than Boost traditional booster

Parameter Display Mode: LCD1602 display
Input voltage: 10V~65 V (800W)
Input current:15A (Max)

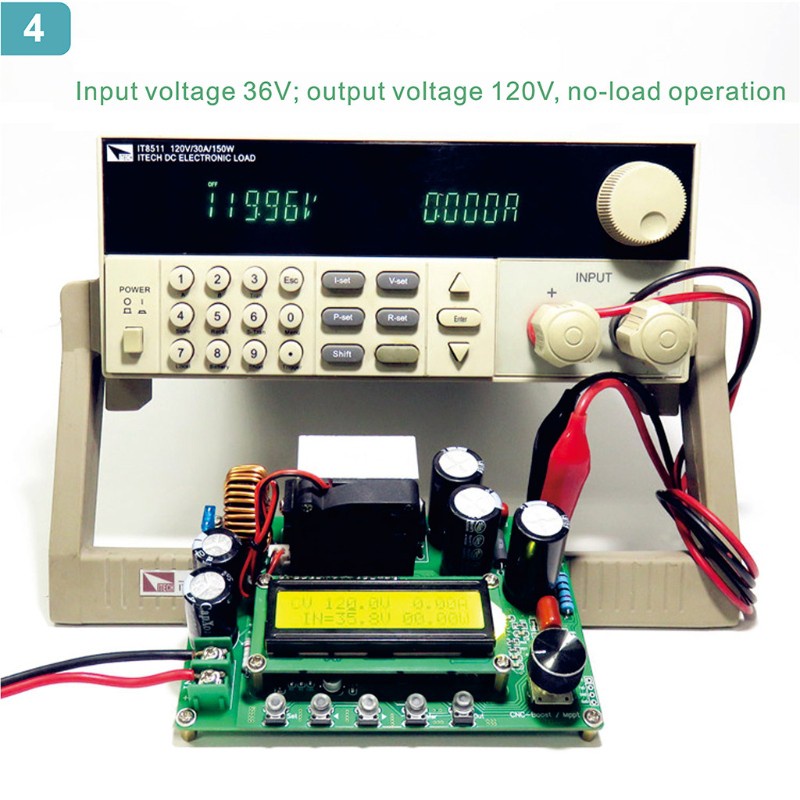

Output voltage 12V~12 0 V (800W)
Output current 0~12.0 A
Output power 800W (Max)
Input Protection Mode undervoltage protection (LVP)
Output Protection Mode Over-voltage protection (OVP), over-current protection (OCP)
Voltage regulation resolution 0.1 V
Current regulation resolution 0.1 A
Voltage display resolution 0.1 V
Current display resolution 0.01 A
Fan start-up condition: Output current greater than 1.5 A or power greater than 40 W
Short circuit protection: 15A car fuse
Wiring Mode: Terminal 8500

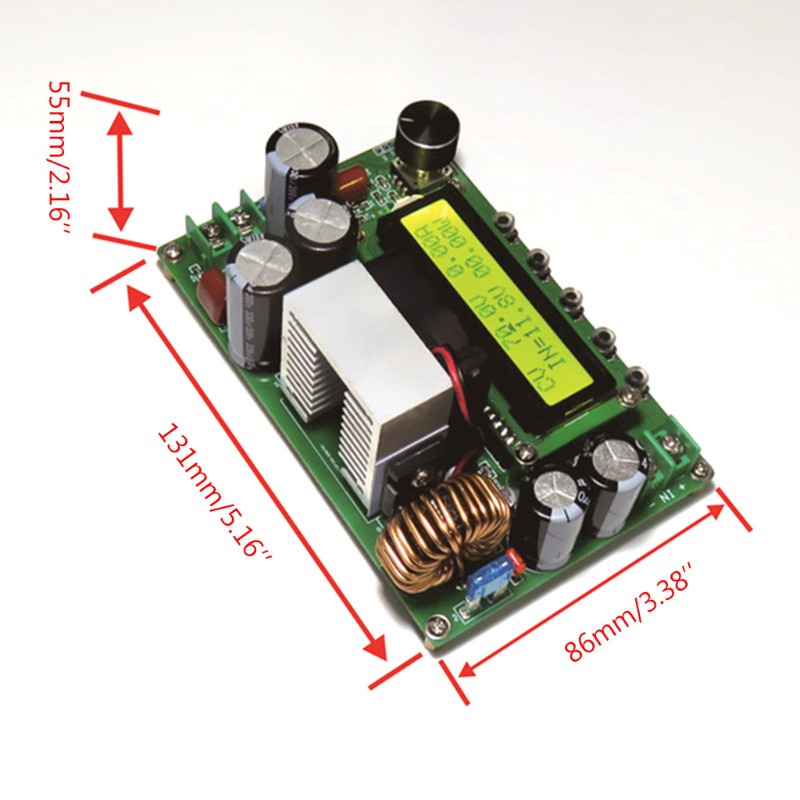

Product size (length × width × height) 130×86×60(mm)(excluding packaging)
Weight: 295g

Package included:
1 X DPX800S DC-DC NC CV CC Booster CNC Boost Module

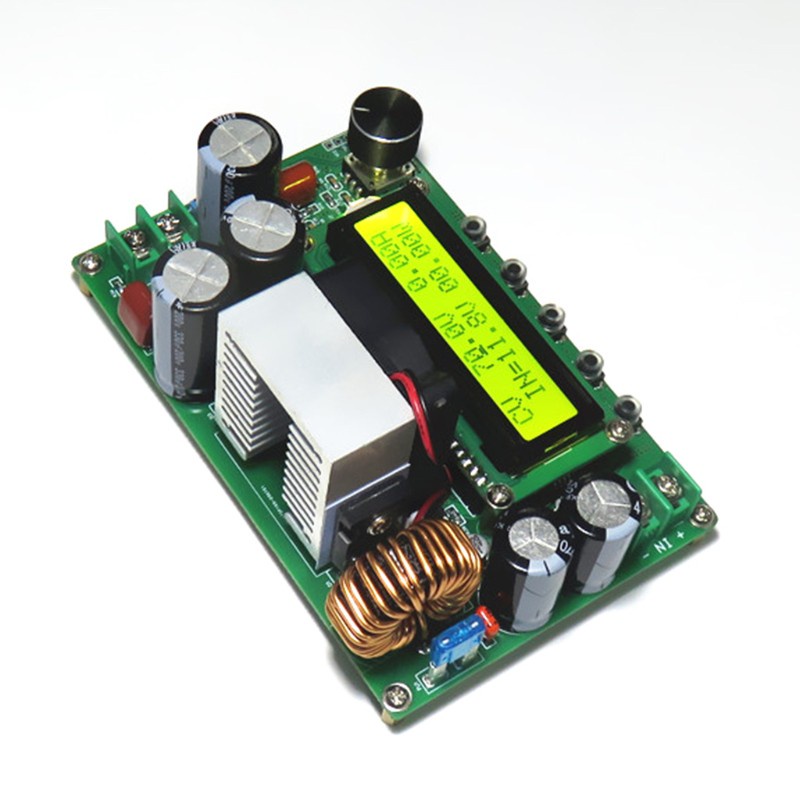

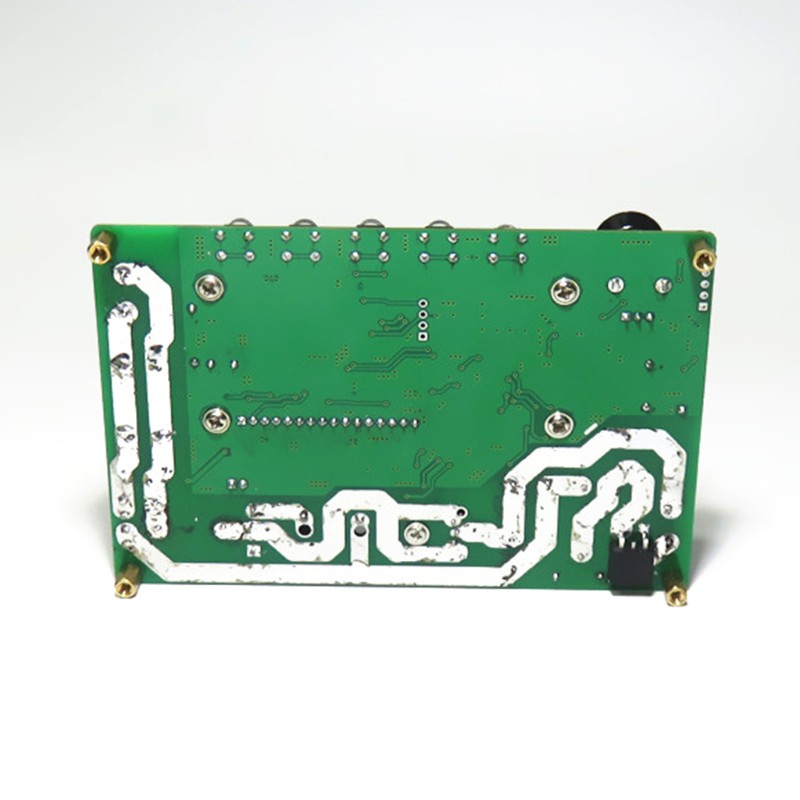

Hình ảnh sản phẩm
