Mô Đun Tăng Áp Xl6009 Dc-Dc Đầu Vào 4.5-32v Sang Đầu Ra 5-55v

Giới thiệu Mô Đun Tăng Áp Xl6009 Dc-Dc Đầu Vào 4.5-32v Sang Đầu Ra 5-55v

#XL6009 #DC-DC #Digital #Booster #Module #Adjustable #Input #4.5-32V #to #Output #5-55V #Step #Up #Voltage #Regulator

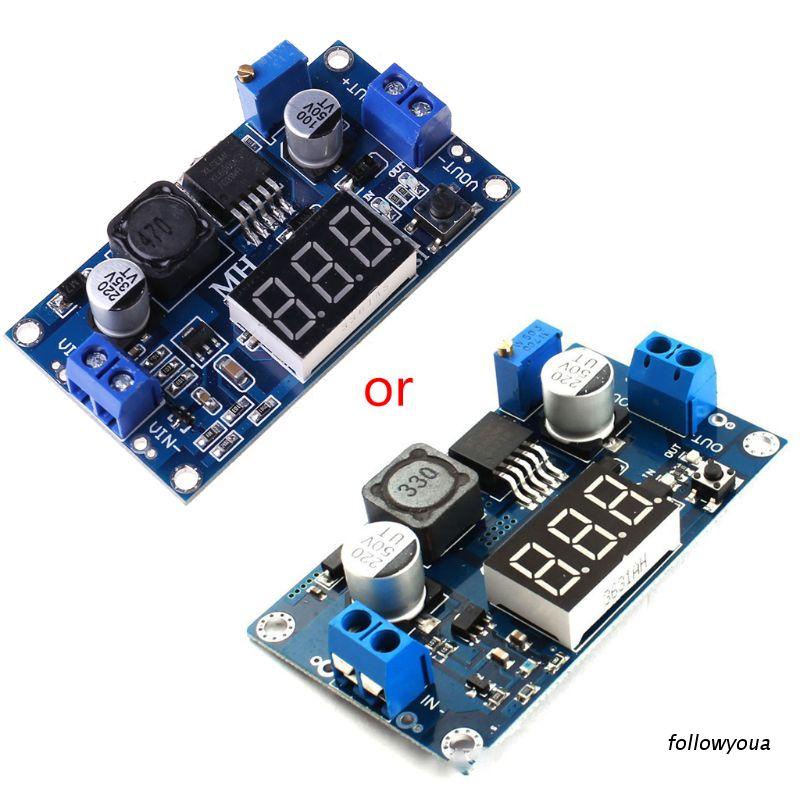

XL6009 DC-DC Digital Booster Module Adjustable Input 4.5-32V to Output 5-55V Step Up Voltage Regulator With LED Voltmeter
100% brand new and high quality
Features:
Ultra-wide input voltage 4.5-32V (Normally operating below 5V, but the digital tube does not work), the optimal working voltage range is 5-32V.
Ultra wide boost output voltage 5-55V to meet your needs.
Built-in 4A high efficiency MOSFET switching tube for up to 94% efficiency.
The ultra-high switching frequency is 400KHz, which can achieve very good results with a small-capacity filter capacitor with smaller ripple and volume.
With power indicator, easy to know the working conditions.
Adopting more advanced voltage microprocessor, the voltmeter error is ±0.05V, and the range is 0-35V. And the voltmeter can display the data and self-calibrating.(Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
Touch the button to switch the measurement or input or output voltage.
An indicator light shows which voltage is being measured, and save the settings, even if it is powered off and then on.
The voltmeter can be turned off and easily tapped when the display is not needed.
With terminal block, no soldering iron can be used easily, and the wire bond point is retained.
It has overheat protection and short circuit protection, safe to use.

Specification:
Model: XL6009
Material: Fiber glass board, Electronic component
Size: app.60 x 37mm/2.36 x 1.46in
Color: Blue
Quantity: 1 Pc

Product parameters
Module Feature: Non-isolation booster
Rctifier system:Not synchronous rectifier
Input Current: 4A(Max.), No load 18mA (5V input, 8V output, no load less than 18mA. The higher the voltage, the greater the no-load current.)
Output voltage: 5V-52V
Transfer Efficiency:94% (The larger the pressure difference, the lower the efficiency)
Switching Frequency:400KHz
Output Ripple:50mV
Load Regulation:±0.5%
Voltage Regulation:±0.5%
Operating temperature:-40 - 85℃/-40 - 185℉°

Wiring Method:
IN+ : input positive
IN- : Input negative
OUT+: output positive
OUT-: output negative

Test Sample Reference:
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1A 24W
Input 3V Output 12V 0.4A 4.8W

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x DC-DC Digital Booster Module
