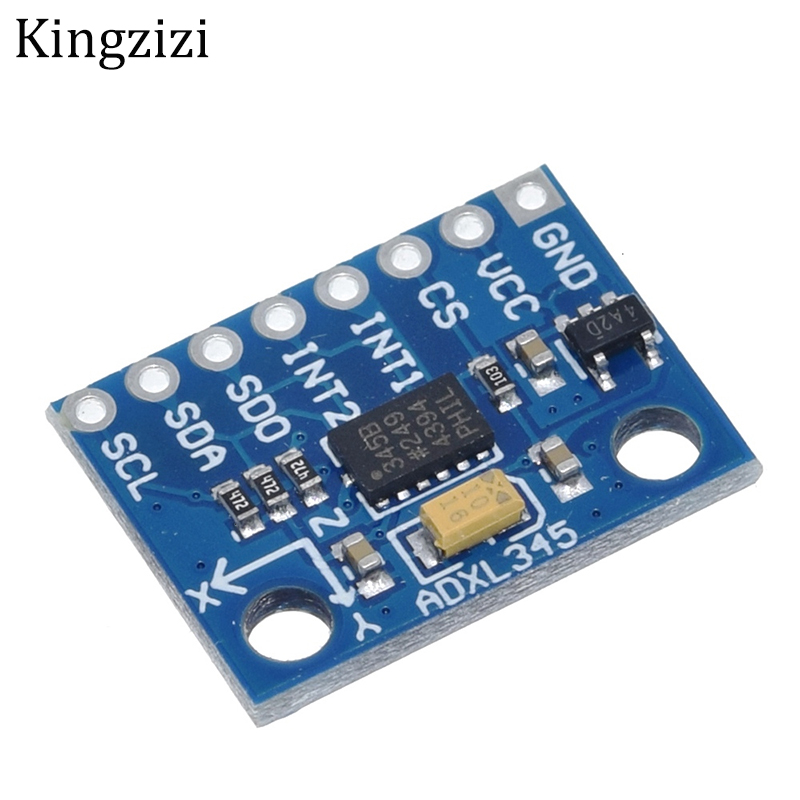

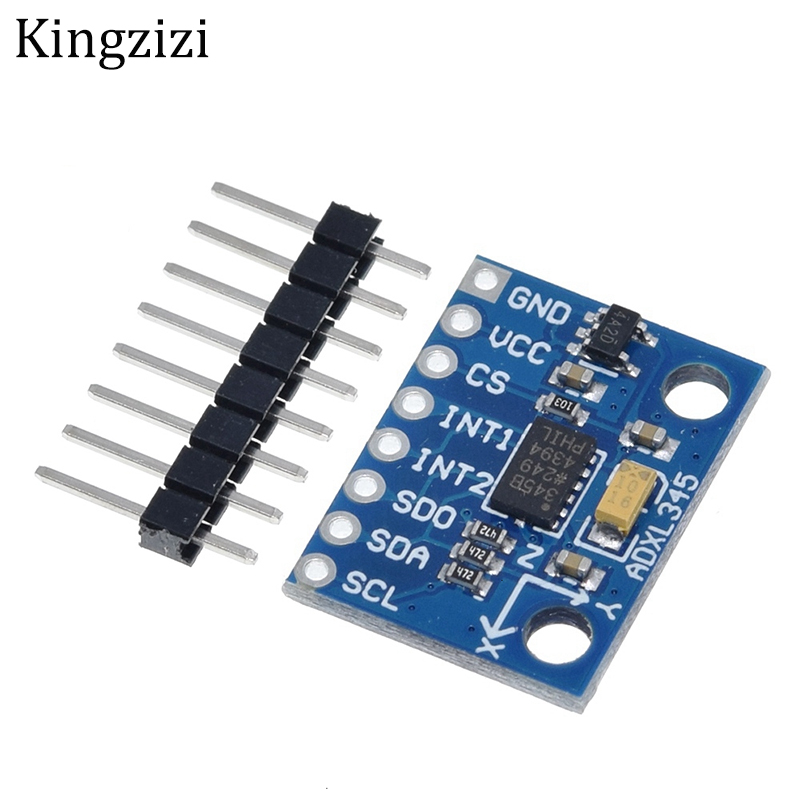

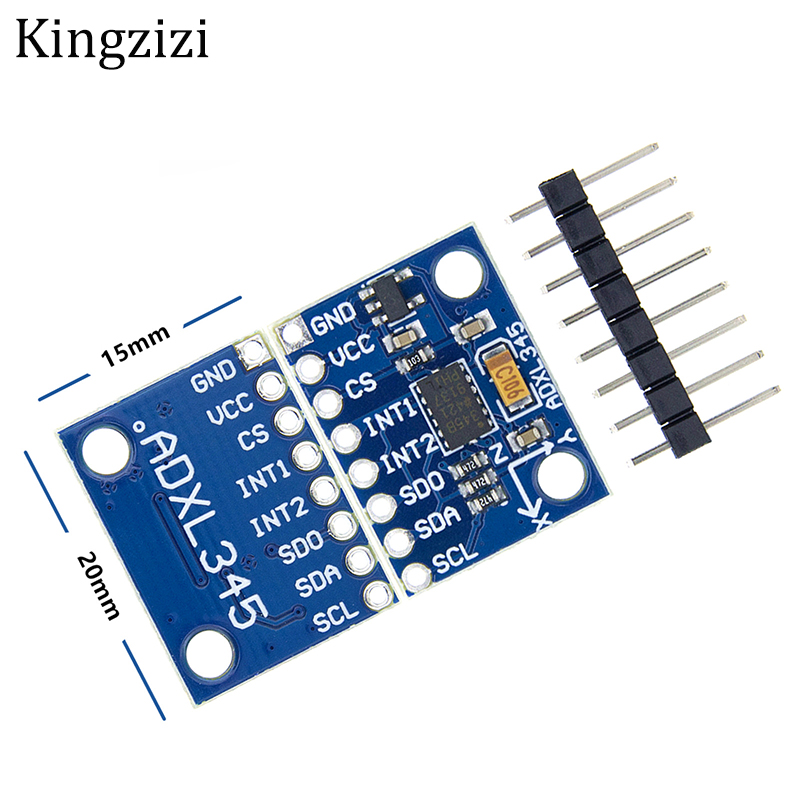

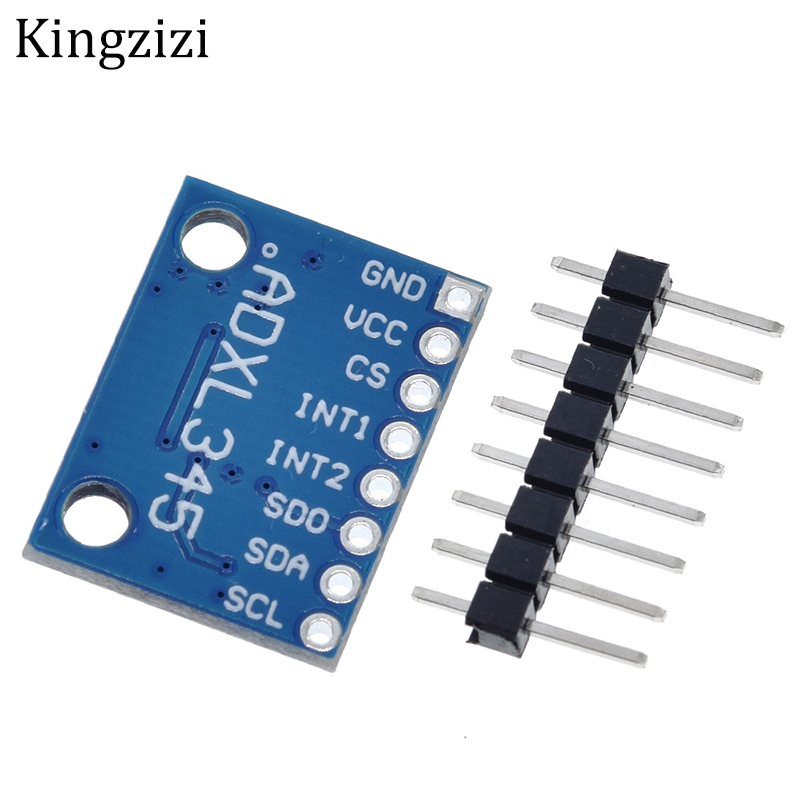

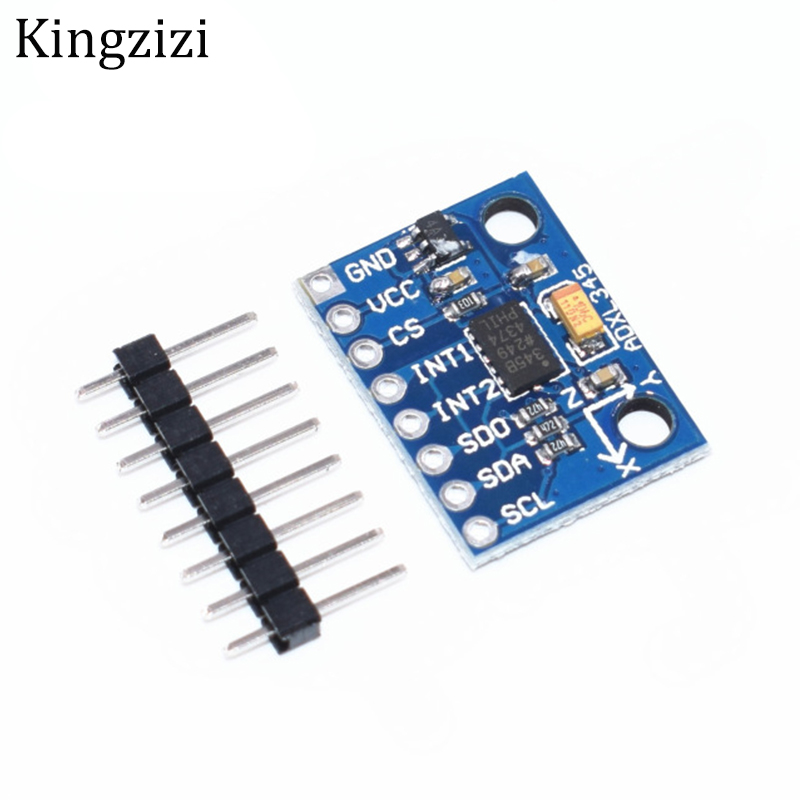

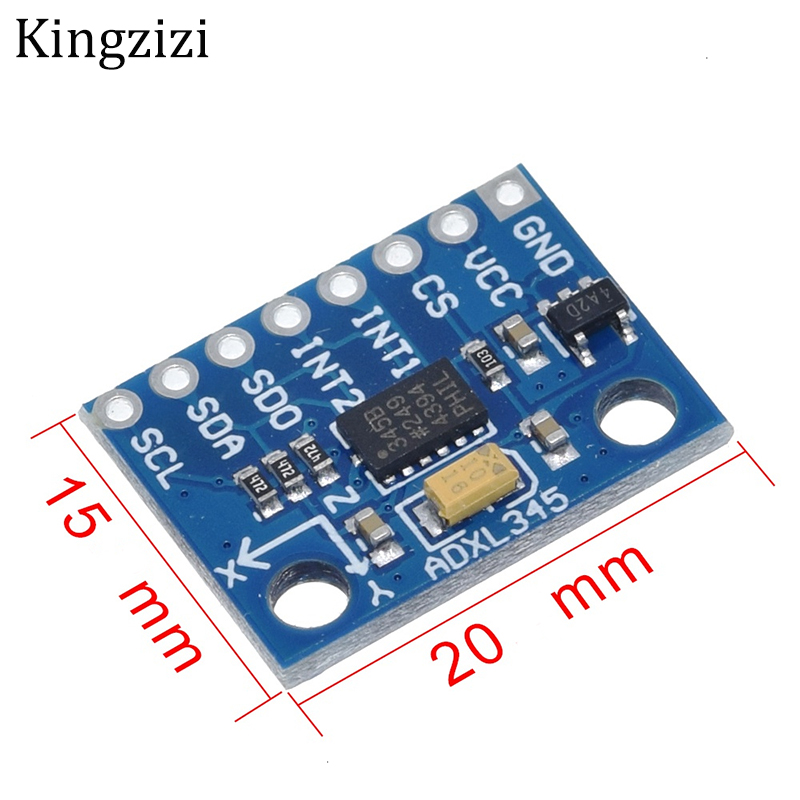

GY-291 ADXL345 digital three-axis acceleration of gravity tilt module IIC SPI transmission
Description: ADXL345 is a small, thin, low-power three-axis accelerometer can be high Up to ± 16 g accelerometer with high resolution (13) measurements. Digital Outputs According to a 16-bit twos complement format, can be accessed through the digital interface SPI (3-wire or 4-wire) or I2C. ADXL345 is well suited for mobile device applications. It can tilt sensing applications Measuring the static acceleration of gravity, it can also measure the dynamic add motion or shock caused speed. Its high resolution (4 mg / LSB), capable of measuring about 0.25 ° of inclination Angle change. Use ADXL345 digital output acceleration timing, etc., without the need for Analog to digital conversion, reducing system cost and board space. In addition, ADXL345 is a small, thin, ultra-low power 3-axis accelerometer with high resolution (13-bit) measurement at up to ± 16g. Digital output data is 16-bit twos complement format, can be accessed via I2C digital interface SPI (3-wire or 4-wire) or. ADXL345 is well suited for mobile device applications. It can tilt sensing applications Measures the static acceleration of gravity, you can measure motion or shock resulting from moving State acceleration. Its high resolution (3.9mg / LSB), capable of measuring less than 1.0 ° Tilt angle change. The device offers a variety of special detection. Activity and inactivity sensing through Comparing any axis acceleration threshold set by the user to detect the presence or absence of transport Movable occurs. Tap any direction sensing detects single and dual vibration vibration Make. Free-fall detection can detect whether the device is falling. These ones Functions can be mapped to two interrupt output pins a. Shen is Please patented integrated memory management system uses a 32 FIFO (FIFO) buffer can be used to store data, which will host processor load Minimize, and lower overall system power consumption. Low power modes enable intelligent motion-based power management to a very low Power consumption threshold sensing and active acceleration measurement.
Feature Power supply: 3-5v Communication: IIC / SPI communication protocol Measuring range: ± 2g ± 16g
