Mô đun VGA32 cho bộ điều khiển ESP32 V1.4 PS/2 và chuột ANSI/VT Termina

Giới thiệu Mô đun VGA32 cho bộ điều khiển ESP32 V1.4 PS/2 và chuột ANSI/VT Termina

VGA32 for ESP32 Module V1.4 Controller PS/2 Mouse Keyboard ANSI/VT Termina
Features: 100% brand new and high quality
Networking Protocol: Support network IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTT.
Bluetooth-compatible Protocol: Meet Bluetooth-compatible V4.2BR / EDR and BLE standards.
RF: NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH, sensitivity is -97dBm.
Modular Interface: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitor Touch Sensor, ADC, DACLNA, Preamplifier.
WiFi Instructions: The WiFi communication distance is up to 300 meters and the transmission power is 22dBm. WiFi supports FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC.

Specification: Material: Metal
Networking Protocol: Support network
IPv4/IPv6/SSL.TCP/UDP/HTTP/FTP/MQTT
RF: NZIF Receiver Class-1, Class-2 and Class-3 Transmitter AFH, sensitivity is -97dBm
Chipset: TTGO Micro32
Flash: QSPI Flash 4MB
Extend Fuction: VGA, PS/2
Modular Interface: UART, SPI SDIO, I2C LED PWM, TV, PWM, I2S, IRGPIO, Capacitor Touch Sensor, ADC, DACLNA, Preamplifier
Working Voltage: 2.7V-3.6V
Working Current: About 30mA
Sleep Current:230uA
Working Temperature Range:-40℃-85℃

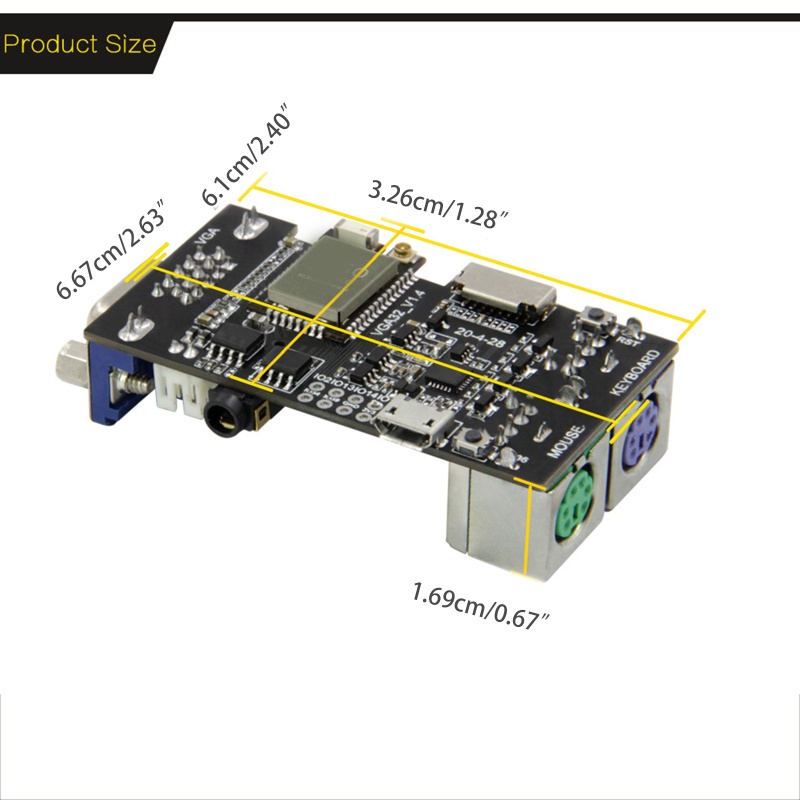

Size: Approx. 67x32 mm/ 2.63x1.26 inches

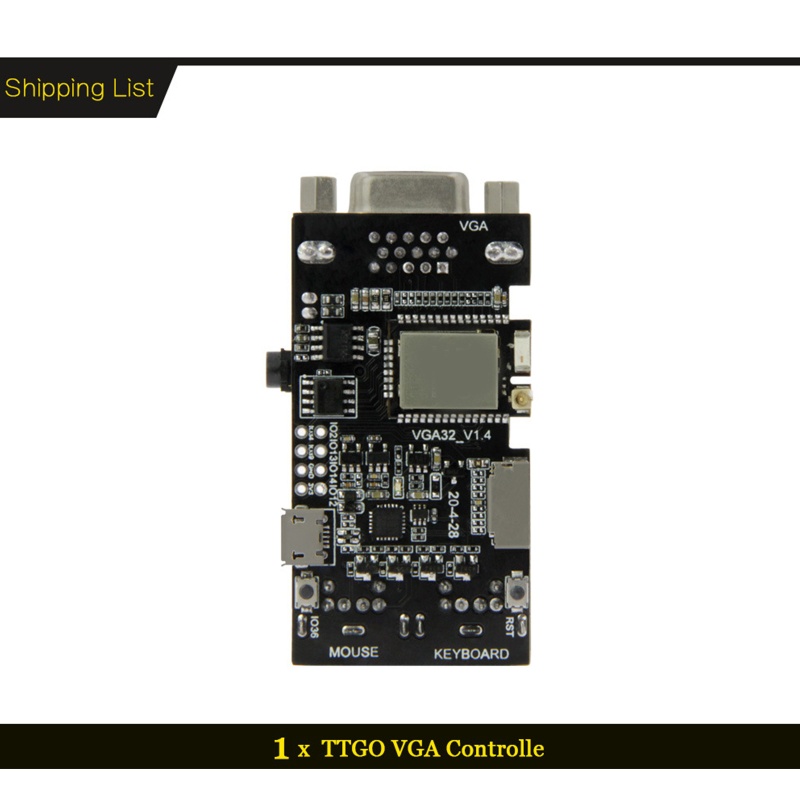

Package Includes: 1x Control Module

note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Hình ảnh sản phẩm

Giá DG
