Môđun cảm biến độ ẩm HR202 chất lượng cao

Giới thiệu Môđun cảm biến độ ẩm HR202 chất lượng cao

Using:
Humidity detection, humidity sensor, ambient humidity detection
Module features:
1, using high quality HR202 humidity sensor;
2, the comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA.
3, with potentiometer to adjust the temperature detection threshold
4, working voltage 3.3V-5V
5, output form: DO digital switch output (0 and 1) and AO analog voltage output
6, with fixed bolt holes for easy installation
7, small board PCB size: 3.2cm x 1.4cm
8, using a wide voltage LM393 comparator

Module instructions
1. The humidity sensor module is sensitive to environmental humidity and is generally used to detect the humidity of the surrounding environment;
2. By adjusting the potentiometer, you can change the threshold of humidity detection (ie, control the humidity value). If you need to control the ambient humidity to 60%, the module will adjust its ambient humidity to its green light, and DO will output high power. Flat, below this set humidity value, the output is high level, the green light is not bright;
3. The DO output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the humidity change of the environment;
4. The DO output terminal can directly drive the relay module of the store, so that a humidity switch can be formed to control the related equipment to work in a suitable environment;

5, the small board analog output AO can be connected with the shop AD module, through AD conversion, you can get more accurate values ​​of environmental humidity;

We deal in wholesale and retail
Feel free to contact us


#HR202 #HR202L #Humidity #Sensor

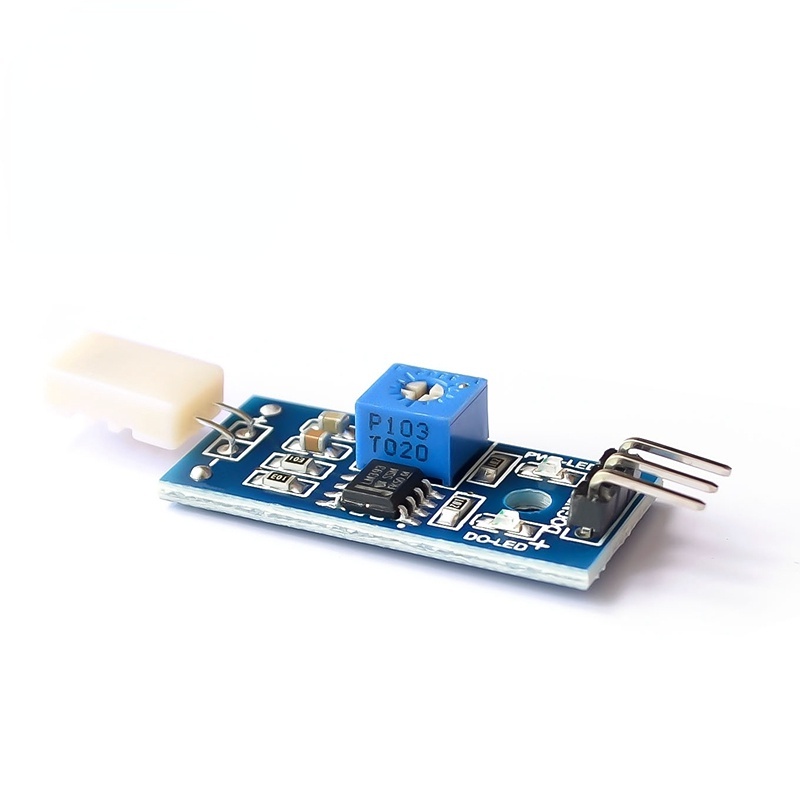

Hình ảnh sản phẩm
