Mũi Khoan Xoắn M3-M12 Bằng Thép Gió Cao Cấp

Giới thiệu Mũi Khoan Xoắn M3-M12 Bằng Thép Gió Cao Cấp

Features:



*100% brand new and high quality

*Carbide, high hardness, sharp and durable

*The clamping is stable, and the tail of the drill is designed with a square handle to make the clamping more stable

*Thread repairment:

In order to repair a rusted or damaged thread, it is first necessary to correctly determine the size of the thread to be repaired: measure the thread diameter with a caliper, measure the pitch of the tooth gauge to determine the size of the repair thread, and select the tap or die of the same specification. If it is repaired by means of a spiral, it is required that the thread can not be buckled after repair.



Specifications:



*Color: Silver(As Pictures Show)

*Material: HSS (high speed steel)

*Optional Types: M3, M4, M5, M6, M7, M8, M9, M10, M12

*Diameter of the head: 3, 4, 5, 6, 7, 8, 9, 10, 12mm(Approx.)

*Shank diameter: 4, 5, 6, 6, 6, 6, 7, 7, 9 mm(Approx.)

*Length of the sheet: 15,15,20,20,25,30,30,30,35 mm(Approx.)

*Total Length: 45, 50, 60, 65, 65, 70, 70, 75, 80 mm(Approx.)

*Direction: right hand







How to use:



The

die is used to tap the external thread. Before tapping, the cutter with

the diameter of the bar should be selected to cut the lubricating oil.

The diameter of the bar is very important. It can not be larger than the

nominal diameter of the required thread. It should be smaller than the

nominal diameter of about 0.050.15. The diameter is too large, which is

easy to cause cutting difficulties and damage the die. The diameter is

slightly smaller, which is conducive to tapping the thread, and maintain

enough thread height. Install the end face of the die with the cutting

cone upward into the cutter The positioning groove shall be aligned with

the fastening screw in the middle of the winch, and the screw shall be

clamped into the plate groove and tightened. The end of the bar stock

shall have a 1'45 ° chamfer, but the chamfer shall not be too large, and

the excessive chamfer is not easy to cut in. When tapping the thread,

the cutting cone of the die shall face the bar stock and try to keep the

two coaxial.

The

die rotates the cutting screw clockwise and reverses every 1 / 4-1 / 2

turn, so as to clean the chips from the outside of the plum blossom

hole, and continue to operate until the required thread length is

reached. When tapping the thread, appropriate lubricating oil shall be

added, and the lubricating oil shall be added to the die cut



Package Contents:



2*Taps



Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.









#ThreadTaps  #2pcs  #Spiral  #M3-M12  #Industrial  #Metric  #HSS  #RightHand  #Drilling  #Bit  #Silver  #Repair  #Household  #Workshop  #Equipment  #Assembly  #Tool  #Parts

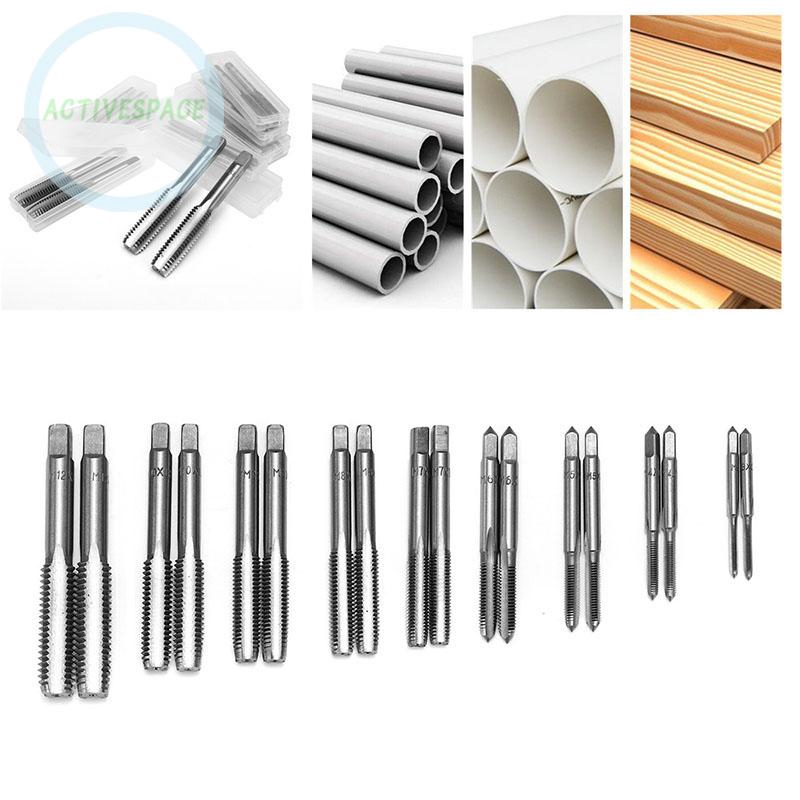

Hình ảnh sản phẩm
