PIC 16F84-04 I/SO SOP18 vi điều khiển vi xử lý microchip

Giới thiệu PIC 16F84-04 I/SO SOP18 vi điều khiển vi xử lý microchip

Công dụng:
- Ứng dụng trong các mạch điện tử
- Ứng dụng trong nhiều mạch bán dẫn
- Thay thế IC bị hỏng
Thông số kỹ thuật
High Performance RISC CPU Features:
• Only 35 single word instructions to learn
• All instructions single-cycle except for program branches which are two-cycle
• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
• 1024 words of program memory
• 68 bytes of Data RAM
• 64 bytes of Data EEPROM
• 14-bit wide instruction words
• 8-bit wide data bytes
• 15 Special Function Hardware registers
• Eight-level deep hardware stack
• Direct, indirect and relative addressing modes
• Four interrupt sources:
- External RB0/INT pin
- TMR0 timer overflow
- PORTB<7:4> interrupt-on-change
- Data EEPROM write complete
Peripheral Features:
• 13 I/O pins with individual direction control
• High current sink/source for direct LED drive
- 25 mA sink max. per pin
- 25 mA source max. per pin
• TMR0: 8-bit timer/counter with 8-bit programmable prescaler
Special Microcontroller Features:
• 10,000 erase/write cycles Enhanced FLASH Program memory typical
• 10,000,000 typical erase/write cycles EEPROM Data memory typical
• EEPROM Data Retention > 40 years
• In-Circuit Serial Programming™ (ICSP™) - via two pins
• Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation
• Code protection
• Power saving SLEEP mode
• Selectable oscillator options CMOS Enhanced FLASH/EEPROM
Technology:
• Low power, high speed technology
• Fully static design
• Wide operating voltage range:
- Commercial: 2.0V to 5.5V
- Industrial: 2.0V to 5.5V
• Low power consumption:
- < 2 mA typical @ 5V, 4 MHz
- 15 µA typical @ 2V, 32 kHz
- < 0.5 µA typical standby current @ 2V

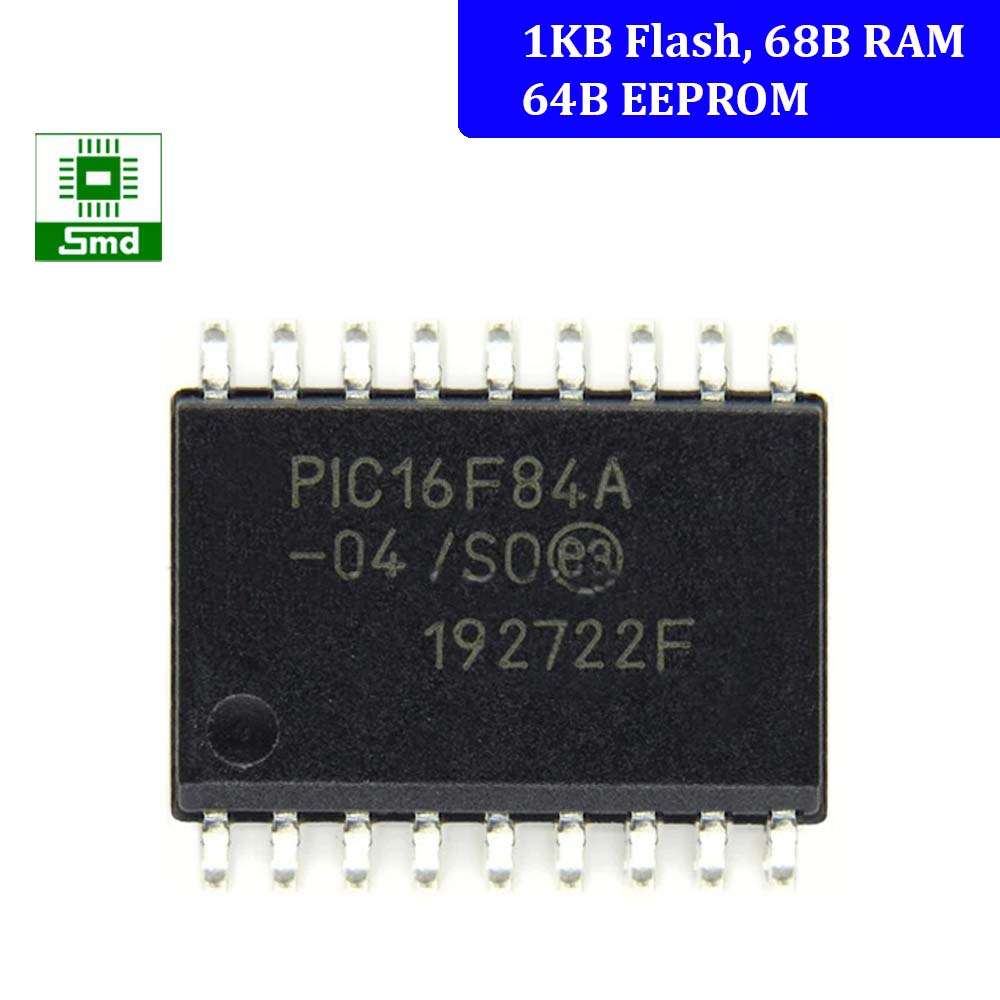

Hình ảnh sản phẩm
