[Predolo2] Công Tắc Cảm Biến Dòng Chảy Nước Kiểm Soát Dòng Chảy 1-30L / Phút

Giới thiệu [Predolo2] Công Tắc Cảm Biến Dòng Chảy Nước Kiểm Soát Dòng Chảy 1-30L / Phút

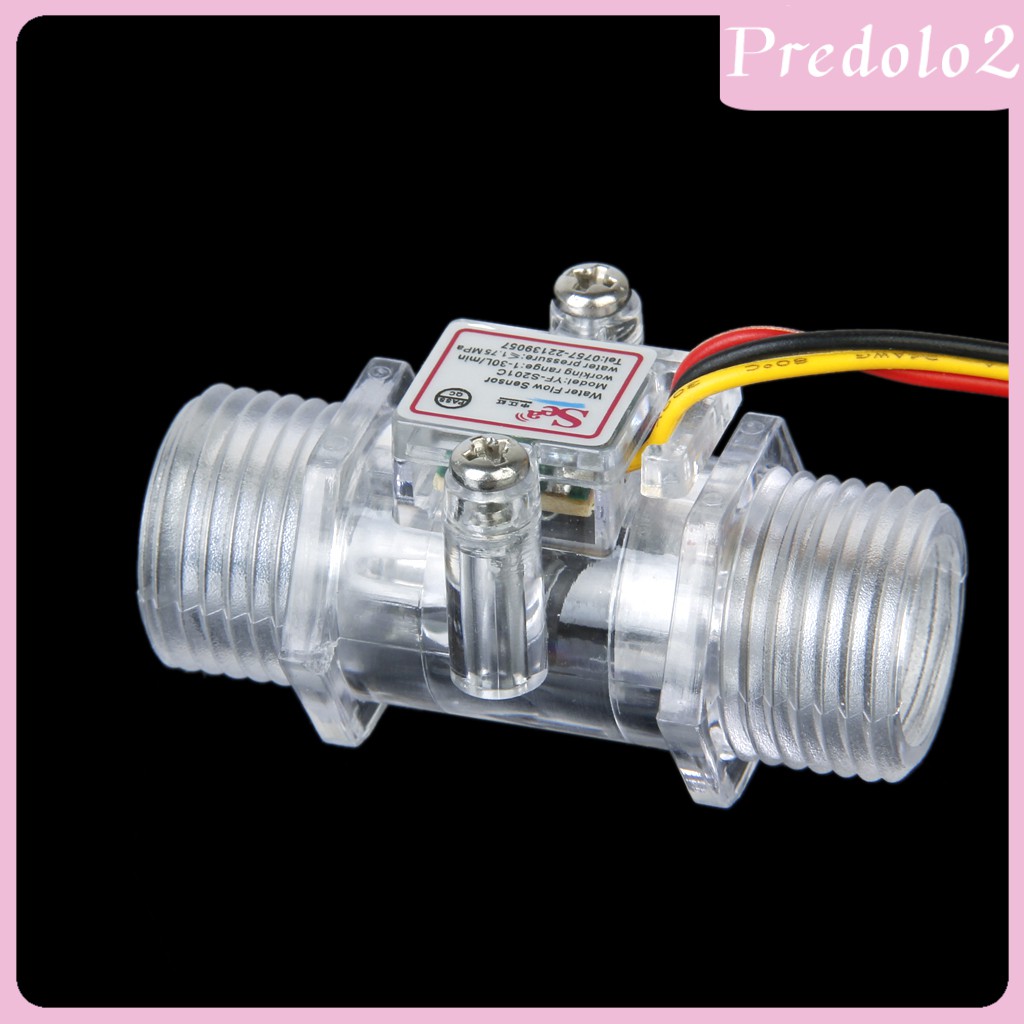

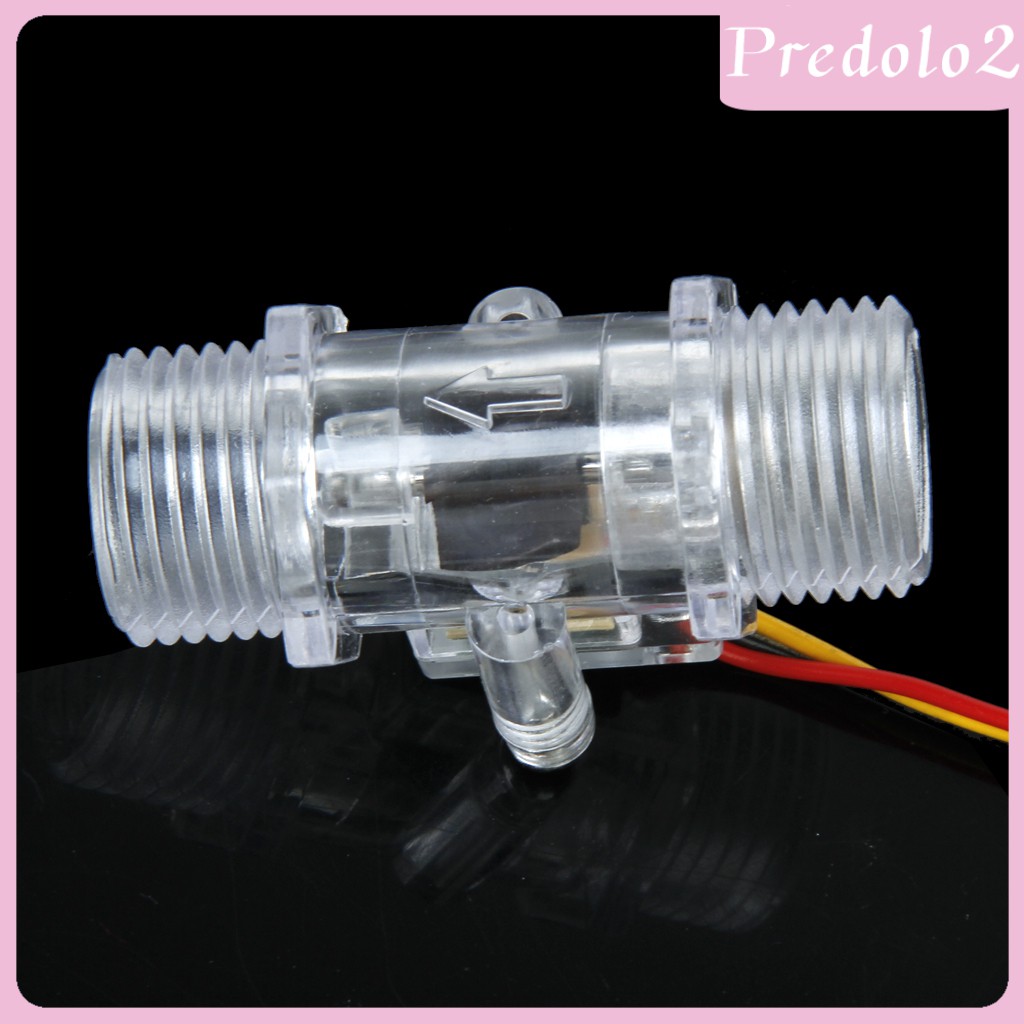

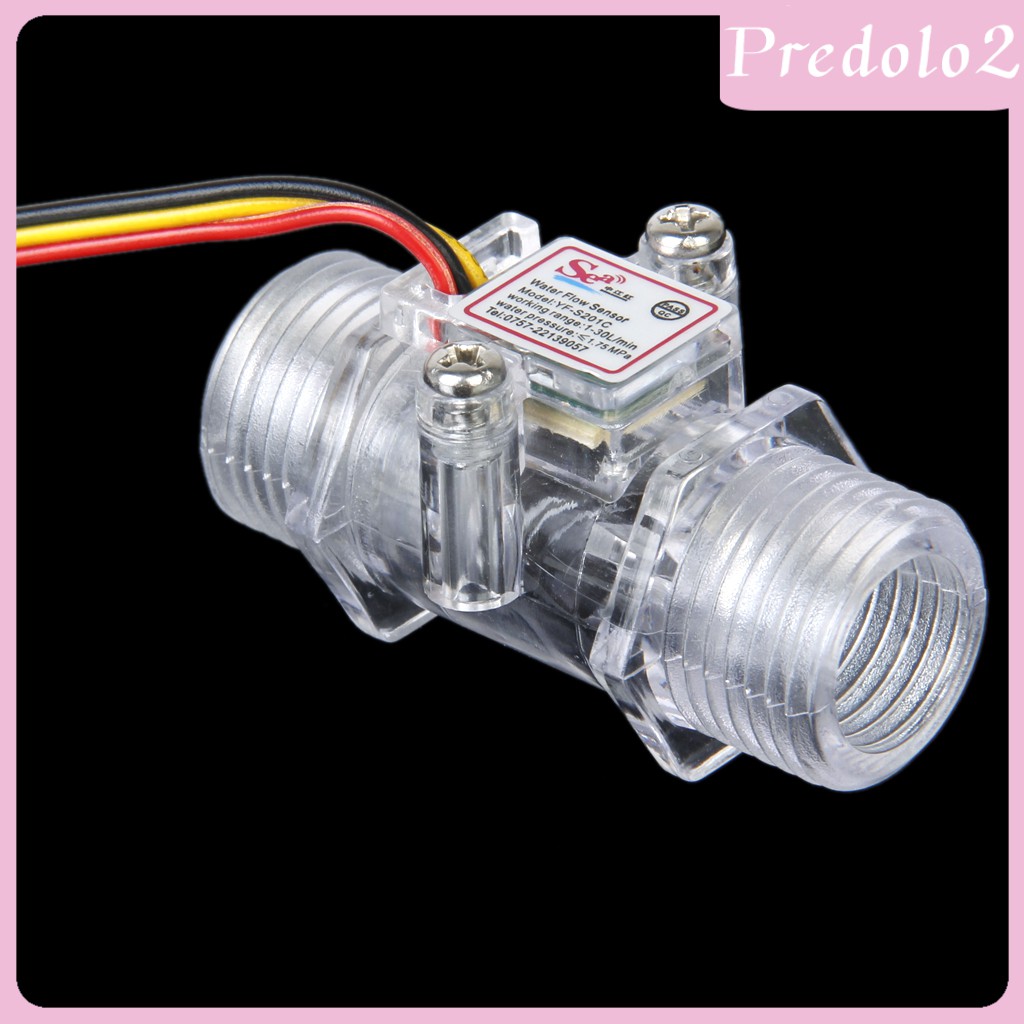

Water sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor.It is installed in the hot water inlet end for detecting water flow. When water through the rotor assembly, Magnetic rotor will rotate and Speed will change as the change. Hall Current sensor output corresponding pulse Signal and feedback to controller, then the controller will control the flow.

Can use for Water heaters, credit card machines, water vending machine, measurement device.

Features:

Lght weight, small size, easy to install.

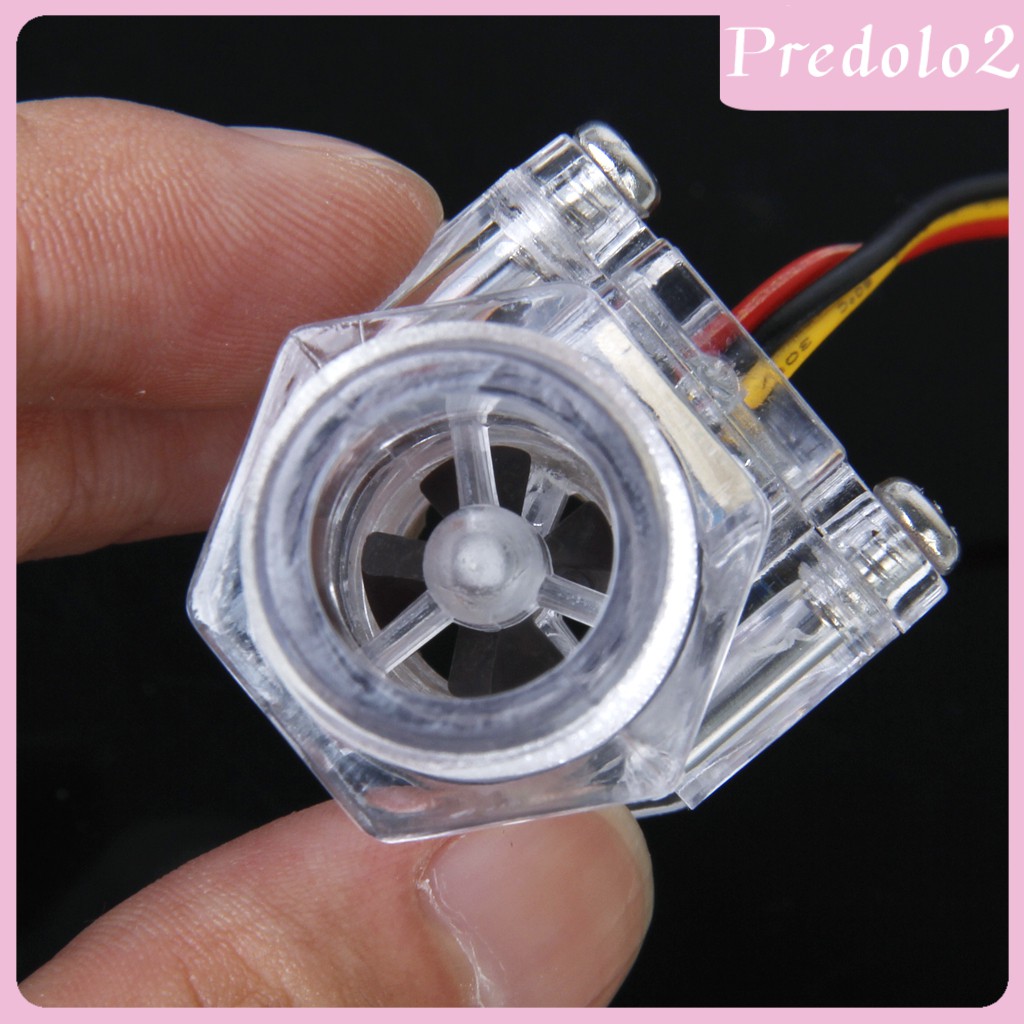

Inlaid with stainless steel impeller shaft, durable wearable.

Seal Ring with the upper and lower force structure never leaks.


Precautions:

Non-violent shock, and chemical erosion.

Non-throwing or hitting.

Mounted vertically, should not exceed 5 degrees inclination.

Temperature of Medium should not exceed 120 ℃

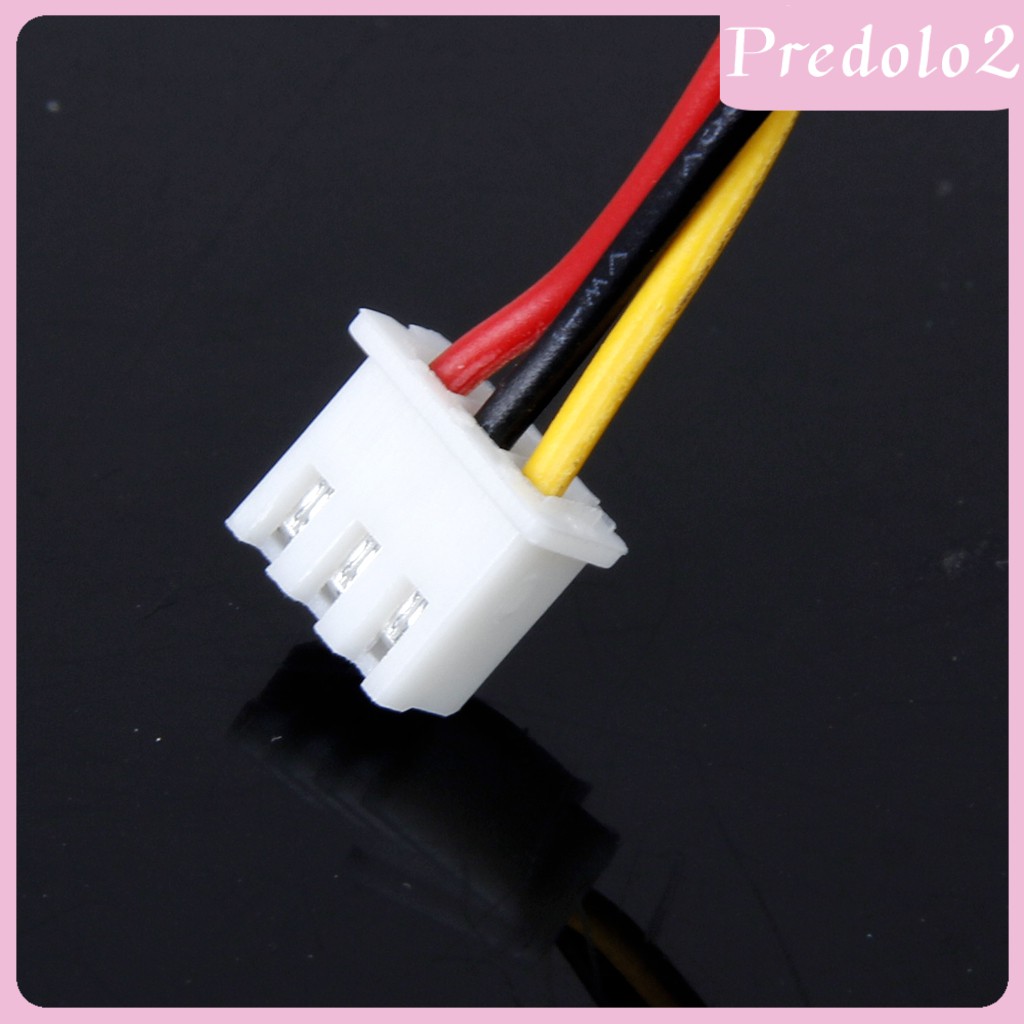

Cord Connection:

Red: Positive(+)

Yellow: Signal output.

Black: Negative(-)


Specification:

The lowest rated working voltage: DC4.5 5V-24V.

Maximum operating current: 15 mA (DC 5V).

Working voltage range: DC 5~18 v.

Load capacity: ≤ 10 mA (DC 5V).

Work temperature: ≤ 80 ℃

Work humidity range: 35%~90%RH (no frost)

Allowing pressure: pressure 1.75Mpa

Storage temperature: -25~+80 ° c

Save humidity: 25%～95%RH
Range :1-30L / min

External threads: Approx. 1/2''

Color: Transparent


Package Includes:

1 x Water sensor
