Giới thiệu R*SIX Hdmi+AUdio 40Pin LCD Driver Controller Board Kit for Panel EJ070NA02 1024x768

Description:
100% brand new and high quality.
Feature:
MIRCO USB power interface, 5V standard power supply, need to be greater than 1.5a.
All plug-in sockets shall be 1.25mm with patch sockets.
1 channel signal input, and this IC support is HdMI1.2.
The screen interface is defined by high-quality gold-plated connector-40pin-EJ070NA02.
Power amplifier output is supported.
Special circuit design is adopted for the driver board, which can drive about 10V LED backlight and support 200MA current output at most.
LVDS signal output is supported, and adapter boards are required for individual screens.
40 pin-lvds definition interface can be directly driven.
This drive board adopts double-sided gold-plated special FPC seat, which is not connected up or down in the zone and can be used directly.
Driver board voltage adopts potentiometer adjustment design, which can adapt to more LCD screens, and the adjustment is convenient and simple.
Support headphone output function, support national and international standards, two kinds of headphone standard interfaces, common 3.5mm for most mobile phones.

Specifications:
Item Type: Driver Board Set
Material: Plastic+Metal

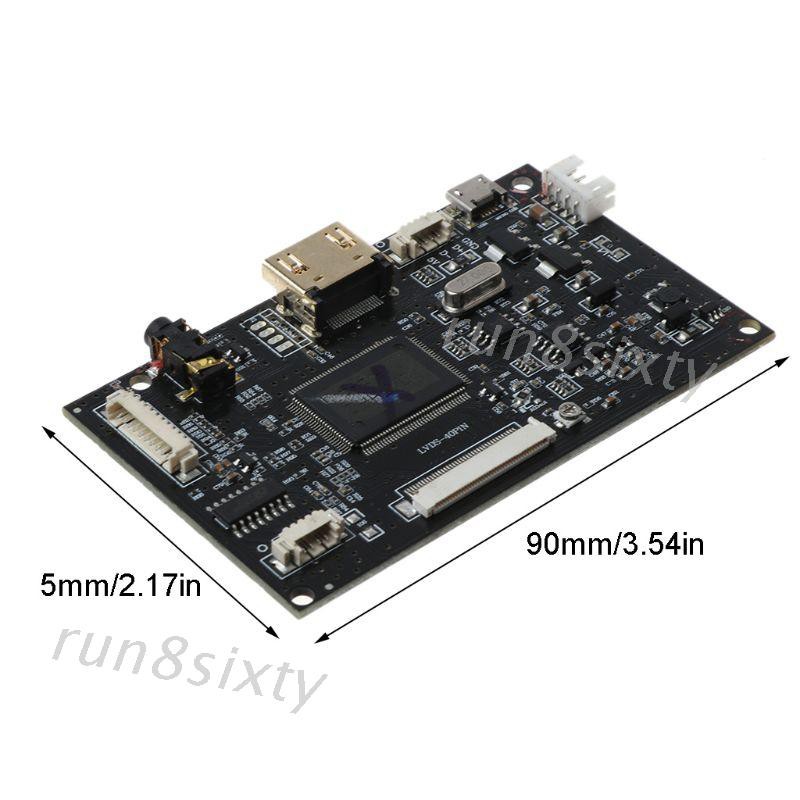

Size: 90x55mm/3.5x2.1in
Color: Black
Quantity: 1 Set

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 Set x Driver Board

Hình ảnh sản phẩm

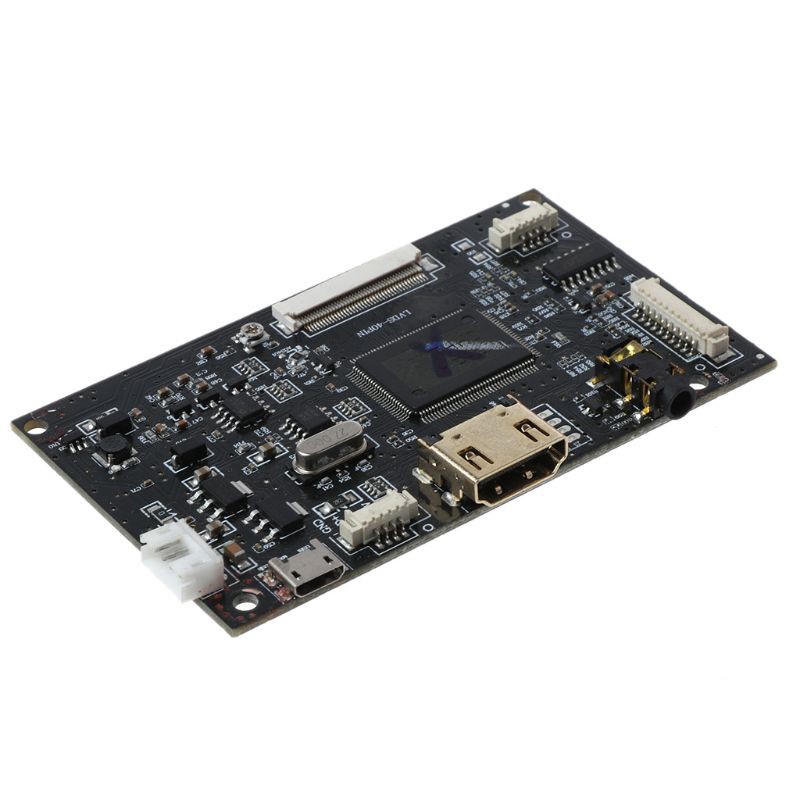

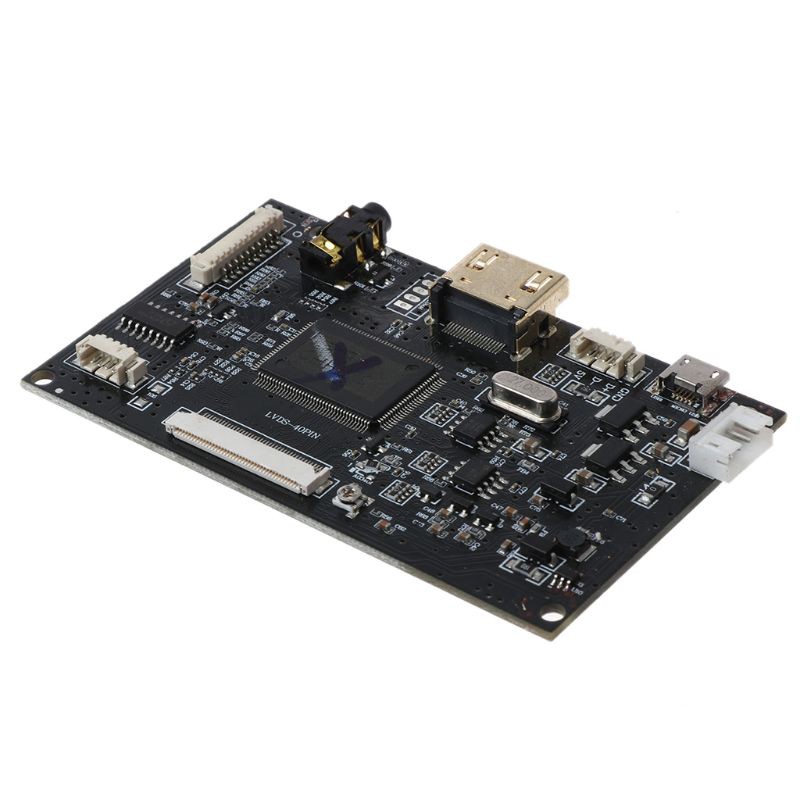

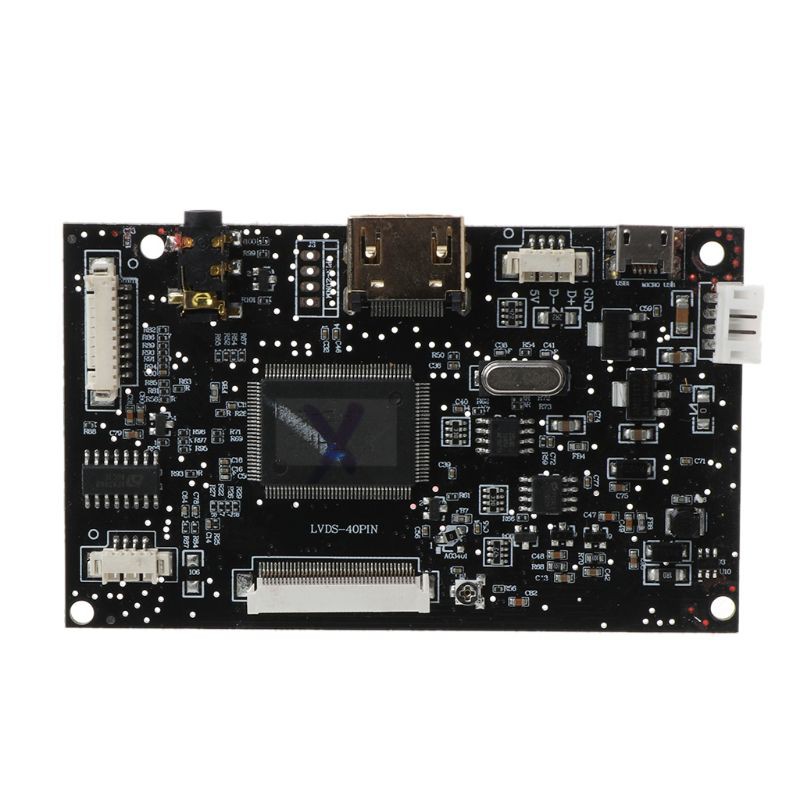

R*SIX Hdmi+AUdio 40Pin LCD Driver Controller Board Kit for Panel EJ070NA02 1024x768
