Remote không dây đa năng điều khiển 4 cổng

Giới thiệu Remote không dây đa năng điều khiển 4 cổng

#Multifunction4wayRemoteControlSwitch #RelaySwitch #RemoteControlSwitch #WirelessRemoteControlSwitch #RemoteControlRelaySwitch #WirelessRelaySwitch

The jumper cap can be used to change the way of working. Non-lockable and latched and interlocked outputs
Controls thousands of watts of electrical appliances and equipment with high-capacity relays
High receiving sensitivity - Remote control distance of up to 50 meters to more than 100 meters

Features:
Multi-functional 4-way remote control switch - Quad passive output.(Non-lockable and latched and interlocked outputs)
The jumper cap can be used to change the way of working. Non-lockable and latched and interlocked outputs
High receiving sensitivity - Remote control distance of up to 50 meters to more than 100 meters
Controls thousands of watts of electrical appliances and equipment with high-capacity relays
Using wireless coding technology - The switch does not interfere with each other
Wide scope of application - Applicable to all fields, wireless remote control, etc.
Simple operation and convenient to use.

Specification:
Type: Multi-functional 4-way Remote Control Switch
Product model: KG1204-A
Working voltage: DC 12V
Quiescent current: 6mA
Total load power: 10A
Working frequency: 433MHz
Load power: 1000W
Receive sensitivity: -105dbm
Frequency deviation: ±0.2MHz
Coding method: learning type
Working mode: jog, self-lock, interlock
Modulation method: ASK
Remote control distance: 100M (empty and no interference)
Weight:  Approx. 185g
PCBA size:  Approx. 4.8 * 6.8 * 1.8cm / 1.9 * 2.7 * 0.7in
Shell size:  Approx. 7.6 * 5.6 * 3cm / 3 * 2.2 * 1.2in

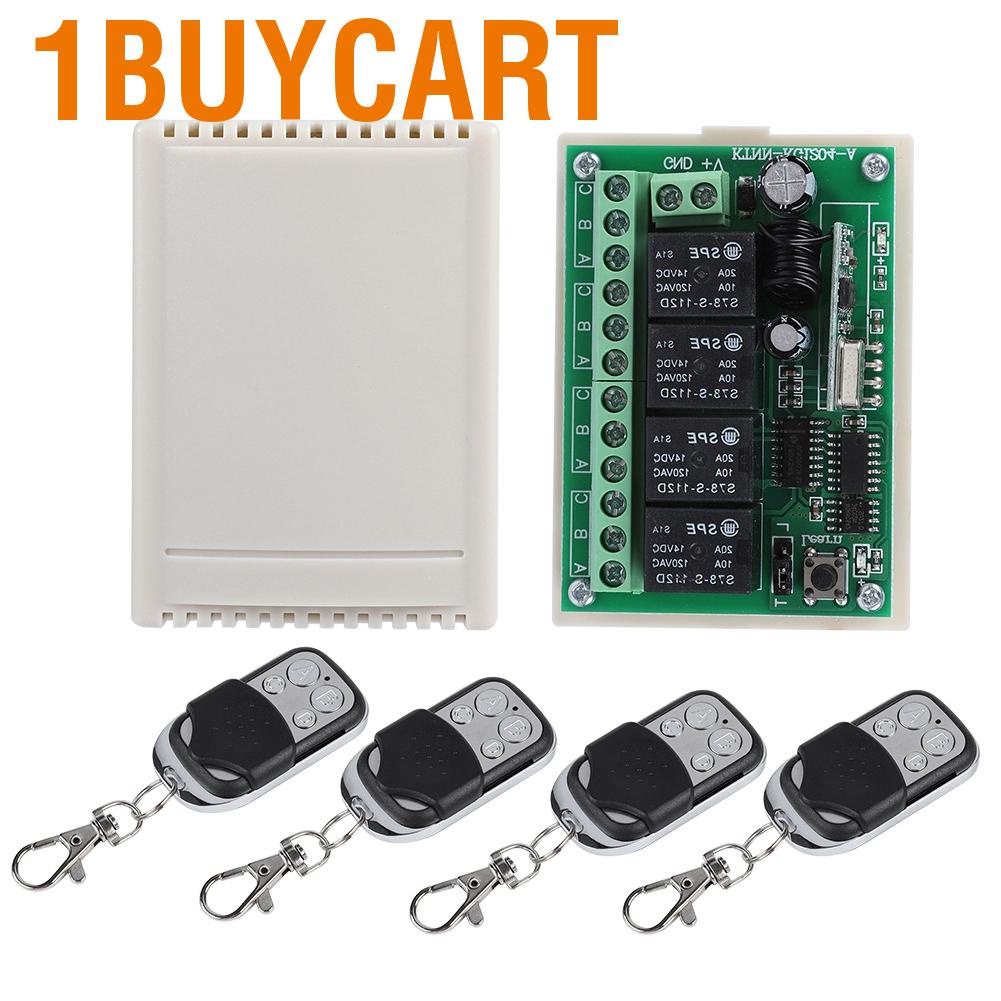

Package list:
1 * Receiver

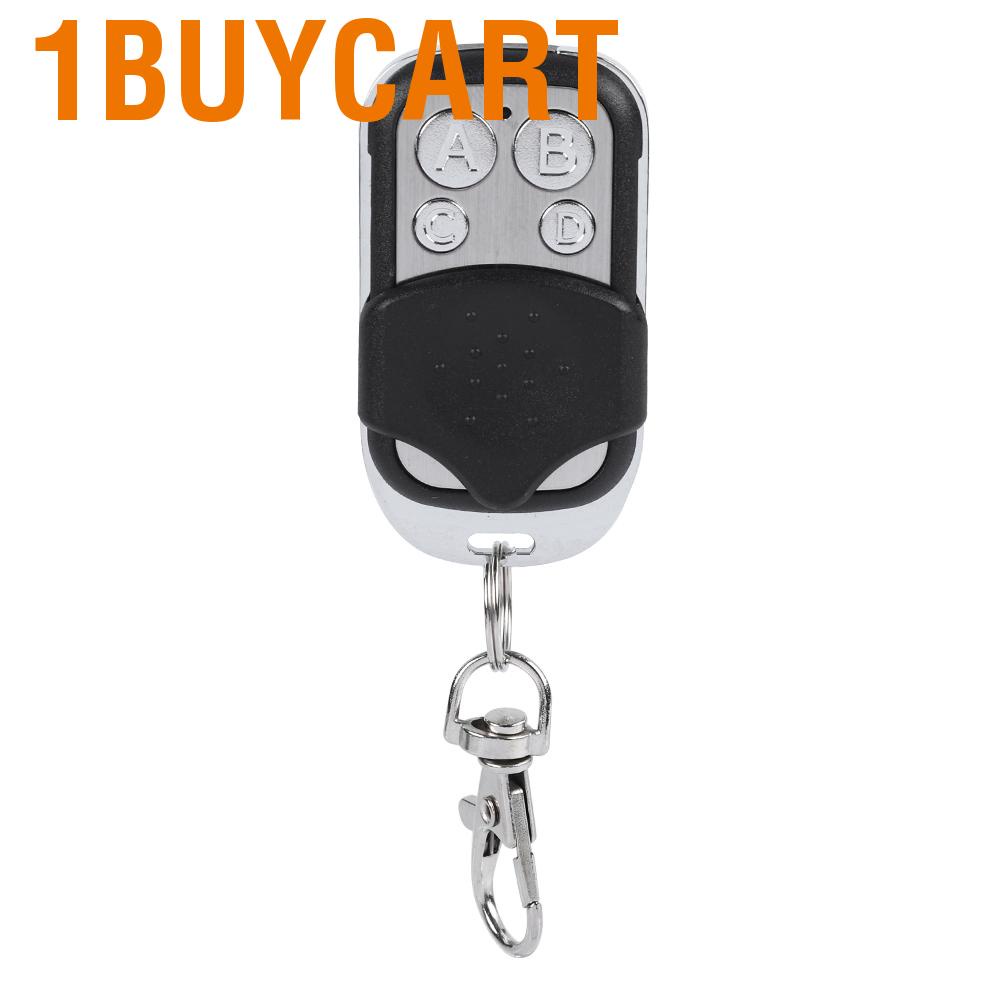

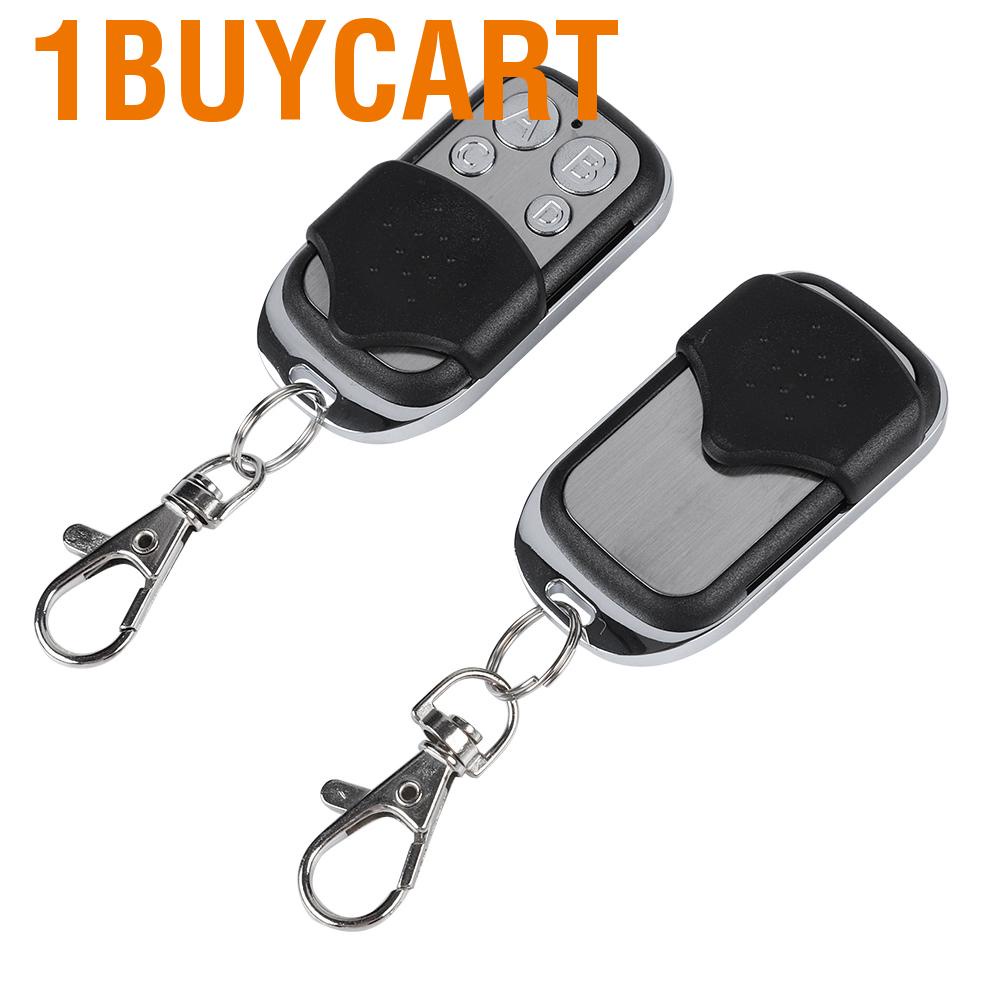

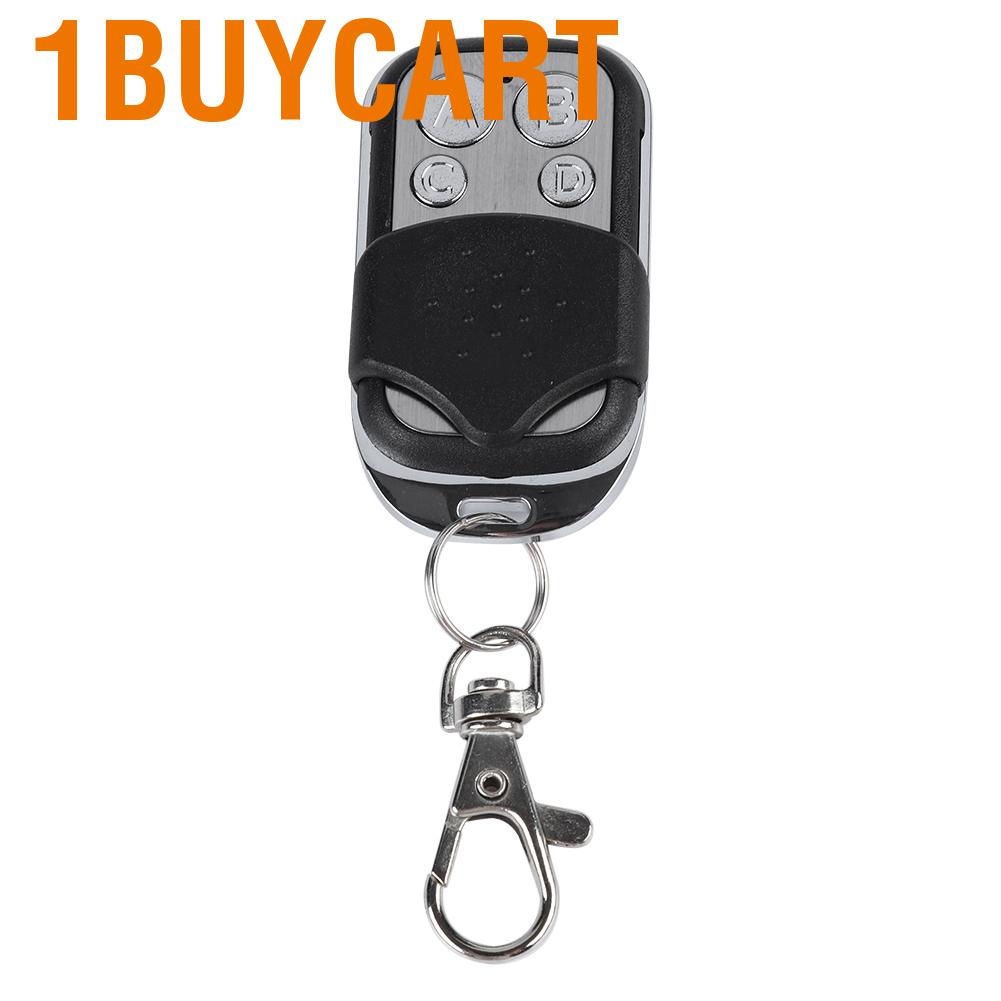

4 * Remote Controls

Note:
Please allow slight error due to manual measurement. Thanks for your kind understanding.
