Rơle Mô-đun bộ kích hoạt cao / thấp 5V 30A

Giới thiệu Rơle Mô-đun bộ kích hoạt cao / thấp 5V 30A

100% brand new and high quality
Material: Electrical components
Color: See pictures
This is a relay module with high performance, which is convenient and practical for users.
Features:
The module voltage: 5V
Output capacity: within DC 30V 30A or AC 250V 30A.
Using optocoupler isolation, strong anti-jamming capability and stable performance.
The module can be set high or low trigger.
With power indicator and working indicator.
To ensure stability, uses industrial grade PCB board and 9.5mm barrier terminals.
All interfaces can be connected directly via terminal wiring leads, very convenient. 　

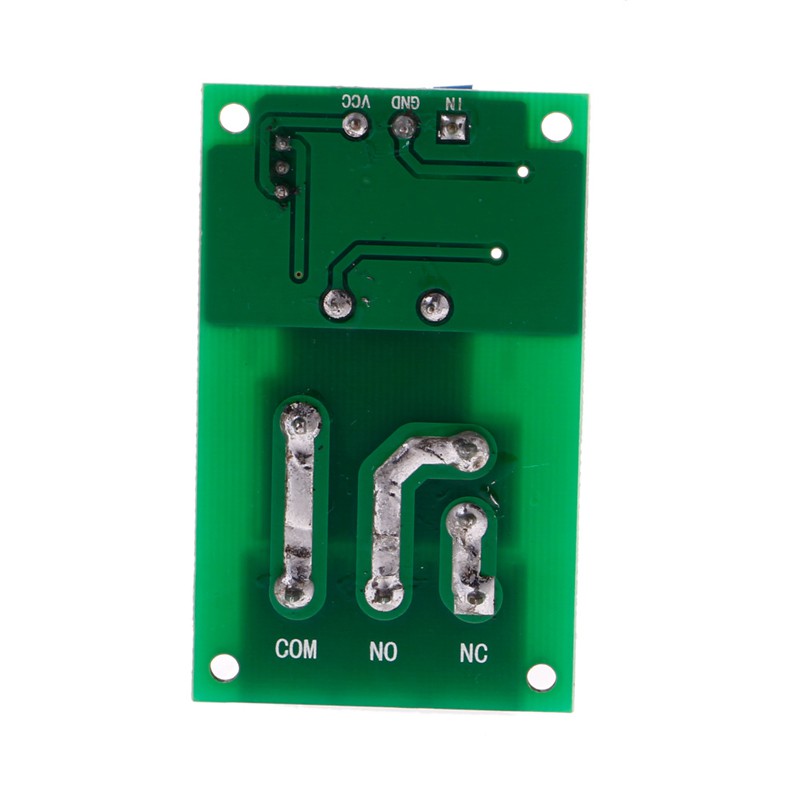

Module Interface Description:
1. DC +: DC power supply positive;
2. DC -: DC power supply module negative;
3. IN: Signal input terminal(support High/Low Level switch freely);
4. Normally open (NO): Relay normally open;
5. Common terminal (COM): Relay common;
6. Normally closed terminal (NC): relay normally closed terminal; 　
Specifications:
Type: 1-Channel
Relay Voltage: 5V
Output Capacity: within DC 30V 30A or AC 250V 30A
Quiescent Current: 5mA
Maximum Current: 5V: 190mA
Trigger Current: 5mA
Module Size: 66 * 40 * 22mm
No retail package
Quantity:1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!

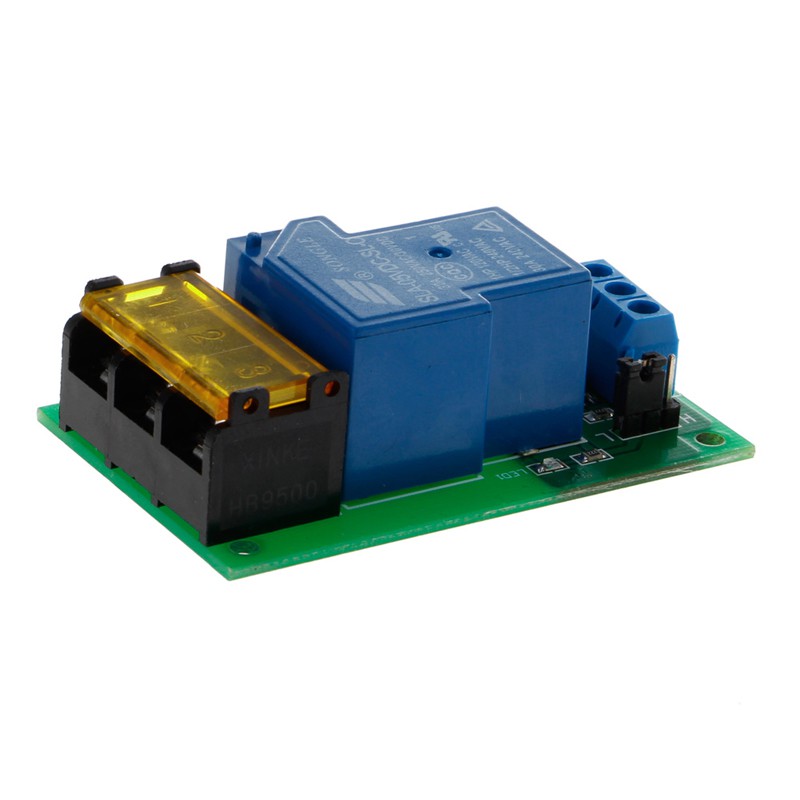

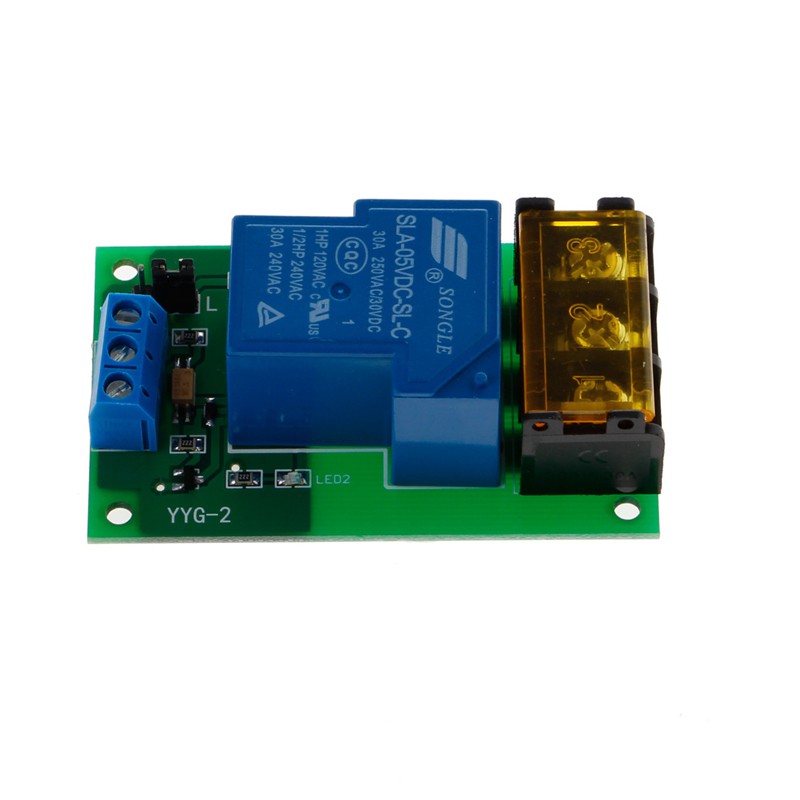

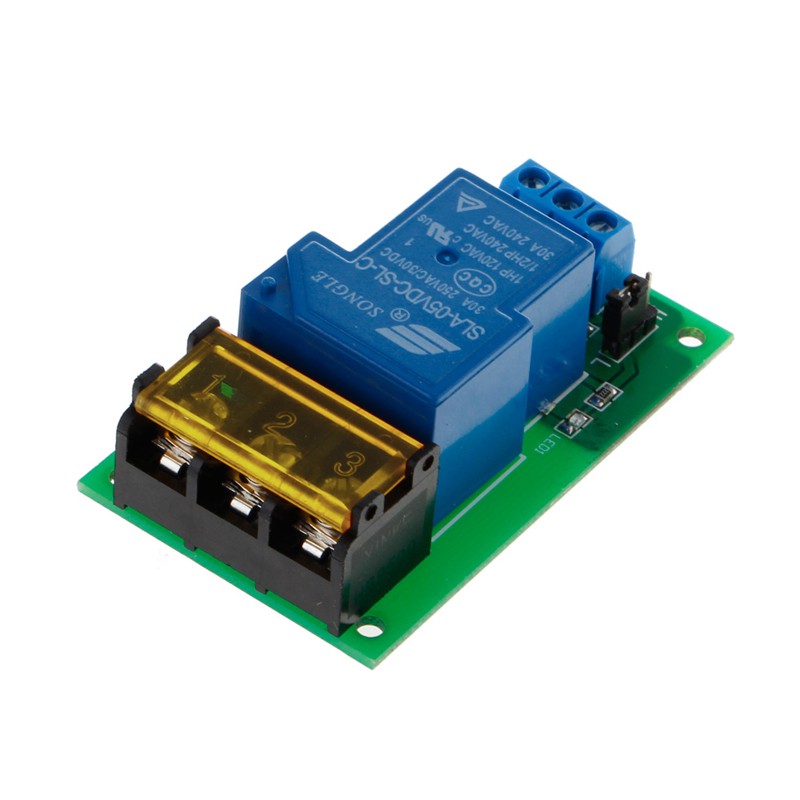

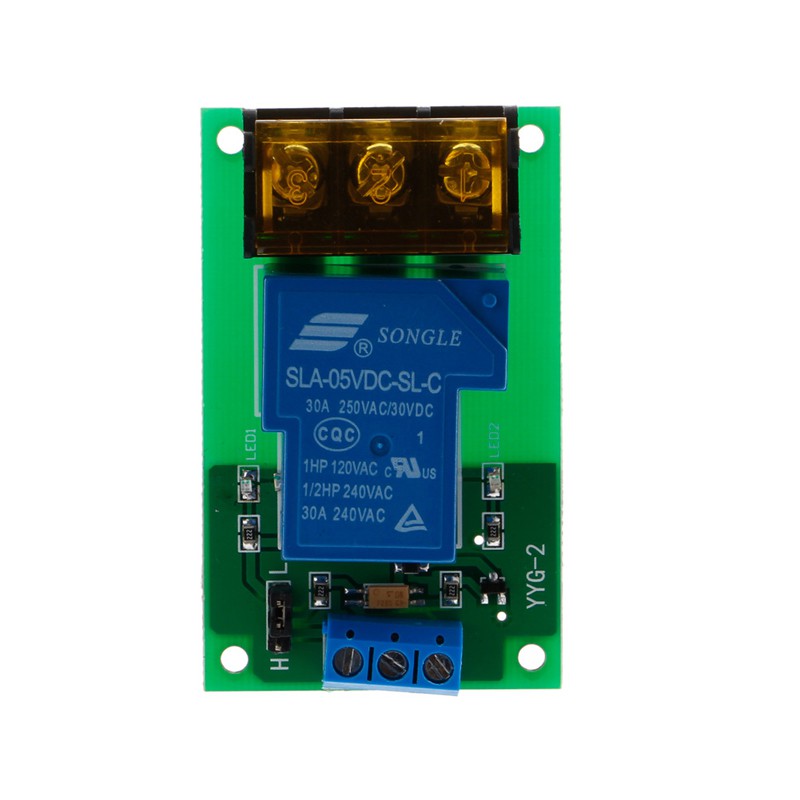

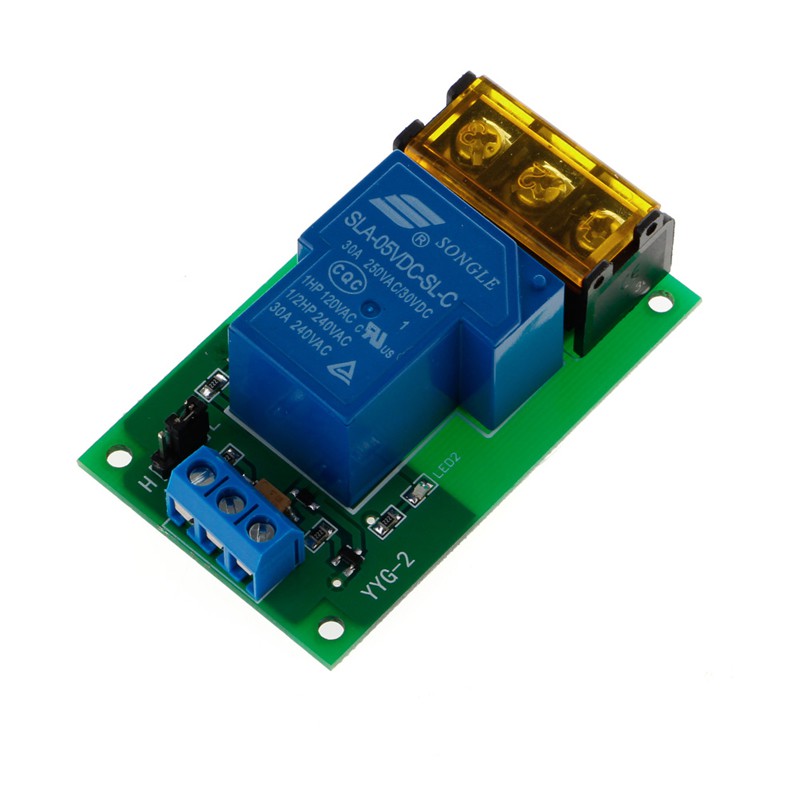

Hình ảnh sản phẩm
