Rx Mô Đun Biến Áp 20kv Chuyên Dụng Cho Máy Lọc Không Khí

Giới thiệu Rx Mô Đun Biến Áp 20kv Chuyên Dụng Cho Máy Lọc Không Khí

#20KV #High #Frequency #High #Voltage #Transformer #Ignition #Coil #Inverter #Negative #Ion #Generator #Smoke #Purifier #Driver

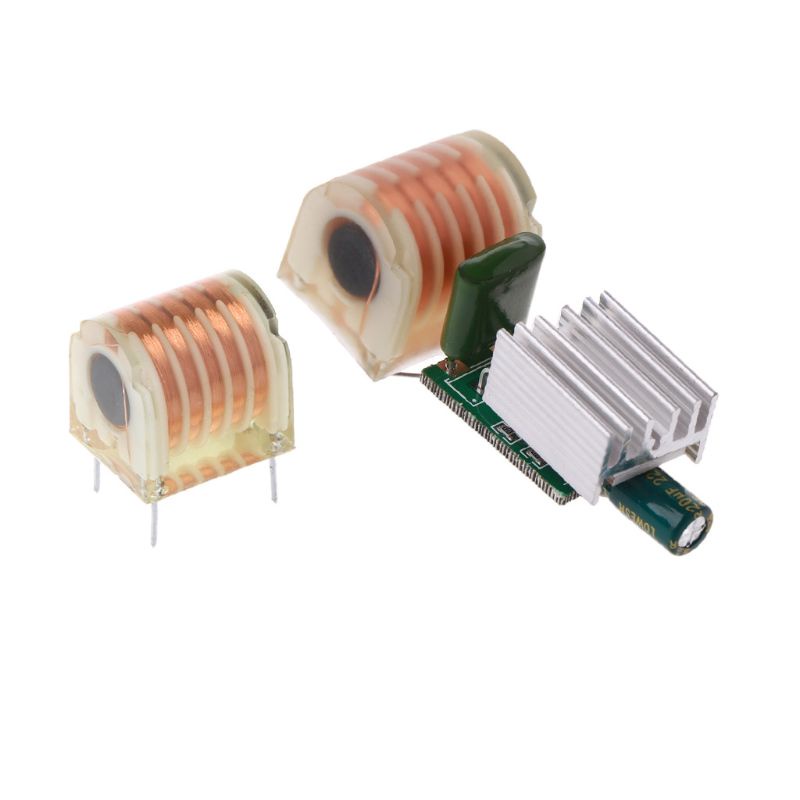

20KV High Frequency High Voltage Transformer Ignition Coil Inverter Negative Ion Generator Smoke Purifier Driver Module Components
100% brand new and high quality

Features:
Use for ignition coil inverter,ion generator,smoke purifier.
Including transformer and driver optional,you can choose one of them or both of them to replace your devices.
Professional and adopts high-technique making process,high quality and durable,great components for your machine.
module only,other accessories demo in the picture are not included!

Warning:
Single tube flyback topological transformer high voltage output must arc or load, Forbid no-load!
Single tube drive plate should not work for a long time, if you need to make it work for a long time please add a fan or replace a larger radiator!

Parameters:
Ratio of turns: 100
Operation parameters:
Input voltage: <120 V
Input current: <1A
Voltage output: <20KV
Output current: <20mA
Rated power consumption: <15 W
Rated frequency: 20 KHz - 400 kHz

Short time limit Operating parameters:
Input voltage: <150 V
Input current: <8A
Output voltage: <20KV
Output current: <60mA
Power consumption: <15 W
Frequency: 10-800 kHz

Parameter controller board:
Input voltage: DC5V-DC15 V
Input current: <5A
Power: <70 W
Frequency: <26 kHz

Specification:
Type: High-frequency/High-voltage
Size:
1#: 2x1.7cm(0.79x0.67in)
2#: 2x5.5cm(0.79x2.17in)
Quantity: 1 Pc

Note:
1.No retail package.
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Driver/Transformer
