SEL♥DC 500V 100A 200A 500A Voltmeter Ammeter Battery Power Meter

Giới thiệu SEL♥DC 500V 100A 200A 500A Voltmeter Ammeter Battery Power Meter

"Features:
1, wireless transmission of data, to avoid the complex wiring between the display and detection modules to bring interference, while wiring is more simple.

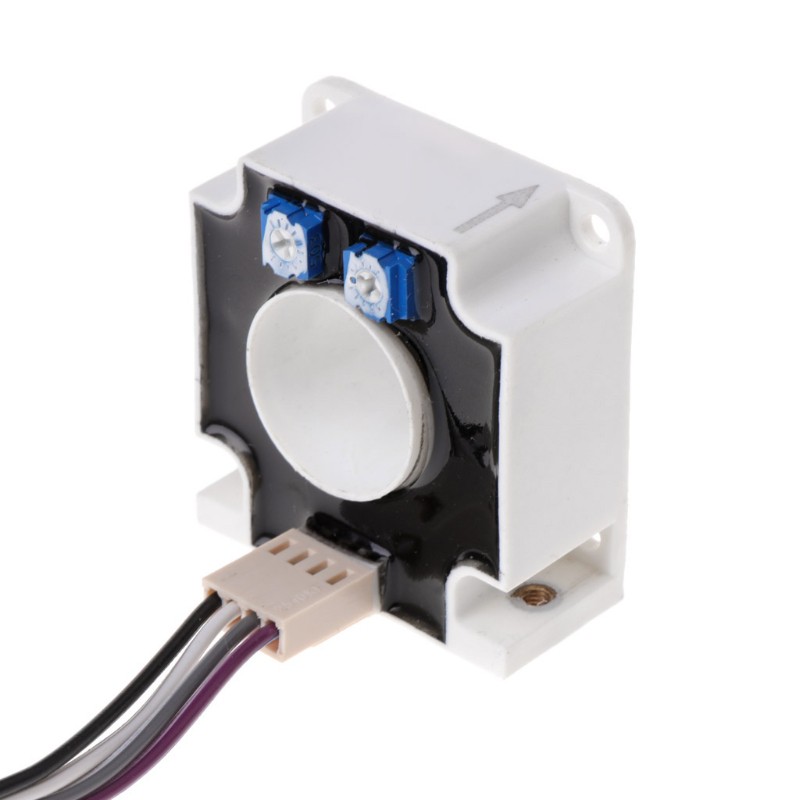

2. Hall sensor is used to realize non-contact detection current without disconnecting wires, which is safe, reliable and convenient.

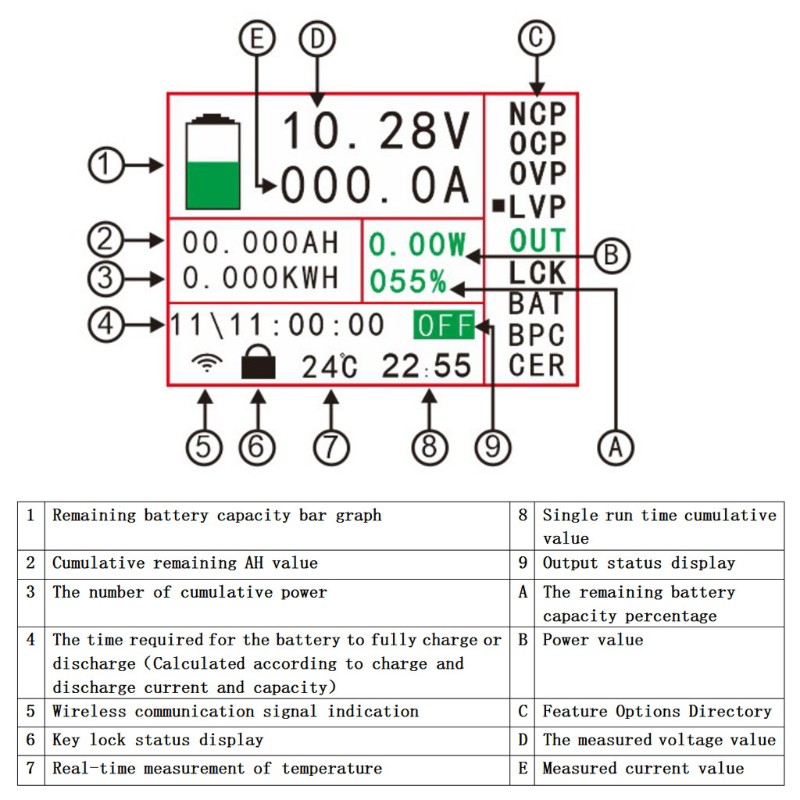

3, voltage, current, power, temperature, capacity, percentage of remaining capacity, running time is displayed at the same time.
4, double relay interface, you can manage charge and discharge separately.
5, with charge over voltage, discharge under voltage, charge over-current, discharge over-current protection.
6. The memory function of the breakpoint, power-on and power-off, and the number of AH and WH before power-off can be memorized.

Functions:
The instrument has a total of 18 functions, each function to help customers more convenient and faster access to more accurate measurement results.
(1) NCP: set the value of charge over-current protection, with the relay can be achieved when charging over-current protection;
(2) OCP: set the discharge over-current protection value, with the relay can be achieved when the discharge over-current protection;
(3) OVP: Set the charge overvoltage protection value (the voltage exceeds the set voltage can automatically fill the capacity), with the relay can be filled with automatic disconnection function;
(4) LVP: set the discharge over-voltage protection value, with the relay can be achieved automatically disconnect the discharge function;
(5) OUT: The switch output function of the wireless control relay can be realized by clicking OUT.
(6) LCK: key lock function, if necessary, you can lock the keys to prevent misoperation;


don't have the Temperature measurement function.

Technical Specifications:
Display:2.4 inch TFT LCD display
Self-power measurement range of 6V ~ 80V
Measurement range 0~500V when external power supply
Input current measurement range 0~100A
External supply voltage 6-60V
Display mode 2.4 inch color LCD display
Voltage 0.01V~500V
Current 0.1A~50A 100A 200A 300A 500A can choose
Capacity 0.001AH~65000.00AH
Energy 0.000KWH~9999KWH
Time 0 ~ 100 hours
Power value 999KW
Temperature 1~100°C
Voltage ± 1% + 2 words
Current ± 2% + 5 words
Temperature ± 1.5 ℃
Measurement rate 5 times / second
Relay delay time (0-60)S
Communication distance Open single group 10 meters
OVP (overvoltage protection) 0.01V~500V
LVP (undervoltage protection) 0.01~500V
OCP (Charge Overcurrent Protection) 0-500A
NCP (discharge overcurrent protection) 0-500A

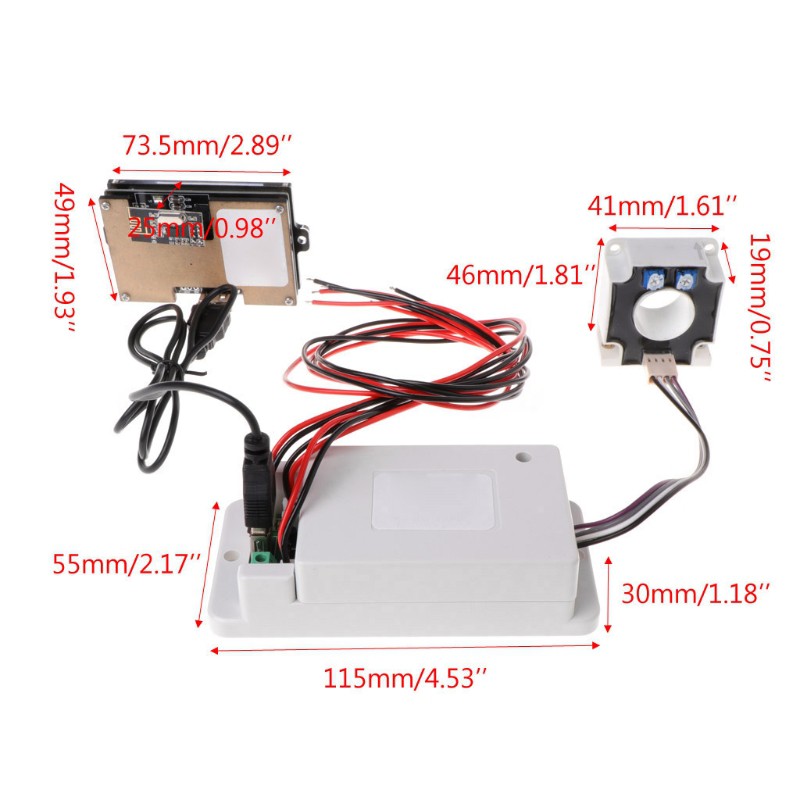

Display board size 87 * 49 * 14 (mm)
Measuring plate size 114 * 54 * 28 (mm)

Note:If you need more detailed instructions, please contact us.

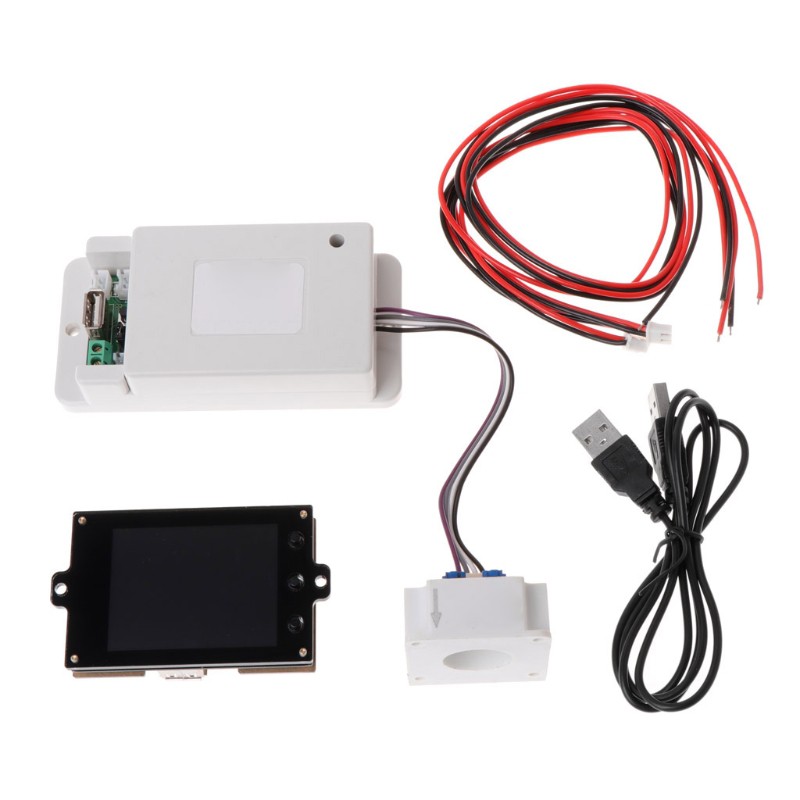

Package included:
1x Display module
3x 2p red black line
1x Male to male USB2.0 cable

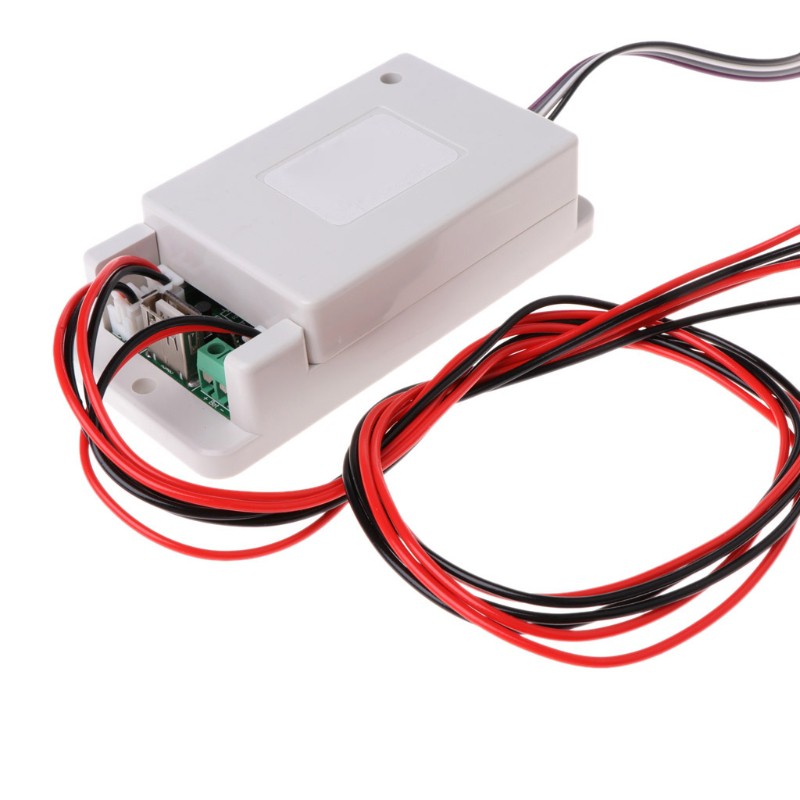

1x Measurement module (including a measuring board and Hall sensor)"
