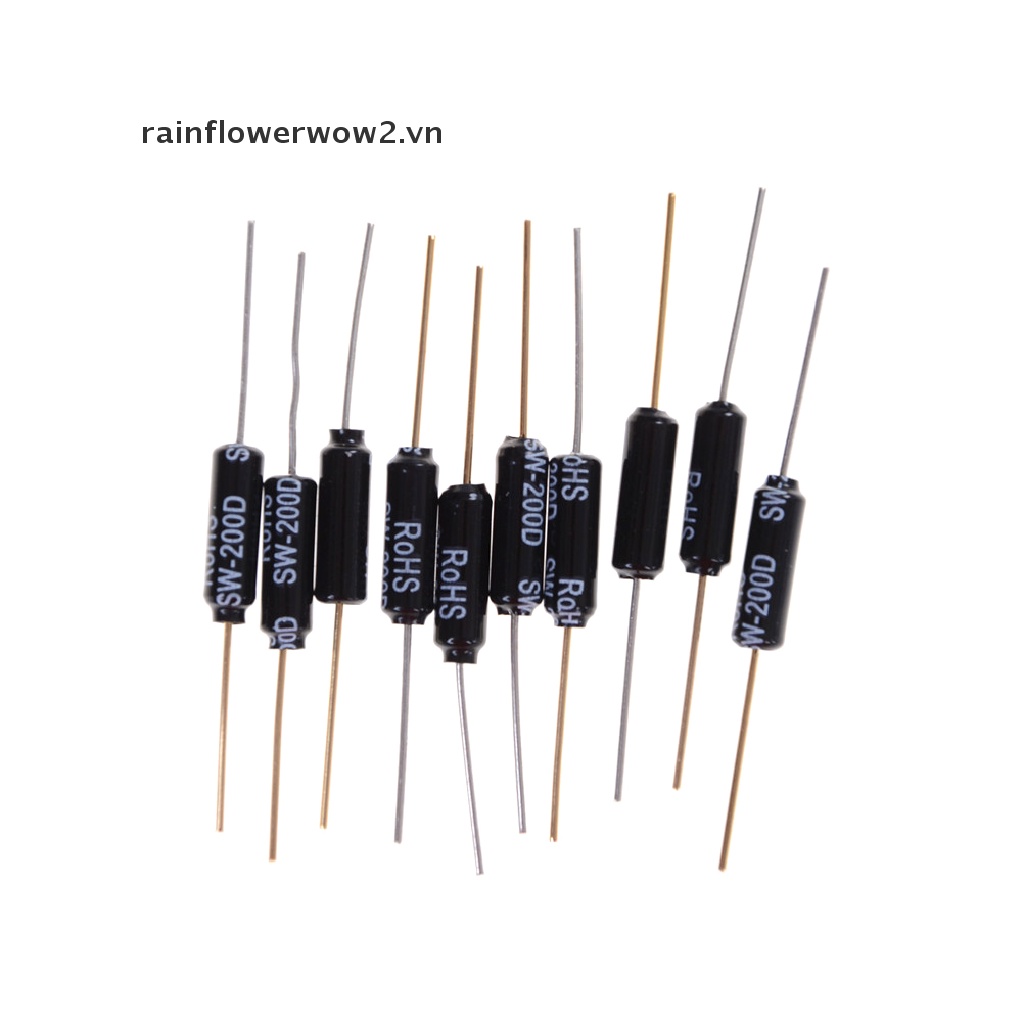

Set 10 Công Tắc Góc Rung SW-200D Cảm Biến Điện Tử Chuyên Dụng

Giới thiệu Set 10 Công Tắc Góc Rung SW-200D Cảm Biến Điện Tử Chuyên Dụng

Description:

100% brand new and high quality
1. The use of metal material, electrical characteristic is similar to mercury switch but no risk of mercury switch and the environmental protection question, and has the same characteristics of single wizard in shaking, assembly using more convenient security.
2. work features: golden end for (ON) conduction trigger side, silver side to open terminal (OFF), when the shaking force to achieve the appropriate set Angle below level sloshing force or golden end electric property right Angle for the electricity connecting foot conduction will produce a short time or continuous conduction (ON) status, and when the electric property to restore to a za state (OFF), the switch to set up the environment must be stationary, and the silver side setting Angle should be below the level of 10 degrees.
3. when the switch is set to level, can easily trigger when shaking, when silver end set down, shaking it extremely easy to trigger.
4. apply to trigger small current circuit, does not apply when the power switch
5. as heat shrink tube packaging, appearance can be dustproof moistureproof.
6. SW-200-D double bead switch have longer lead time.

Voltage: 12v
Current: 2mA
Turn-on time: 2ms
Passage resistance: more than 50ohm
Open circuit resistance: 10M ohm
Temperature: 100℃
Quantity:1Set(10Pcs)
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 0.5-1cm measuring deviation due to manual measurement.
1 cm = 0.3937 "
Package Included:

10Pcs x Vibration Sensor

Hình ảnh sản phẩm

Giá VOW
