Giới thiệu Set 10 Công Tắc Trượt 2 Vị Trí On / Off Spdt 1p2t 3 Pin Pcb Ss12D00G3

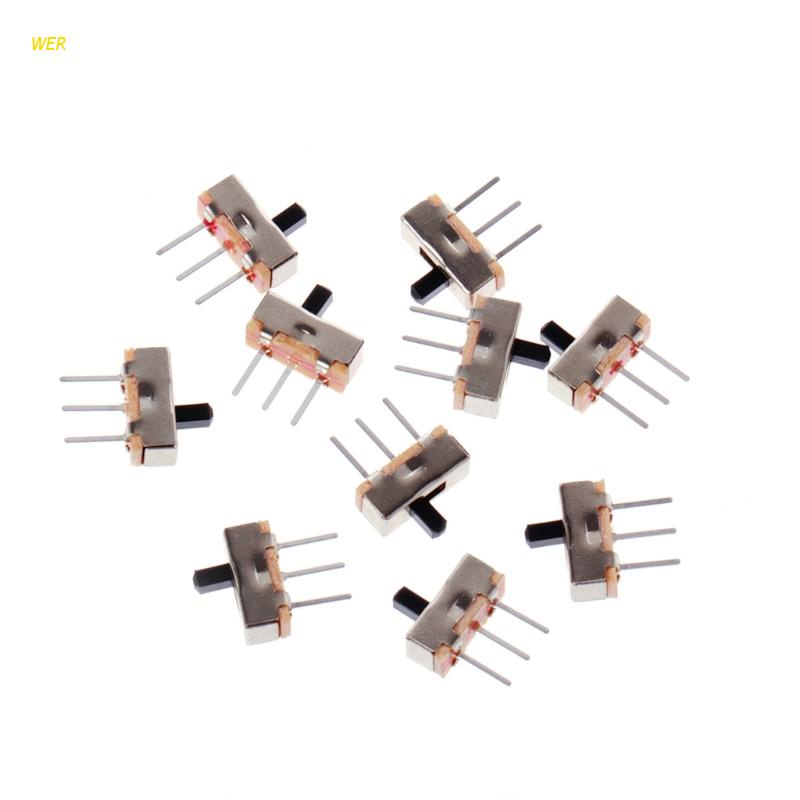

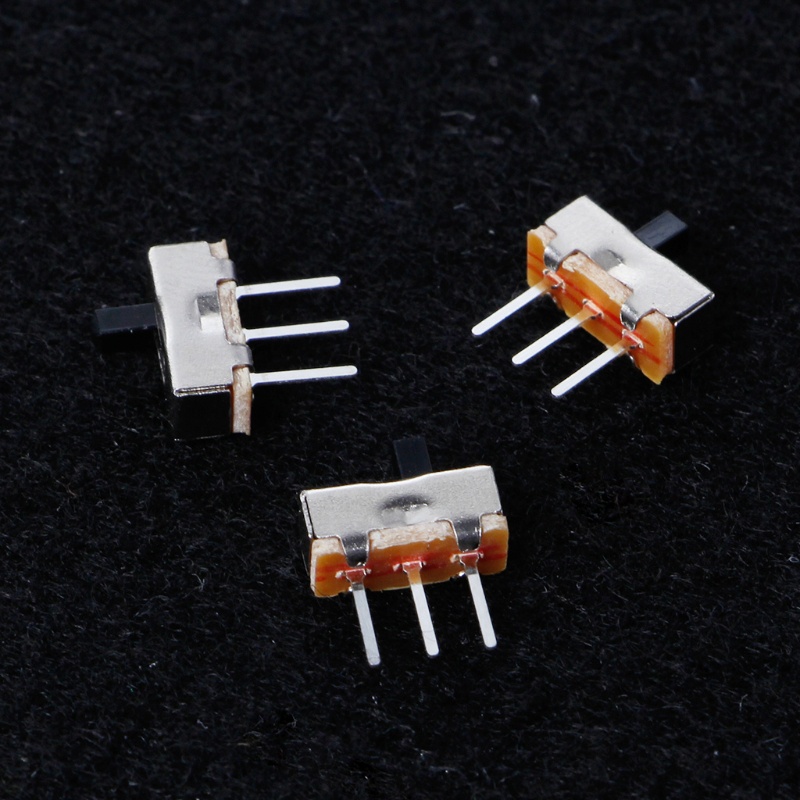

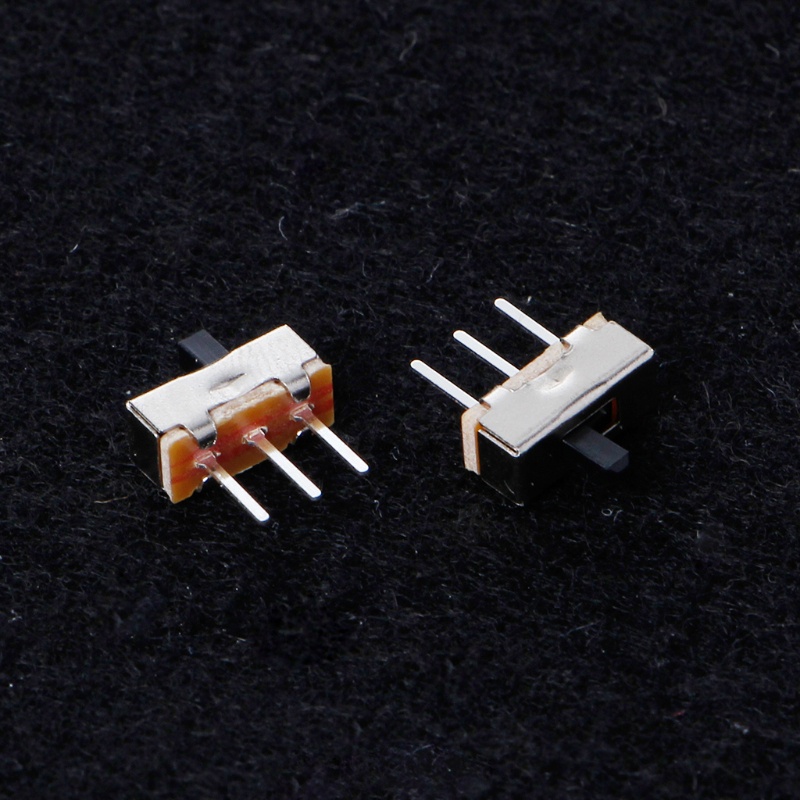

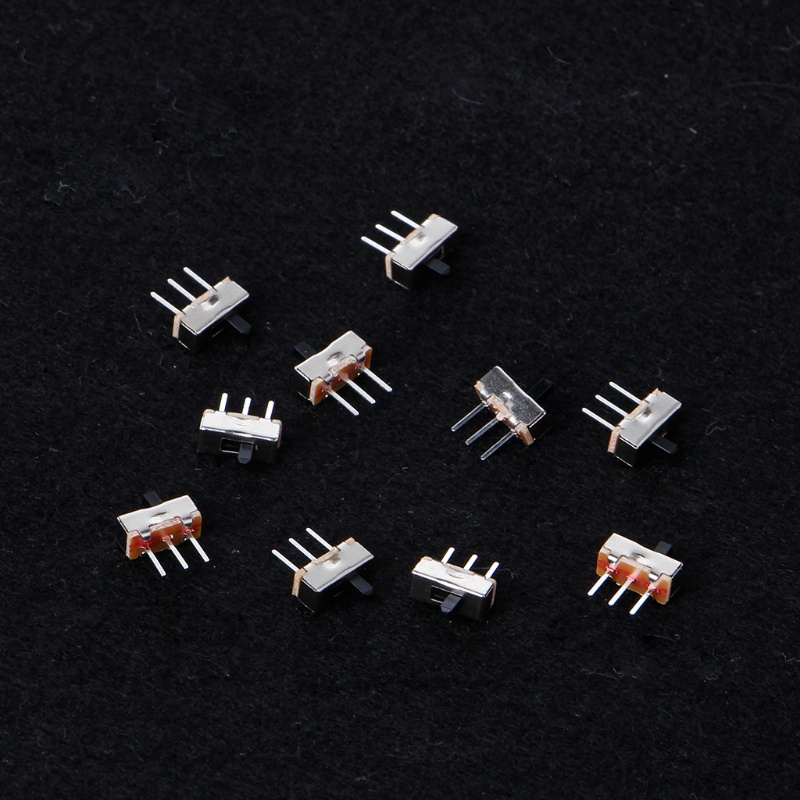

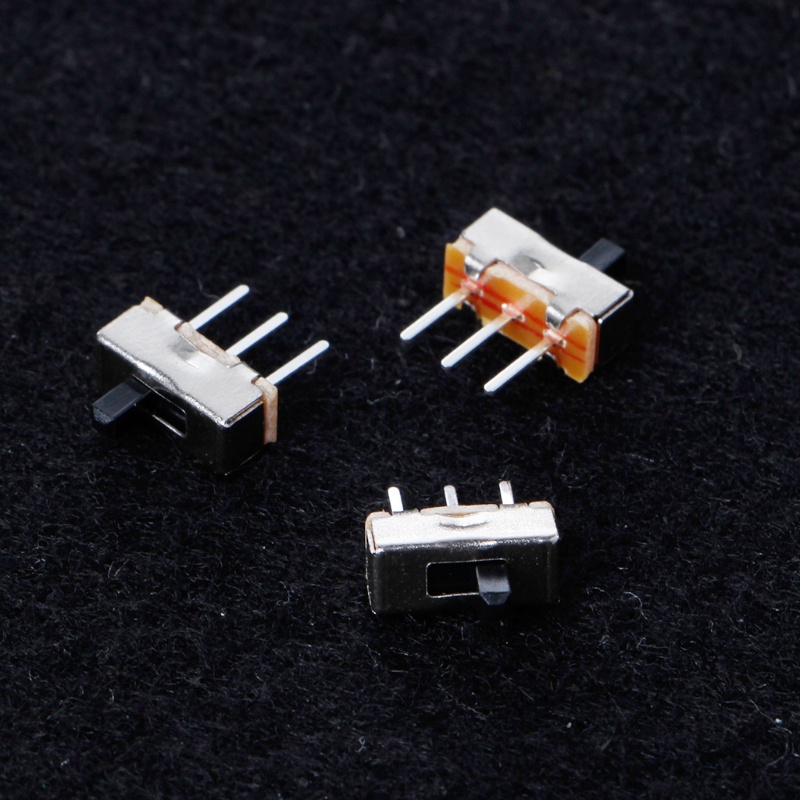

#10 #Pcs #2 #Position #On/Off #SPDT #1P2T #3 #Pin #PCB #Panel #Mini #Vertical #Slide #Switch 10 Pcs 2 Position On/Off SPDT 1P2T 3 Pin PCB Panel Mini Vertical Slide Switch SS12D00G3 Features:
Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 2 Position, Sliding Knob Actuator
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
Also a great component for DIY
Specifications:
Rated Power: 0.5A 50V DC
Contact Resistance: 30mΩ Max
Insulation Resistance: 100mΩ Min at 500V DC
Withstand Voltage: AC 500V for 1 min
Pin Terminal Length:5mm
Pin Pitch: 2.54mm

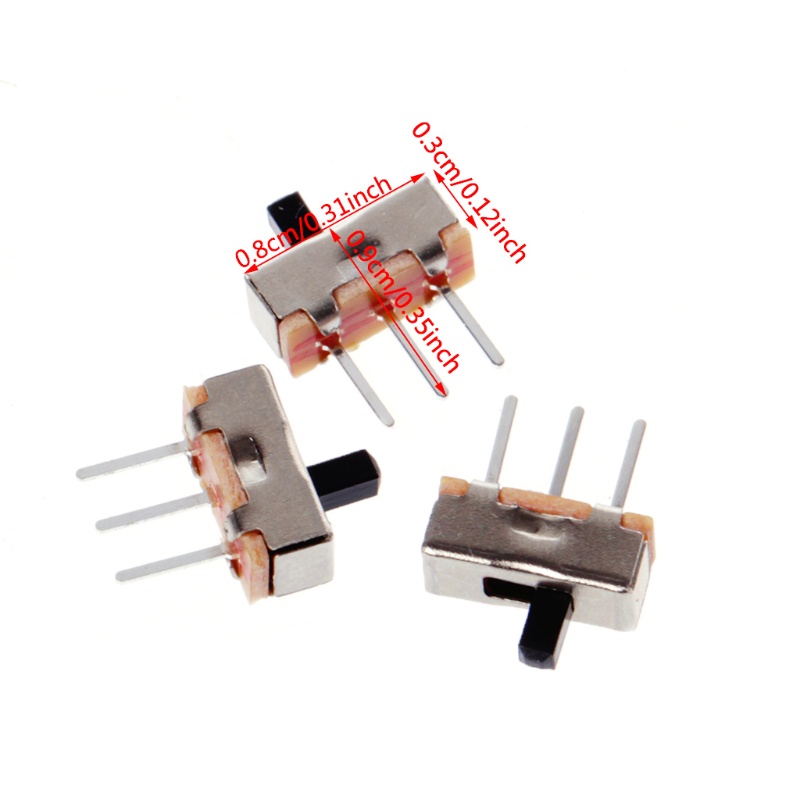

Main Body Size(not include Pins & Knob): 8.5 x 3.7 x 3.9mm
Knob Size: 1.5 x 1.5mm
Knob Travel Distance: 2.0mm
Quantity: 10 Pcs/1 Set
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
