Set 10 khối nối dây điện 3 chiều có thể tái sử dụng

Giới thiệu Set 10 khối nối dây điện 3 chiều có thể tái sử dụng

#10 #Pcs #3 #Way #Electric #Cable #Wire #Connector #Reusable #Lever #Terminal #Block

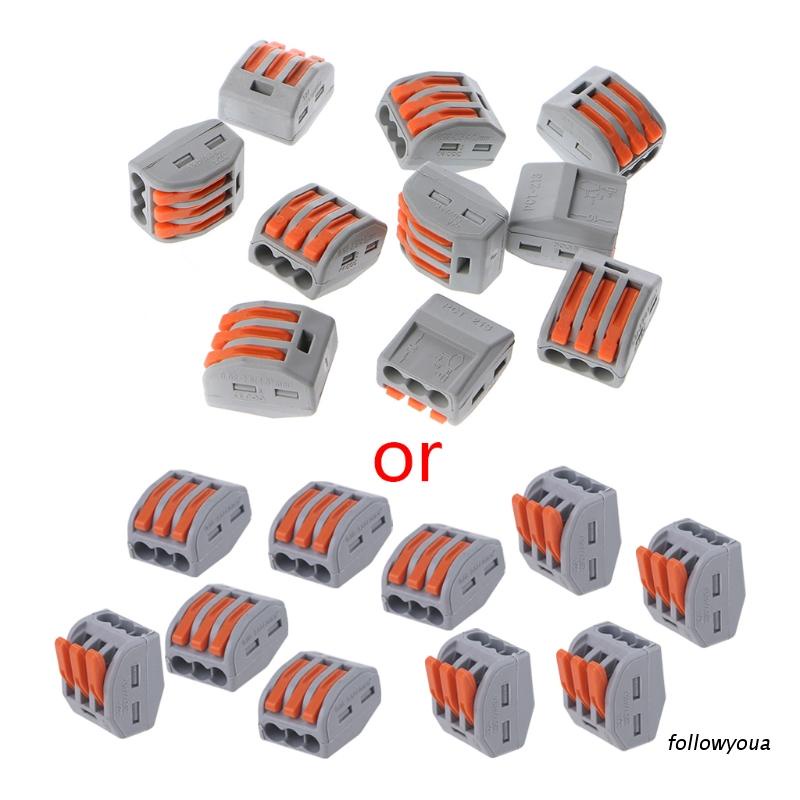

10 Pcs 3 Way Electric Cable Wire Connector Reusable Lever Terminal Block
Features：
Security - no loose wires, tape embrittlement danger, safe and transparent visible
Convenience - a test hole, measure the voltage without removing tape
Quick - direct plug, plug the wrong can be pulled out, followed again
Each contact shrapnel independent, fit different wire diameter, safety shorting
This Terminal Block Is Incredibly Easy To Use, Compact, Reusable, And Requires No Tools
Provides You A Maintenance-Free Connection

Specifications：
Color: Grey+Orange
Max. Voltage: 400V
Current Intensity: 32A
Max. Isolation: 4 KV
Max. Continuous Service Temperature: 85°C
Strip Length: 9-10mm
Compact connector with levers
Solid conductor size 0.08 to 2.5 mm² /AWG 14
Stranded conductor size 0.08 to 2.5 mm² /AWG 14
Flexible conductor size 0.08 to 4 mm² /AWG 28 - 12
Size: 21 x 14 x 17 mm /0.83x0.55x0.67" (LxWxH)
Quantity: 10 Pcs/1 Set

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package
Package includes:
10 Pcs x Wire Connectors

Hình ảnh sản phẩm

Giá FU
