Set 1640 Đầu Nối Dây Điện Cách Điện 0.25-6.0Mm2 + 1640 Cái

Giới thiệu Set 1640 Đầu Nối Dây Điện Cách Điện 0.25-6.0Mm2 + 1640 Cái

Do you want to crimp wires quickly without stripping and soldering? Try this ferrule crimper plier set with 1640pcs insulated crimp terminals. The wire crimper

Features convenience, efficiency and harmlessness to the cable cores. It's easy to use, just hold the handle and manipulate it once to successfully press tight the wire and terminal blocks.



Features:

Accurate adjustment before ex works delivery and high assurance with fast lifting safety lock.

With adjustable ratchet wheel structure and the lever action to reduce the operation fatigue.

Due to great handle grasping position, light and compact structure and handle design ensure perfect crimping effect.

Special design of the four spindle crimp style for strengthening the grip.

Easy and convenient to use for wire connecting usage in marine and automobile applications.

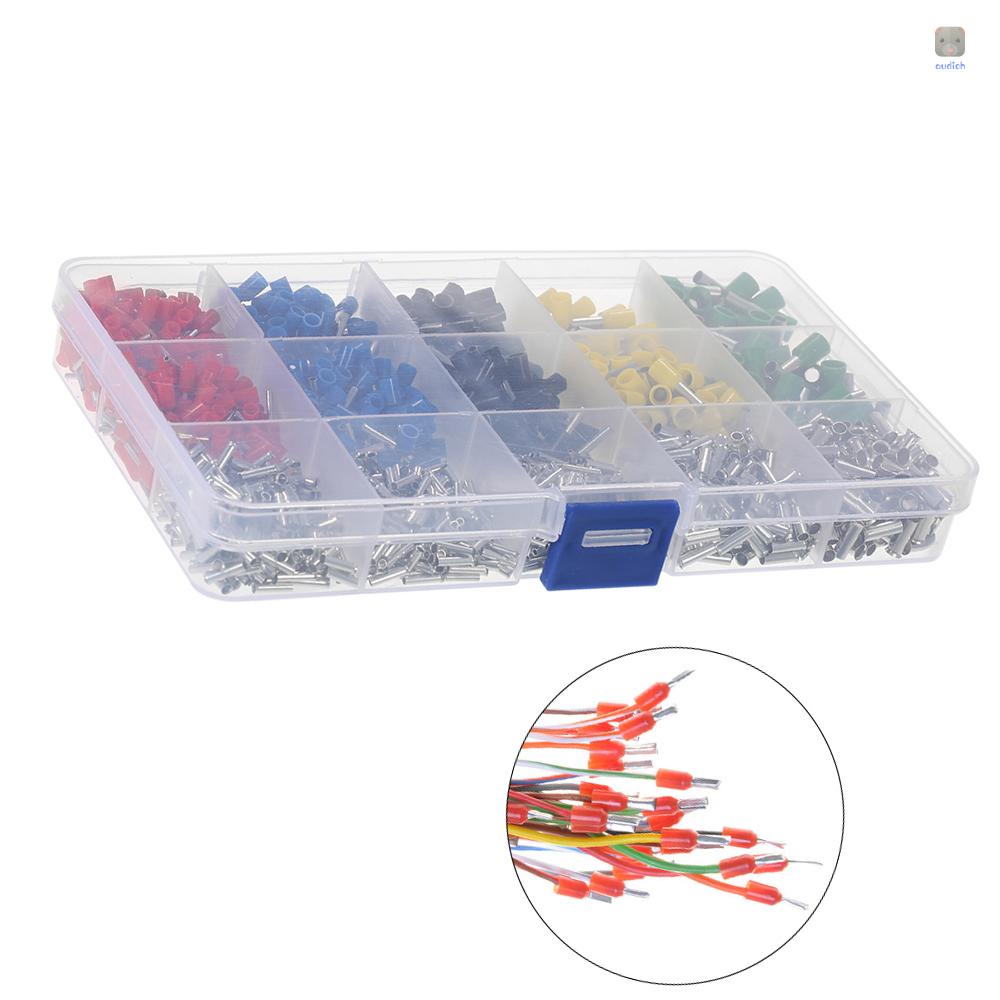

A sorted storing transparent box for easy access with 1640pcs assorted electrical wire terminals.



Specifications:

Colors: Multicolor

Material: Nylon + Copper

Crimping Range: 0.25mm²-6.0mm² AWG23-10

Suitable Terminals: Cord End Terminals, Insulated Terminals

Wire Crimper Size: 175 * 70 * 17mm / 6.89 * 2.76 * 0.67in

Wire Crimper Weight: 351g / 12.37oz

1640pcs assorted crimp terminals including:

EN0508 Silver 400pcs: L: 8.0mm, W: 1.7mm, D: 1.3mm, C: 1.0mm

EN1008 Silver 200pcs: L: 8.0mm, W: 2.2mm, D: 1.7mm, C: 1.4mm

EN1508 Silver 200pcs: L: 8.0mm, W: 2.5mm, D: 2.0mm, C: 1.7mm

EN2508 Silver 150pcs: L: 8.0mm, W: 3.3mm, D: 2.6mm, C: 2.3mm

EN4009 Silver 100pcs: L: 9.0mm, W: 3.9mm, D: 3.2mm, C: 2.8mm

E0508 Red 200pcs: F: 8.0mm, L: 14.0mm, W: 2.6mm, H: 6.0, D: 1.3mm, C: 1.0mm

E1008 Blue 150pcs: F: 8.0mm, L: 14.6mm, W: 3.0mm, H: 6.3, D: 1.7mm, C: 1.4mm

E1508 Black 100pcs: F: 8.0mm, L: 14.3mm, W: 3.5mm, H: 6.3, D: 2.0mm, C: 1.7mm

E2508 Yellow 80pcs: F: 8.0mm, L: 15.4mm, W: 4.0mm, H: 7.4, D: 2.6mm, C: 2.3mm

E4009 Green 60pcs: F: 9.0mm, L: 16.4mm, W: 4.5mm, H: 7.4, D: 3.2mm, C: 2.8mm

Size of the Storage Box: 170 * 95 * 20mm / 6.69 * 3.74 * 0.79in

Package Weight: 542g / 19.12oz

Package Size: 18 * 10 * 4cm / 7.09 * 3.94 * 1.57in



Package List:

1 * Wire Crimper

400 * EN0508 Crimp Terminals

200 * EN1008 Crimp Terminals

200 * EN1508 Crimp Terminals

150 * EN2508 Crimp Terminals

100 * EN4009 Crimp Terminals

200 * E0508 Crimp Terminals

150 * E1008 Crimp Terminals

100 * E1508 Crimp Terminals

80 * E2508 Crimp Terminals

60 * E4009 Crimp Terminals

1 * Storage Box
