Set 20 đế sạc pin Lithium 18650 1S 3.7V 3A 18650 Lithium Li-Ion BMS
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Dụng cụ điện và thiết bị lớn > Máy phát điện > Set 20 đế sạc pin Lithium 18650 1S 3.7V 3A 18650 Lithium Li-Ion BMS
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Giới thiệu Set 20 đế sạc pin Lithium 18650 1S 3.7V 3A 18650 Lithium Li-Ion BMS

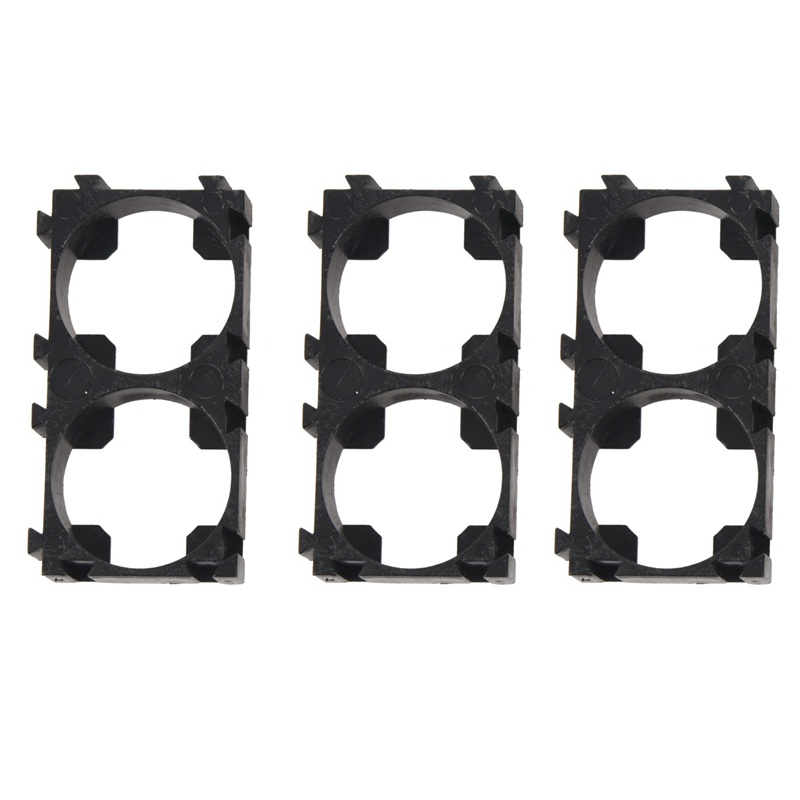

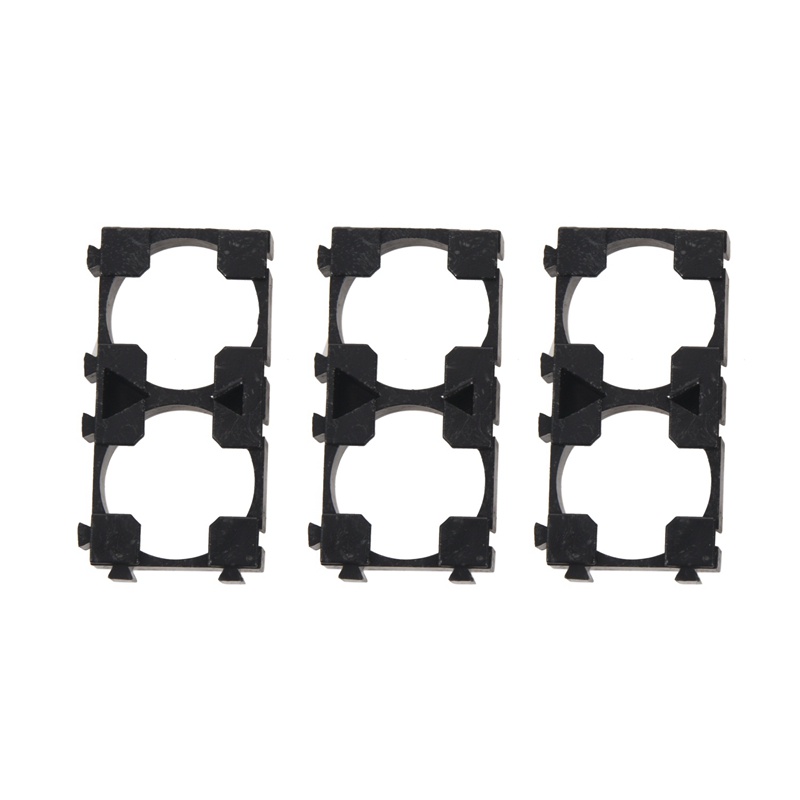

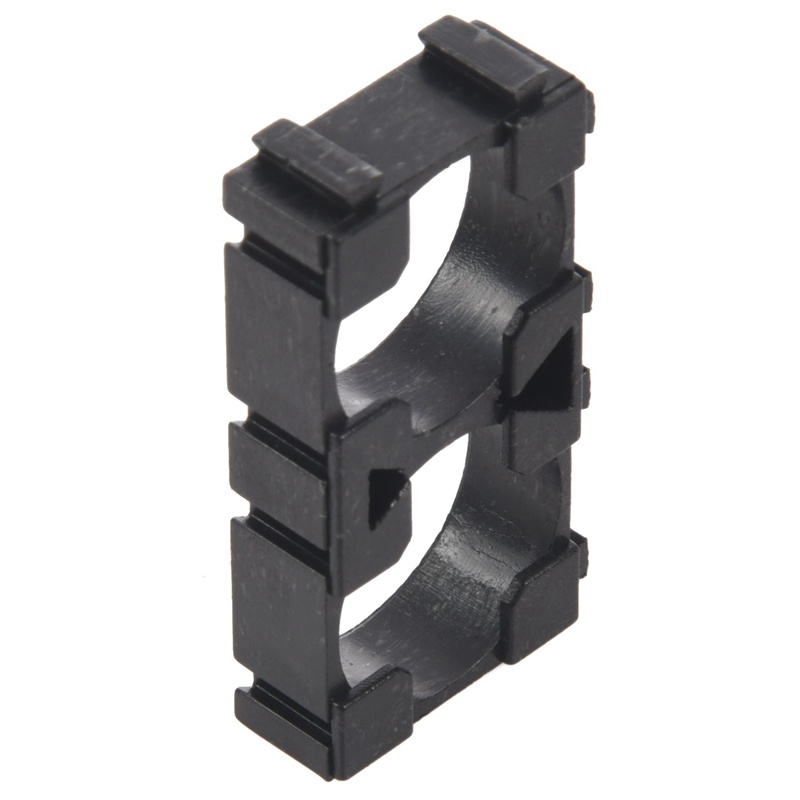

2 set Electronic Accessories:1 x lithium battery protection board & 20 x Battery Holder Brackets18650 cylindrical battery holder, fire retardant ABS+PC materials.
Crack resistant edge with the slot, with the firm, It can accoate various size; Battery installation hole diameter 18mm, 2-linked structure.
Nickel plate vibration test can be conducted without attachment to any device.
Suitable for all types of battery assembly including do it option.
Please note, installation requires top and bottom piece to work.
high-accuracy voltage detection circuit;
terminal of the charger using high voltage device;
Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
MOS transistor can control the battery charge and discharge;
Color:green+Black
el: 18650
Size: 4 x 2cm / 1.6 x 0.8 inch (LxW)
Inner Dia: 1.8cm / 0.7 inch
Material: ABS+PC+plastic
The BMS is used for li-ion battery without balancing function
Parameter:
Over charge voltage: 4.25+/-0.05V
Over charge release voltage:4.23+/-0.05V
Over discharge voltage:2.54+/-0.1V
Maximal continuous charging current: 2A
Maximal continuous Discharging current: 2A
Over current protection: 3A
Size: L40xW4xT3mm
Package Contents:
1 x lithium battery protection board
20 x Battery Holder BracketsOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
