Giới thiệu Set 27 Khuôn Làm Nóng Trực Tiếp Bga Chuyên Dụng Cho Smt Smd Chip

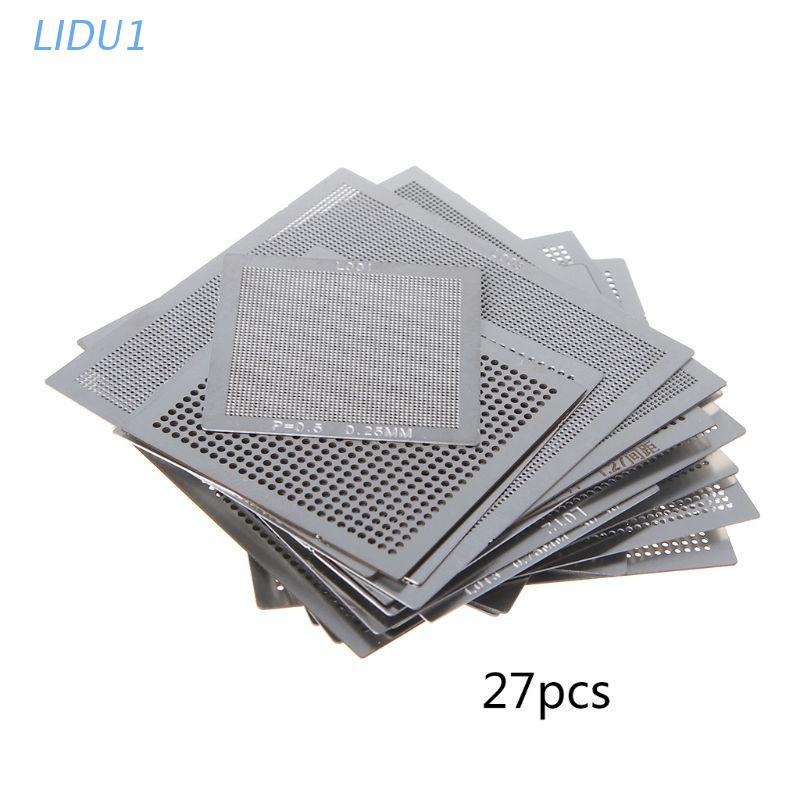

#27Pcs/set #BGA #Directly #Heat #Reballing #Universal #Stencils #with #Template #Jig #for #SMT #SMD #Chip #Rework27Pcs/set BGA Directly Heat Reballing Universal Stencils with Template Jig for SMT SMD Chip Rework Repair Parts
Description:
100% brand new and high quality
Feature:
Made of imported stainless steel plate. Good stencil thickness.
Can be directly heated by air-gun, steel mesh is not easy to deformation by heat.
Steel mesh area and BGA chip area matching, can reduce the waste of solder ball.
Universal Stencils only, other accessories demo in the picture is not included!
Direct Heat stencils 27pcs List:
1 x universal stencil 0.30mm (pitch 0.58mm) 29x29
1 x universal stencil 0.35mm (pitch 0.65mm) 29x29
1 x universal stencil 0.40mm(pitch 0.70mm) 35.4x35.4
1 x universal stencil 0.45mm(pitch 0.78mm) 35.4x35.4
1 x universal stencil 0.5mm(pitch 0.80mm) 30.9x29.4
1 x universal stencil 0.6mm(pitch 0.90mm) 45.4x45.5
1 x universal stencil 0.6mm(pitch 1.0mm) 45.4x45.4
1 x universal stencil 0.6mm(pitch 1.1mm) 31.9x31.9
1 x universal stencil 0.76mm(pitch 1.27mm) 50.0x50.0
1 x universal stencil 0.5mm(pitch 0.78mm) 35x35
1 x universal stencil 0.5mm(pitch 0.81mm) 40x40
1 x universal stencil 0.55mm(pitch 1.02mm) 50.6x50.6
1 x universal stencil 0.6mm(pitch 0.99mm) 24x24
1 x universal stencil 0.6mm(pitch 0.99mm) 27x27
1 x universal stencil 0.6mm(pitch 0.99mm) 30x30
1 x universal stencil 0.6mm(pitch 0.99mm) 33x33
1 x universal stencil 0.6mm(pitch 1.01mm) 41x41
1 x universal stencil 0.65mm(pitch 1.0mm) 47.6x47.6
1 x universal stencil 0.76mm(pitch 1.27mm) 30x30
1 x universal stencil 0.76mm(pitch 1.27mm) 33x33
1 x universal stencil 0.76mm(pitch 1.27mm) 34x34
1 x universal stencil 0.76mm(pitch 1.27mm) 37x37
1 x universal stencil 0.76mm(pitch 1.27mm) 41x41
1 x universal stencil 1.00mm(pitch 1.5mm) 48.5x48.5
1 x universal stencil 0.25mm(pitch 0.5mm) 35.3x35.3
1 x universal stencil 0.30mm(pitch 0.5mm) 35.3x35.4
1 x universal stencil 0.35mm(pitch 0.6mm) 35.5x35.5
Specifications:
Item Type: Universal Stencils
Material: Steel
Color: Silver
Quantity: 27pcs/set
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
27 x Universal Stencils
