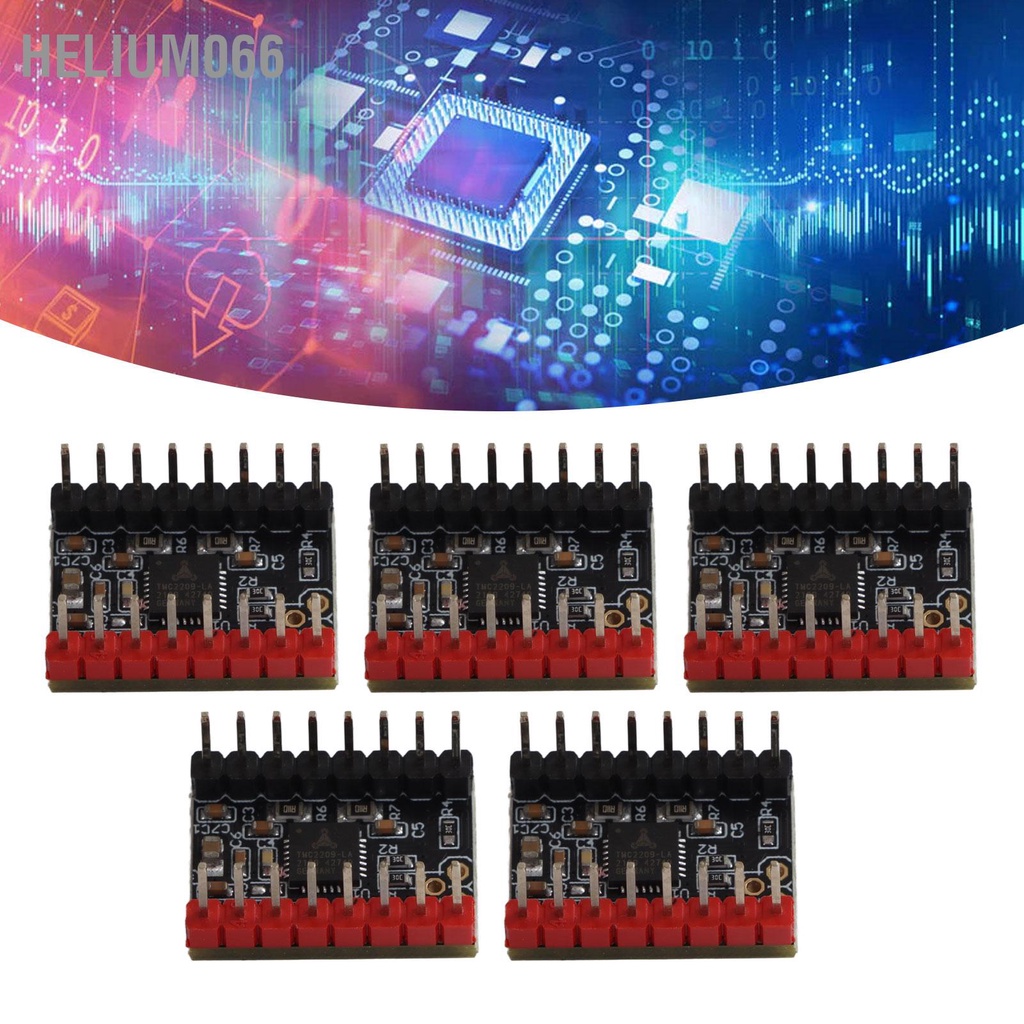

Set 5 Mô Đun Động Cơ Bước Siêu Êm TMC2209
Mô tả ngắn
Ô Tô & Xe Máy & Xe Đạp > Chăm sóc ô tô > Dụng cụ sửa chữa > Set 5 Mô Đun Động Cơ Bước Siêu Êm TMC2209
- Giao hàng toàn quốc
- Được kiểm tra hàng
- Thanh toán khi nhận hàng
- Chất lượng, Uy tín
- 7 ngày đổi trả dễ dàng
- Hỗ trợ xuất hóa đơn đỏ
Sản phẩm tương tự
Giới thiệu Set 5 Mô Đun Động Cơ Bước Siêu Êm TMC2209
❤Welcome to the helium066 store! ❤✔ ready to send ✔ good quality ✔ best price
【Purchase Notes】
1. All products are shipped from overseas, the goods will arrivewithin 18-25 days
2. Good quality, group purchase price, please leave a message to customer service
3. If you have any questions, please contact us, we will be happy to solve with you.
Follow us----Leave a message after placing an order----free gift ❤
❤ Thank you so much for your visit ❤
Seller information & Disclaimer:
Company name：Shenzhen Huotong Bafang Cross-border E-commerce CO., Ltd
Address：Room 310, No 2007, Baoyuan Road, Labor Community, Xixiang Street, Baoan District, Shezhen
Business license number: 91440300MA5G3KT301
Any issue could directly contact us via shop web chat!
Disclaimer: We will take all the responsibility for the goods shipping not Shopee.
Features:
Ultra quiet, high current, 256 microstep subdivision, good heat dissipation effect, UART mode support, use with MKS SGEN-L, without jumper. TMC2209 has all the functions of TMC2208. It can completely replace TMC2208. At the same time, it has less heat, can support higher current, the maximum peak current can get to 2.5A, and infinite 0 return.
Material: Aluminum alloy, PCB.
Default Current: 1.25A
Maximum Current: 2.5A
Logic Voltage: 3.3V, 5V.
Input Voltage: 5.5V-28V.
Microsteps: Up to 1/256.
Mode: Dir/step, uart.
Package List:
5 x Step Motor Driver5 x Heat Sink
Note:
1. Before installing the hard disk, be sure to disconnect the power supply to prevent the hard disk from burning.
2. Before installing the drive, make sure to confirm the direction of the drive to prevent the drive from burning due to reverse connection.
3. Do not plug or unplug the drive module when there is power supply to avoid damage.
4. When installing the heat sink, pay attention to the contact between the heat sink and the pin. Stop the drive short circuit.
5. This product is sensitive to static electricity, please handle it carefully when using, and it is better to move again when using.
6. Verf measures the voltage between Gnd and potentiometer.
7. Do not connect the motor when measuring the voltage, otherwise the driver will be easily burnt.
8. Please also connect the power supply when measuring the voltage, not just the USB power supply.
Hình ảnh sản phẩm
