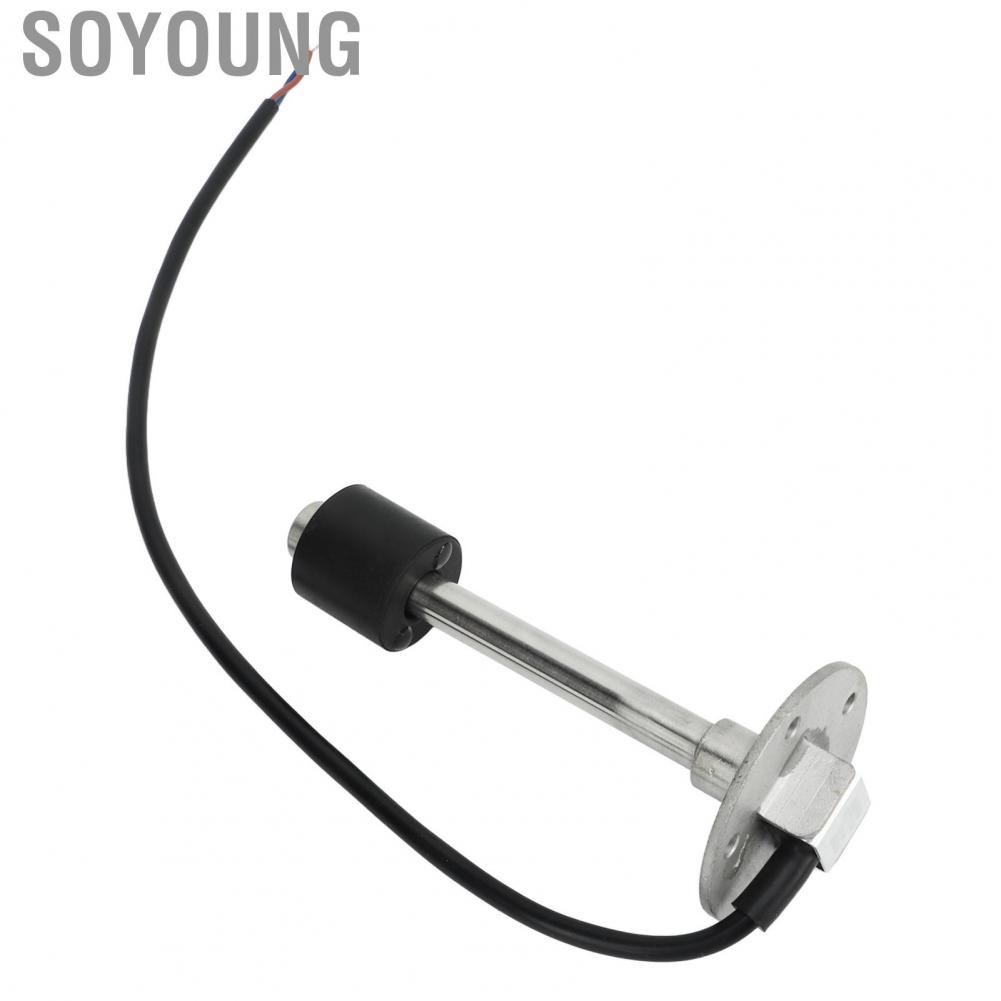

Soyoung Fuel Water Level Sensor Marine Tank Sending Unit 6in 150mm M5 IP67 for RV Ship

Giới thiệu Soyoung Fuel Water Level Sensor Marine Tank Sending Unit 6in 150mm M5 IP67 for RV Ship

★★★★★★★ Chào mừng bạn đến cửa hàng của tôi ★★★★★★★
Trong cửa hàng của chúng tôi, bạn sẽ
♥ Tận hưởng dịch vụ tốt nhất
♥ Nhận sản phẩm tốt nhất.

Chúng tôi có
♥ Sản phẩm chất lượng tốt nhất,
♥ Hậu cần kịp thời nhất,
♥ Giá cả phải chăng nhất.

Tôi hy vọng rằng bạn có một trải nghiệm mua sắm khó quên, đừng quên chú ý đến chúng tôi, sự hỗ trợ của bạn là động lực lớn nhất của chúng tôi !!!
1. Protection Rating: Our fuel level sensor has an IP67 protection rating and an alarm switch rating of 500mA.
2. 316 Stainless Steel Material: The fuel tank sending unit is made of heavy duty 316 stainless steel. The craftsmanship is exquisite, the cable is made of PVC and the float is made of NBR.
3. Reed Switch: This water level sensor is a reed switch, durable and reliable, with stable output signal. The tank does not need to be adjusted.
4. Widely Applied: The fuel level sensor is suitable for boats, cars, trucks, buses and marine areas. Suitable for oil level meter, water level meter and any unadulterated liquid.
5. Easy to Install: The fuel level transmitter comes with washer, mounting screws, written and illustrated instructions, and easy to understand wiring instructions.

Specification:
Item Type: Fuel Level Sensor
Material:
Main Unit: 316 stainless steel
Cable: PVC
Float: NBR
Mounting: Standard SAE 5 hole type
Screw Size: M5 x 0.8
Hole Diameter: 5mm / 0.20inch
Product Specification: Approx. 150mm / 6in
Recommended Tank Size: Approx. 160-178mm / 6.3in-7in
Output Signal: EU standard 0-190ohms (0ohms at no load, 190ohms at full load)
Resolution Range: Approx: 10mm/0.39in
Fuel and Water Level Sensor Type: Resistance
Alarm Switch Rated Current: 500mA
Protection Level: IP67
Operating Temperature: -40°F - +185°F (-40°C - +85°C)
Application: Ship, Yacht, Truck, RV

Package List:
1 x Fuel Water Level Sensor
5 x Screw
1 x Washer

Note:
The installation will take about 15 minutes total to get your power meter working again. To keep the transmitter from hitting the bottom of the can, the length of the transmitter should be 1in less than the depth of the can if it is a plastic can, or 0.5 less than the depth of the can if it is a plastic can.
