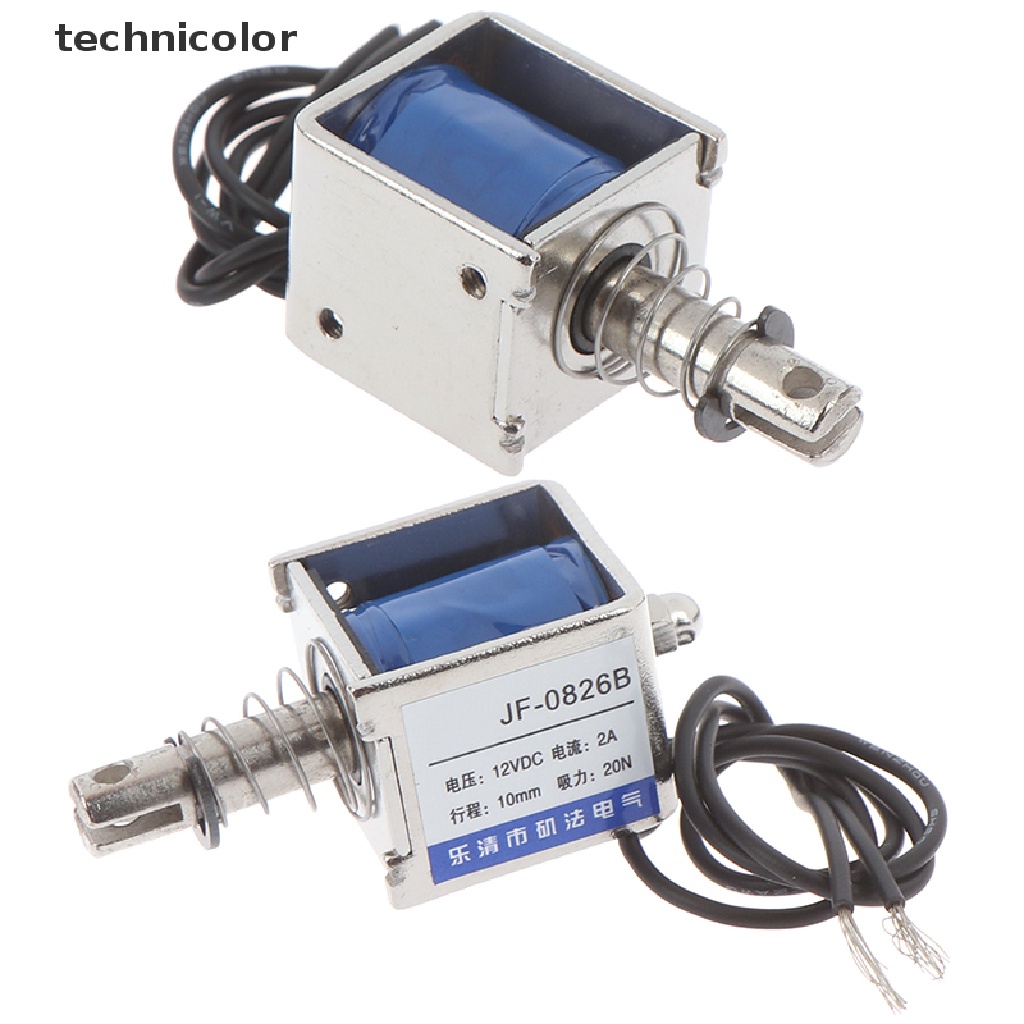

technicolor JF-0826B 12V/2A 10mm 20N push pull type open frame solenoid electromagnet TYG
technicolor JF-0826B 12V/2A 10mm 20N push pull type open frame solenoid electromagnet TYG
Mô tả ngắn
Dụng cụ và thiết bị tiện ích > Dụng cụ điện và thiết bị lớn > Thiết bị khác > technicolor JF-0826B 12V/2A 10mm 20N push pull type open frame solenoid electromagnet TYG
Giới thiệu technicolor JF-0826B 12V/2A 10mm 20N push pull type open frame solenoid electromagnet TYG
Product description:
Material: Metal, Electronic Parts
Color: See pictures
Open frame style, open coil form, built-in mounting board, DC electronmagnet.
Used widely in banking ATM, vending machines, electronic appliances, embroidery machines,
Intelligent lock, juice bread maker, textile machines, cash register or other automatic control devices.

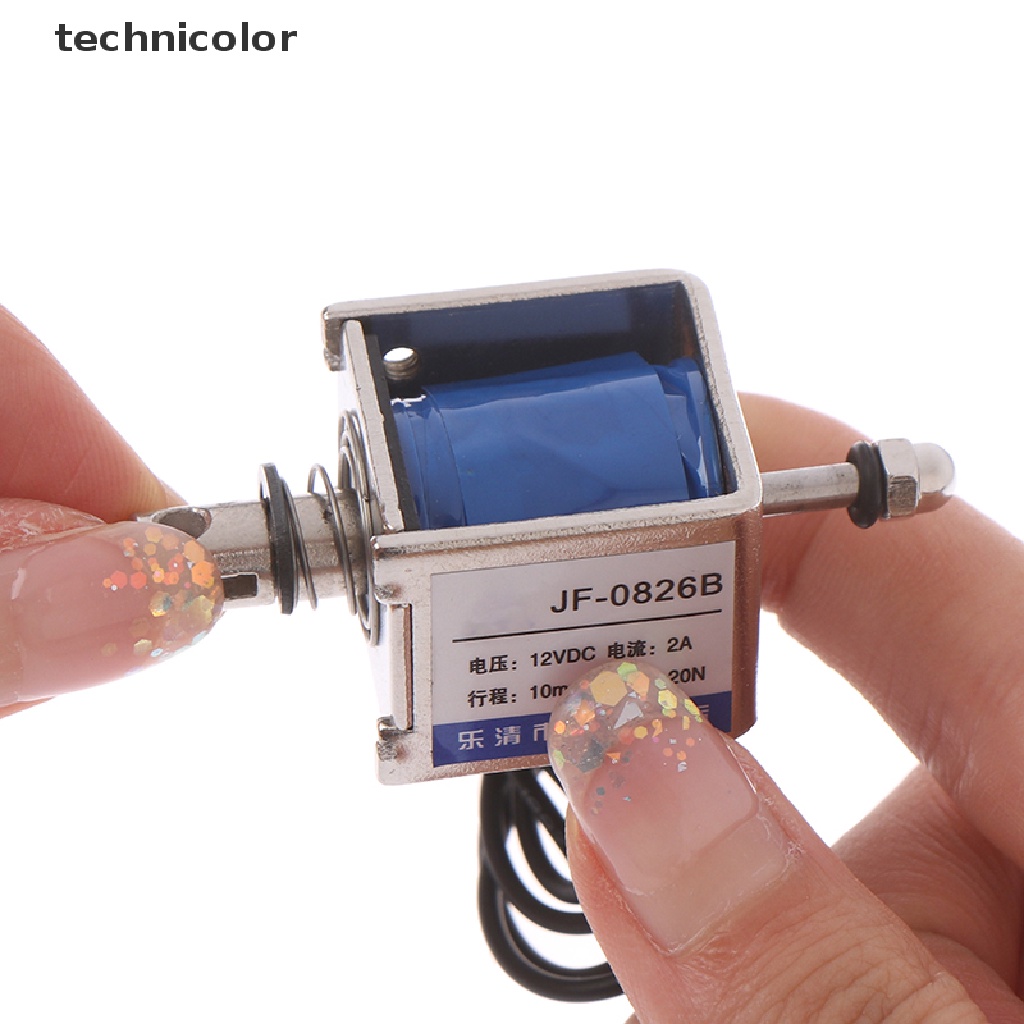

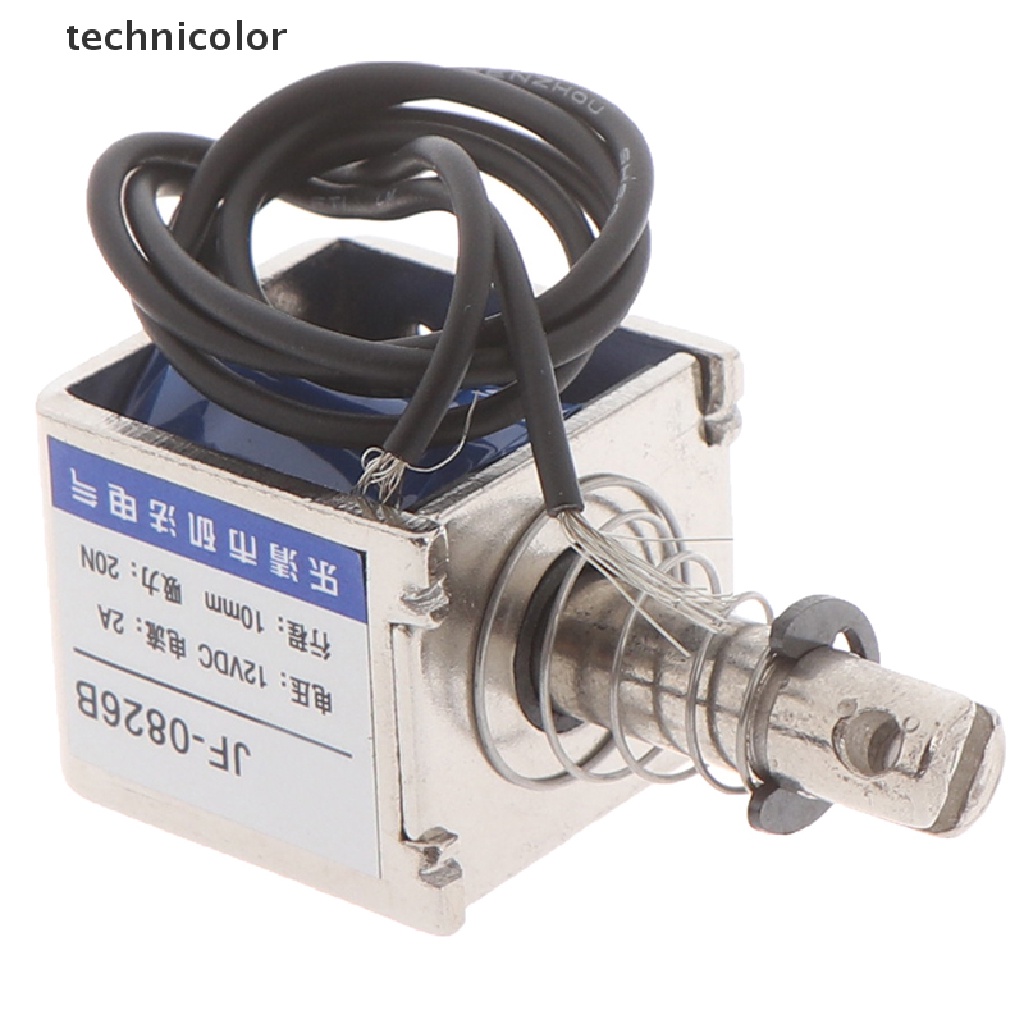

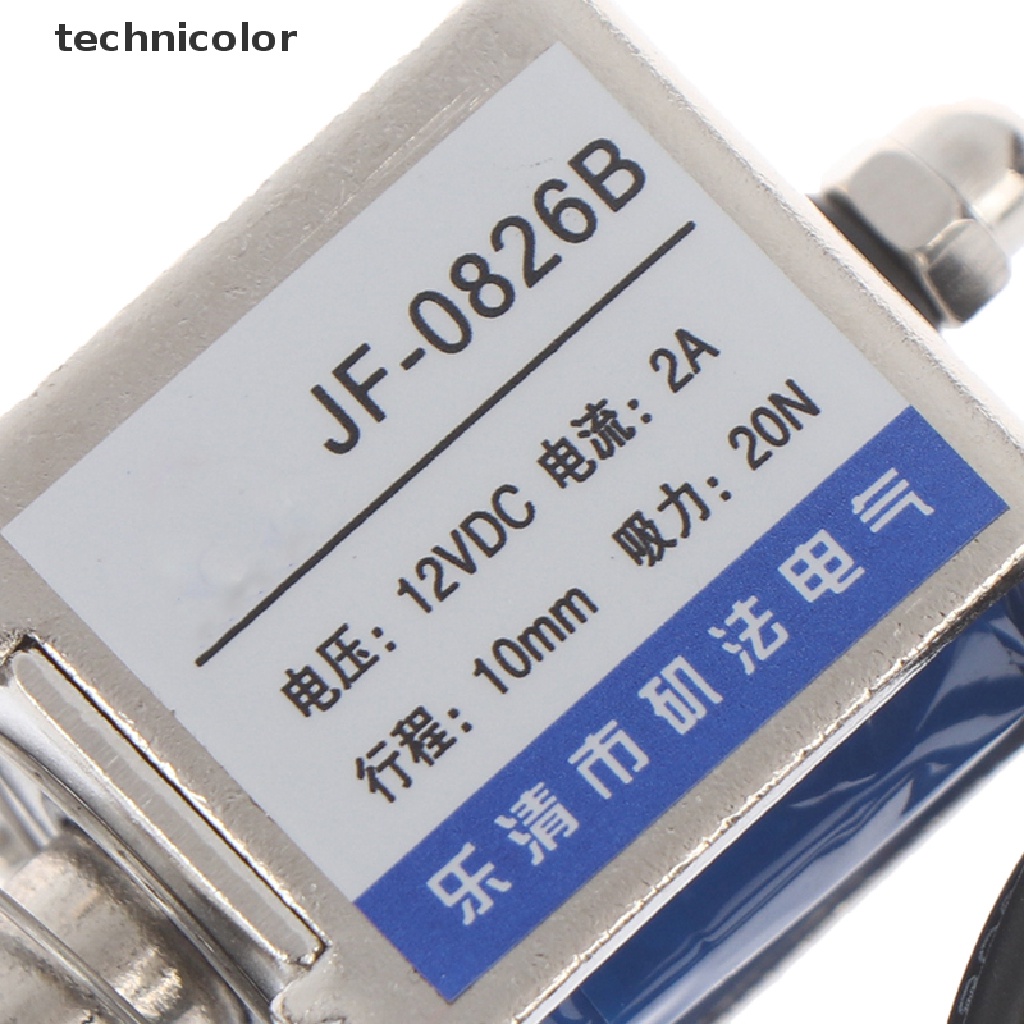

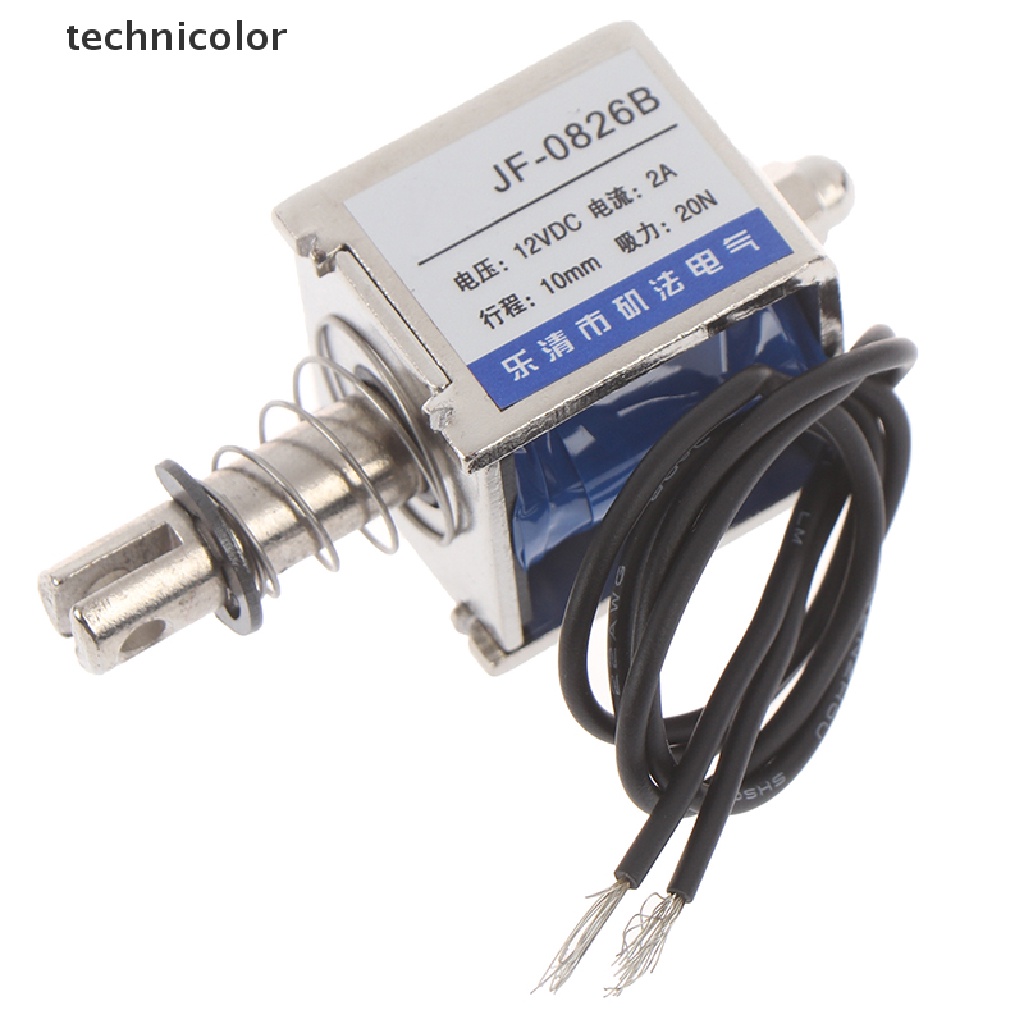

Model JF-0826B
Rated Voltage: DC 12V
Rated Current: 2A
Stroke: 10mm
Force: 20N/2Kg/4.4LB
Metal Frame Size: 26 x 25 x 22mm/1.02" x 0.98" x 0.87"(L*W*H)

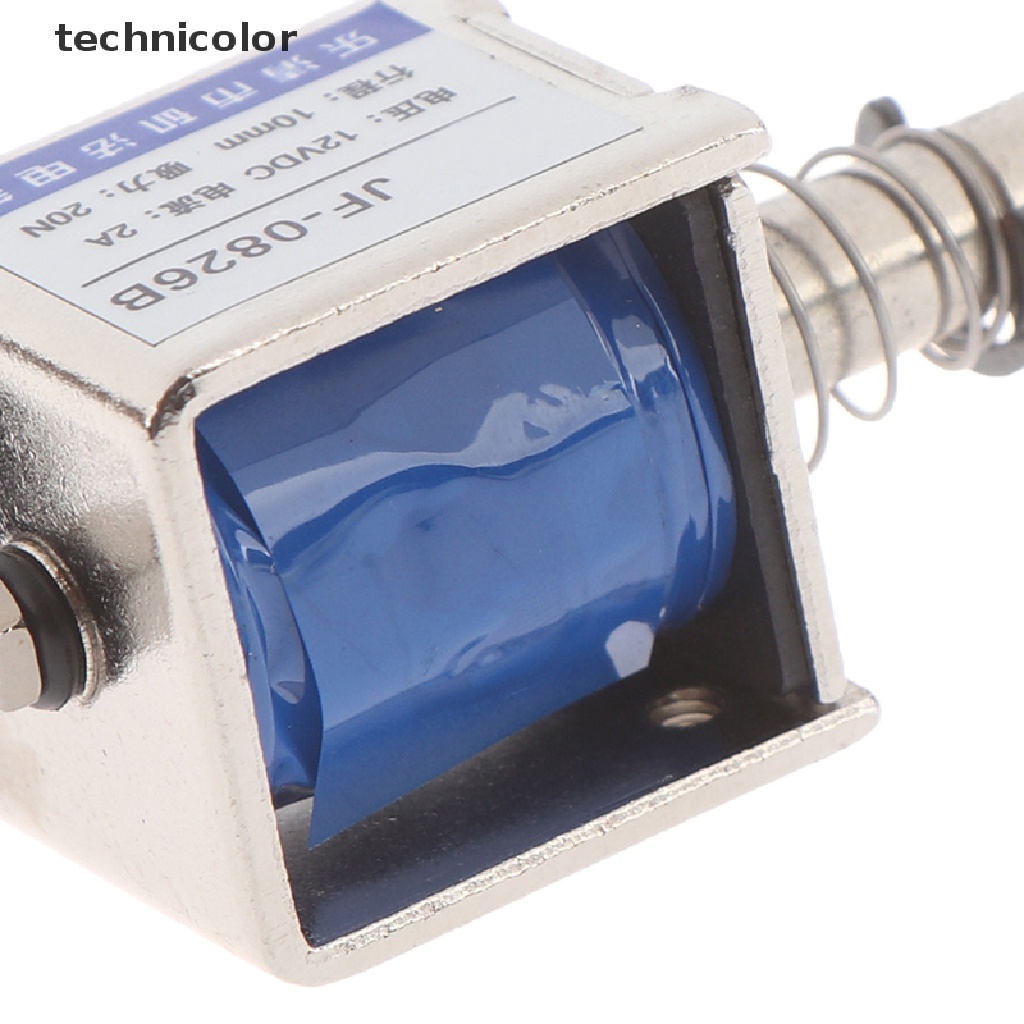

Coil Size: 19 x 17mm/0.75" x 0.67"(L*D)
Total Lenght: 57mm/2.24"

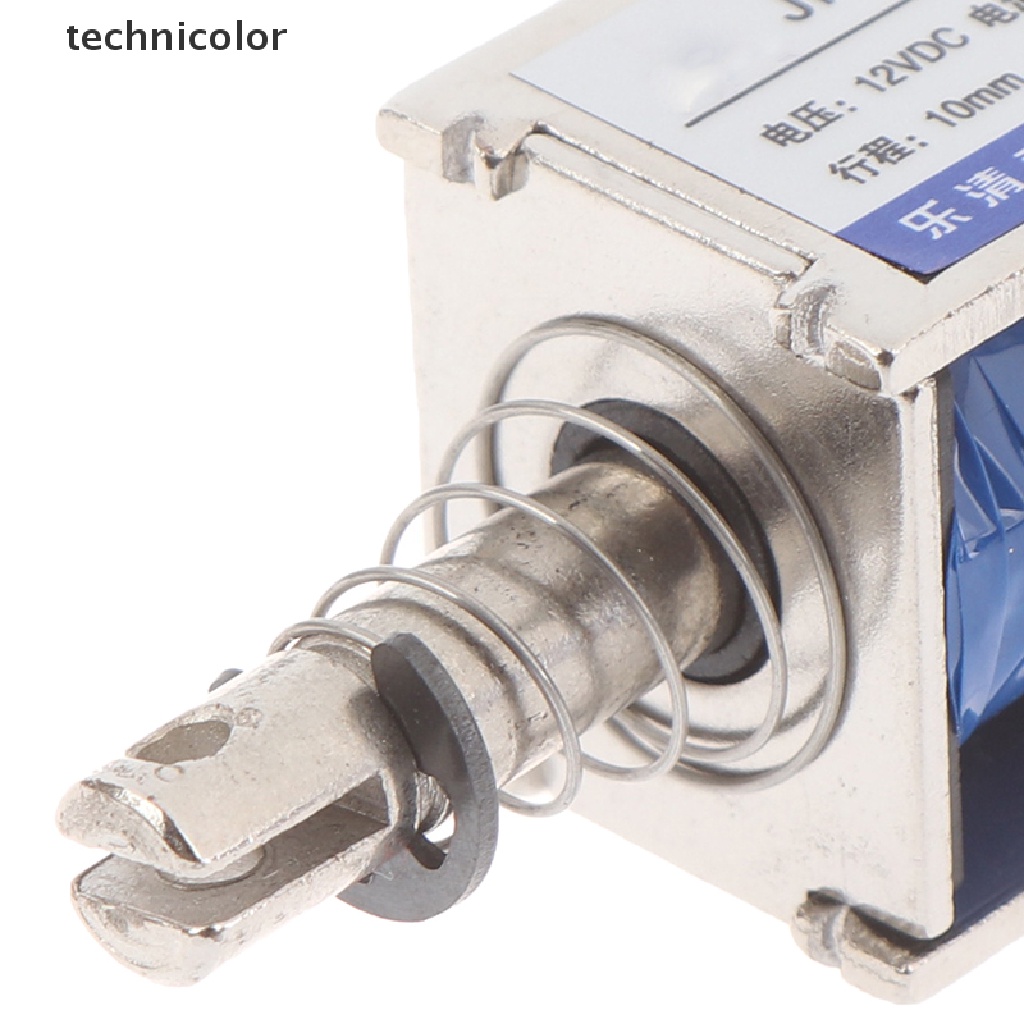

Plunger Diameter: 7.4mm/ 0.3''

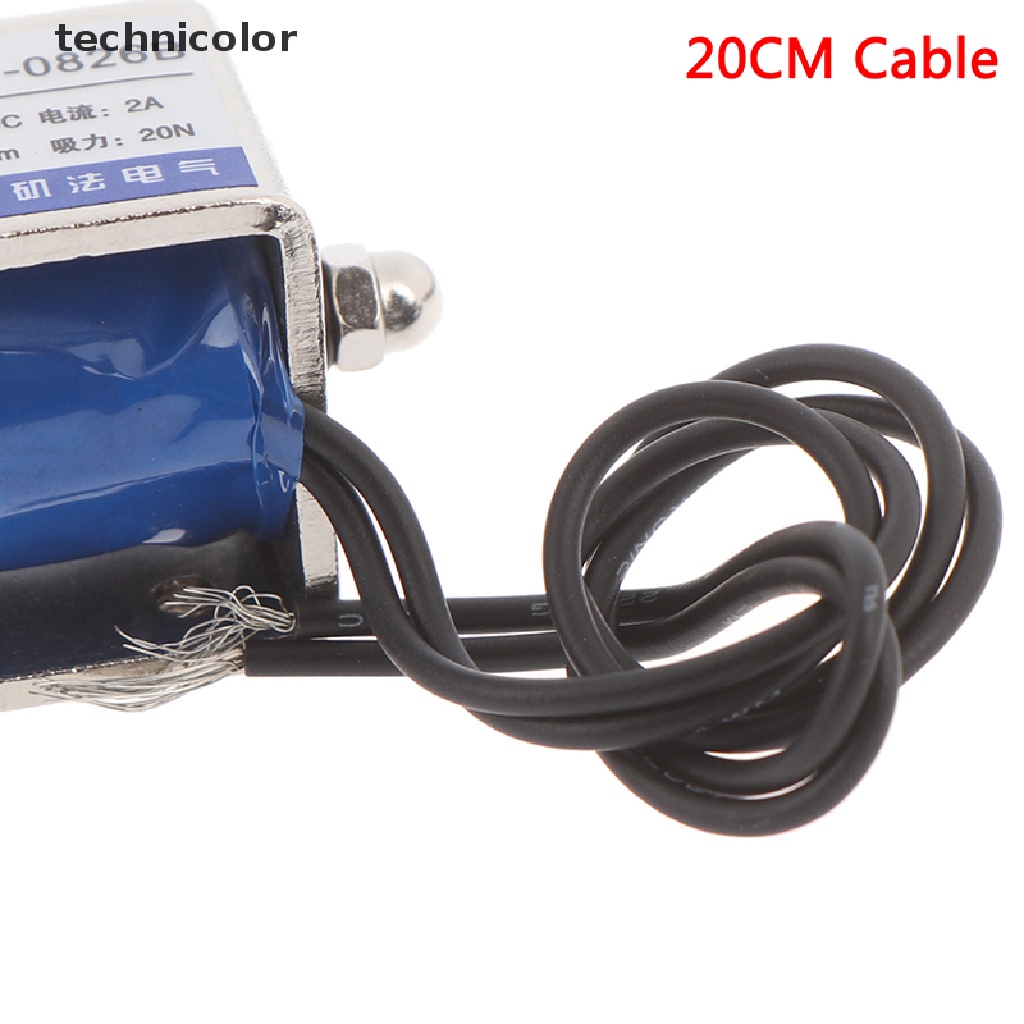

Cable Length: 20cm/ 7.9''
Package Included:
1PCS * DC12V 2A Push Pull Type Open Frame Solenoid Electromagnet Reset 10mm 20N
