Có thể bán buôn CNC USB MACH3 100Khz Red Break-out Board Hỗ trợ Động cơ bước Ổ đĩa Servo Westvirginia058 Hàng giao ngay

Giới thiệu Có thể bán buôn CNC USB MACH3 100Khz Red Break-out Board Hỗ trợ Động cơ bước Ổ đĩa Servo Westvirginia058 Hàng giao ngay

Video giới thiệu sản phẩm Có thể bán buôn CNC USB MACH3 100Khz Red Break-out Board Hỗ trợ Động cơ bước Ổ đĩa Servo Westvirginia058 Hàng giao ngay. Nguồn: Shopee.

@Dear master, it's been a long time for you, welcome to Xiaoer's industrial shop *westvirginia058*
❥(^_-)Welcome the owner to pay attention to Xiaoer's industrial shop, we will have more and more exquisite gifts waiting for the owner❥(^_-)
❥#This shop has enough stock, the owner can add and place an order if he finds his favorite products. The owner is also welcome to collect this shop#❥
%#After the owner places the order, Xiaoer will deliver the goods quickly#The quality and quantity will be delivered to the owner#%
❥(^_-) If you place an order for this shop again or again, you will get more benefits. Xiaoer looks forward to your additional purchase and order❥(^_-)

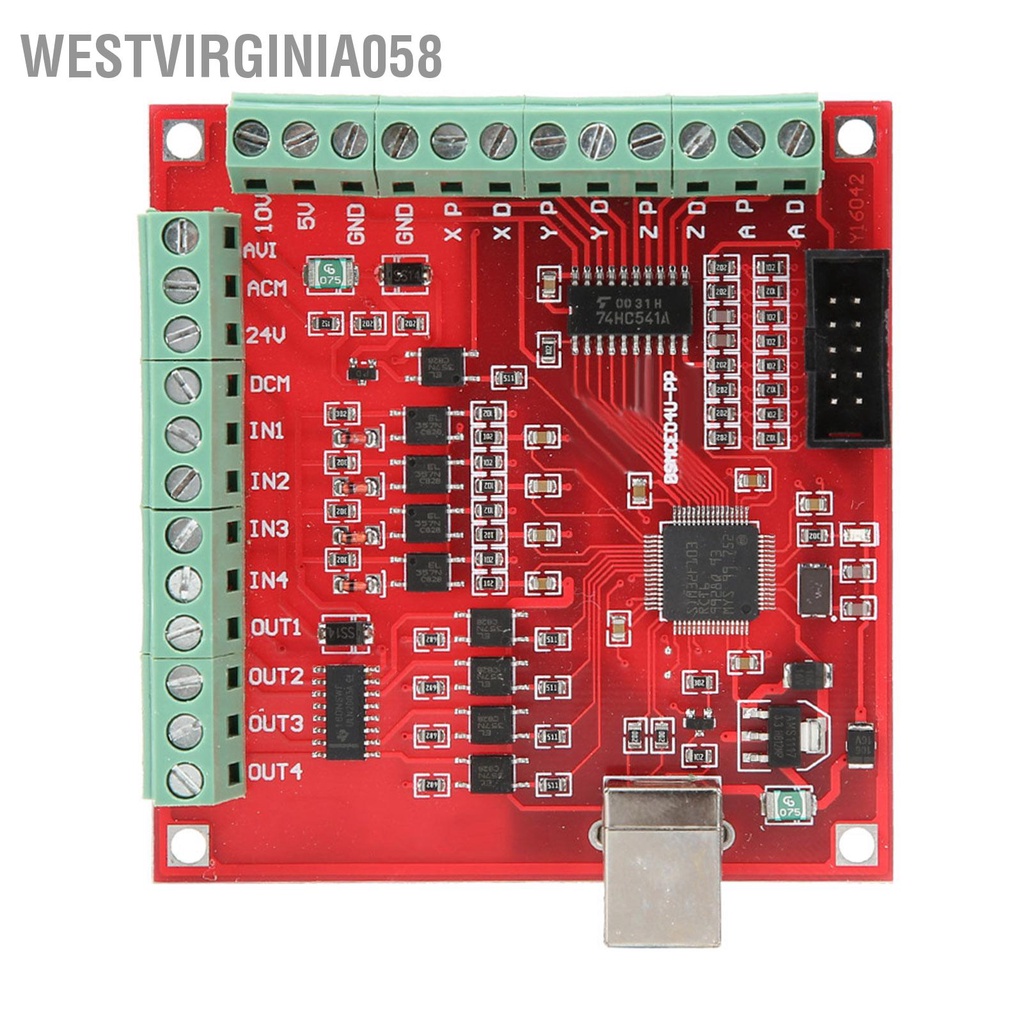

Features:
1. Support four-shaft linkage, can connect four stepper motor drive or servo drive
2. The maximum stepping pulse frequency is 100KHz, suitable for servo or stepper motor
3. Support automatic detection tools
4. Support emergency input
5. Support for connecting electronic handwheels
6. An external 24V DC power supply is required to isolate the USB and external port to make the system more stable.
7. With 0-10V output port, you can use mach3 software to control the spindle motor speed.
8. Universal input, can be connected to limit switch, estop switch, probe switch, 0 return, etc.
9. 4 universal isolation relay drive output interface, can drive 4 relays to control spindle start, forward and reverse, pump and other devices
10. With sate indicator, the state of the connection on the indicator board


Specification:
Condition: 100% Brand new
Item: Control Card

Package List:

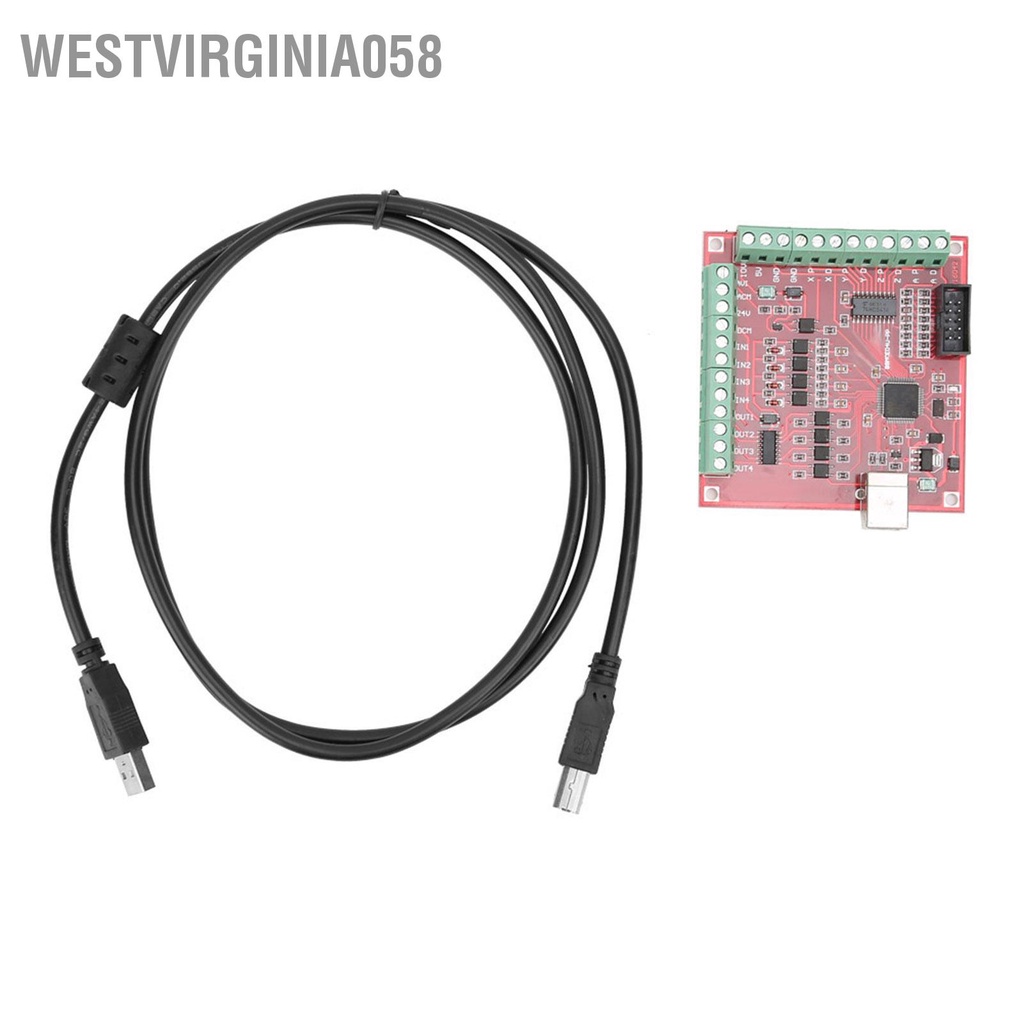

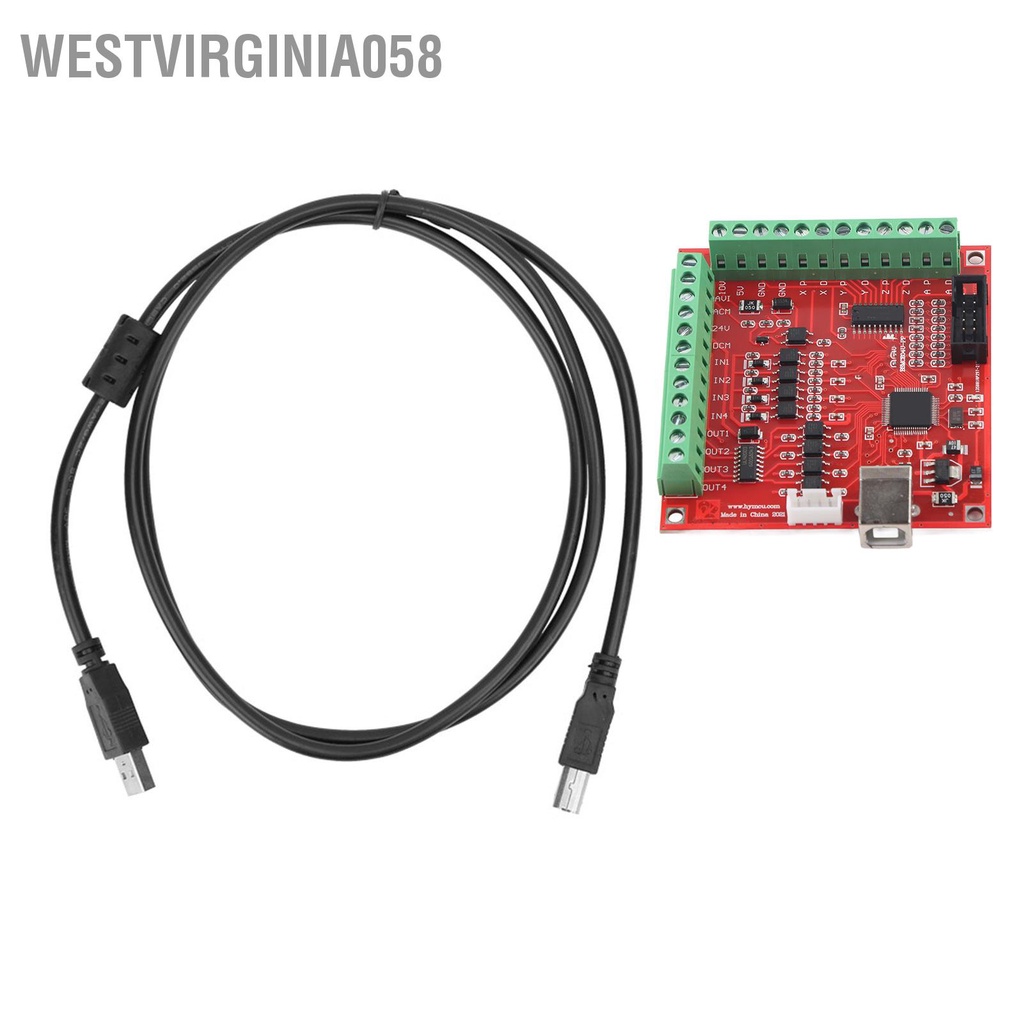

1 x Control Card
1 x Data Line
1 x CD

Note:

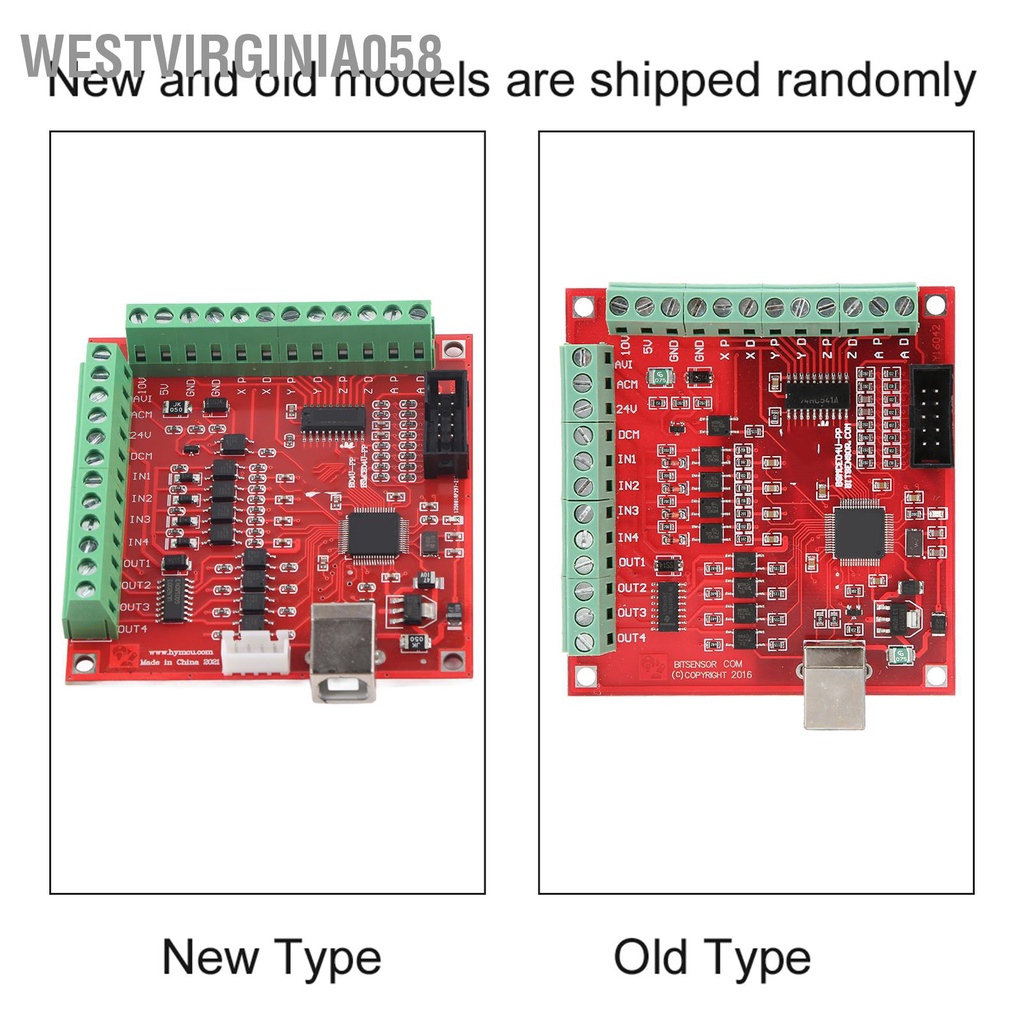

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
