Giới thiệu Có thể bán buôn DS04-NFC Động cơ giảm tốc xoay liên tục 360 độ Servos DC cho rô bốt RC Westvirginia058 Hàng giao ngay
Video giới thiệu sản phẩm Có thể bán buôn DS04-NFC Động cơ giảm tốc xoay liên tục 360 độ Servos DC cho rô bốt RC Westvirginia058 Hàng giao ngay. Nguồn: Shopee.
❥(^_-)Welcome the owner to pay attention to Xiaoer's industrial shop, we will have more and more exquisite gifts waiting for the owner❥(^_-)
❥#This shop has enough stock, the owner can add and place an order if he finds his favorite products. The owner is also welcome to collect this shop#❥
%#After the owner places the order, Xiaoer will deliver the goods quickly#The quality and quantity will be delivered to the owner#%
❥(^_-) If you place an order for this shop again or again, you will get more benefits. Xiaoer looks forward to your additional purchase and order❥(^_-)
Features:
1. High quality and fine workmanship, rust-proof, durable and practical.

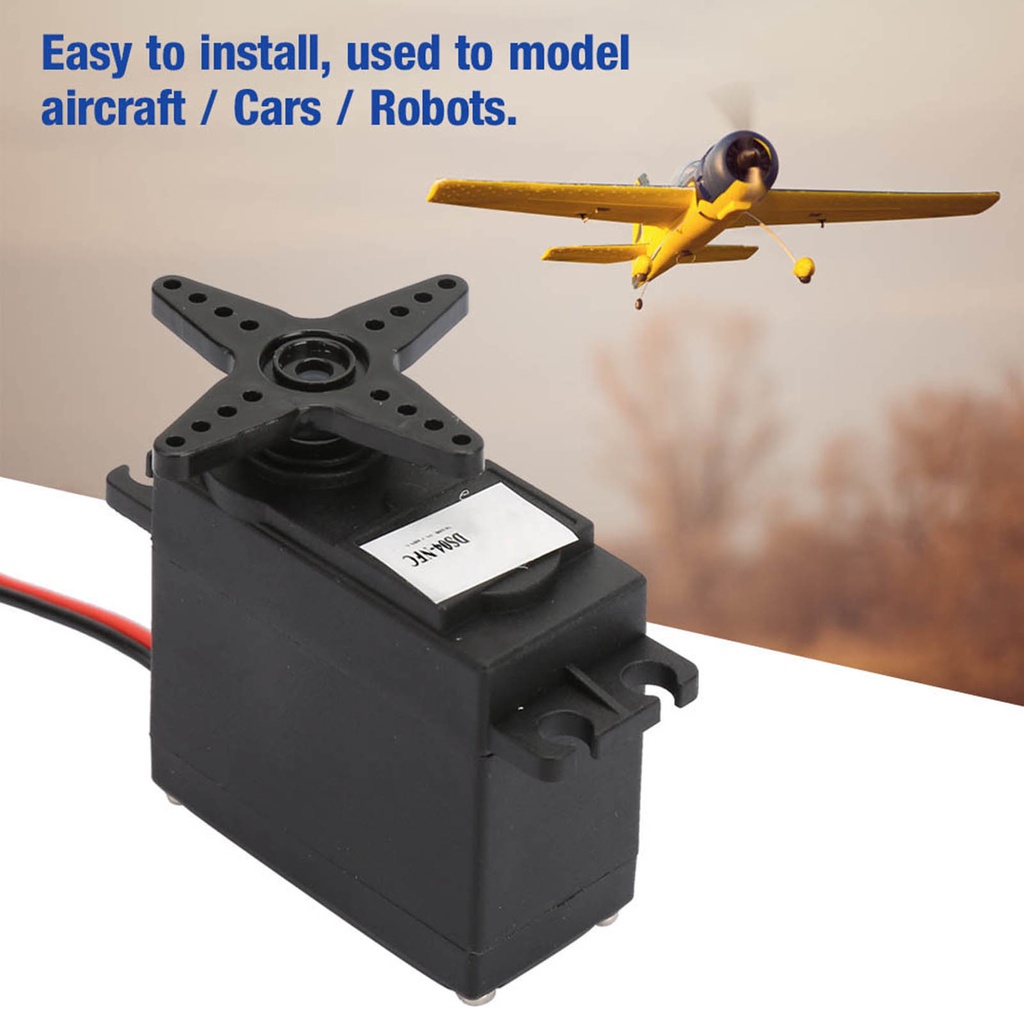

2. Easy to install, used to model aircraft / Cars / Robots.
3. Smooth edge design, good performance, stable and sturdy.
4. Compact & Save Space: Reasonable size and lightweight, portable for carrying and using.
5. The steering gear with a median adjustment potentiometer (open shell to pry the circuit board to see), debugging can be high pulse is set at 1.5 ms to observe the steering gear stall, if you stop and turn on the regulation potentiometer until the stall so far, so the zero.
Specification:
Condition: 100% Brand New
Item Type: 360 Degree Continuous Rotation Servo Motor
Material: Metal + Plastic
Color: Black

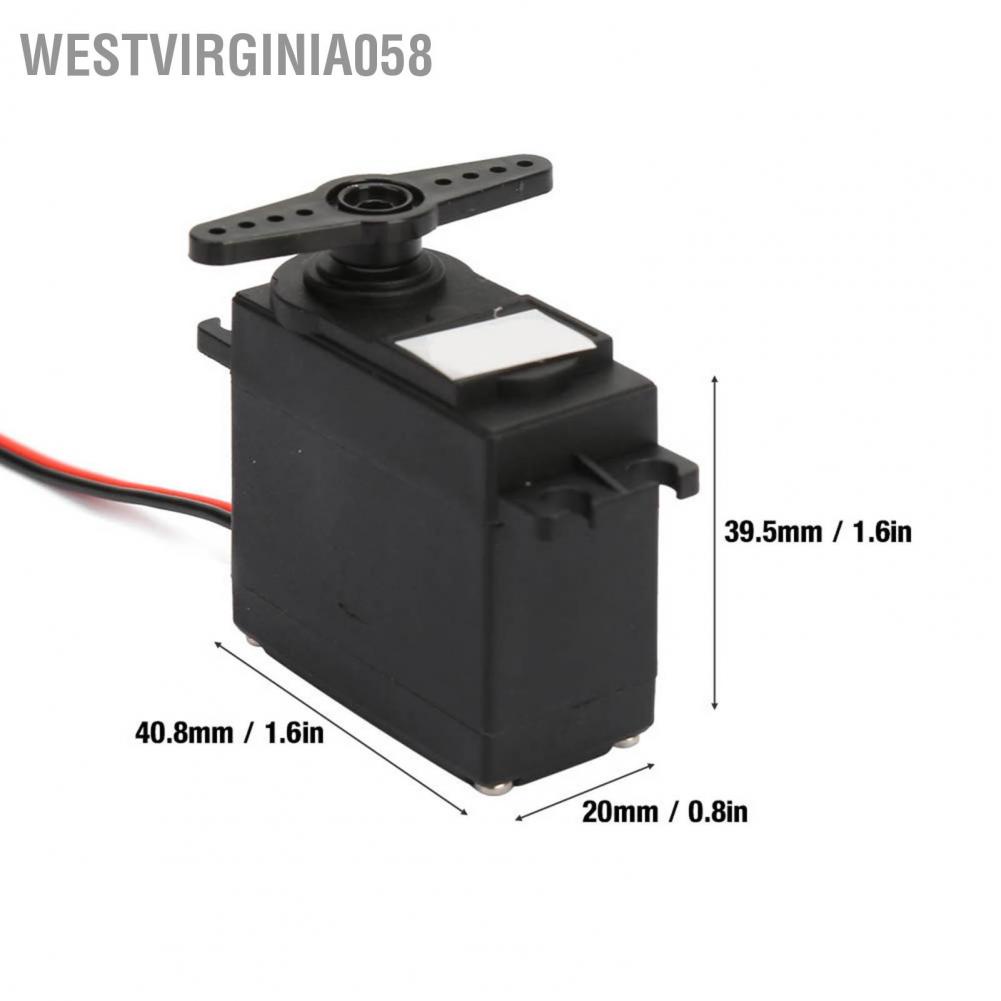

Product Size: Approx. 40.8*20*39.5mm / 1.6*0.8*1.6inch
Weight: Approx. 52g / 1.8oz
Torque: 5.5kg/cm (at 4.8V)
Uses: Aircraft models, Car models, Robots, etc.
Working Voltage: 4.8V-6V
Operating Temperature: 0°C - 60°C
Current Usage: <1000mA
Wiring Method:
As can be seen from the figure, the steering gear has three lines: red line, black line, and white line.
1. The red line is the positive pole of the power supply, connected to the positive pole of the 5V-6V DC power supply.
2. Black wire is connected to the negative pole of the power supply.
3. White line signal input, which is the 50HZ signal input line mentioned above.

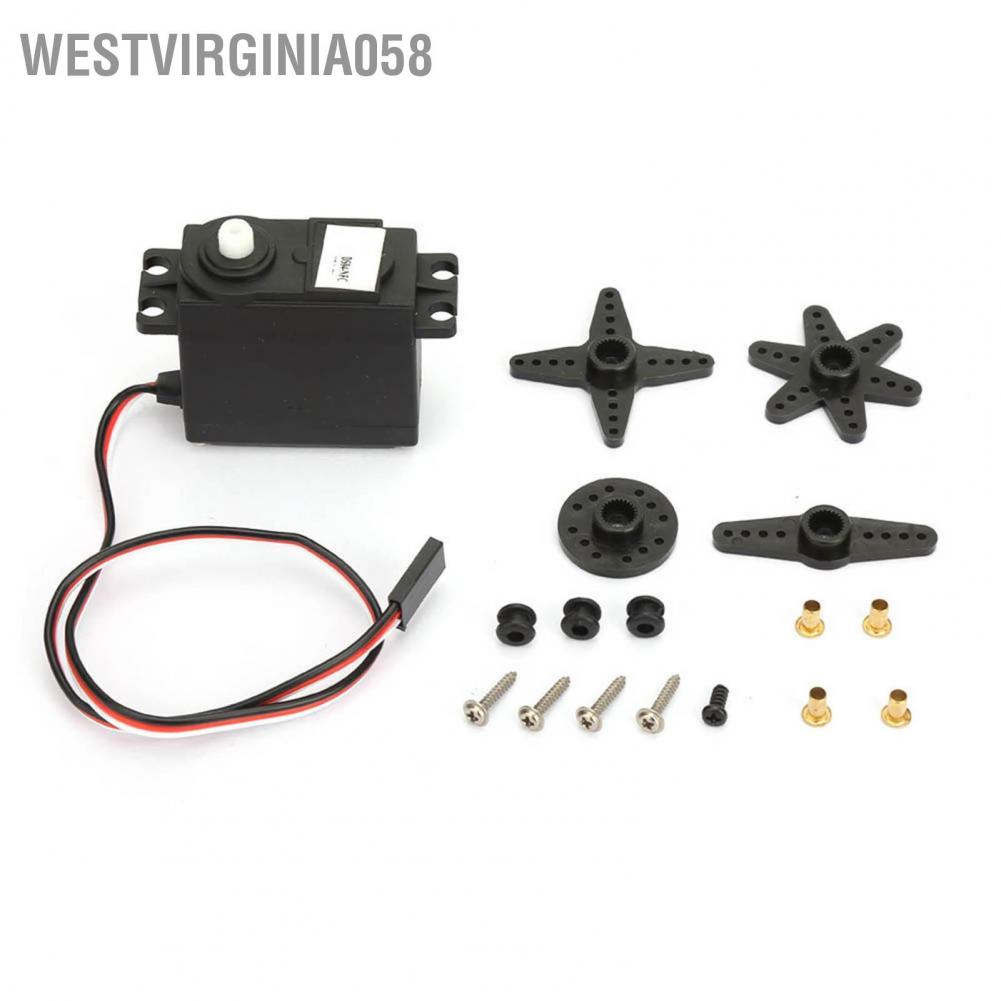

Package list:
1 x 360 Degree Continuous Rotation Servo Motor
4 x Rocker Arm
4 x Rocker Arm Cap
4 x Rat-tail Screw
4 x Flat Tail Screw
1 x Black Flush Tail Screw
Notes:
1. The actual product color may deviate from the photo due to light.
2. There may be a slight deviation in the measurement of product.
